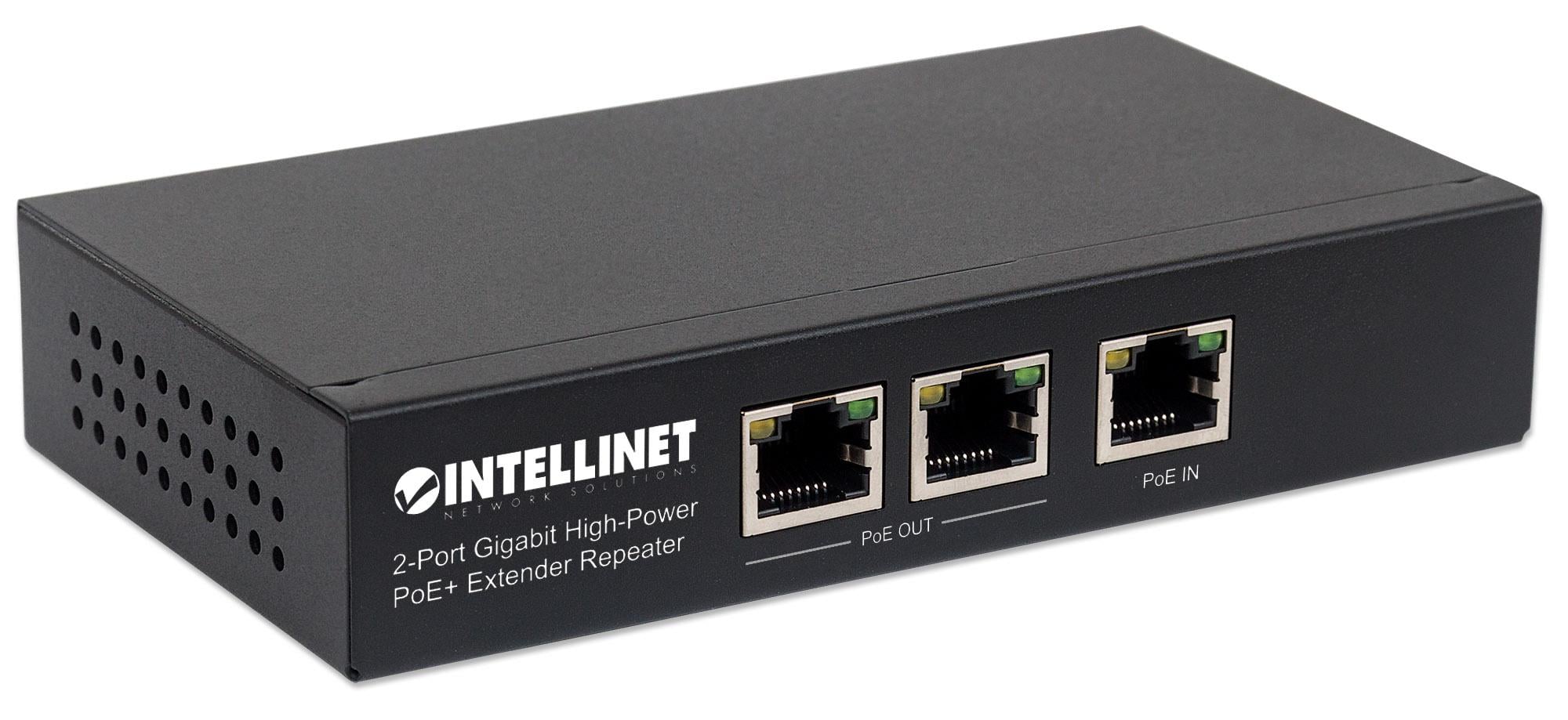

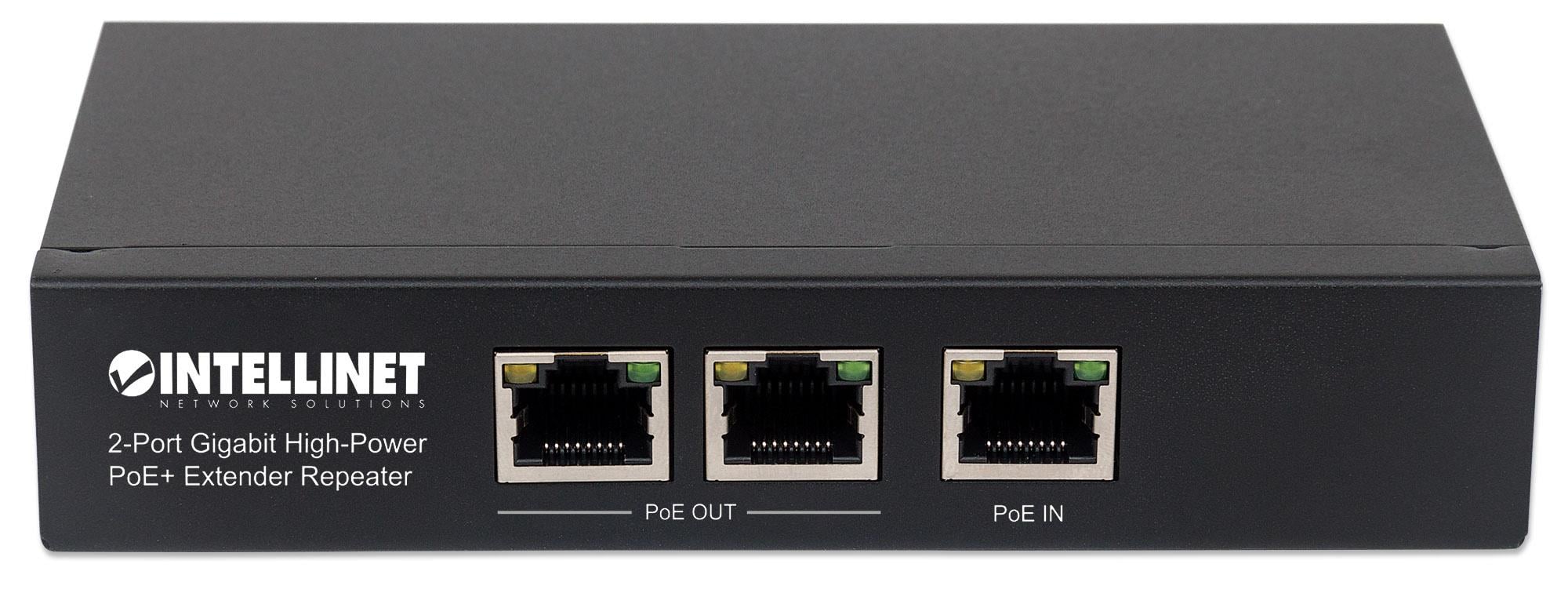

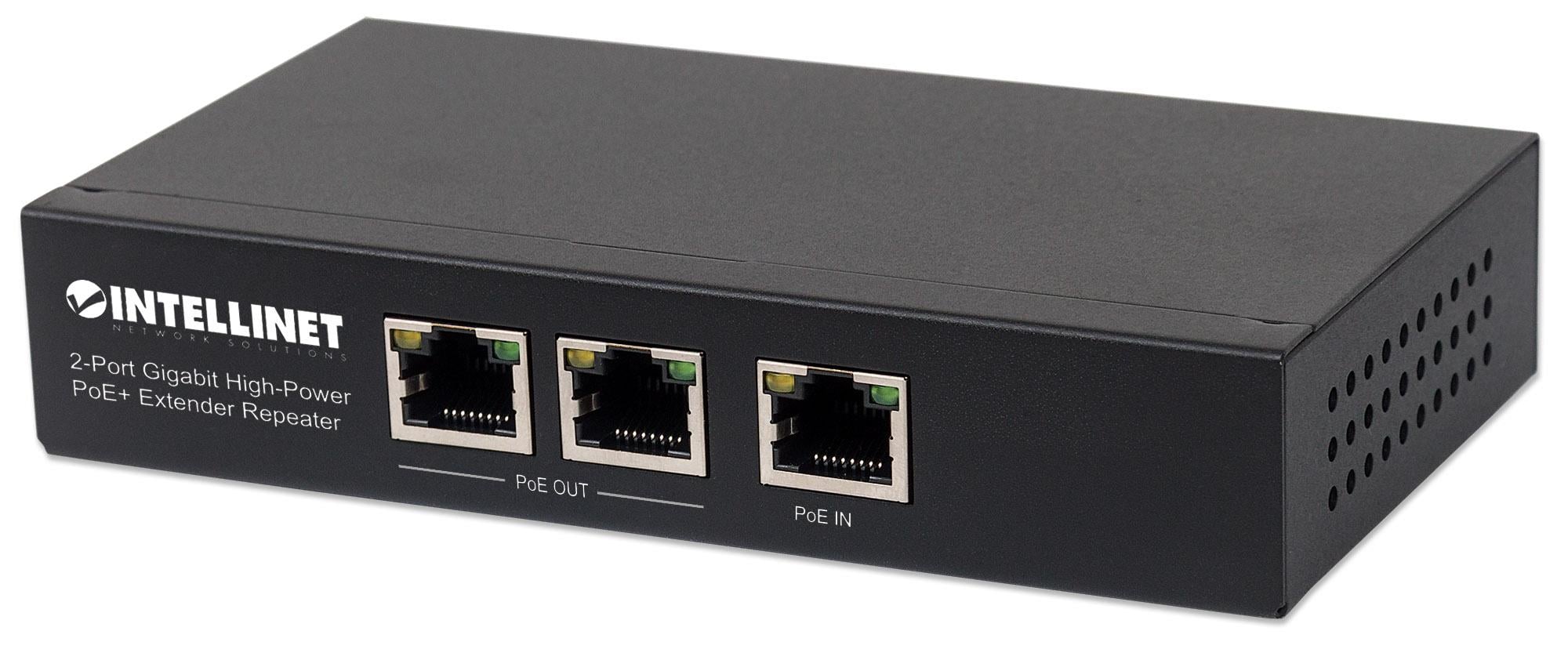

High power PoE+ extender repeater 2 Gigabit ports - Intellinet I-SWHUB 8000SI

€50.43
Tax included €41.30 excl. VAT

PoE+ repeater that extends the connection distance up to 200 m. Provides up to 25 W per PoE device. Powered directly from the PoE input.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Allows you to connect and power two PoE devices such as network cameras, wireless access points or VoIP phones from a PoE injector or a PoE switch with PSE port

  • Doubles the connection distance between the PoE source and the device from 100 m to 200 m

  • Saves time and money by providing data and power over existing network cables

  • Supports transmission speeds 10/100/1000 Mbps and provides up to 25 W for connected PoE devices

  • The PoE function ensures that power is sent only to IEEE 802.3af/at compatible devices; non-PoE devices receive only data

  • Does not require additional power; powered directly from the PoE input

  • Compatible with IEEE 802.3at/af compliant POE injectors and switches (PSE)

  • Compatible with IEEE 802.3at/af compliant powered devices (PD)

  • Gigabit switch with 3 PoE ports with PoE Passthrough

  • Switch 3.6 Gbps

  • Supports jumbo frames up to 9 kBytes

  • Supports 2048 MAC addresses

  • LED for PoE and data

  • Fanless design ideal for silent operation

  • Compact metal housing



Standard

  • IEEE 802.3af (Power over Ethernet)

  • IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)

  • IEEE 802.3 (10Base-T Ethernet)

  • IEEE 802.3ab (Gigabit Ethernet)

  • IEEE 802.3u (100Base-TX Fast Ethernet)



Features

  • Supported media:


- 100Base-TX Cat5 UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

  • Ports:


- One input port RJ45 10/100/1000 Mbps for 48V compatible IEEE 802.3af/at

- Two output ports RJ45 10/100/1000 Mbps

  • MAC table: 2048 addresses

  • Memory buffer: 256 kB

  • Backplane speed: 6 Gbps

  • Switch architecture: store and forward

  • Certifications: FCC Class A, CE



LED

  • PoE

  • Activity/Connection



PoE pinout

  • IEEE 802.3af standard Mode A


- Pin 1: DC (+)

- Pin 2: DC (+)

- Pin 3: DC (-)

- Pin 6: DC (-)



Power

  • Maximum PD output power: 25 W

  • Input power: IEEE 802.3af / at-compliant PSE, max 30 W, 52-55 V DC



Physical Features

  • Metal housing

  • Dimensions: 77 (L) x 140 (W) x 28 (H) [mm]

  • Weight: 0.1 kg

  • Operating temperature: -10 – 45°C

  • Storage temperature: -40° to 70°C

  • Operating humidity: 5 – 90% RH, non-condensing

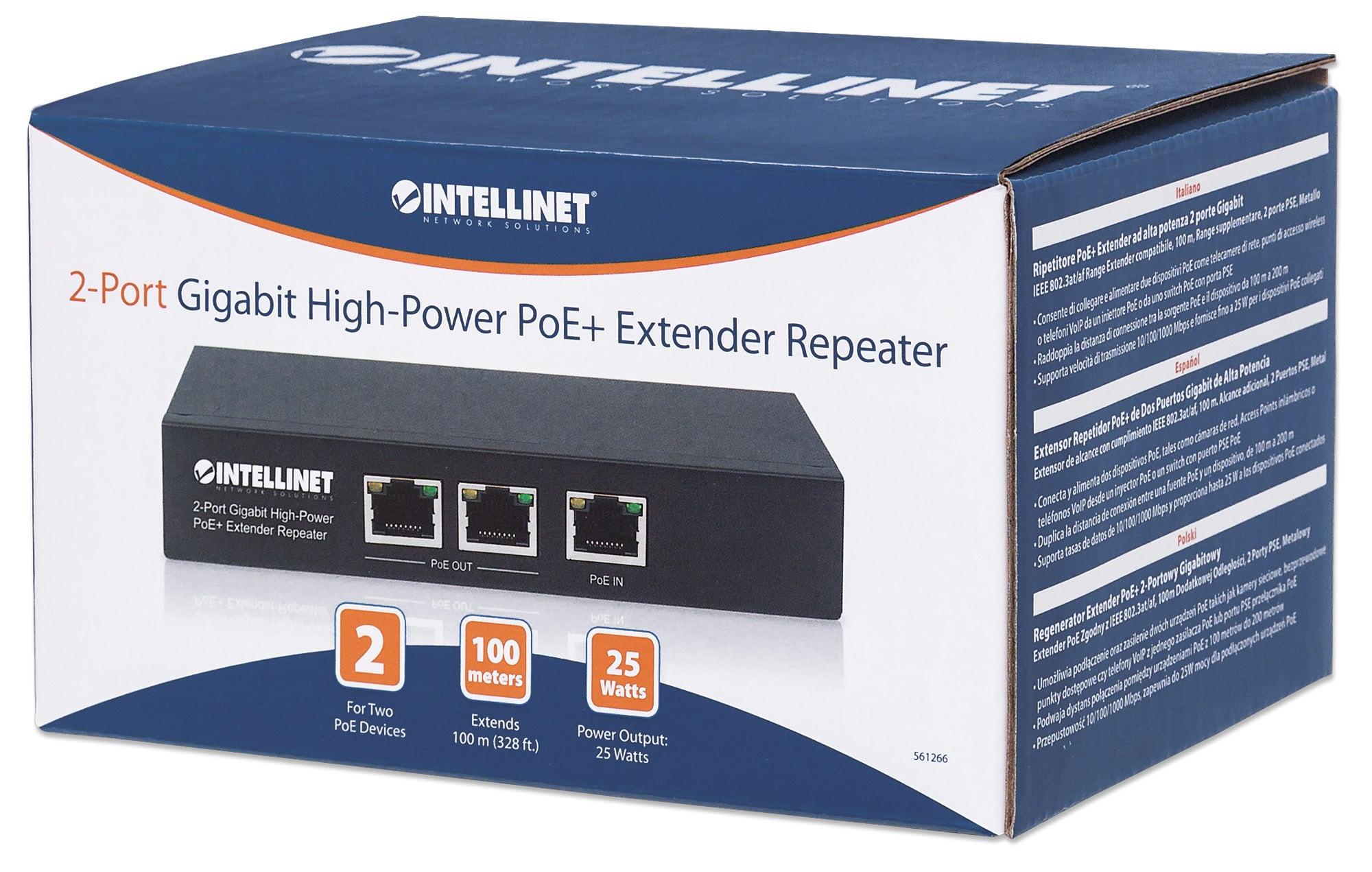

Package contents

  • ad alta potenza Gigabit PoE+ Extender with 2 ports

  • Instruction manual

  • Brand
  • Reference
    I-SWHUB 8000SI
  • In stock
    320 Items
  • EAN13
    0766623561266
