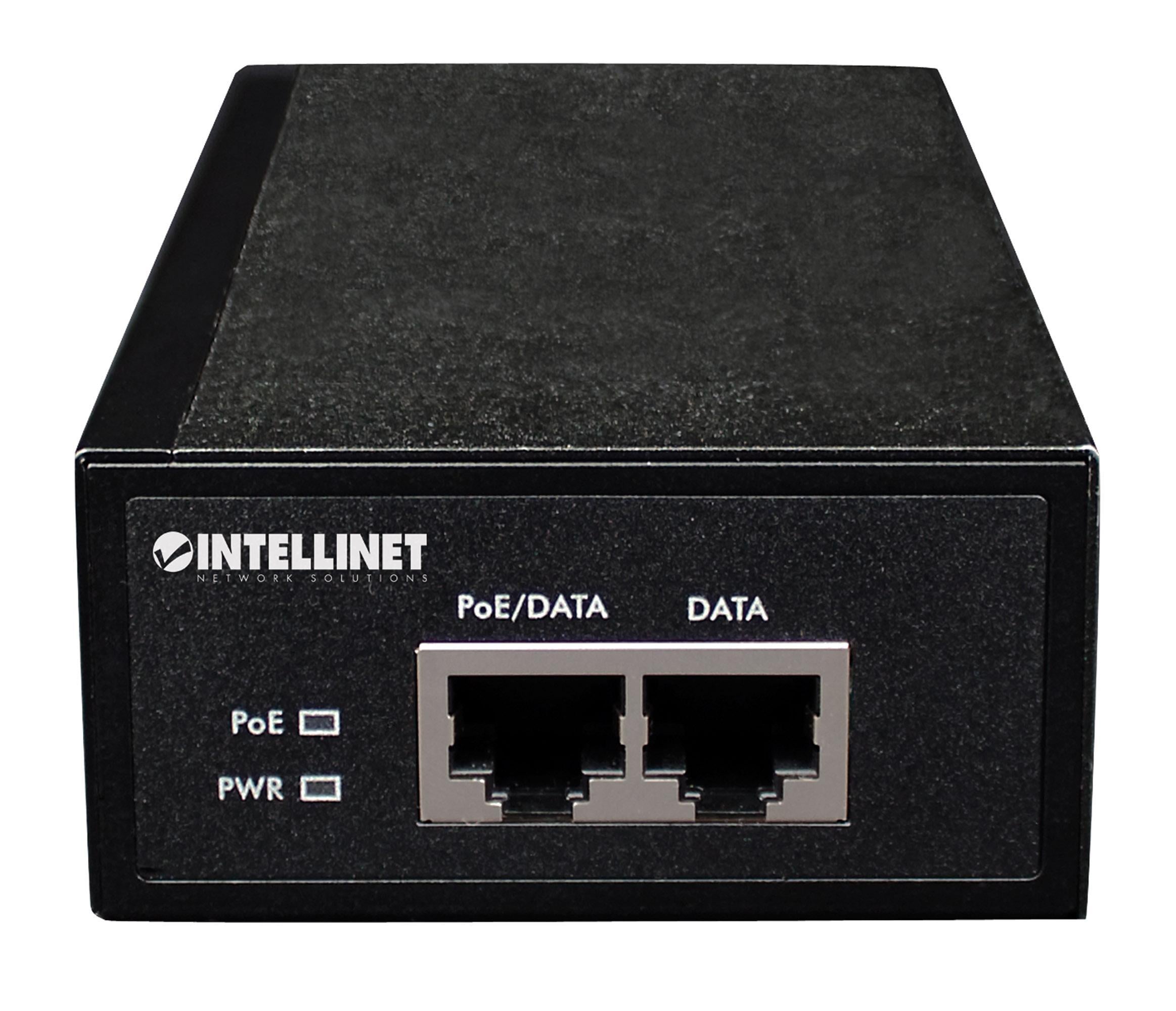

Gigabit High-Power PoE+ Injector - Intellinet I-SWHUB POE-GIGA

€50.30
Tax included €41.20 excl. VAT

Gigabit PoE+ Injector with power output up to 30 Watt. Supports IEEE 802.3af/at, 10/100/1000 Mbps. Protection against short circuit, overload and high voltage. 1 input port RJ45 and 1 data+power port RJ45.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Save time and money, system that combines data and power in a single device via Lan

  • Power output up to 30 Watt

  • Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless LAN access points and bridges, VoIP phones (Voice over Internet Protocol), IP surveillance cameras)

  • Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection



Standard

  • IEEE 802.3af (Power over Ethernet)

  • IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)

  • IEEE 802.3 (10Base-T Ethernet)

  • IEEE 802.3ab (Gigabit Ethernet)

  • IEEE 802.3u (100Base-TX Fast Ethernet)



General information

  • Supports:


- 100Base-TX Cat5 UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

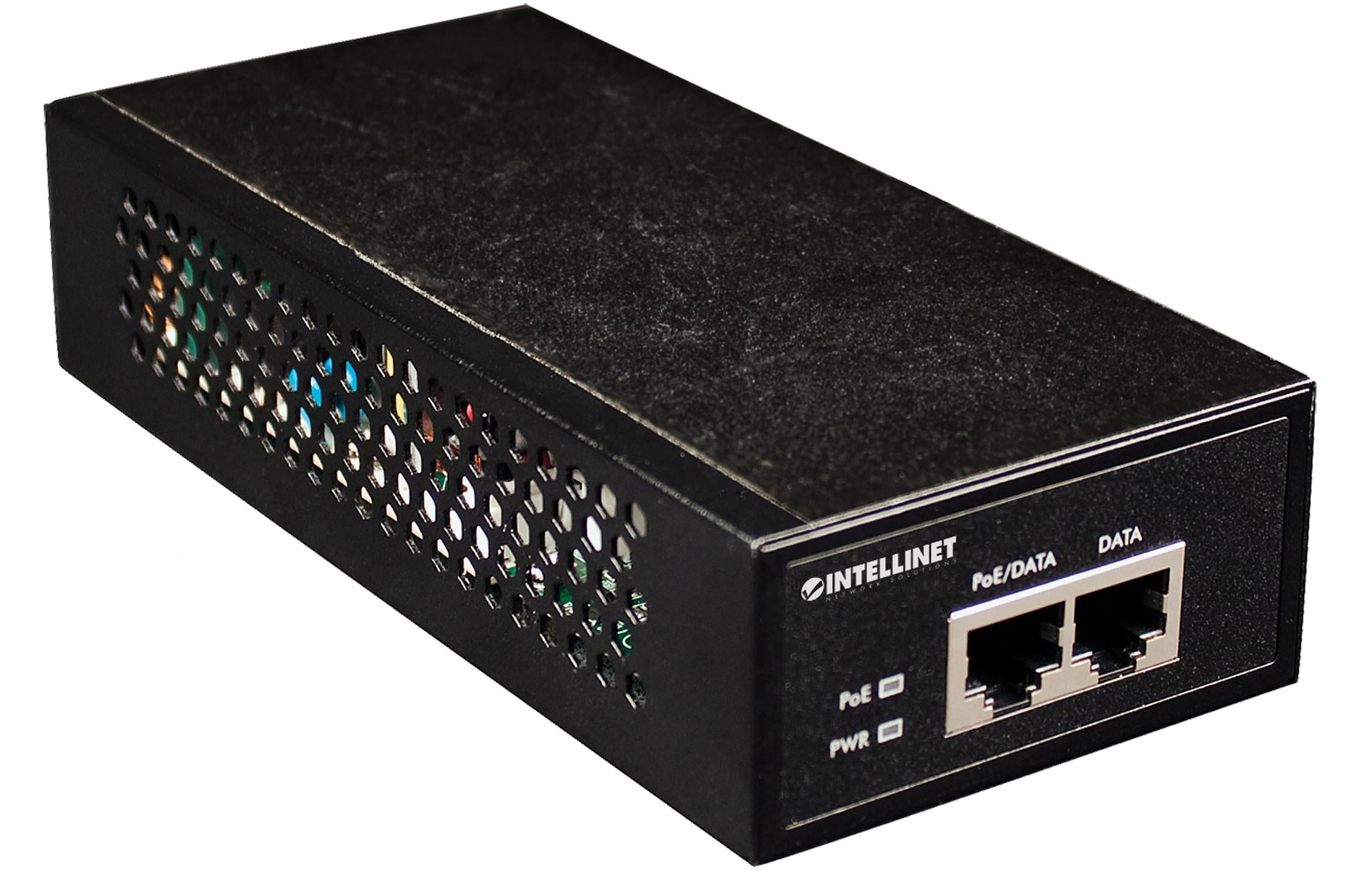

  • Ports:


- 1 input port RJ45 1000 Mbps

- 1 data and power port RJ45 1000 Mbps

- 1 input power connector for external power supply

  • Protection Functions:


- Protection against short circuit for GND short

- Overload protection for currents exceeding 1.8 A

- High voltage protection for outputs exceeding 58 V

  • Compatibility - general: all PoE devices compliant with IEEE 802.3at and IEEE 802.3af

  • Certifications: FCC Class A Part 15, CE



RJ45 input connector pinout

  • Pin 1: Rx+ (data receive)

  • Pin 2: Rx- (data receive)

  • Pin 3: Tx+ (data transmit)

  • Pin 4: NC (not connected)

  • Pin 5: NC (not connected)

  • Pin 6: Tx- (data transmit)

  • Pin 7: NC (not connected)

  • Pin 8: NC (not connected)



RJ45 output connector pinout (Data + Power)

  • Pin 1: Rx+ (data receive) and feeding power [+}

  • Pin 2: Rx- (data receive) and feeding power [+}

  • Pin 3: Tx+ (data transmit) and feeding power [-}

  • Pin 4: NC (not connected)

  • Pin 5: NC (not connected)

  • Pin 6: Tx- (data transmit) and power feeding [-)

  • Pin 7: NC (not connected)

  • Pin 8: NC (not connected)



LED

  • PoE, Power supply

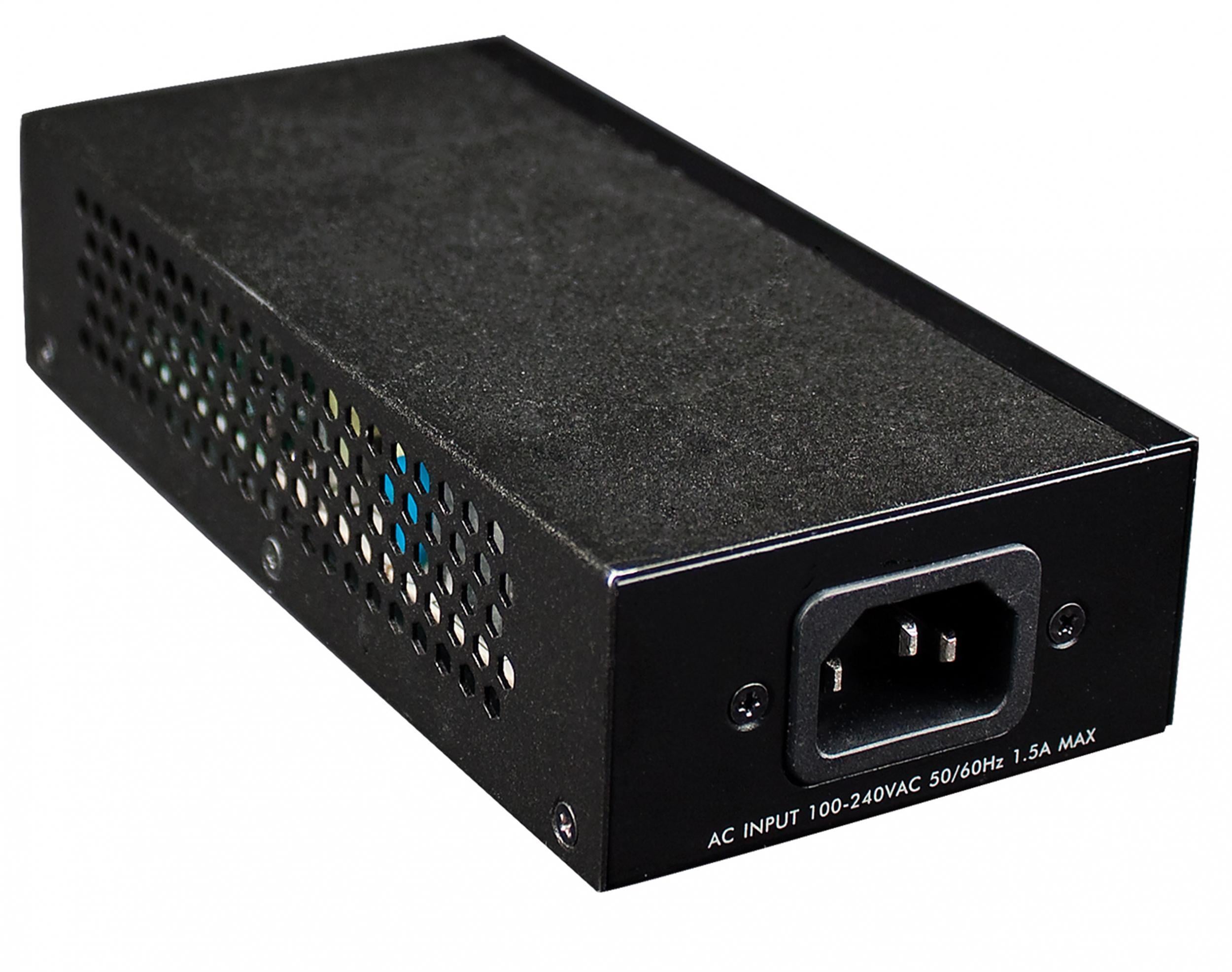

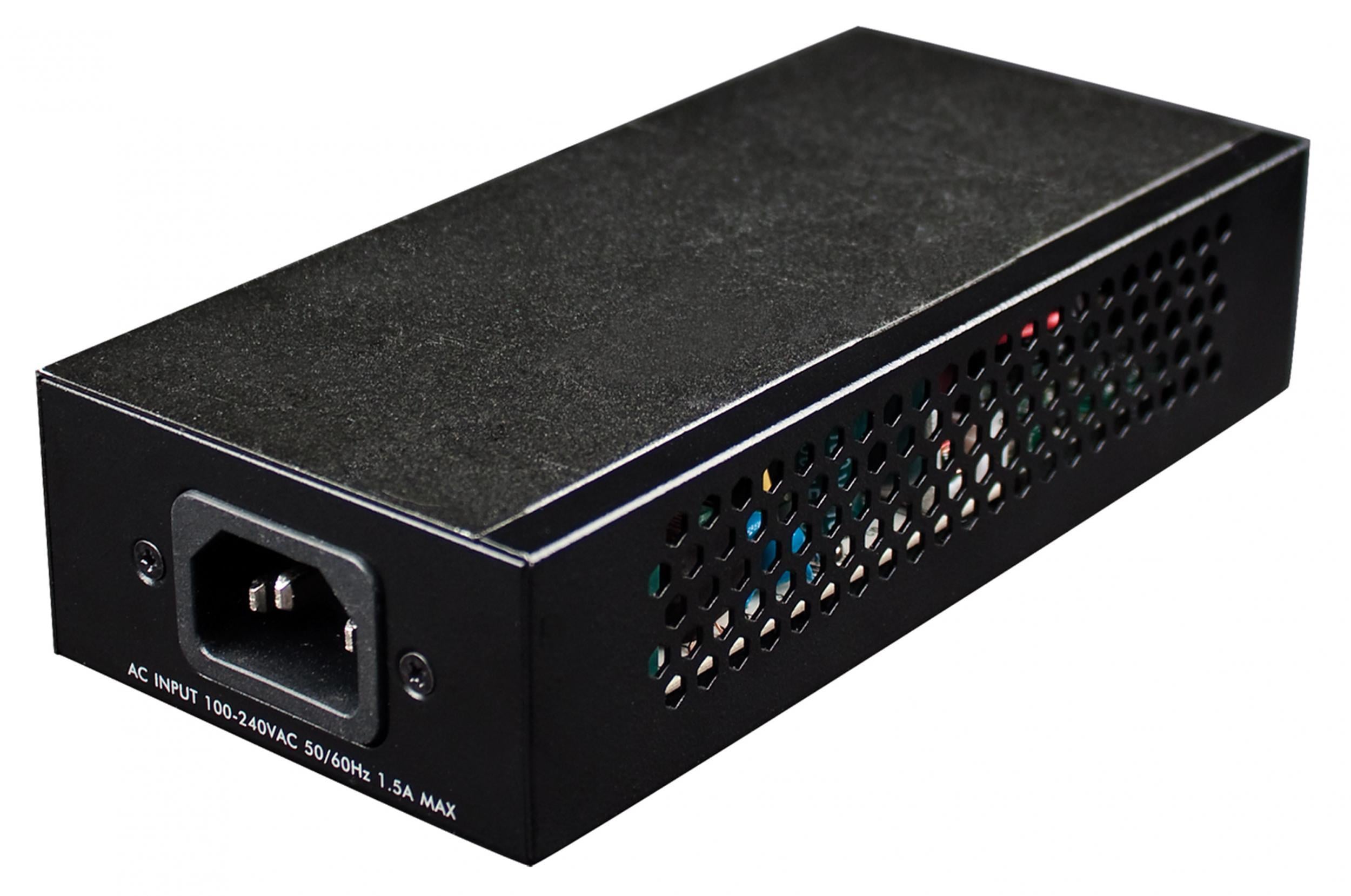

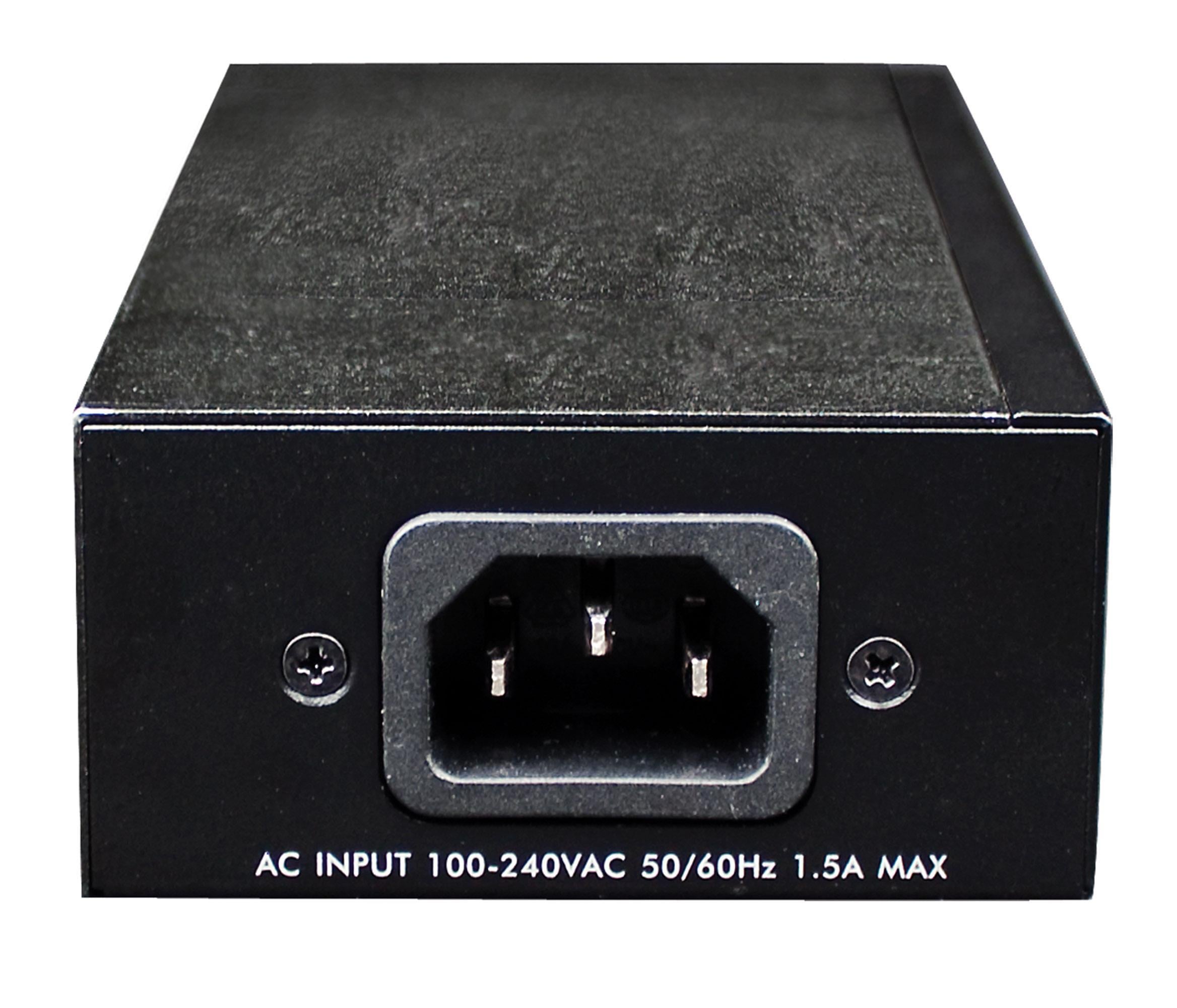

Power

  • Input: 100 – 240 V AC, 50 – 60 Hz

  • Power consumption: 42 Watt (maximum)



Environmental

  • Metal structure

  • Dimensions: 154 (L) x 72 (W) x 35 (H) mm

  • Weight: 0,79 kg

  • Operating temperature: 5 – 45°C (41-113°F)

  • Operating humidity: 10 – 90% RH, non-condensing

  • Storage temperature: -20 – 55°C



Package contents

  • 1-Port Gigabit ad alta potenza PoE Injector

  • Power cable

  • Installation kit (2 screws and wall brackets)

  • Quick installation guide

  • Brand
  • Reference
    I-SWHUB POE-GIGA
  • In stock
    192 Items
  • EAN13
    0766623560566
