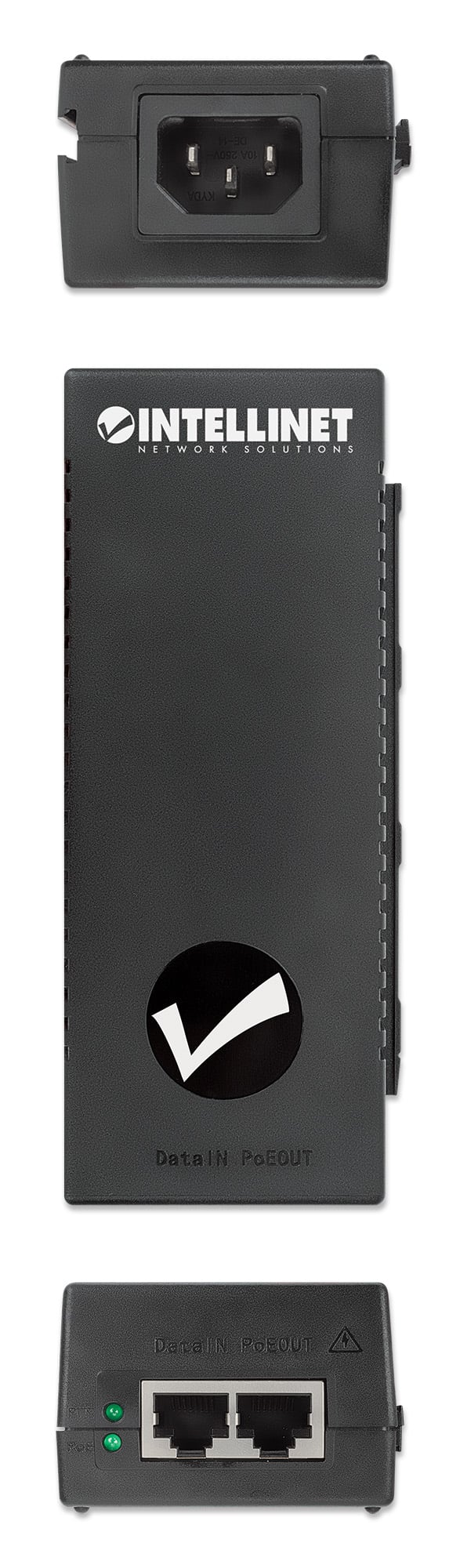

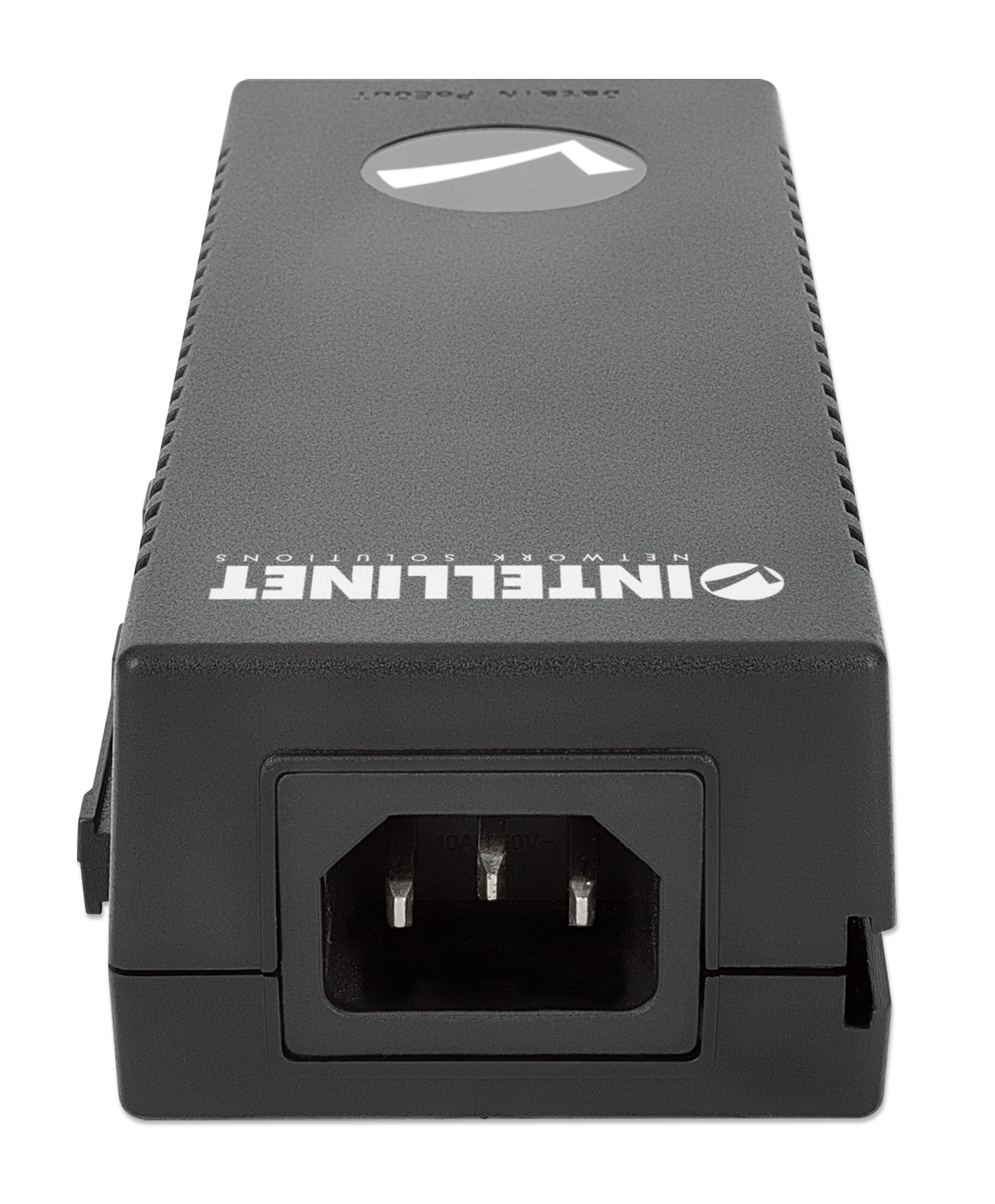

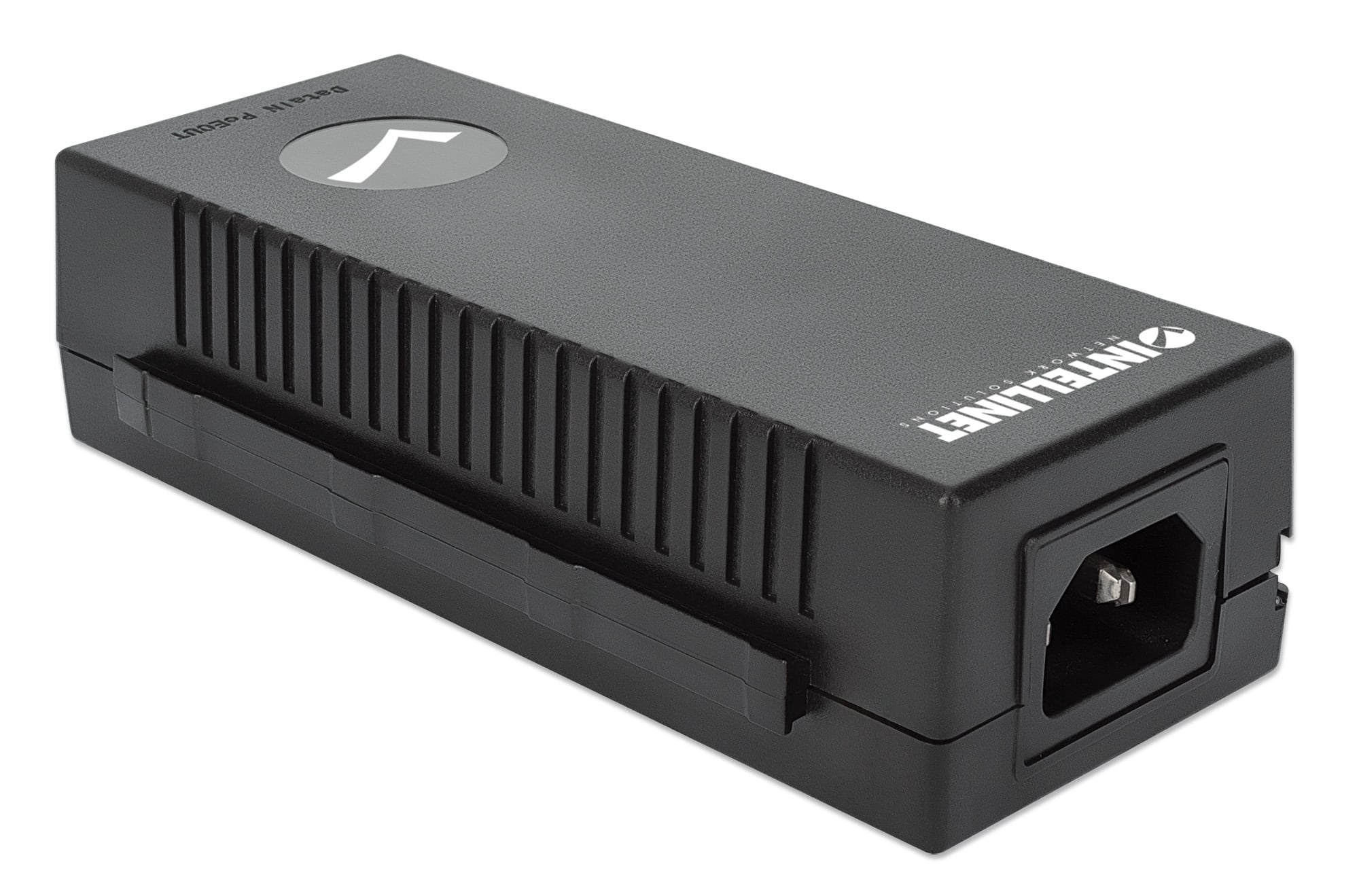

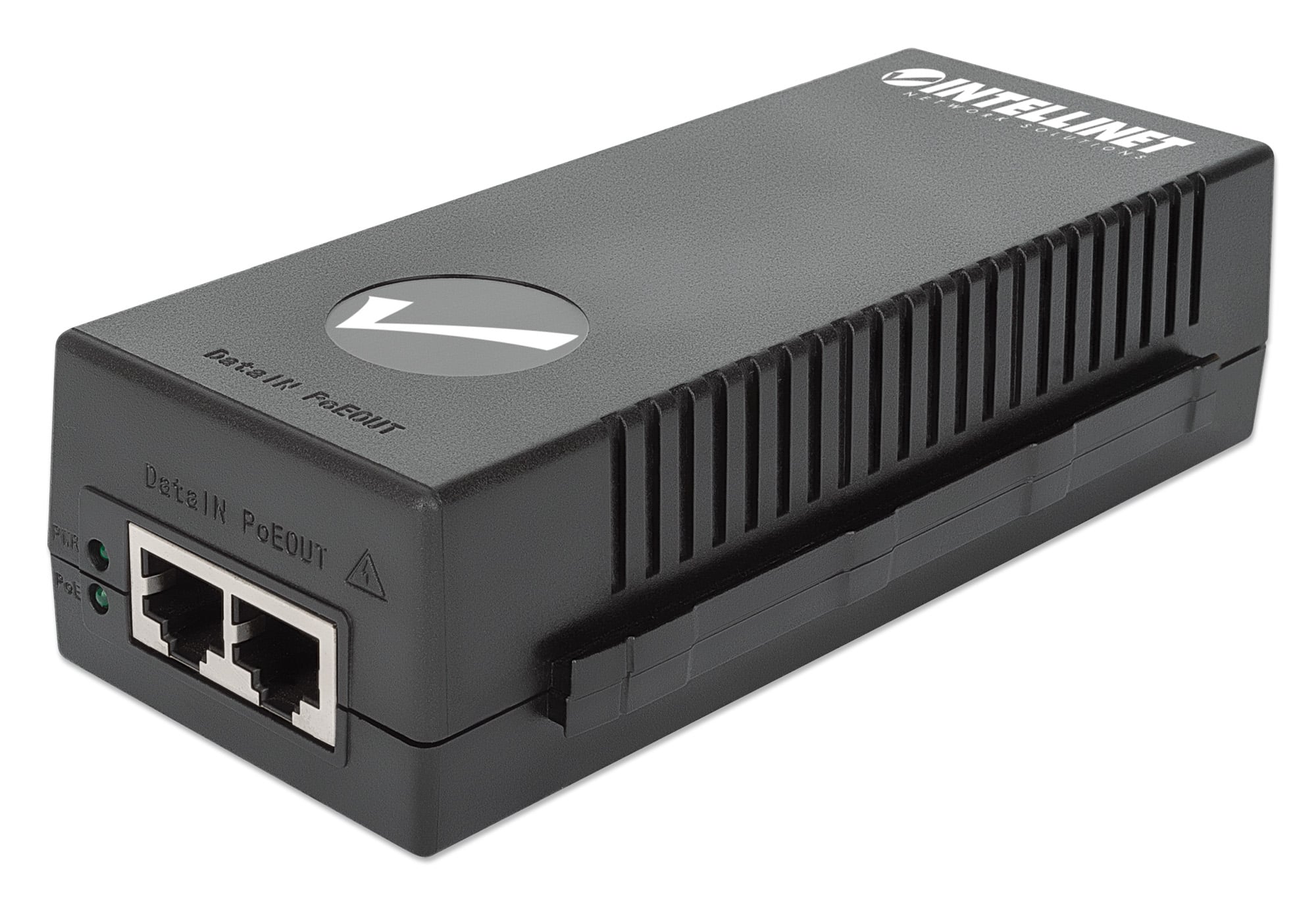

Gigabit PoE+ Ultra Power Injector 100m - Intellinet I-SWHUB 6000SI

• Saves time and money by providing data and power over an existing wired network


• Output power up to 60 watt on Cat5 or Cat6 four-pair network cable


• Compatible with standard IEEE 802.3bt Type 3 (Ultra-PoE+), IEEE 802.3at and IEEE 802.3af


• Supports IEEE 802.3at and IEEE 802.3af compatible devices (Wireless access points and bridges, VoIP phones [Voice over Internet Protocol], IP surveillance cameras


• Supported distance: up to 100m


• Internal power supply


• Fanless design ideal for silent operation



Standard

• IEEE 802.3af (Power over Ethernet)


• IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)


• IEEE 802.3bt (4 Pair Power over Ethernet, level 3, 55 w)


• IEEE 802.3 (10Base-T Ethernet)


• IEEE 802.3ab (Gigabit Ethernet)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3x (flow control for full duplex mode)



General information

• Supports:



- 100Base-TX Cat5 UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

• Ports:



- One RJ45 10/100/1000 Mbps input port

- One RJ45 10/100/1000 Mbps output port for data and power

• Protection Functions:



- Short-circuit protection

- Overcurrent protection

- Overvoltage protection

• PoE pinout



- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 4: DC (+)

- Pin 5: DC (+)

- Pin 6: DC (+)

- Pin 7: DC (-)

- Pin 8: DC (-)

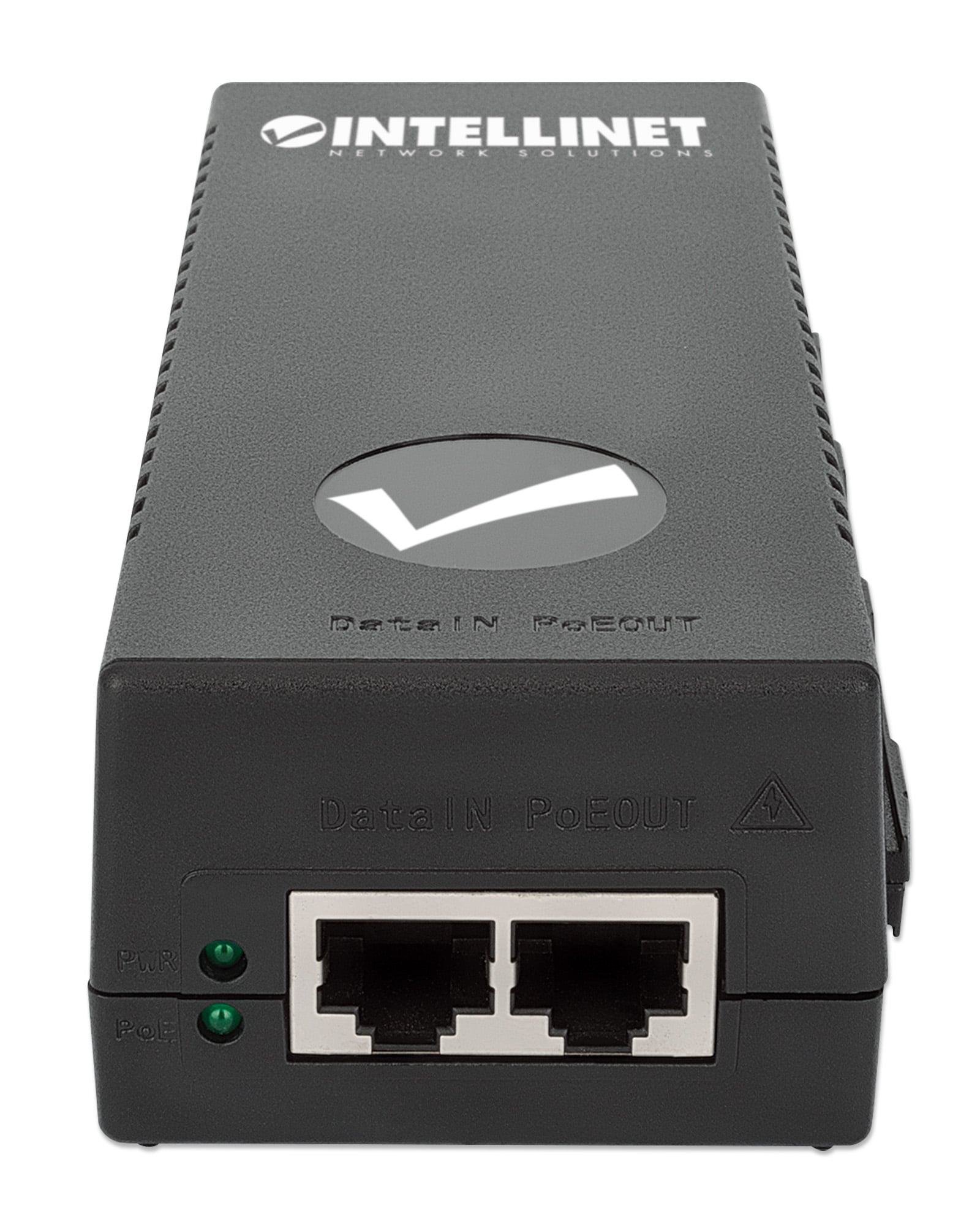

LED

• Dual-color LED for power and PoE



Power

• Input: 100 – 240 V AC, 50 – 60 Hz


• Output: 48 V DC, 1.25 A


• Power consumption: 60 watt (maximum)



Physical information

• Plastic casing


• Dimensions: 123 (L) x 61 (D) x 40 (H) [mm]


• Weight: 0.29 kg


• Operating temperature: 0 – 40°C


• Operating humidity: 10 – 90% RH, non-condensing


• Storage temperature: -20 - 80°C



Certifications

• CE


• FCC Class A

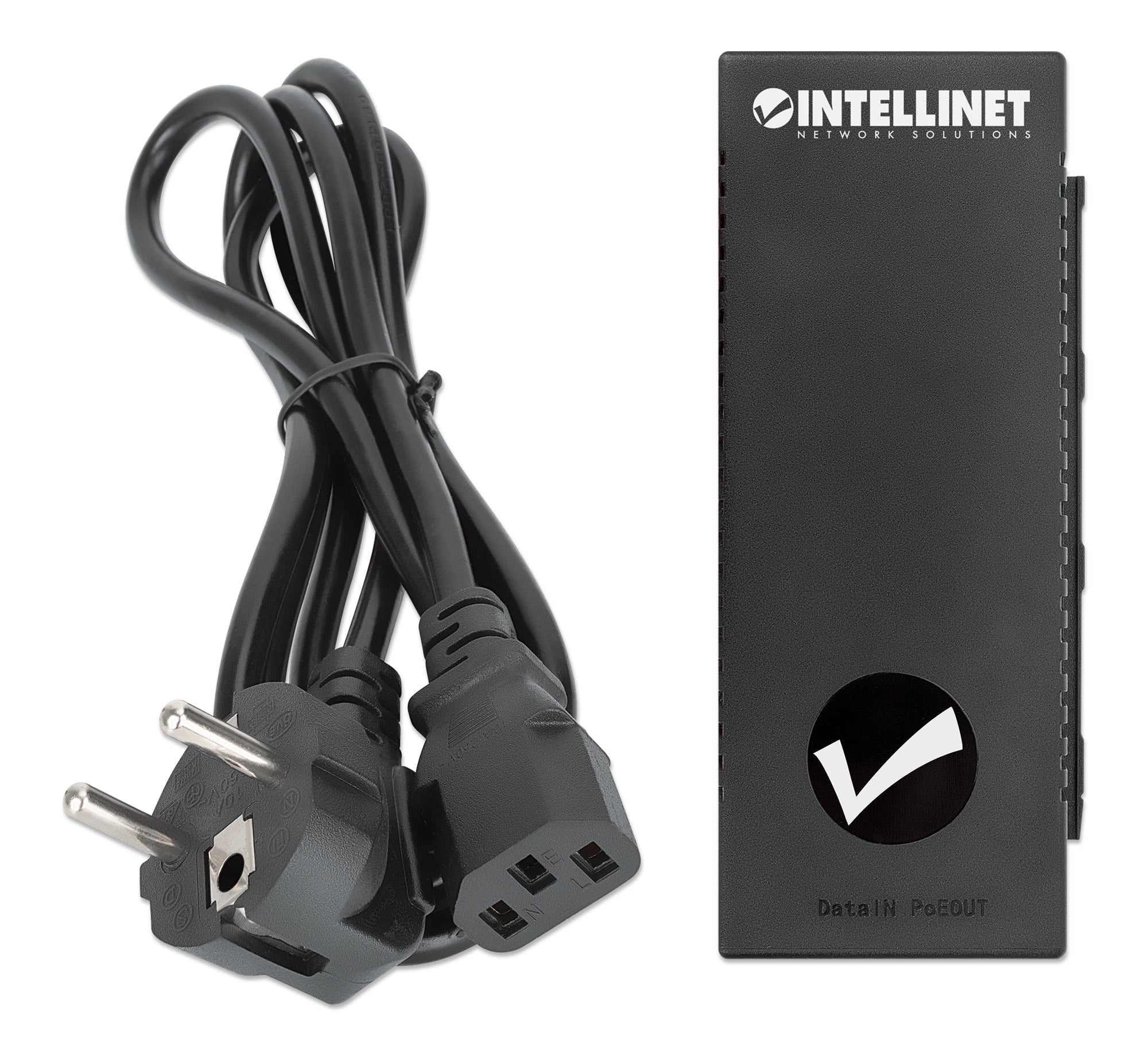

Package contents

• Ultra PoE+ Gigabit Injector


• Power cable


• Instruction manual
