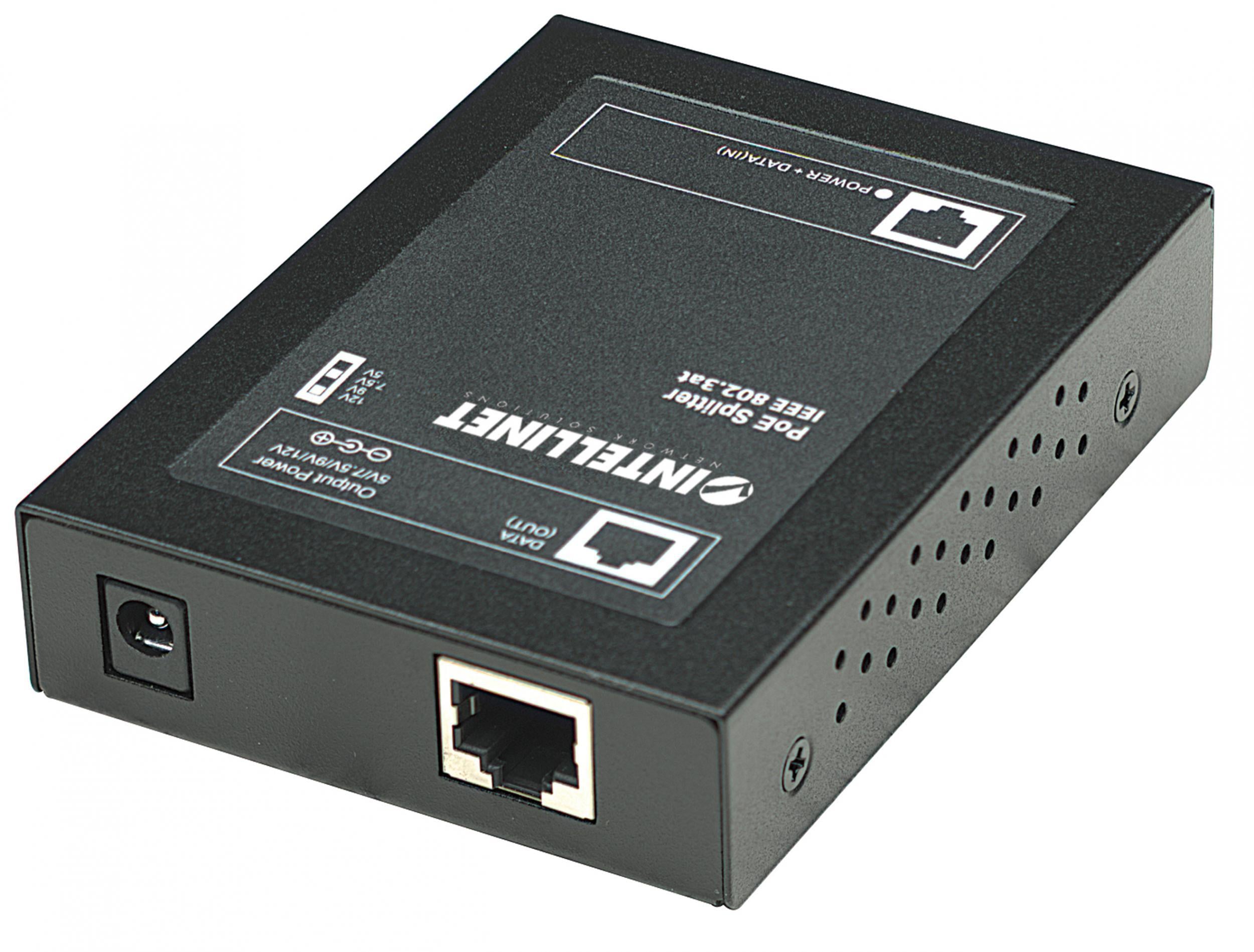

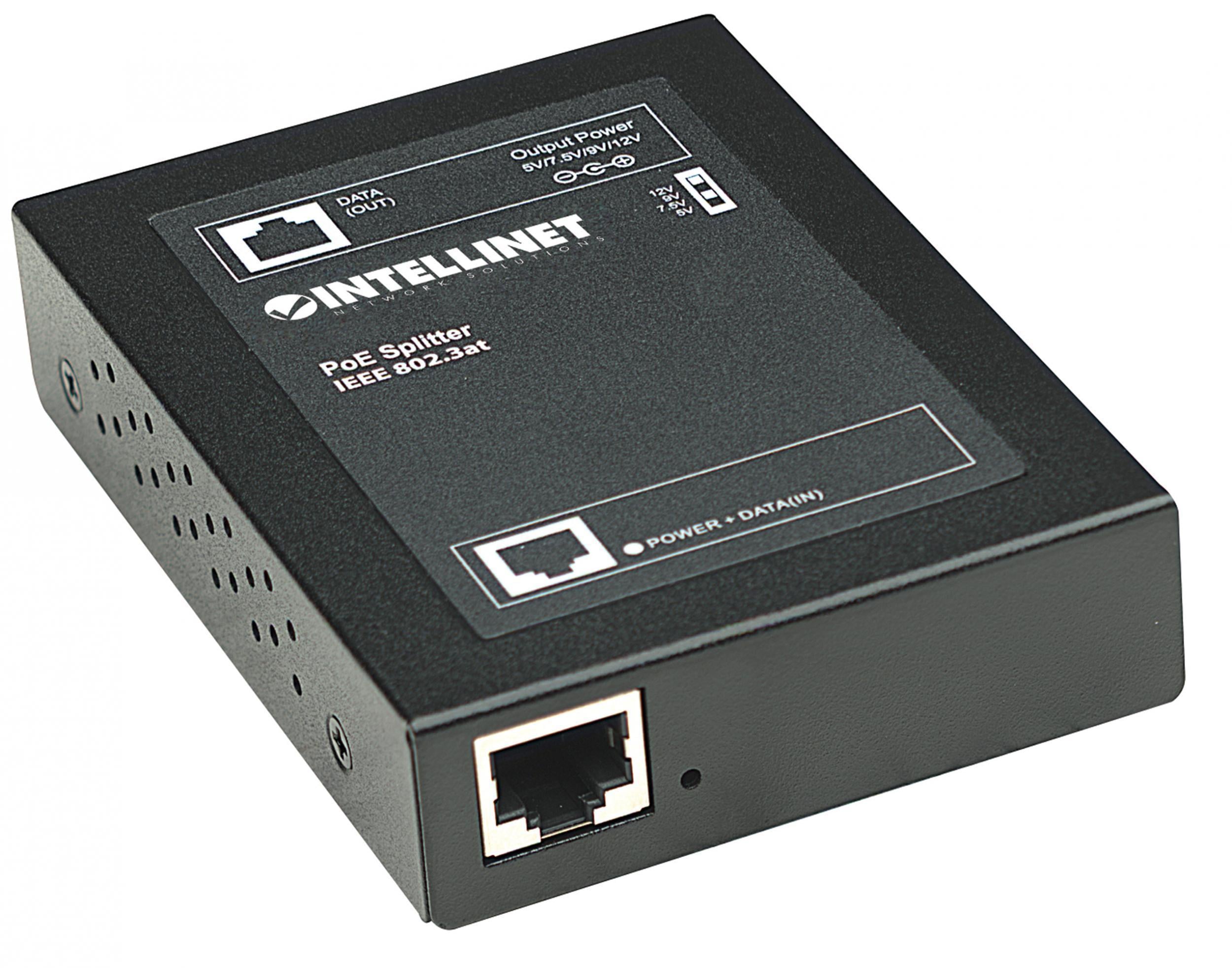

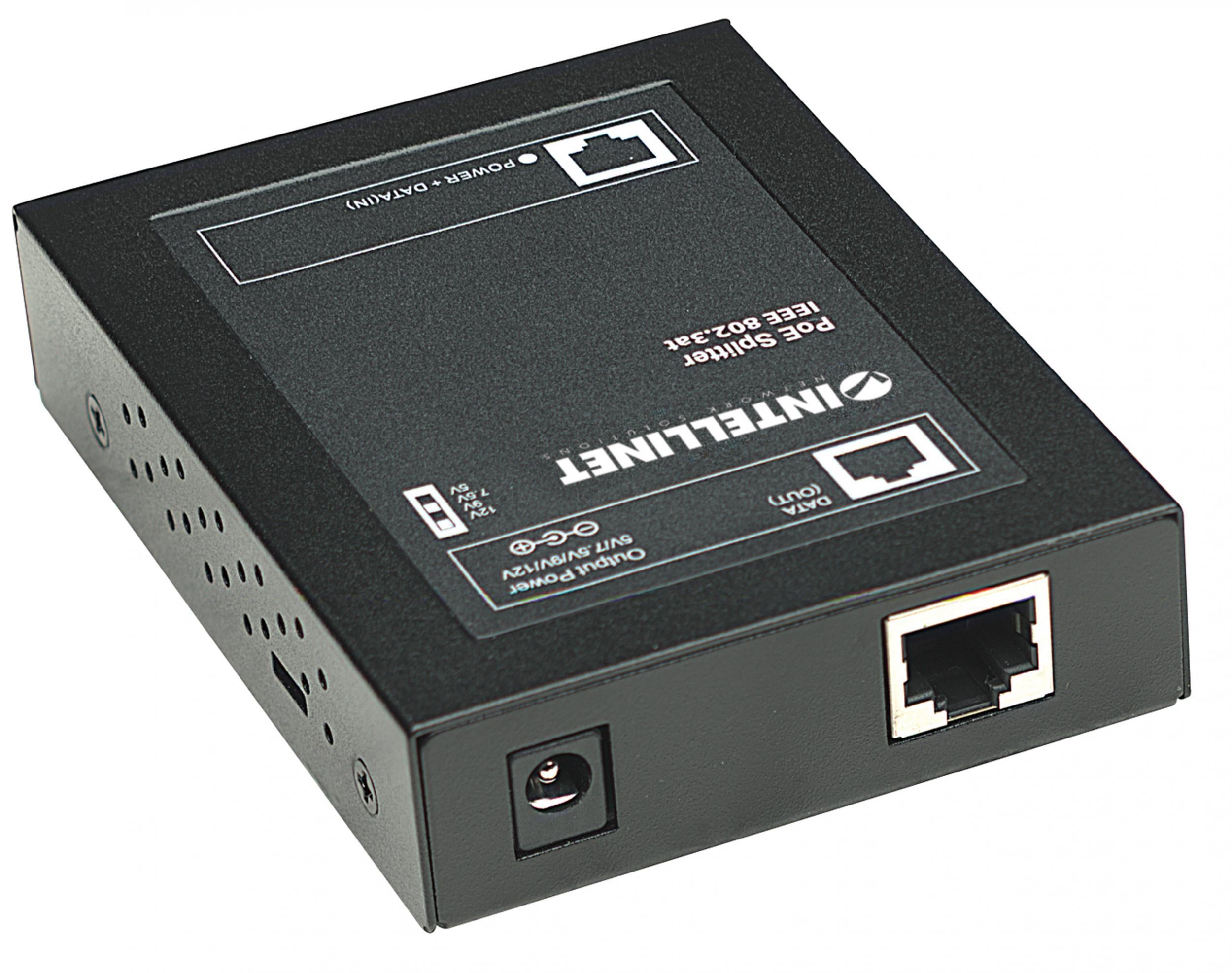

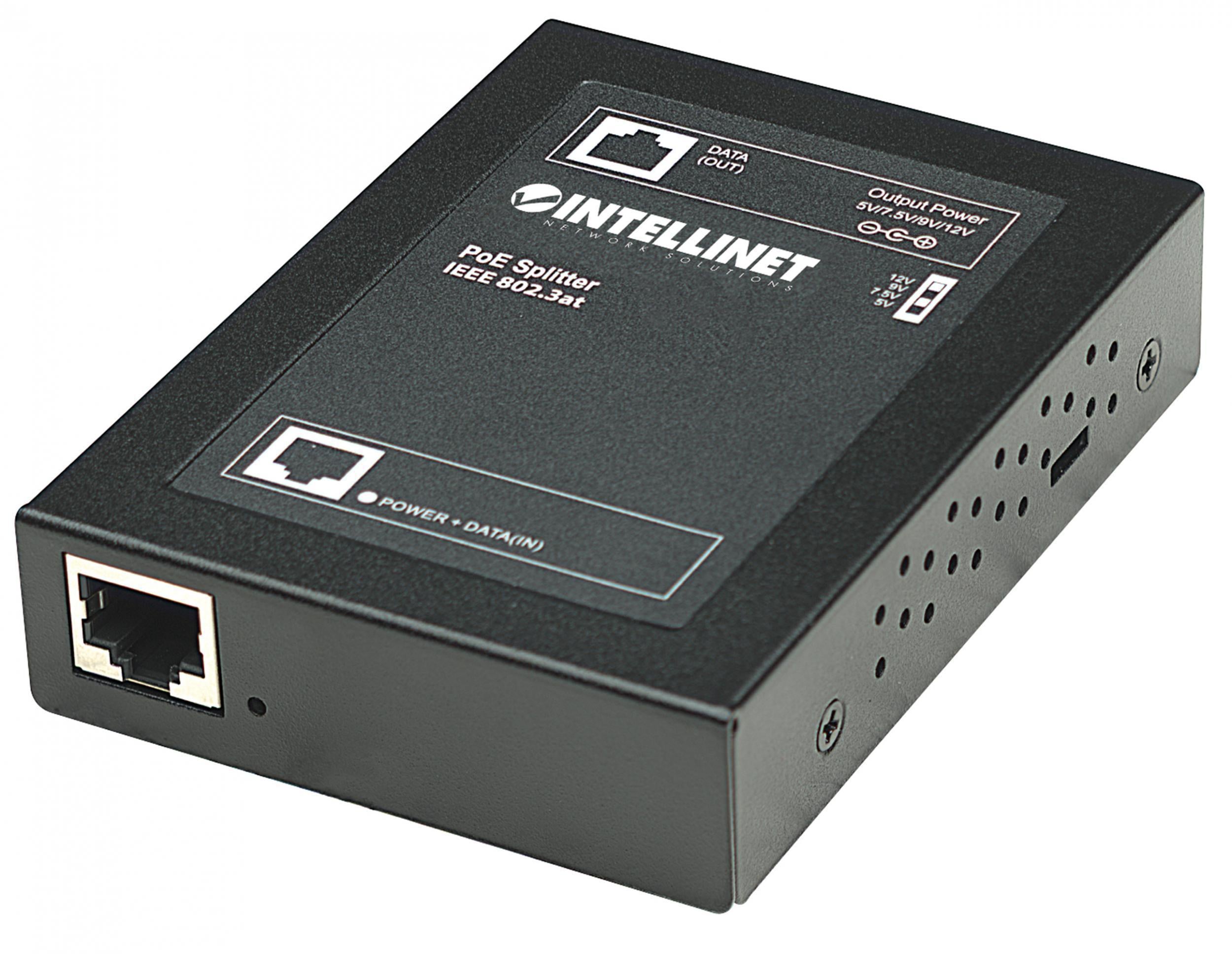

PoE splitter IEEE 802.3af/at with Adjustable Voltage 5/7,5/9/12V - Intellinet I-SWHUB POE-SPL

•

• Can be used to connect PoE-compliant peripherals IEEE 802.3af/t to a PoE injector or PoE switch

• Output current, selectable: 5/7,5/9 or 12 V DC

• Output power: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A

• Auto-sensing 10/100/1000 input port - automatically identifies optimal network speed

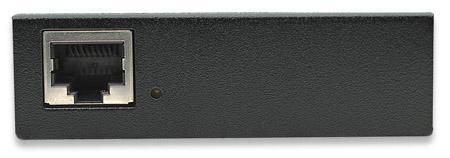

• RJ45 input port with Auto-MDIX and NWAY auto-negotiation support

• Operates in full/half duplex mode

• Compact metal housing

• LED for PoE input port activity


Standard

•

• IEEE 802.3af (Power over Ethernet)

• IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)


General information

•

• Supports:


•

• 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45

• 100Base-TX Cat5/5e/6/6a UTP/STP RJ45

• 1000Base-T Cat5e/6/6a UTP/STP RJ45


•

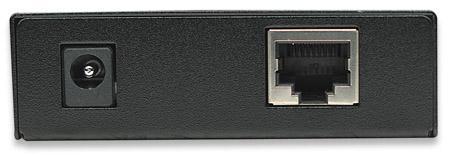

• Ports:


•

• 1 RJ45 10/100 Mbps input port for 48 V signal compliant with IEEE 802.3af

• 1 RJ45 10/100/1000 Mbps output port

• 1 power output port


•

• Certifications: FCC Class A, CE


LED

•

• LINK


Power

•

• Power output:


•

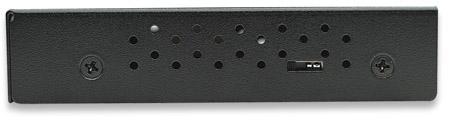

• 5/7,5/9 or 12 V DC, selectable via switch

• Maximum output: 5 V - 4 A, 7.5 V - 2.7 A, 9 V - 2.3 A, 12 V - 1.7 A

• Polarity, outer: negative ( - ); inner: positive ( + )


•

• Power consumption: 25.4 Watt (maximum)


General information

•

• Metal housing

• Dimensions: 102 (W) x 74 (D) x 22 (H) mm

• Weight: 0.24 kg

• Operating temperature: from 0° to 60°C

• Operating humidity: from 10% to 90% RH, non-condensing

• Storage temperature: from -20° to 90°C


Package contents

•

• PoE+ splitter

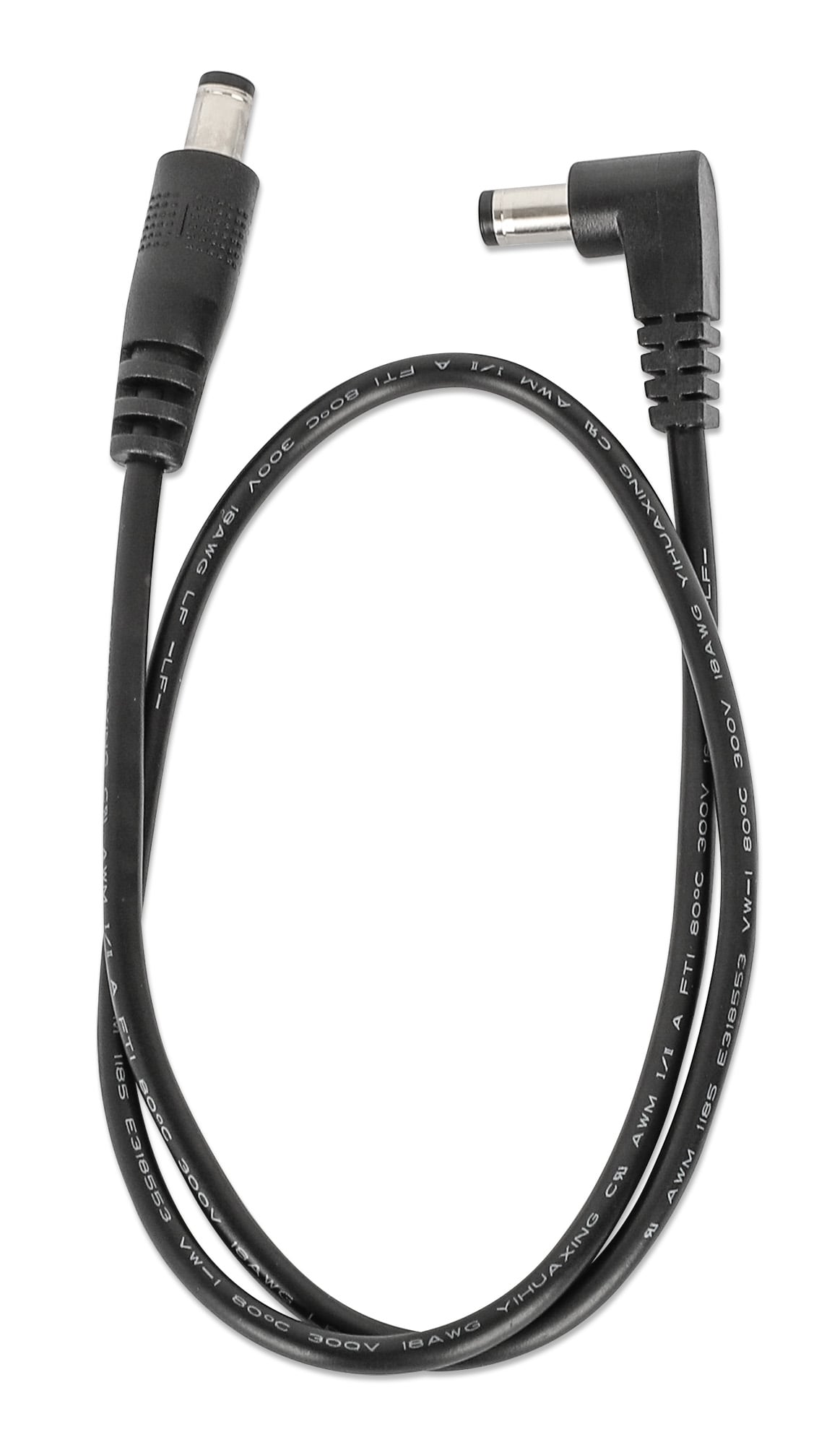

• Power cable

• Instruction manual
