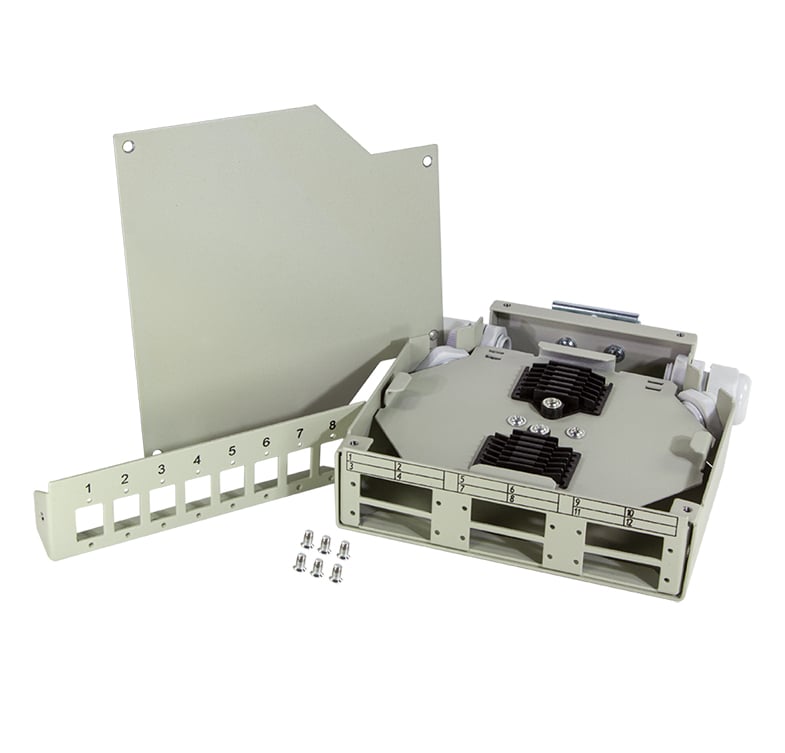

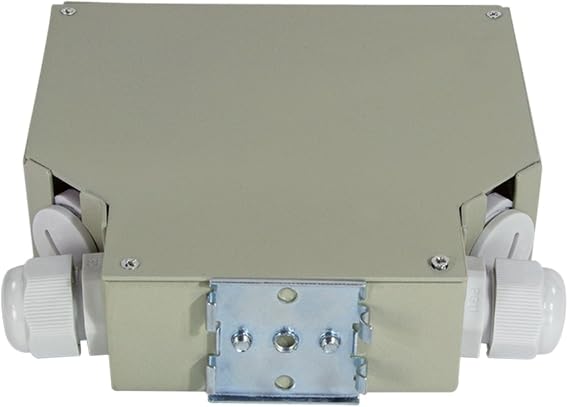

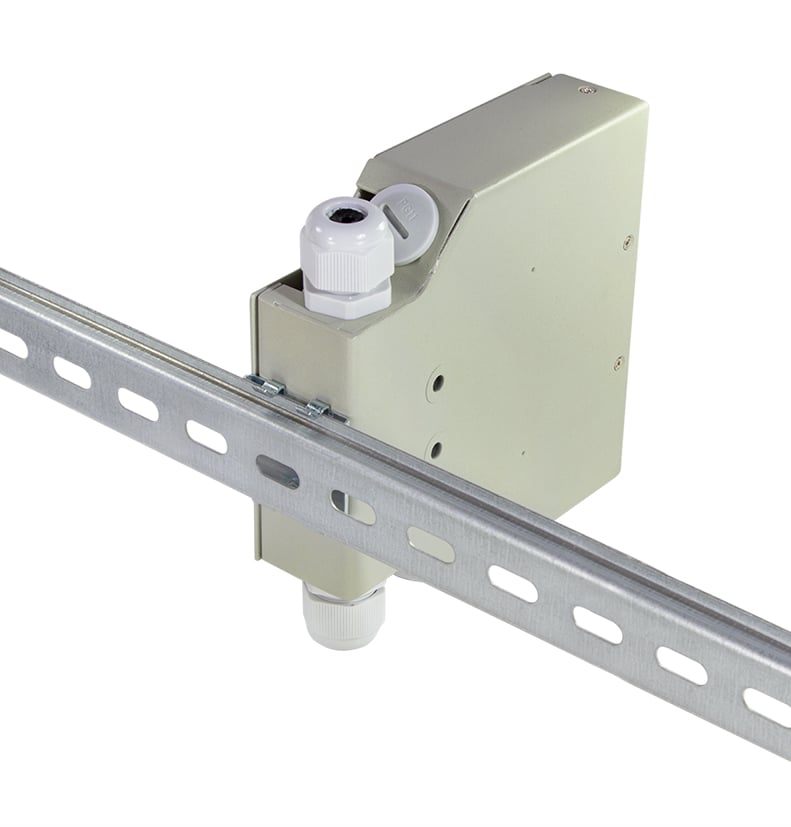

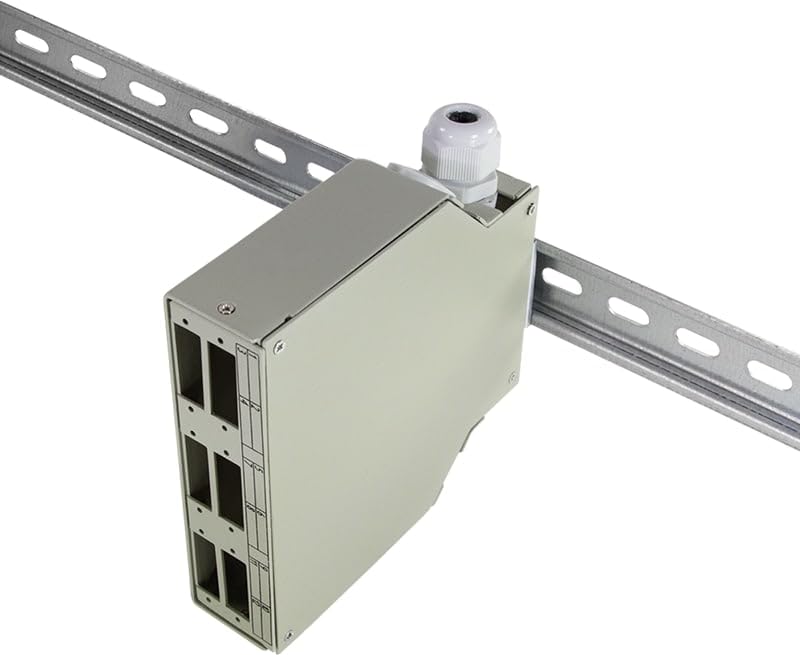

These compact fiber optic splice distribution units for DIN rails TH350 are ideal for use in industrial environments. The box can be quickly and easily attached directly to the mounting rail (top hat rail). The empty housing offers sufficient space for cable supply and storage. The included front panels allow installation of SC-Duplex, SC-Simplex, LC-Duplex or LC-Quad adapters.
Features- Connection and distribution housing for top hat rails (DIN mounting rails)
- Unequipped, suitable for installation of pigtails and splices
- Includes splice cassette and fiber tray
- With 4 interchangeable heat shrink splice holders

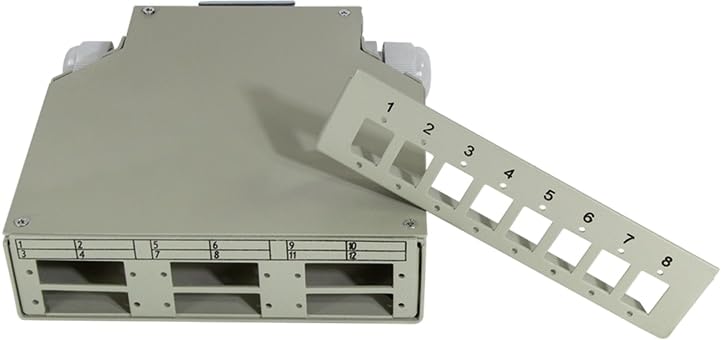

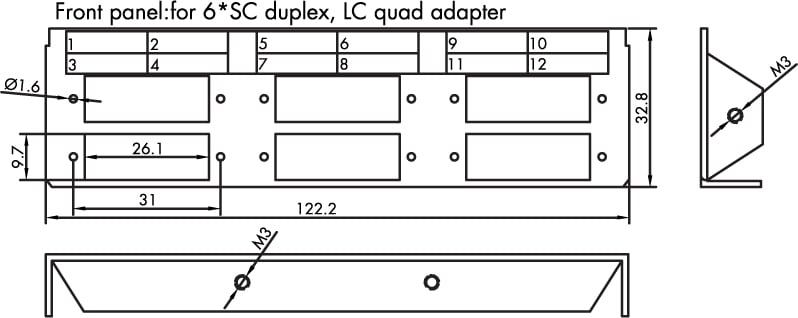

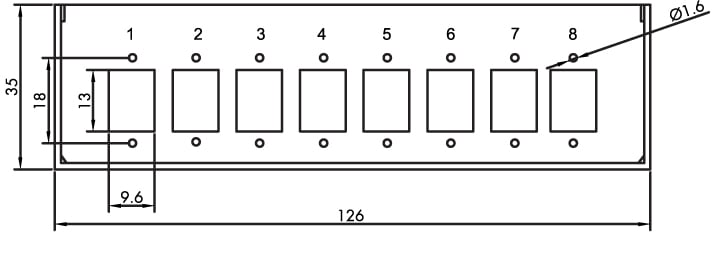

- 2 removable front panels with 6 or 8 ports
- Suitable for 6 SC-D/LC-Q splices or 8 LC-D/SC-S splices
- Variable cable entry with plastic PG 11 cable gland
- Robust steel housing, light gray RAL 7035

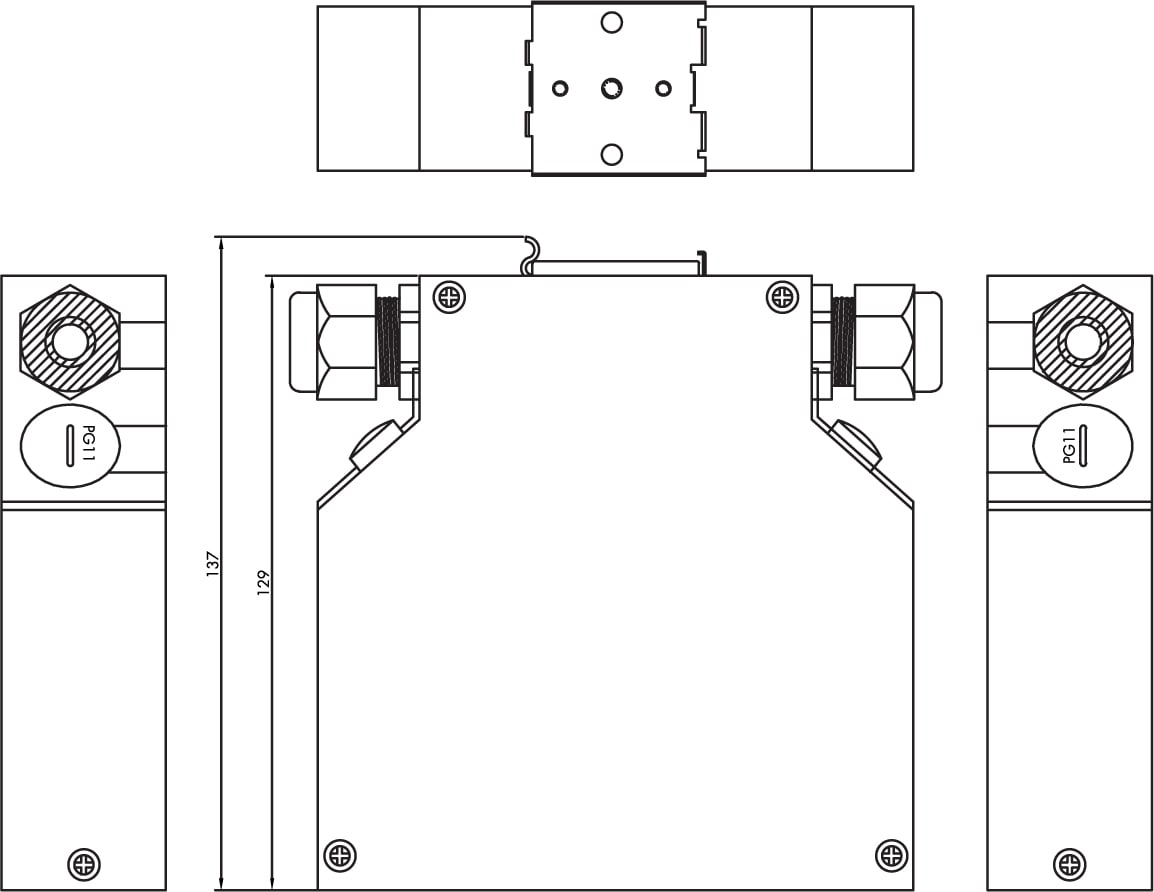

Dimensions- Height: 3,5 cm
- Width: 12,5 cm
- Length: 13,0 cm
Package contents- Junction box for LC and SC sleeves
- User manual
