The fiber optic distribution box can support up to 4 terminations. It is used as a termination point for the feeder cable for connection with the drop cable in the FTTx network system. It integrates splicing, splitting, distribution, storage and connection of fiber cables in a sturdy protective box.

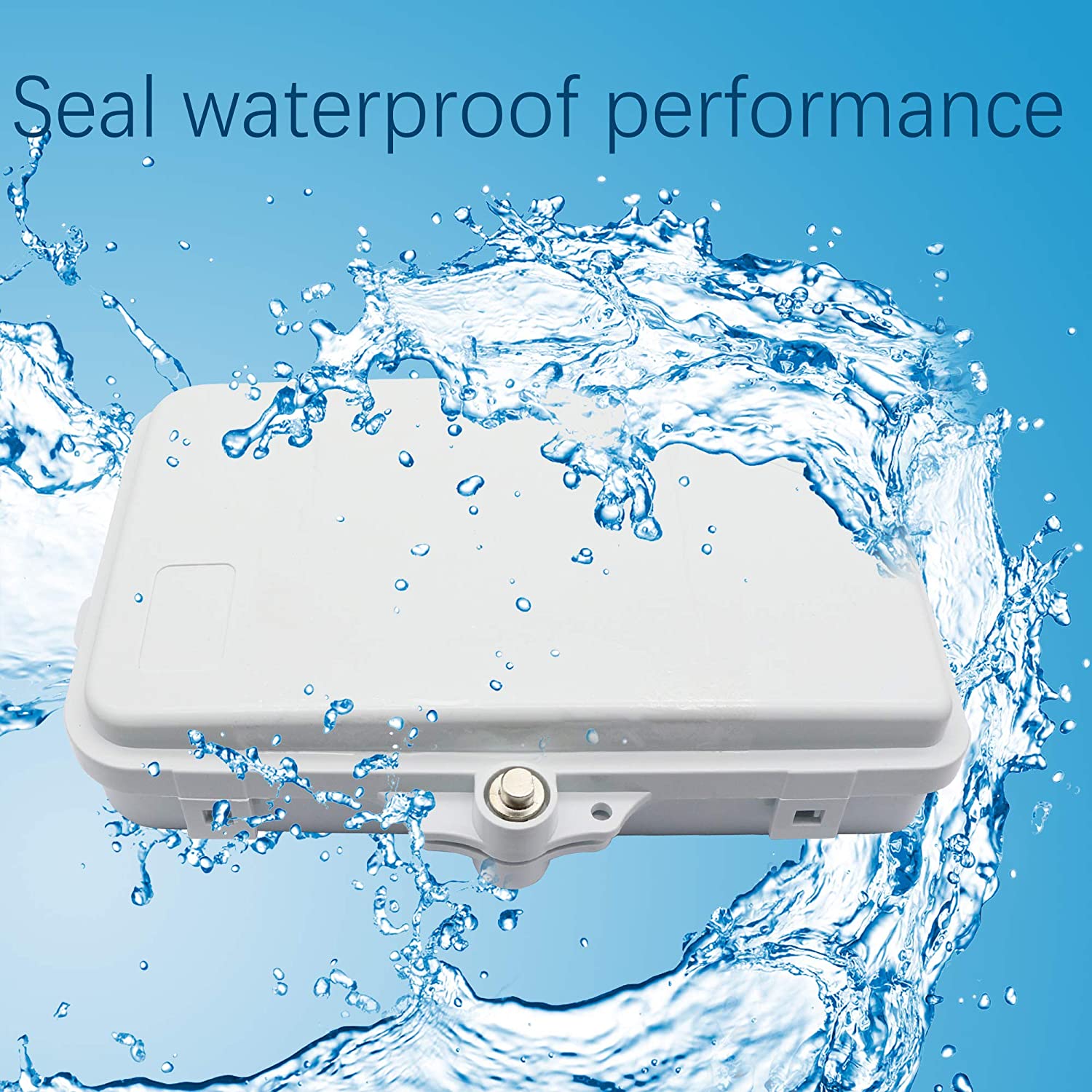

Technical specifications- Waterproof design with protection level IP65
- Manages fibers under proper bend radius conditions

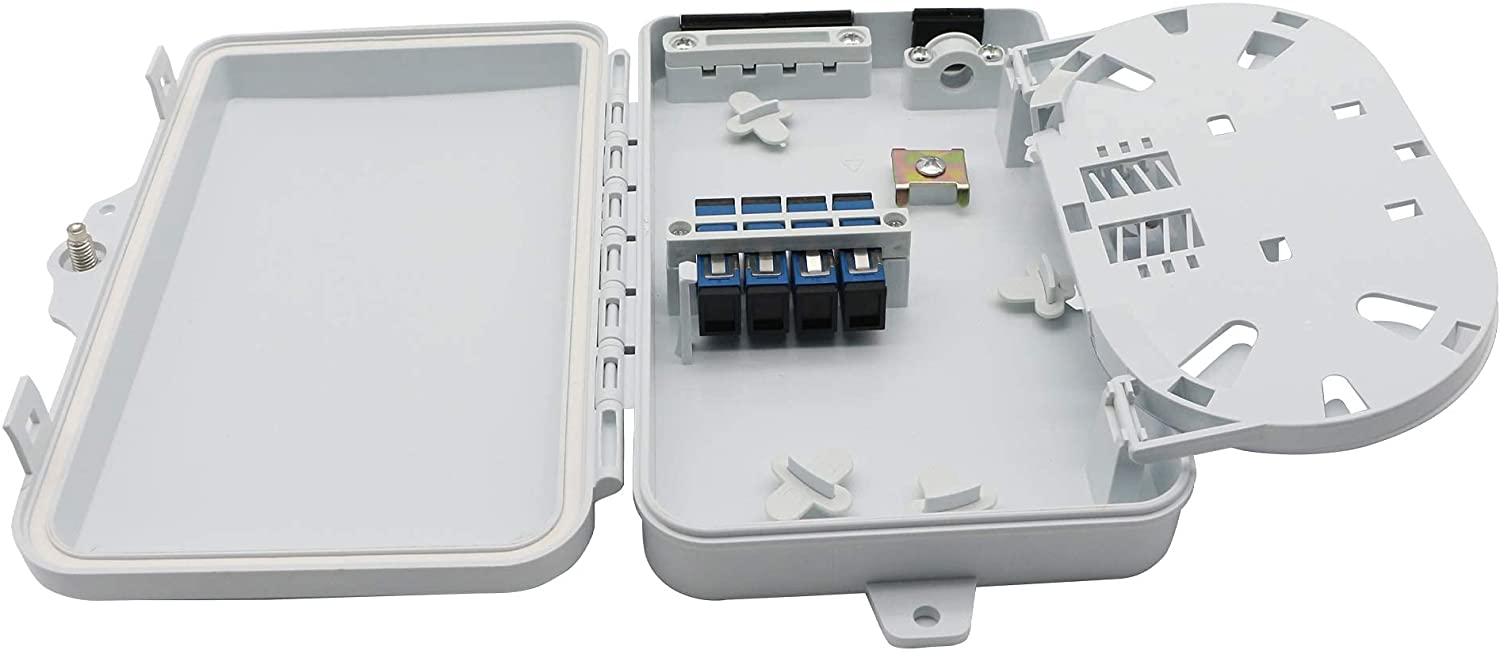

- Includes splice tray for fiber optic cables
- Fiber bend radius control greater than 40 mm
- Suitable for fusion splicing or mechanical splicing
- Equipped with special locking key
- Efficient cable management
- Equipped with 4 drop cable entry ports
- Adapter connections: SC, LC
- Can hold 4 SC Simplex or LC duplex adapters
- Material: PC and ABS
- Color: white
Dimensions- Width: 186 mm
- Depth: 116 mm
- Height: 40 mm
Package contents- Fiber optic splice box 4 terminations
- Two fixing screws
- Locking key
