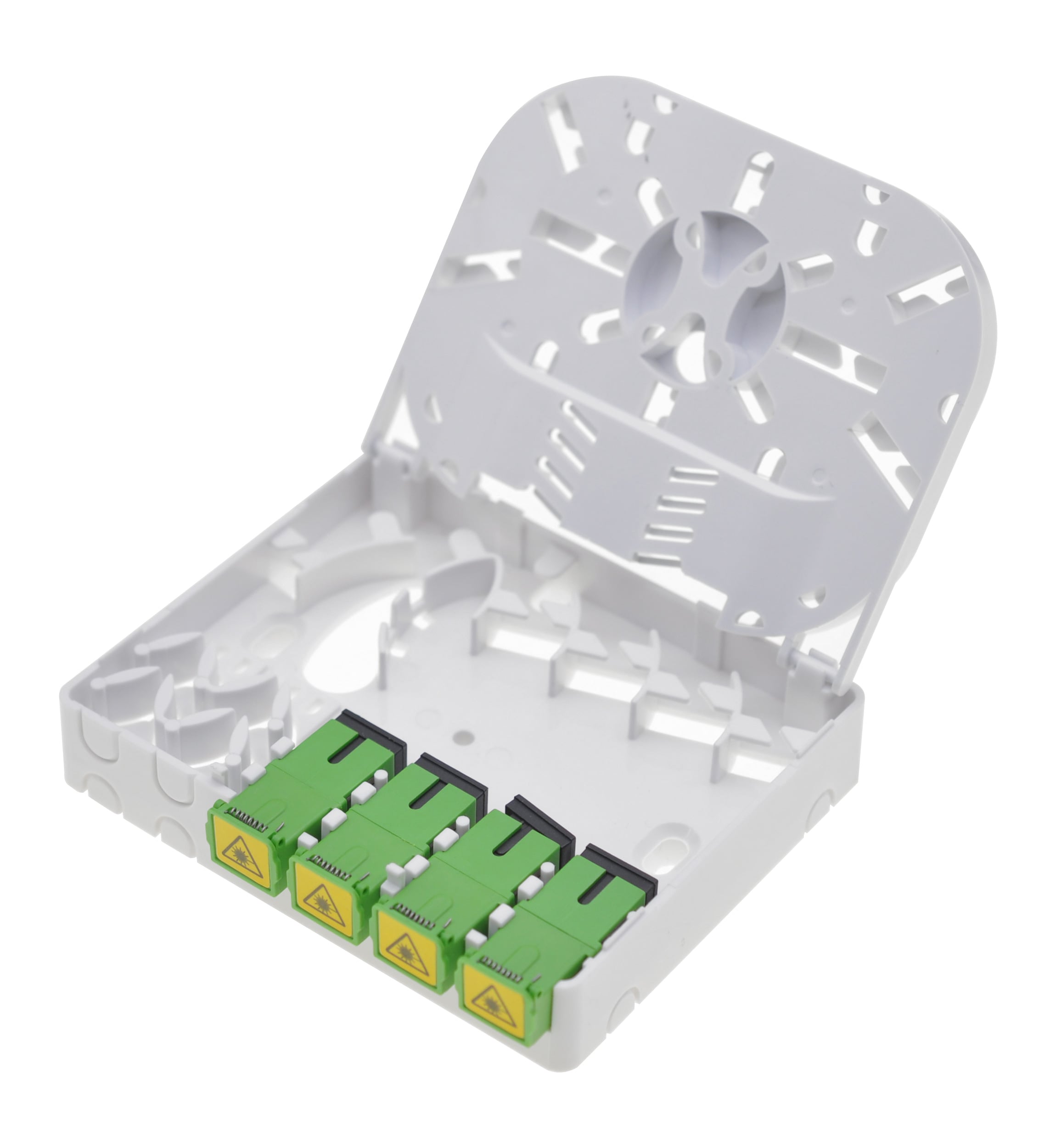

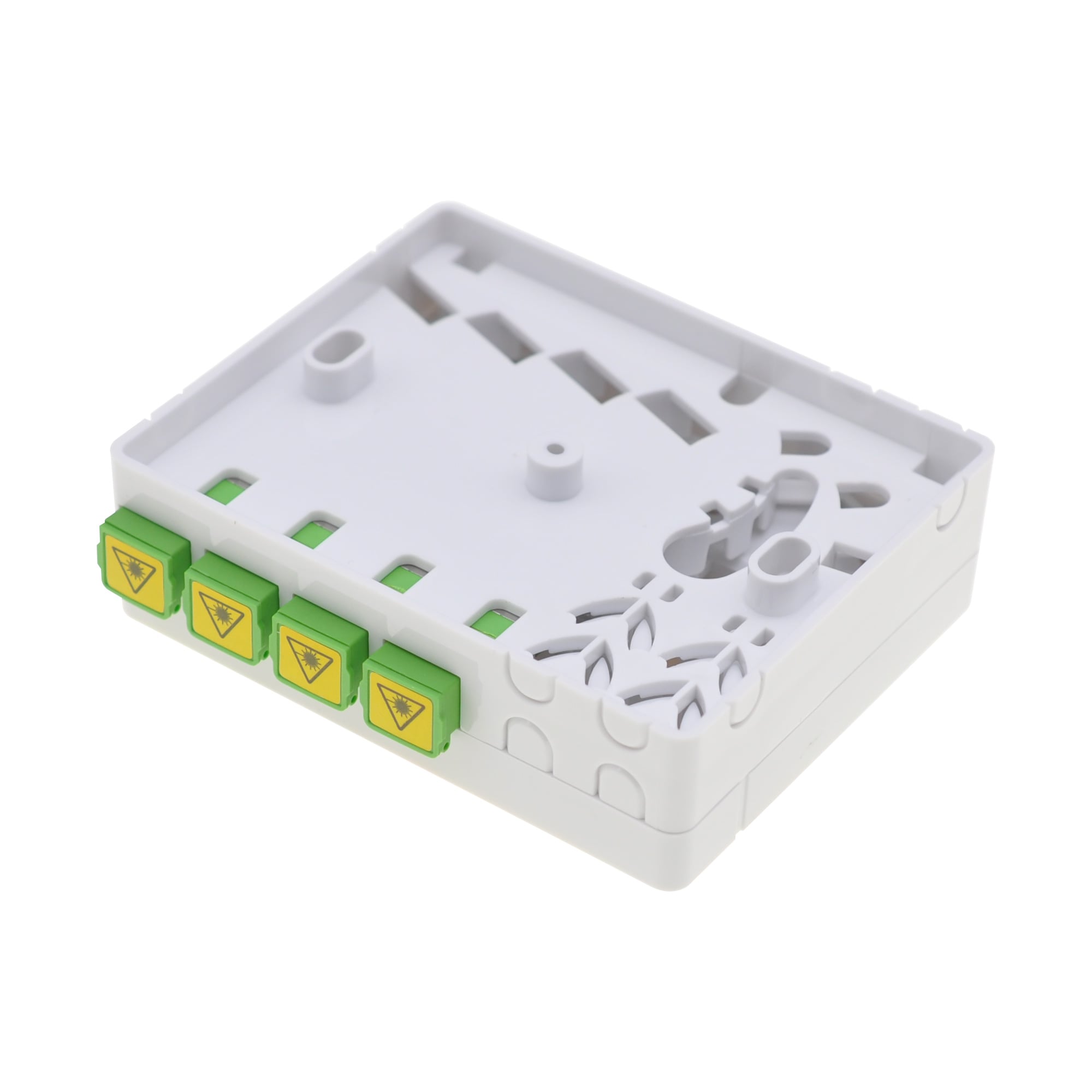

STOA FTTH 4 fibers SC-APC wall-mounted Optical Termination Box - Techly Professional I-CASE FTTH4SC

•

• Indoor connection box for FTTH (Fiber-to-the-Home) applications

• Suitable for 4 fibers, 4 SC-APC adapters

• For wall mounting

• Junction type: thermal

• Number of fibers: 4

• Number of adapters: 4

• Applications: Optical telecommunication networks; LAN, fiber optic communication network; CATV networks; FTTH access network


Technical specifications

•

• Fiber diameter 125μm (G 652 and G657)

• Tight buffer diameter 250μm and 900μm

• Applicable mode: single-mode and multi-mode

• Tensile strength >50 N

• Operating temperature -40～+85℃

• Adapter type SC-APC

• Insertion loss ≤0,2 dB (1310 nm and 1550 nm)

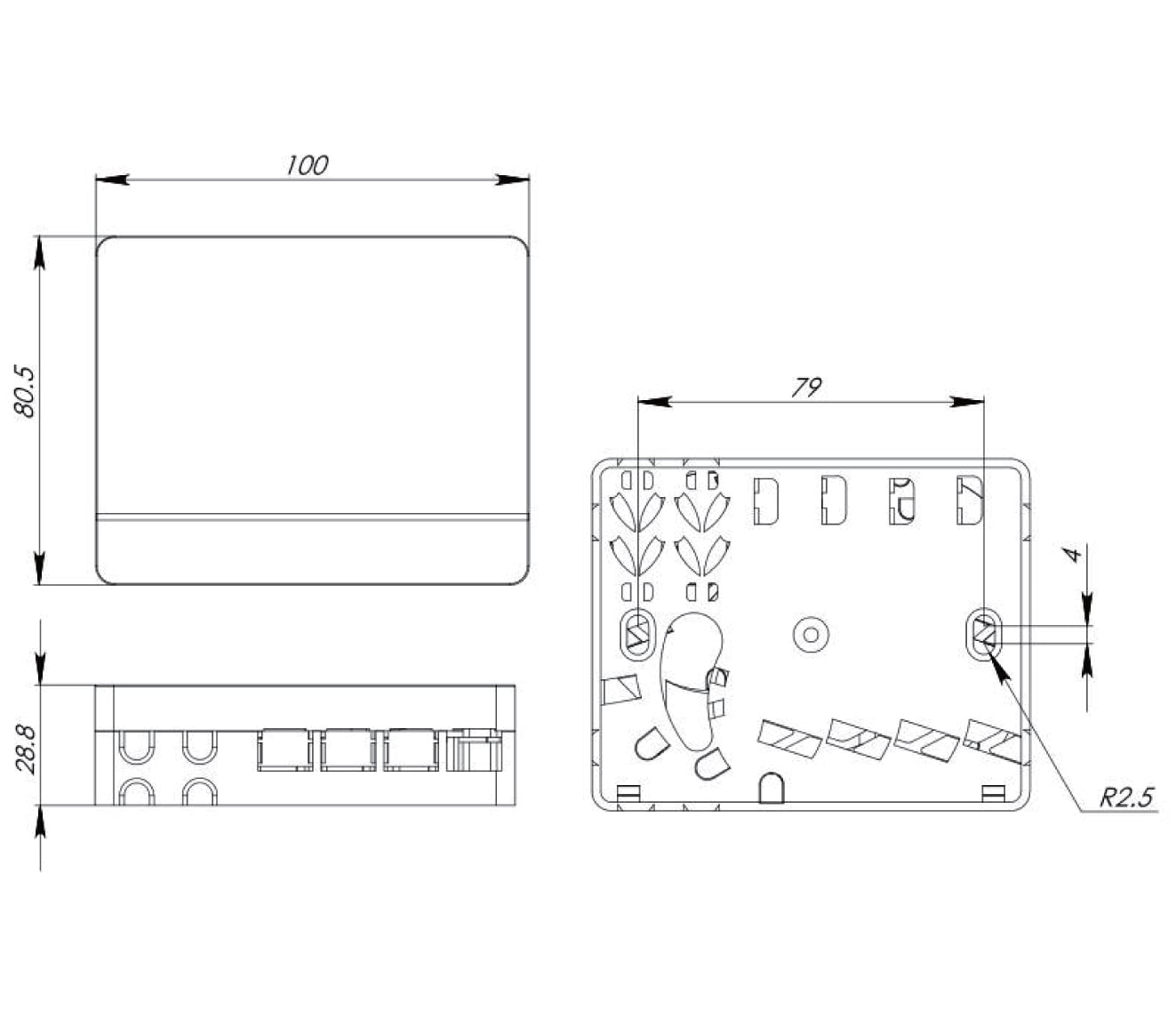

Dimensions

•

• Width: 100,0 mm

• Depth: 80,5 mm

• Height: 28,8 mm

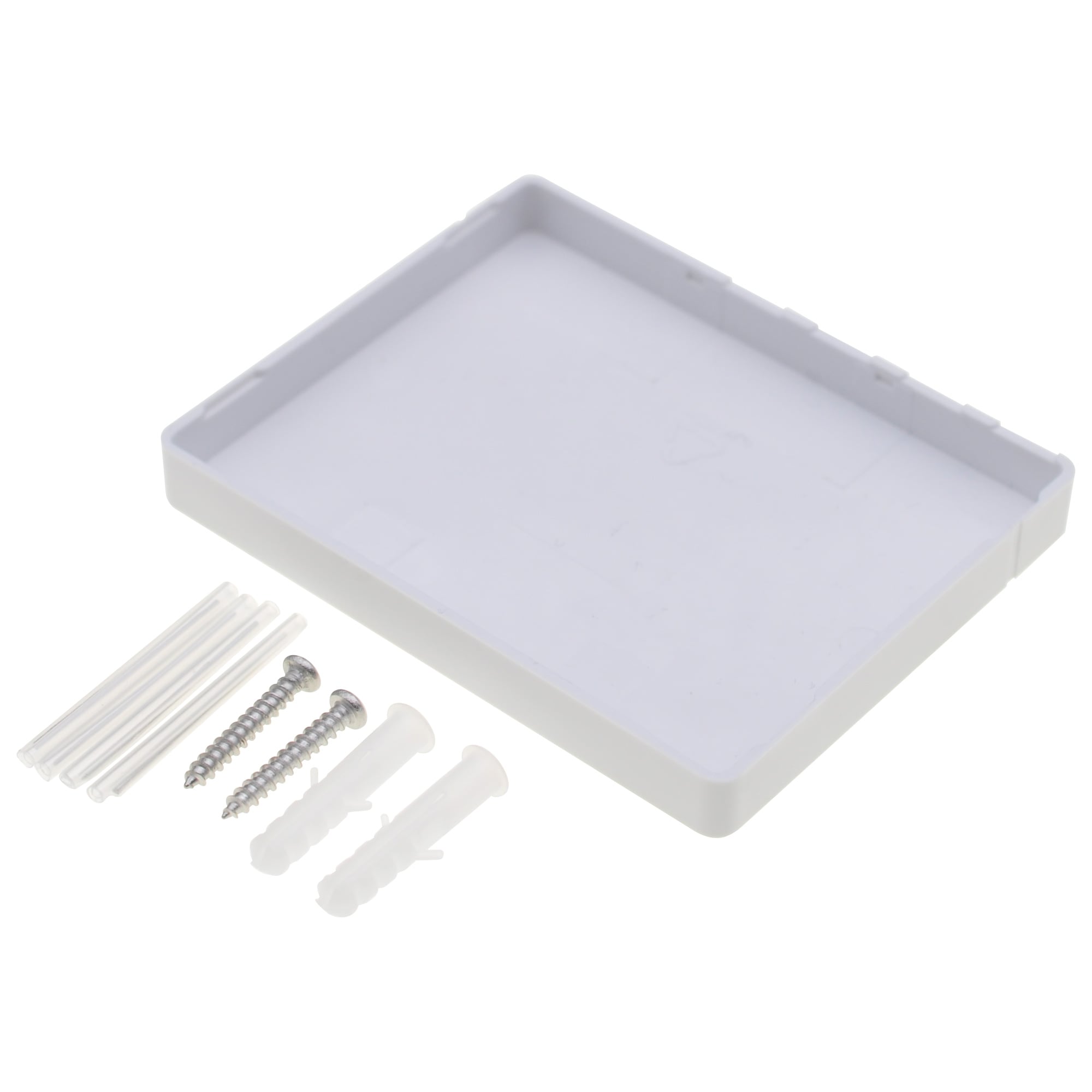

Package contents

•

• I-CASE FTTH4SC Connection Box

• User manual
