Optical Termination Box STOA FTTH 4 fibers SC/LC for DIN rail - Techly Professional I-CASE FTTH-RAIL4T

•

• Indoor connection box for FTTH (Fiber-to-the-Home) applications

• Suitable for 4 fibers, 4 adapters type SC Simplex or LC Duplex (Flangeless models)

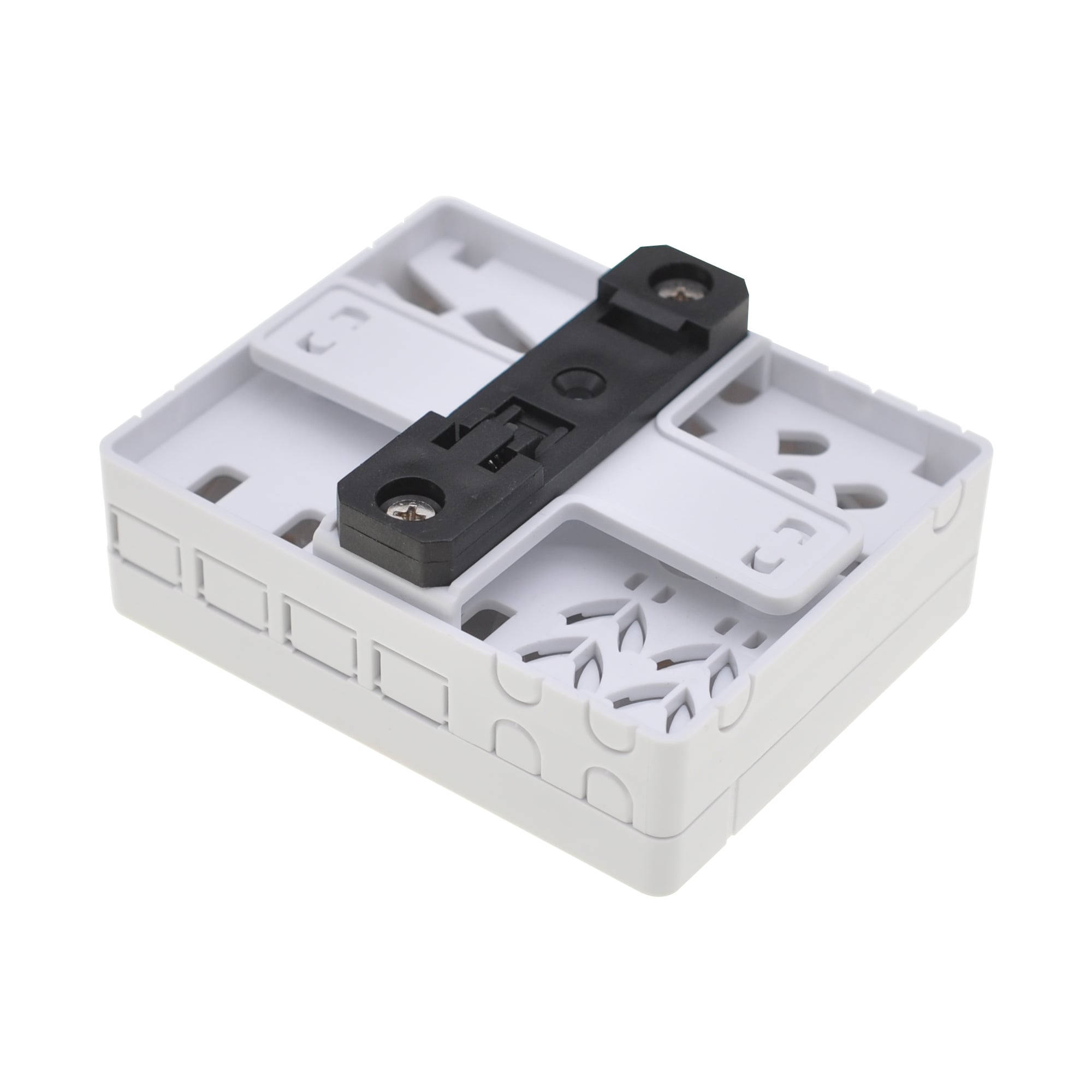

• For wall mounting and DIN rail mounting

• Number of fibers: 4

• Number of adapters: 4

• For indoor use, IP20

• Applications: Optical telecommunication networks; LAN, fiber optic communication network; CATV networks; FTTH access network

• Material: ABS

• Color: white


Technical specifications

•

• Fiber diameter 125μm (G 652 and G657)

• Tight buffer diameter 250μm and 900μm

• Applicable mode: single-mode and multi-mode

• Tensile strength >50 N

• Operating temperature -40～+85℃

• Adapter type SC and LC

• Insertion loss ≤0,2 dB (1310 nm and 1550 nm)

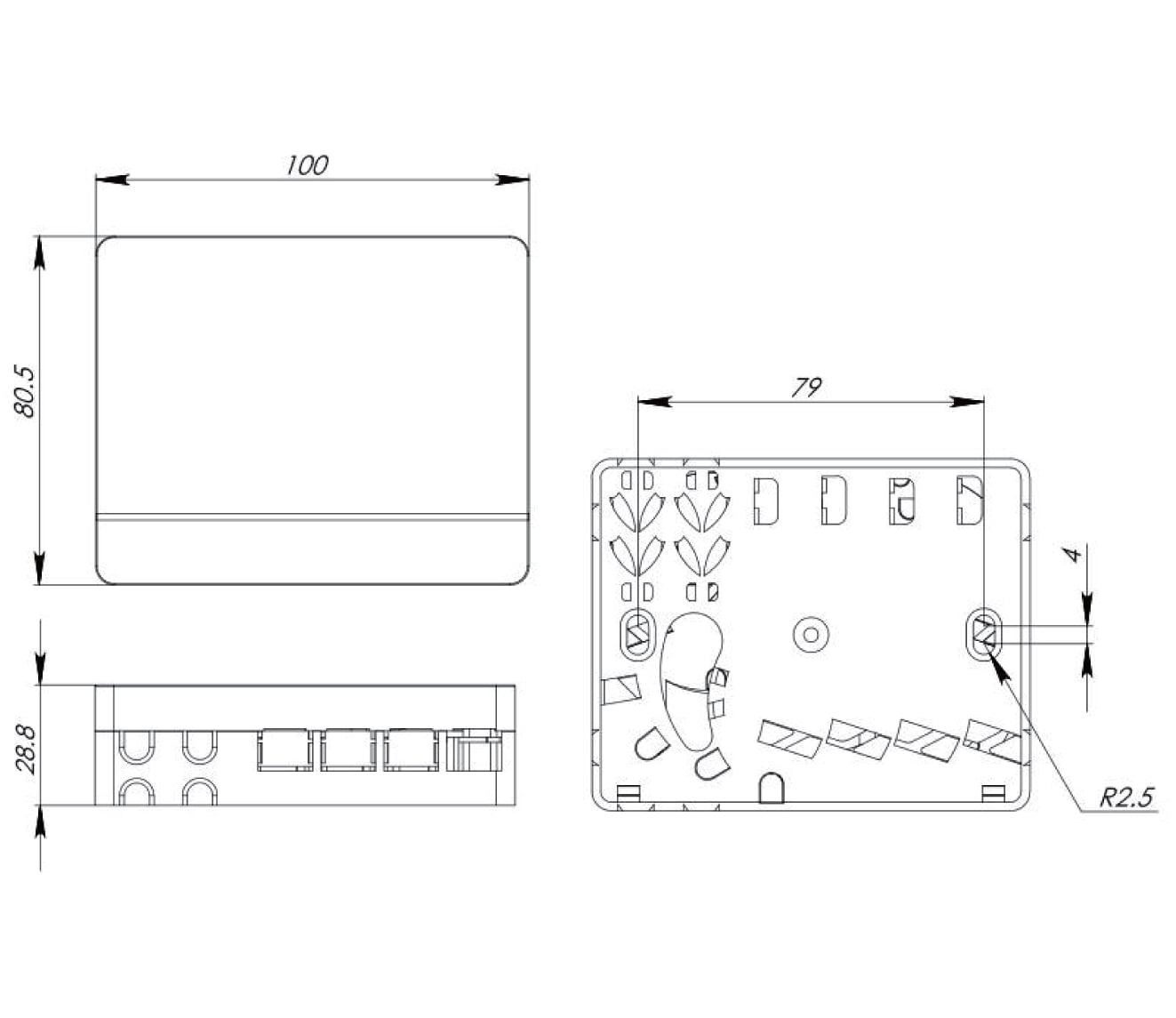

Dimensions

•

• Width: 100,0 mm

• Depth: 80,5 mm

• Height: 28,8 mm


Package contents

•

• Connection box for DIN rail I-CASE FTTH-RAIL4T

• User manual
