The E 3 Evo è range is the new line of continuous à (UPS) groups with On Line Performance technology.
They offer a high quality sinusoidal output; and have a wide connectivity; to ensure superior protection for business networks and other sensitive IT equipment.
General characteristics- High quality sinusoidal output; thanks to On Line Performance technology
- Continuità service guaranteed by 500 to 3000 VA

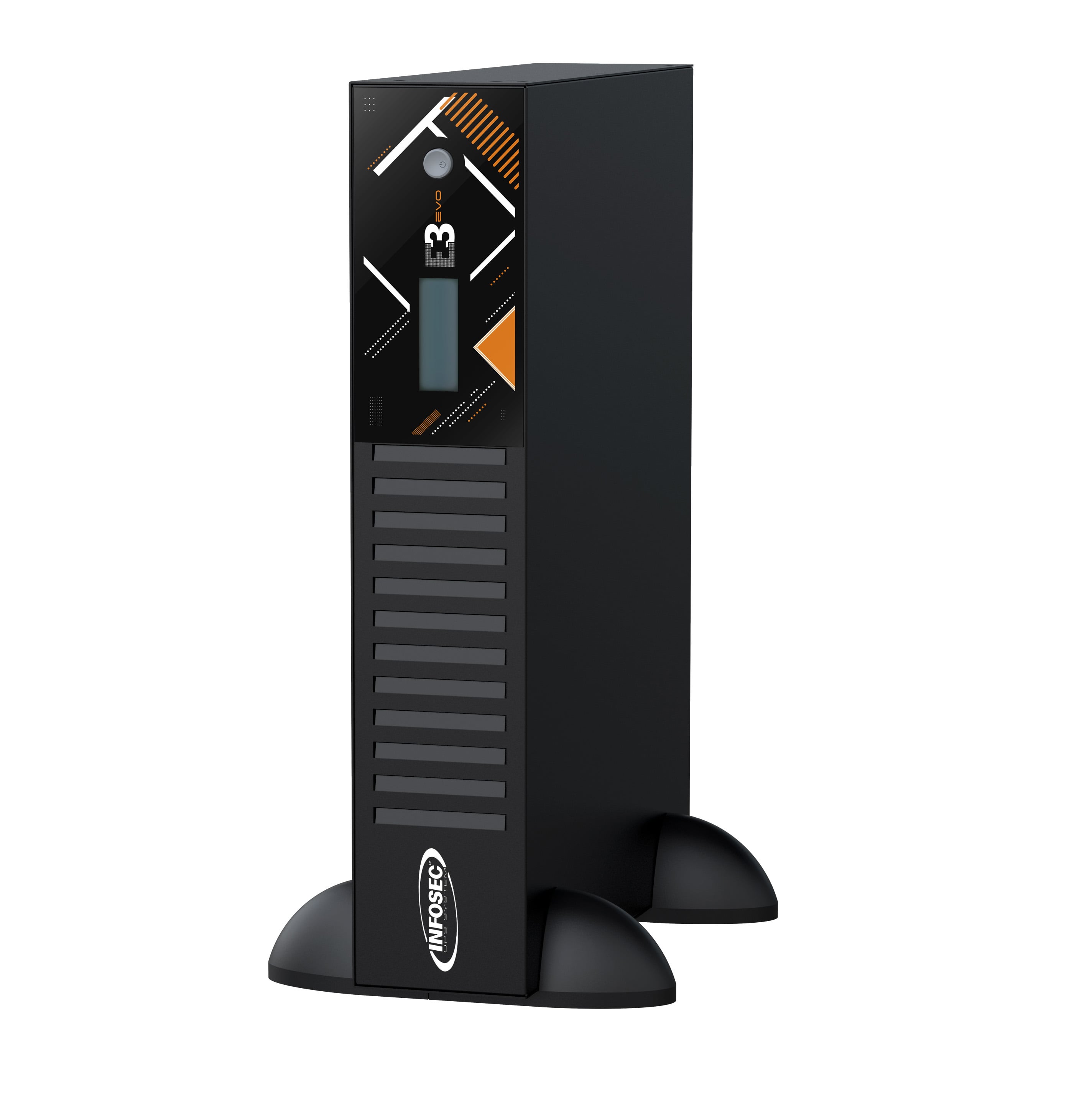

- 2 U (RT) format (rack or tower configuration as needed)
Local control with InfoPower monitoring software- Visual alarm in case of power failure
- Automatic closure of files during power failure: to preserve computer data on the secure network
Automatic closure of files during power failure- A SNMP slot allows the connection of an SNMP agent and the use of associated software for remote control of UPS
Intuitive screen- Accuracy and simplicity; d use: real-time UPS status values
Technology- On Line Performance Technology
- Power 2200 VA
- Capacità 1230 Watt
Input characteristics- Nominal voltage: 220 / 230 / 240 VAC
- Voltage range: 170 – 280 VAC
- Frequency: 50 Hz - 60 Hz
Exit characteristics- Battery output voltage: sine wave at 220/230/240 VAC (230V default)
- Battery output frequency: 50 / 60 Hz ± 1 %
- Protections: not loading/overloading/telephone/ADSL line
- Outputs: 6 x IEC
Battery- Standard charging time: 8 hours at 90 % of capacityà
- Autonomy: from 5 to 30 minutes depending on the load connected
Alarms and indicators- Indicators: LCD screen
- Alarms: modalità battery/battery discharge/overload/failure
Communication- Smart RS- 232 /USB: covers Windows® 2000 / 2003 /XP/Vista/ 2008 , 7 / 8 / 10 , Linux, Unix and Mac
- Optional SNMP: Power management on the SNMP protocol (compatible with VMWare©) and web browsers
- Software: Windows 11 / 10 / 8 / 7 / Server 2012 / 2008 R 2 , Linux and Mac
Dimensions- Width: 438 mm
- Depthà: 325 mm
- Height: 88 mm
CertificationsEnvironmental information- Operating temperature: 0 °C to 40 °C
- 0 - 90 % relative humidity (without condensation)
Package contents- 1 UPS ICIUE 3 EVO 2200 RT
- 1 power cable
- 2 mounting brackets (rack format)
- 2 mounting feet (tower size from 1200 VA)
- 1 user manual
