Set 12 Pigtail Fiber Optic Monomodal OS 2 LC/APC G 652 D 2 m Yellow - ILWL PG-LC/APC-OS 2

€22.20
Tax included €18.20 excl. VAT

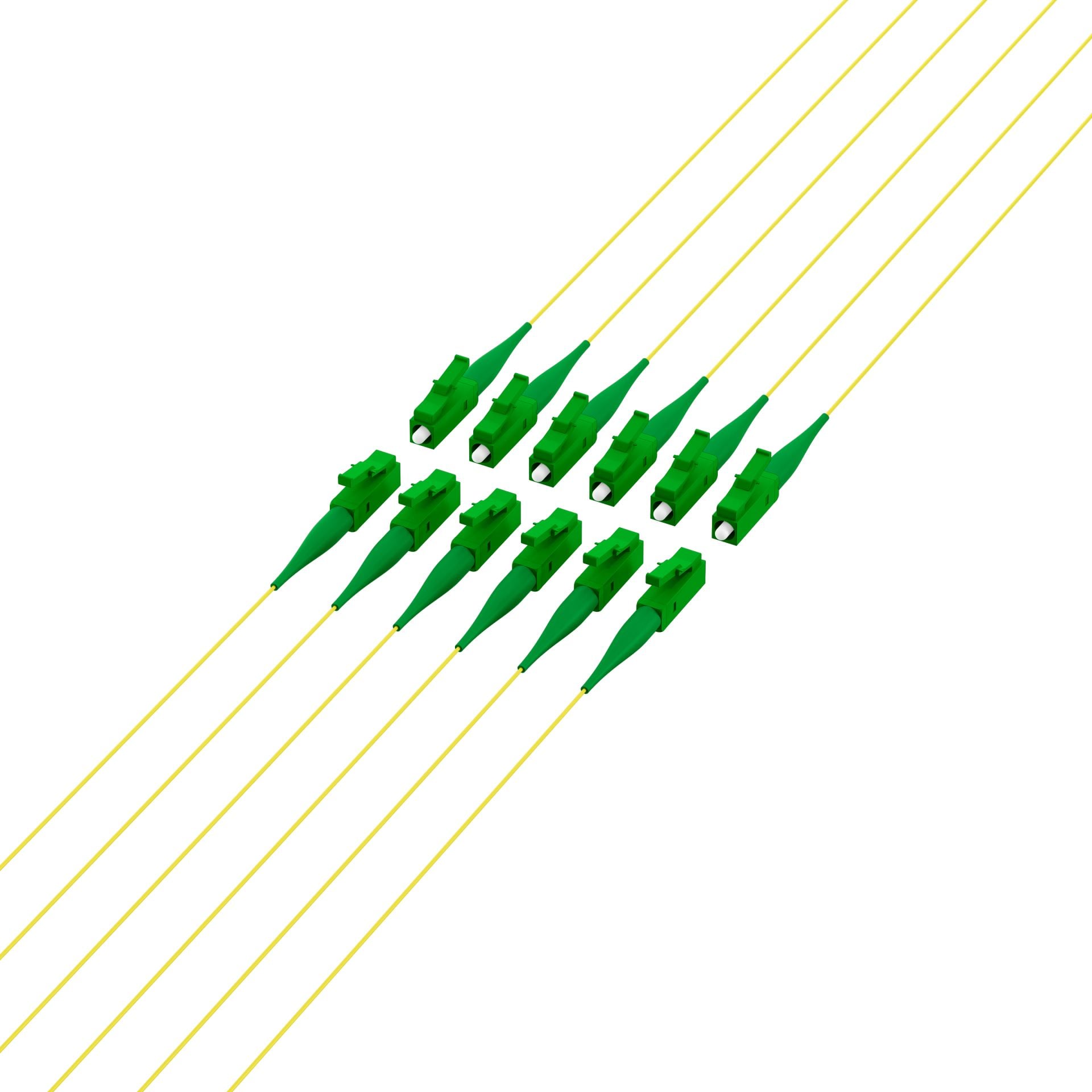

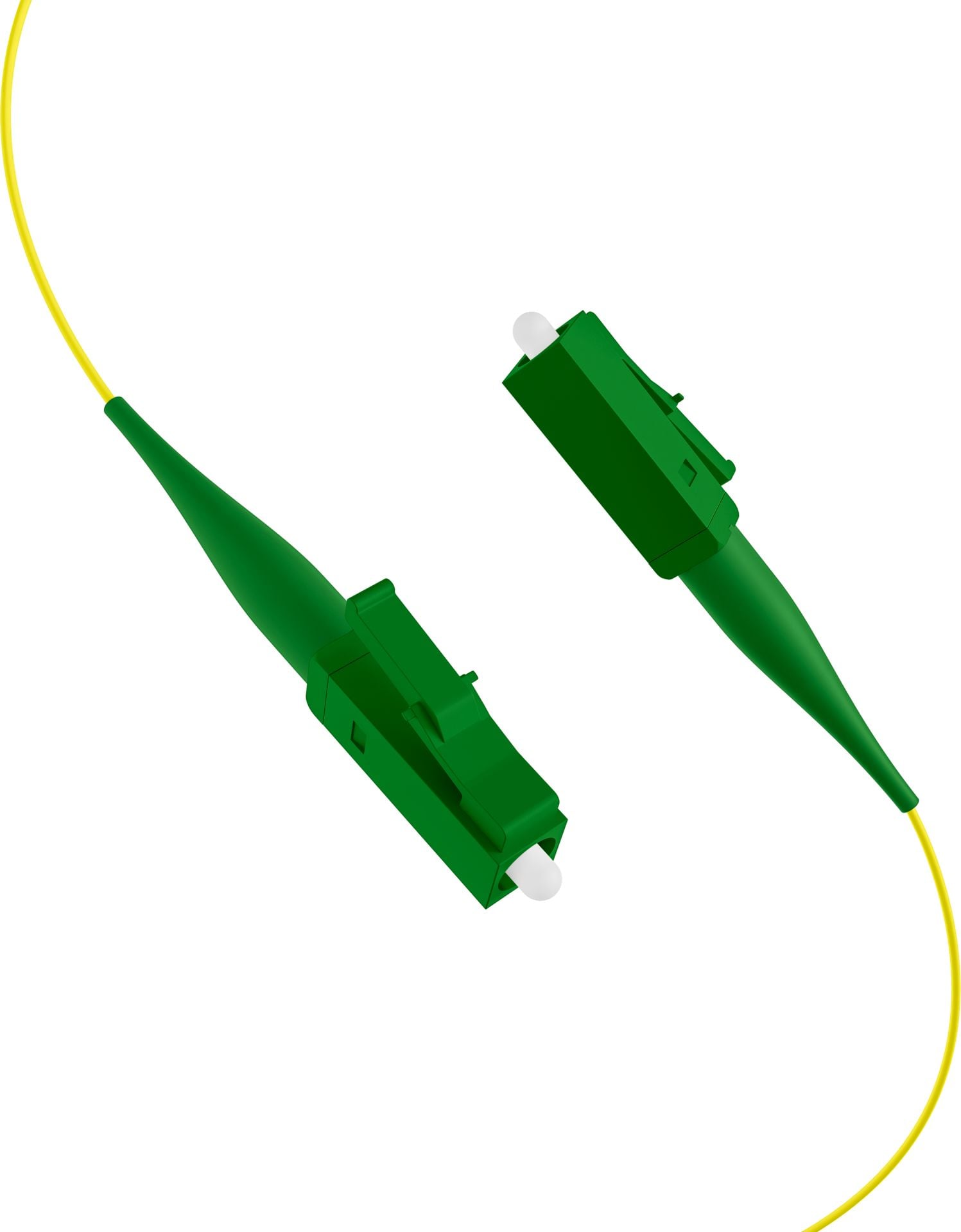

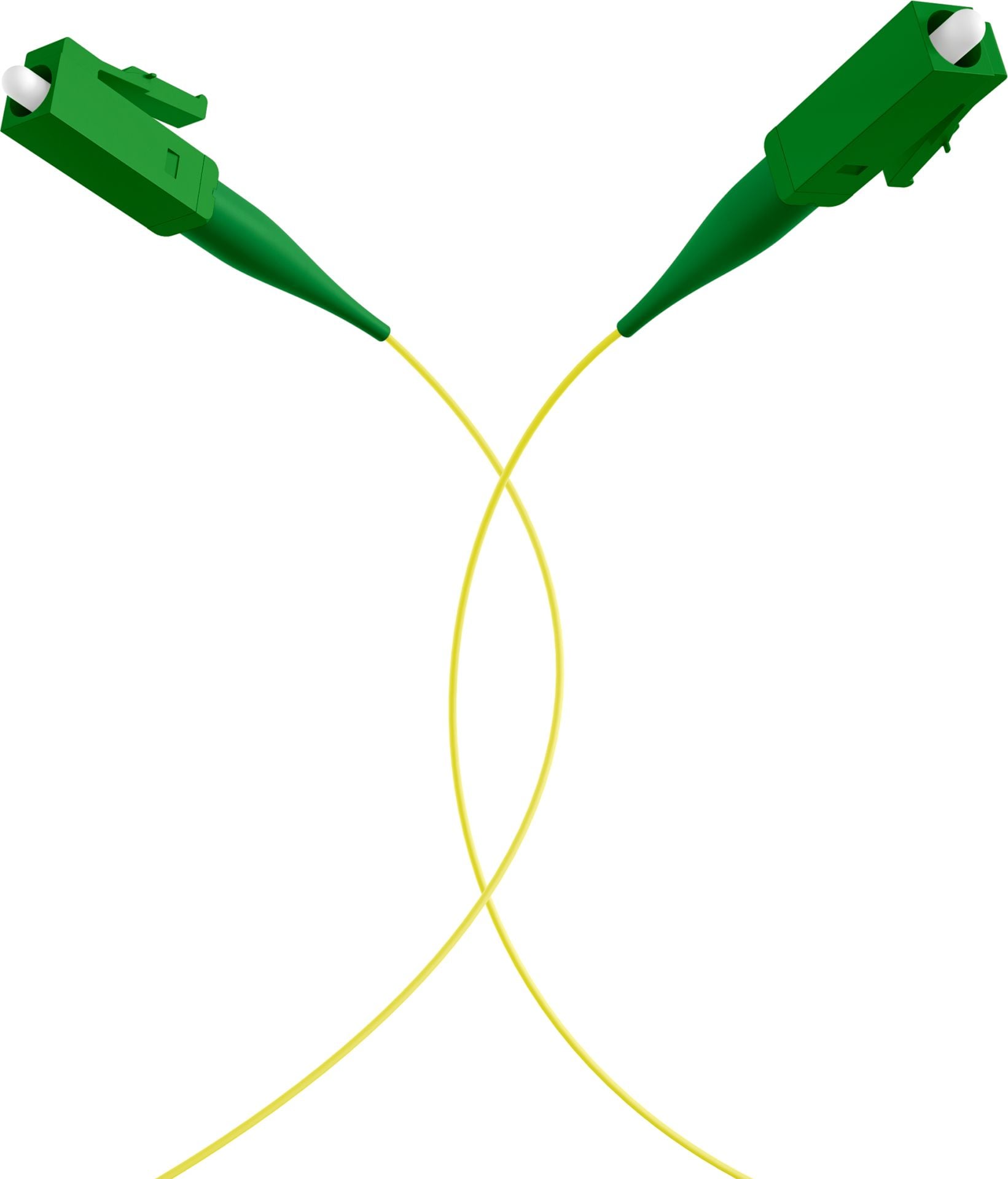

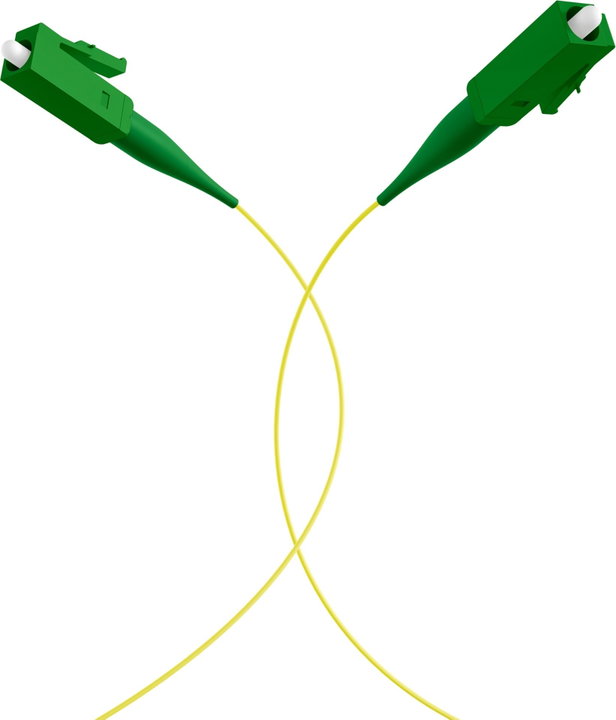

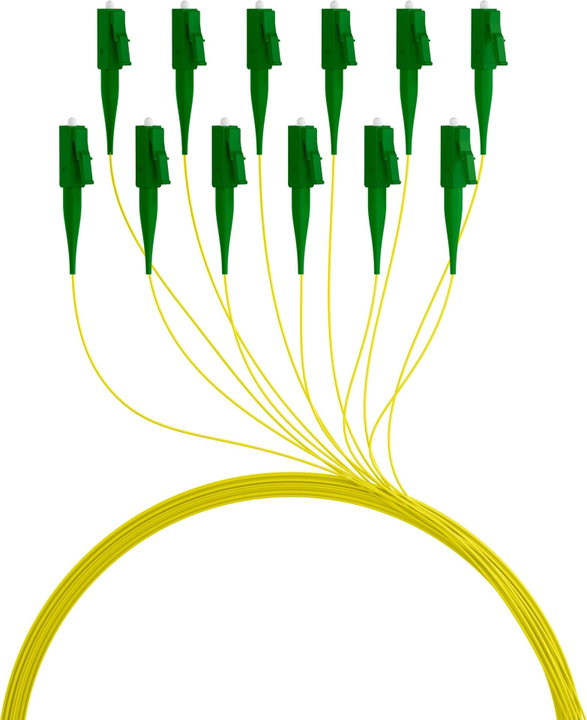

Set of 12 single-mode pigtail OS 2 with LC/APC connectors, 9 / 125 G 652 D fiber, length 2 meters. Yellow LSZH sheath, green connector, insertion loss <0,3 dB a 1310nm.



Return policy



Delivery policy



Direct contact for info



Secure Payment

The SC fibre pigtail has a primary coating (900 µ) in the yellow colour of the respective category. The primary coating color è equals the secondary coating color. Each PU contains an individual measuring protocol.



Technical specifications

  • 12 Pigtail
  • APC version
  • Folding sleeve: Put-on
  • Standard Cable: IEC 60793 - 2
  • Category: OS 2 second ITU-T G. 652 .D
  • Standard connector: IEC 61754 - 4
  • Core type: Semi tight
  • Fiber Type: Monomodal 9 / 125
  • Insertion loss 1310 nm: < 0,3 dB
  • Sheath material: LSZH
  • Maximum voltage: 3 N
  • Dynamic Biegeradius minimaler: 20 xOD
  • Mion. Static curvature radius: 10 xOD
  • Operating temperature: - 20 – 70 °C
  • Outer diameter: 0,9 mm
  • Quality class (one mode): B/ 2 according to IEC 61753 - 1
  • Type: Pigtail of the conductor
  • Connector type: LC/APC
  • Color: yellow
  • Connector color: green
  • Length: 2 m

  • Brand
  • Reference
    ILWL PG-LC/APC-OS2
  • In stock
    20 Items
  • EAN13
    4049759025175
