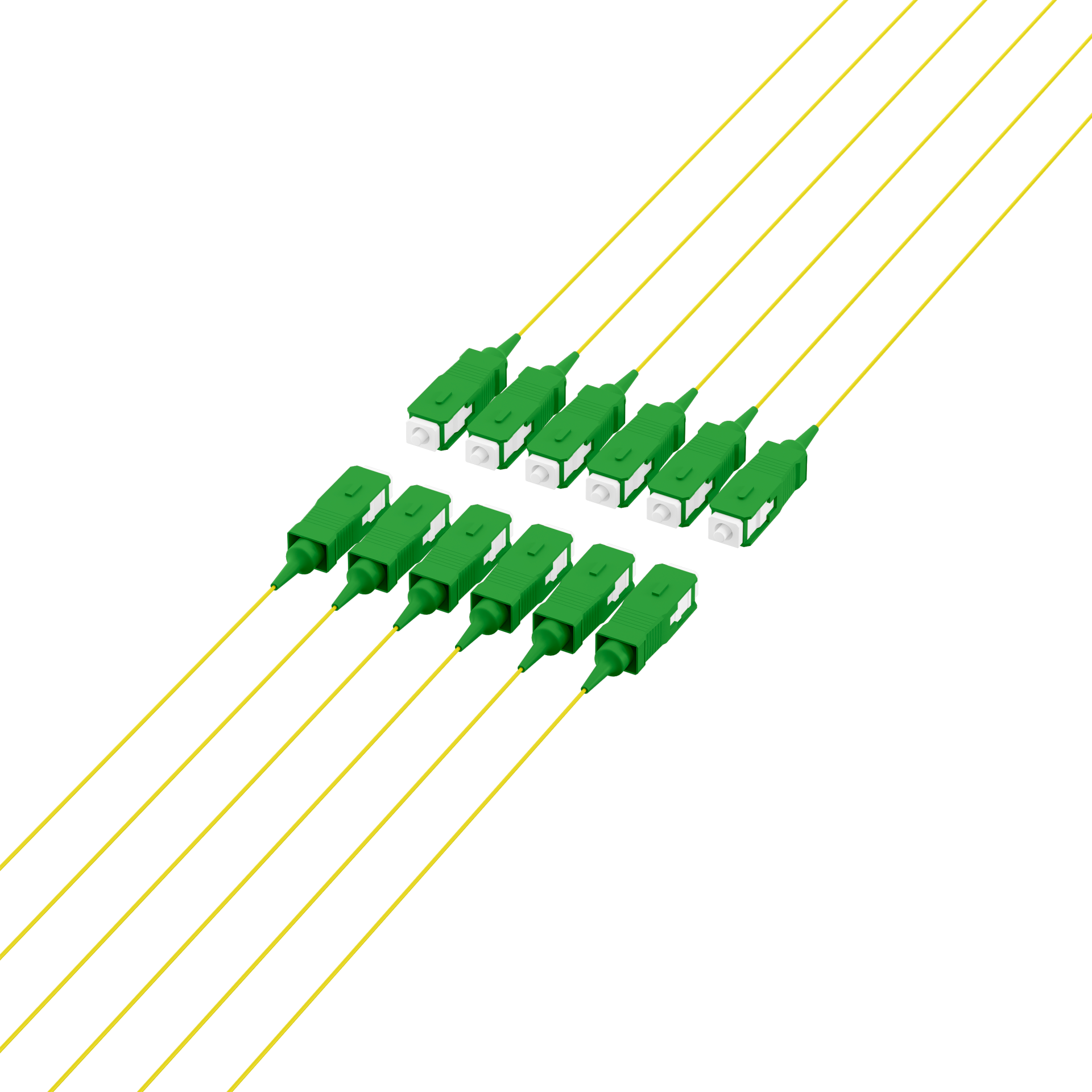

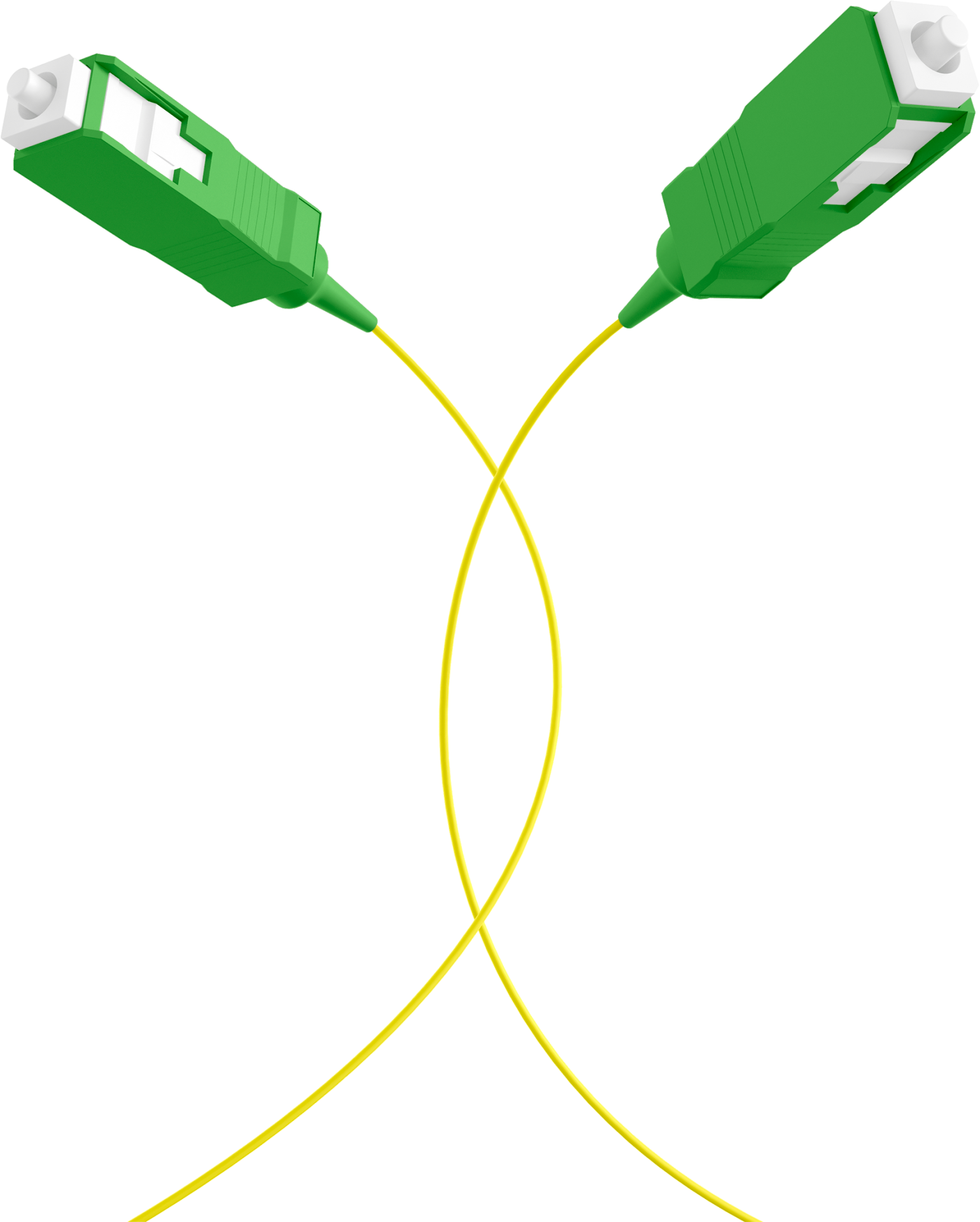

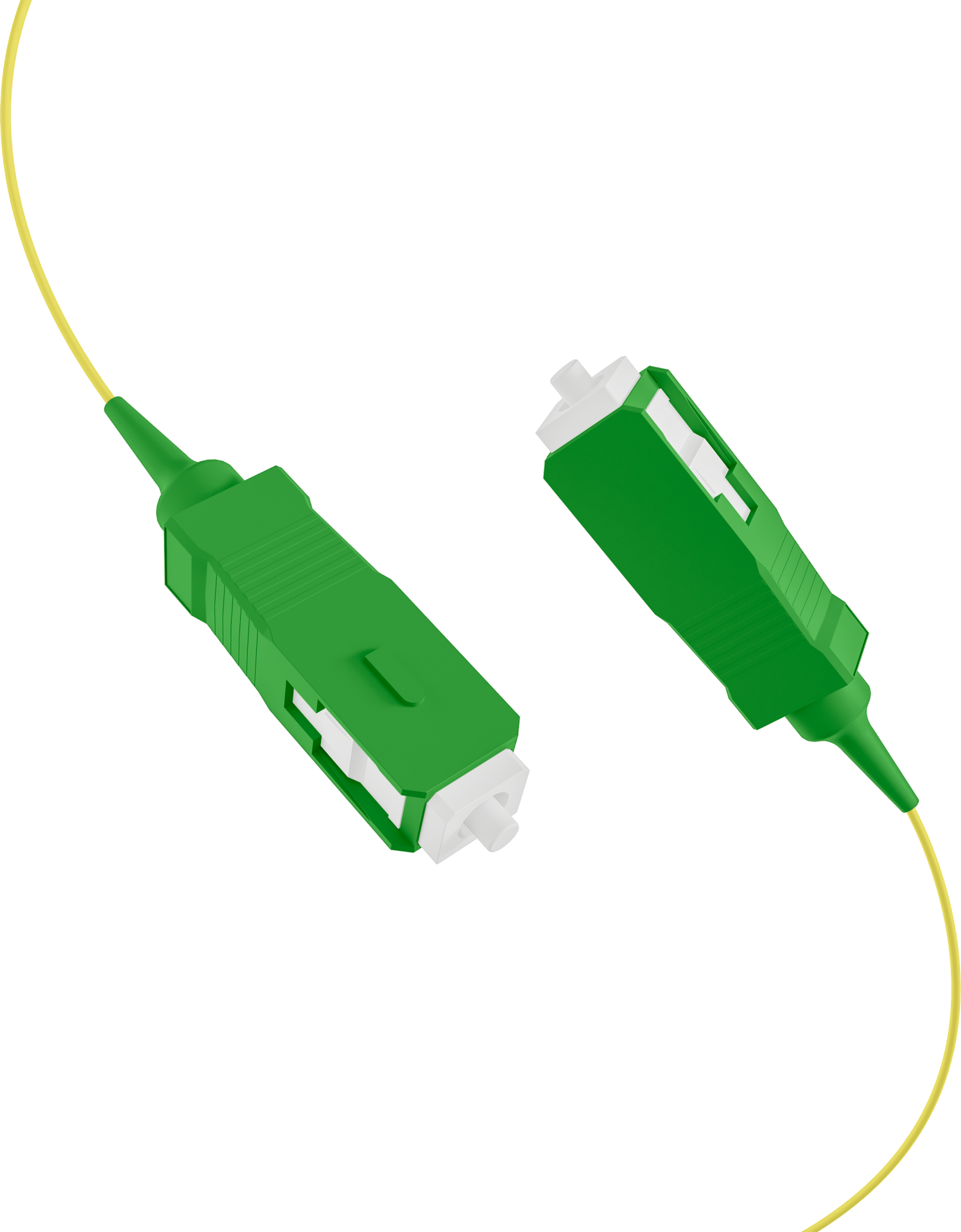

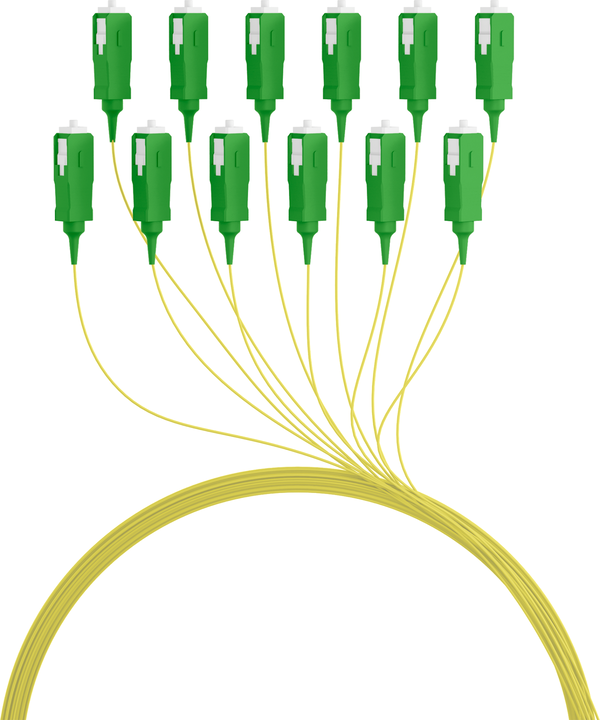

Set 12 Pigtail Fiber Optic Monomodal OS 2 SC/APC G 657 A 2 2 m Yellow - ILWL PG-SC/APC-OS 2 A

The SC fibre pigtail has a primary coating (900 µ) in the yellow colour of the respective category. The primary coating color è equals the secondary coating color. Each PU contains an individual measuring protocol.

Technical specifications

• 12 fibre
• APC version

• Folding sleeve: Put-on

• Standard Cable: IEC 60793 - 2

• Category: OS 2 second ITU-T G. 657

• Standard connector: IEC 61754 - 4

• Core type: Semi tight

• Fiber Type: Monomodal 9 / 125

• Insertion loss 1310 nm: < 0,3 dB

• Sheath material: LSZH

• Maximum voltage: 3 N

• Operating temperature: - 20 – 70 °C
• Outer diameter: 0,9 mm

• Quality class (one mode): B/ 2 according to IEC 61753 - 1

• Type: Pigtail of the conductor

• Connector type: SC/APC

• Color: yellow

• Connector color: green

• Length: 2 m
