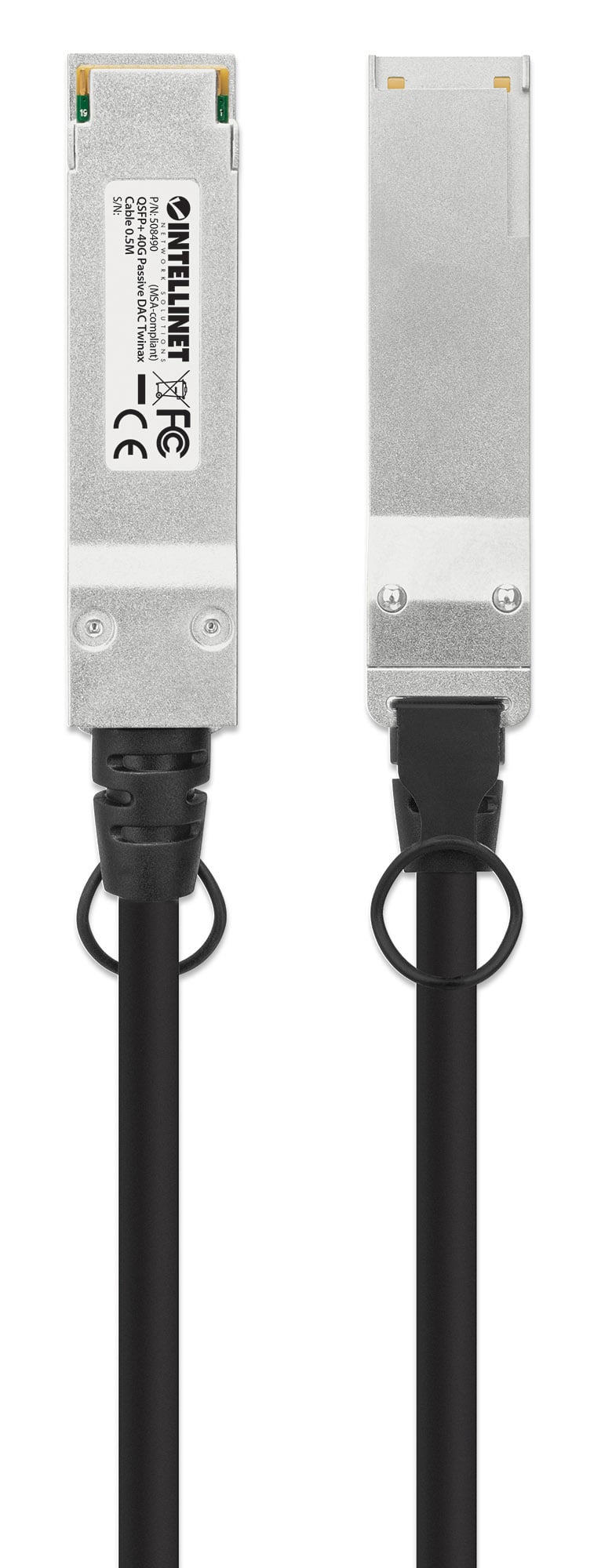

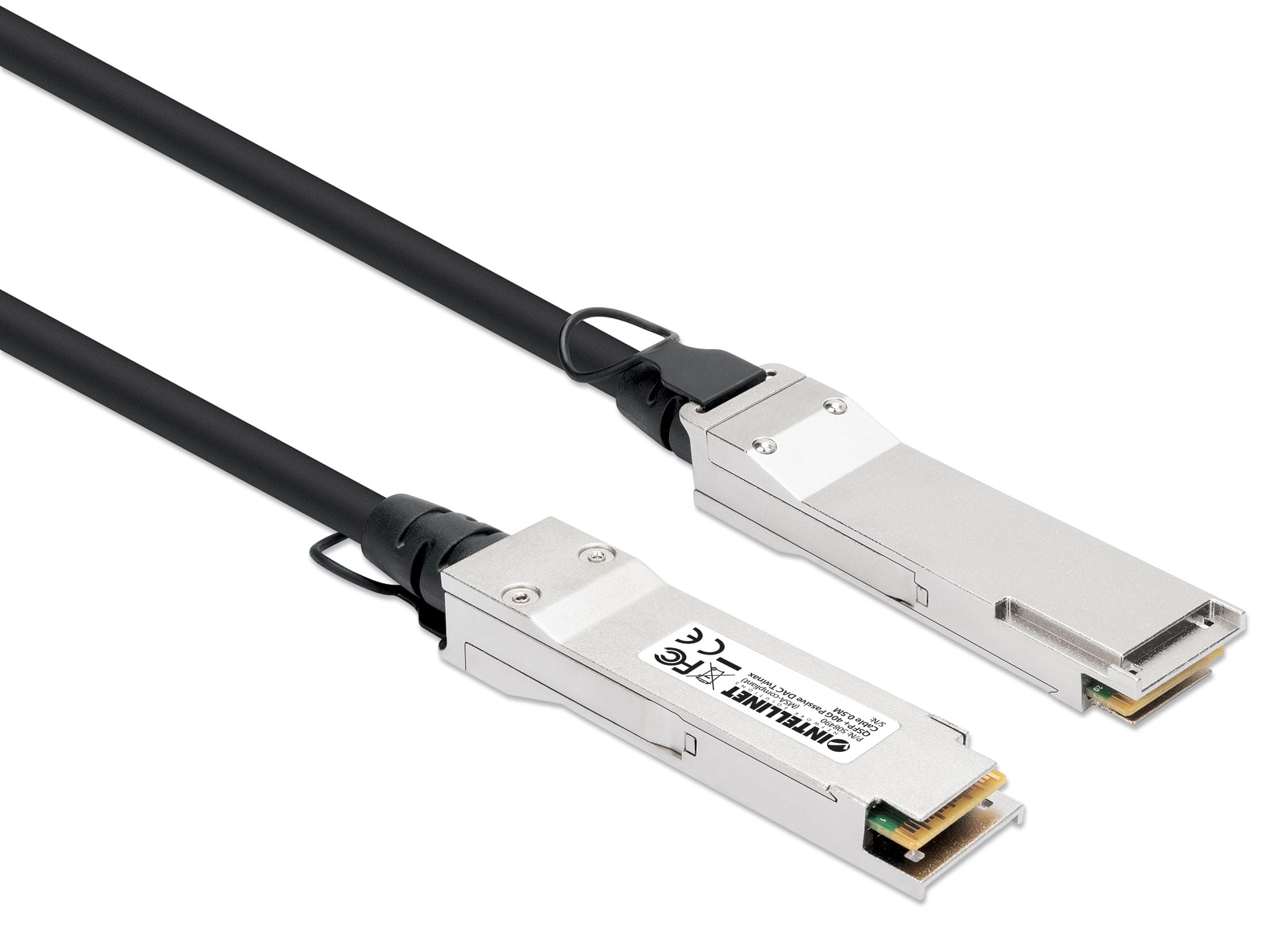

Twinax DAC cable Liabilities QSFP+ 40 G 0,5 m - Intellinet ICOC QSFP- 005

· Direct Attack Copper passive biaxial cable (DAC) for economical, low latency and energy saving connections

· MSA-compliant for compatibility à with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)

· Two QSFP + connectors for data transfer speeds à up to 40 Gbps

· Energy consumption and price significantly lower than optical fibre cables

· Lower signal latency compared to RJ 45 connections

· Simpler ù Cable Implementation in Optical Transmitters with Less Components That Have To Match

· Passive DAC as an ideal option in structured wiring for many applications within short distance up to 7 m

· Does not produce heat and can be used at high operating temperatures up to 70 °C

· Hot-swap for updates or network replacements without interruption


Standards and certifications

· RoHS

· EC

· FCC



General information

· Power consumption: < 0,1 W (for extremeà)

· Applications: 40 Gigabit Ethernet

· Maximum data transfer speed à: 40 Gbps

· Minimum curvature radius: 33 mm

· Impedance: 100 Ohm

· Length: 0,5 m

· Weight: 101 g



Compatible marks

· Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tent, Trendnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force 10 , Riverstone, Fortinet and more



Connections:

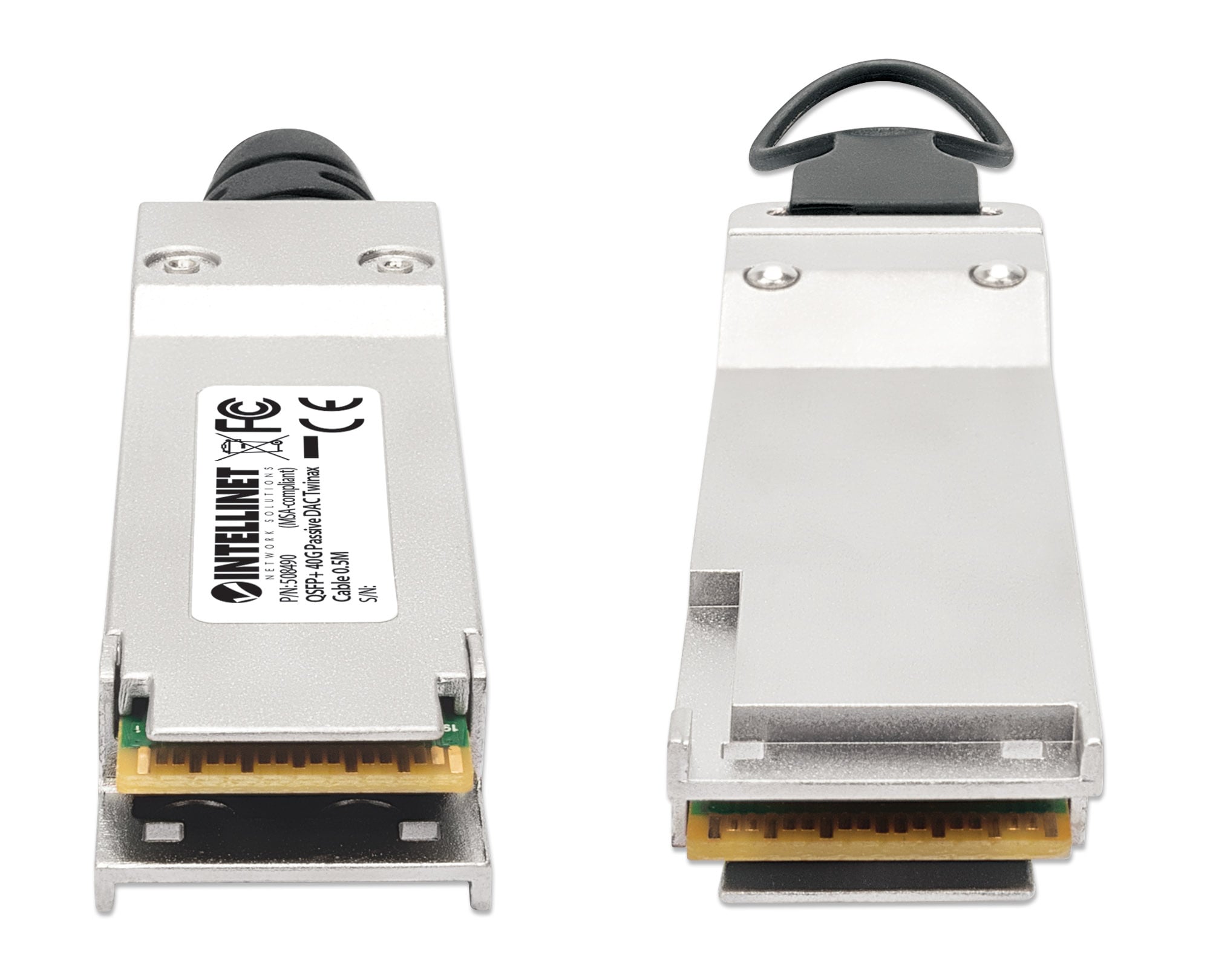

· Two QSFP + male



Cable:

· AWG 30 drivers

· Type: passive copper, biaxial

· Coating material: PVC



Environmental features

· Operating temperature: 0 - 70 °C

· Storage temperature: - 40 - 80 °C



Package contents

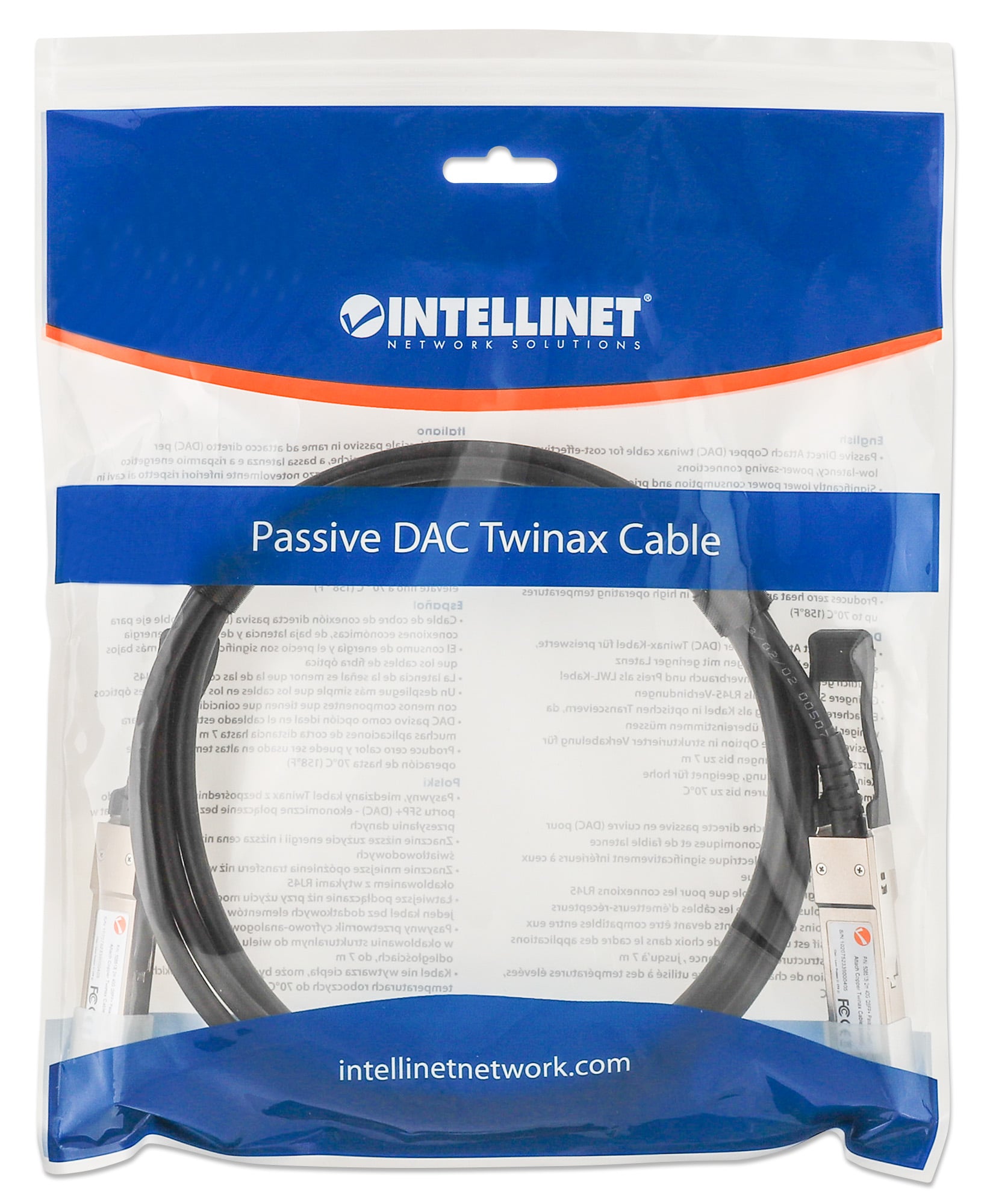

· Passive Twinax DAC cable
