Switch 5 Doors 2.5 G Ethernet Metal case, HS 105 - Cudy ICU-HS 105

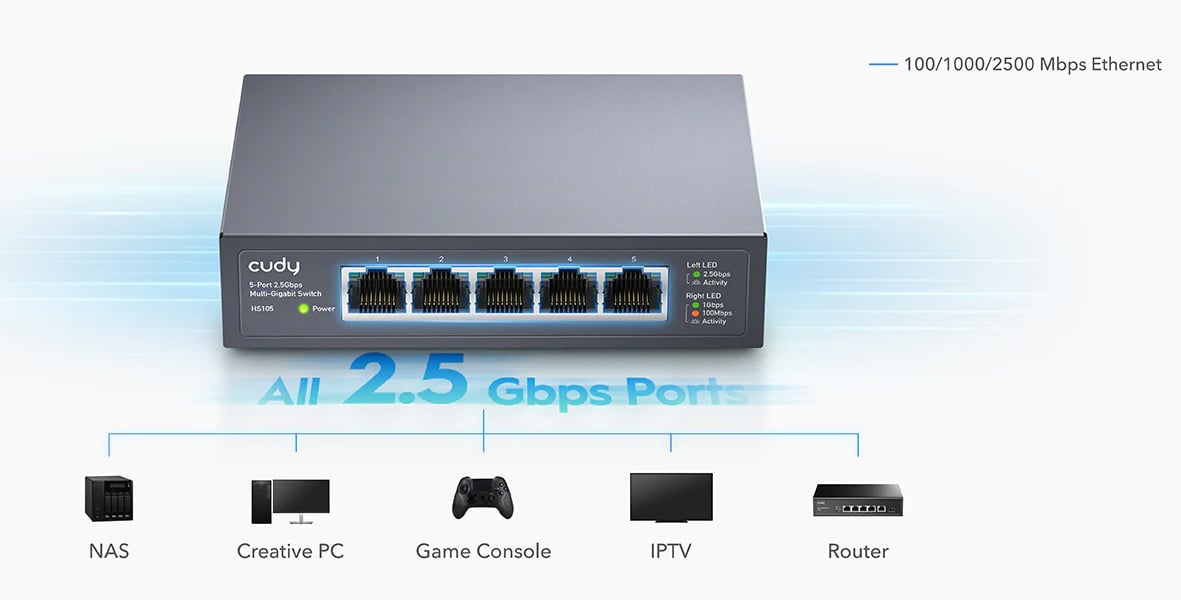

Transform the speed & efficiency of your network with the Cudy HS 105 5 -Port 2.5 G Metal switch. Equipped with five self-negotiation ports, auto-MDI/MDIX, this switch supports more ù speedà up to 2,5 Gbps, ensuring high performance connectivityà for demanding applications.

ICU-HS 105 è equipped with advanced Airoha EN 8860 D and EN 8811 H chipsets, which offer a solid non-locking switching architecture that provides forward and filtering of the full-speed à network packets. With a 25 Gbps switching capacity and a speed à packet forwarding of 18,6 Mpps, it manages large volumes of traffic without continuity solution;

Designed to manage high-performance à activity, the switch includes a package buffer from 4 Mbit and supports jumbo frames up to 15 KB. Its store-and-forward method, combined with 802.3 x flow control and IGMP for efficient multicast transmission, improves reliabilityà and overall network performance.

ICU-HS 105 è Compact (119 × 85 × 28 mm) and versatile, allowing both desktop and wall mounting. It works within a wide temperature range (0 °C to 40 °C) and comes with a power adapter, an installation guide and an assembly kit, making the installation simple and immediate.

•

• 5 Ethernet ports 2.5 G

• IGMP Snooping, loop prevention

• Max 10,5 W, inactive 4,7 W

• Store-and-Forward switching method

• Supports 802.3 x flow control

• Desktop, wall mount

• Metal housing


802.3 protocols

•

• Flow control 802.3 x

• 802.3 u 100 Mbps on braided double

• 802.3 ab 1 Gbps on braided double

• 802.3 bz 2,5 / 5 Gbps on braided double


Technical Specifications

•

• IGMP Snooping

• Loop prevention

• Loop detection

• Flash/ROM 1 MB (8 Mbit) NOR

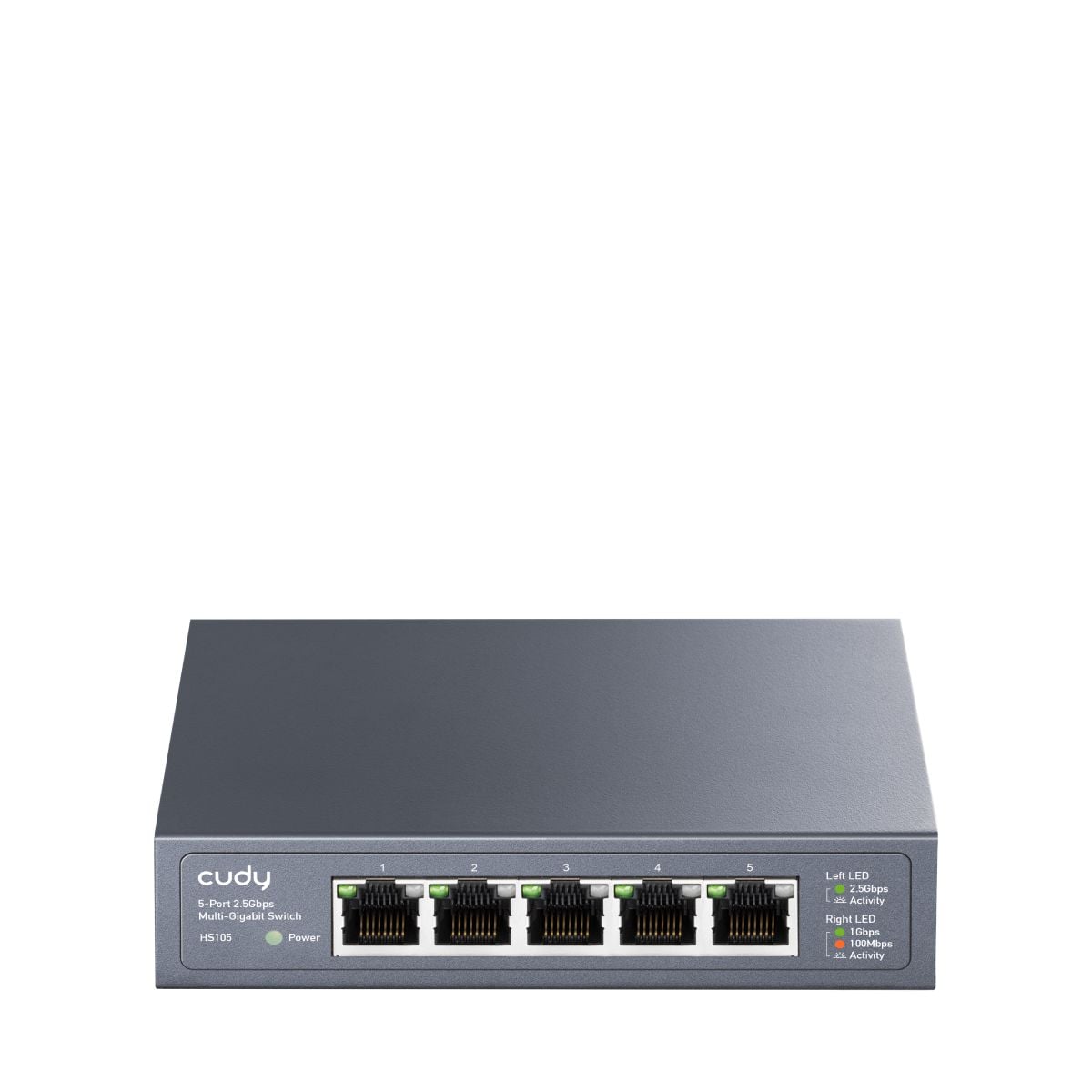

• 5 doors RJ 45 from 2.5 G

• LED: power supply; Velocità/Link/ACT of each Ethernet port

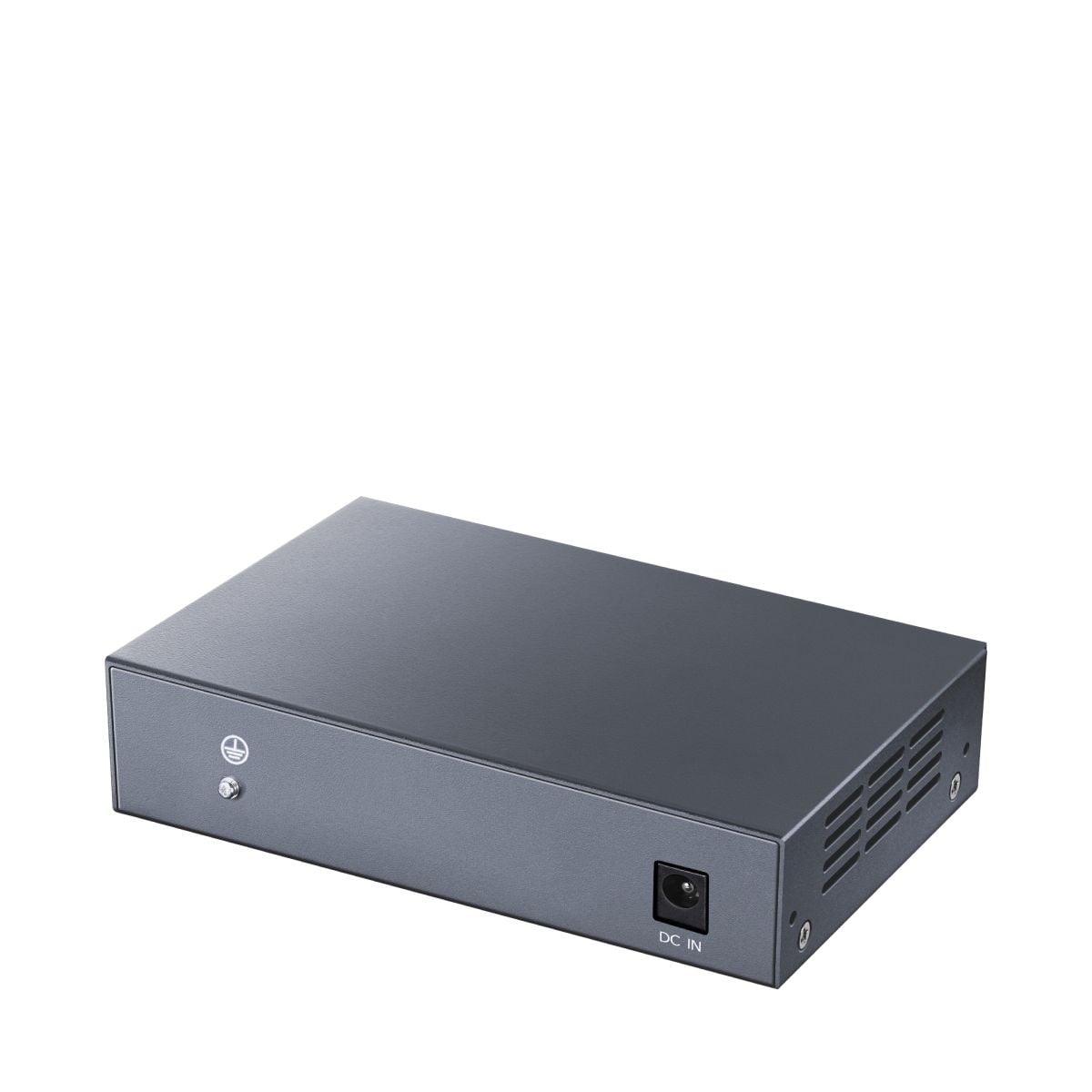

• DC power input

• Velocità and distance:

  •

  • Cable Cat. 5 or higher: 100 meters to 100 Mbps

  • Cable Cat. 5 and above: 100 meters to Gigabit

  • Cable Cat. 5 and above: 50 meters to 2.5 Gbps

  • Cable Cat. 6 or higher: 100 meters to 2.5 Gbps




• MAC 8192 Address Table

• Capacità maximum switching 25 Gbps

• Velocità maximum forwarding 18,6 Mbps

• Jumbo Frame 15 KB

• Mbit 4 Package Buffers


Feeding

•

• Basic energy saving

• Power supply CC 12 V 1 A

• Maximum power consumption 10,5 W

• Inactive energy consumption 4,7 W


Reliabilityà

•

• Grounding methods: mass point

• Protection against lightning/overvoltages 2 kV

• ESD 4 kV contact protection

• Antistatic protection ESD 8 kV


Environmental features

•

• Operating temperature: 0 °C ~ 40 °C

• Storage temperature: - 40 °C ~ 70 °C

• Operating Humidità 10 % ~ 90 % without condensation

• Storage humidità 5 % ~ 90 % without condensation

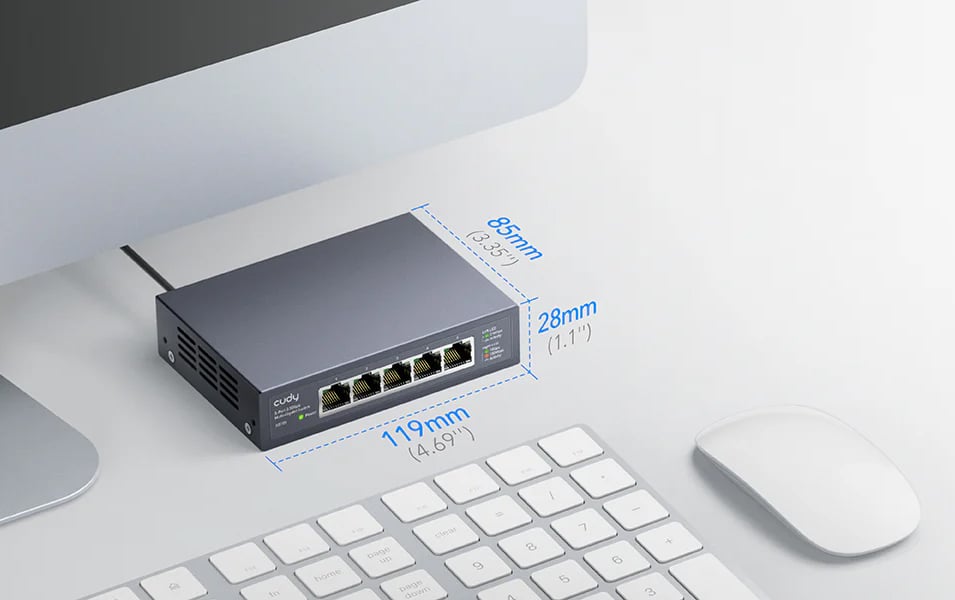

Dimensions

•

• Width: 119 mm

• Depthà: 85 mm

• Height: 28 mm

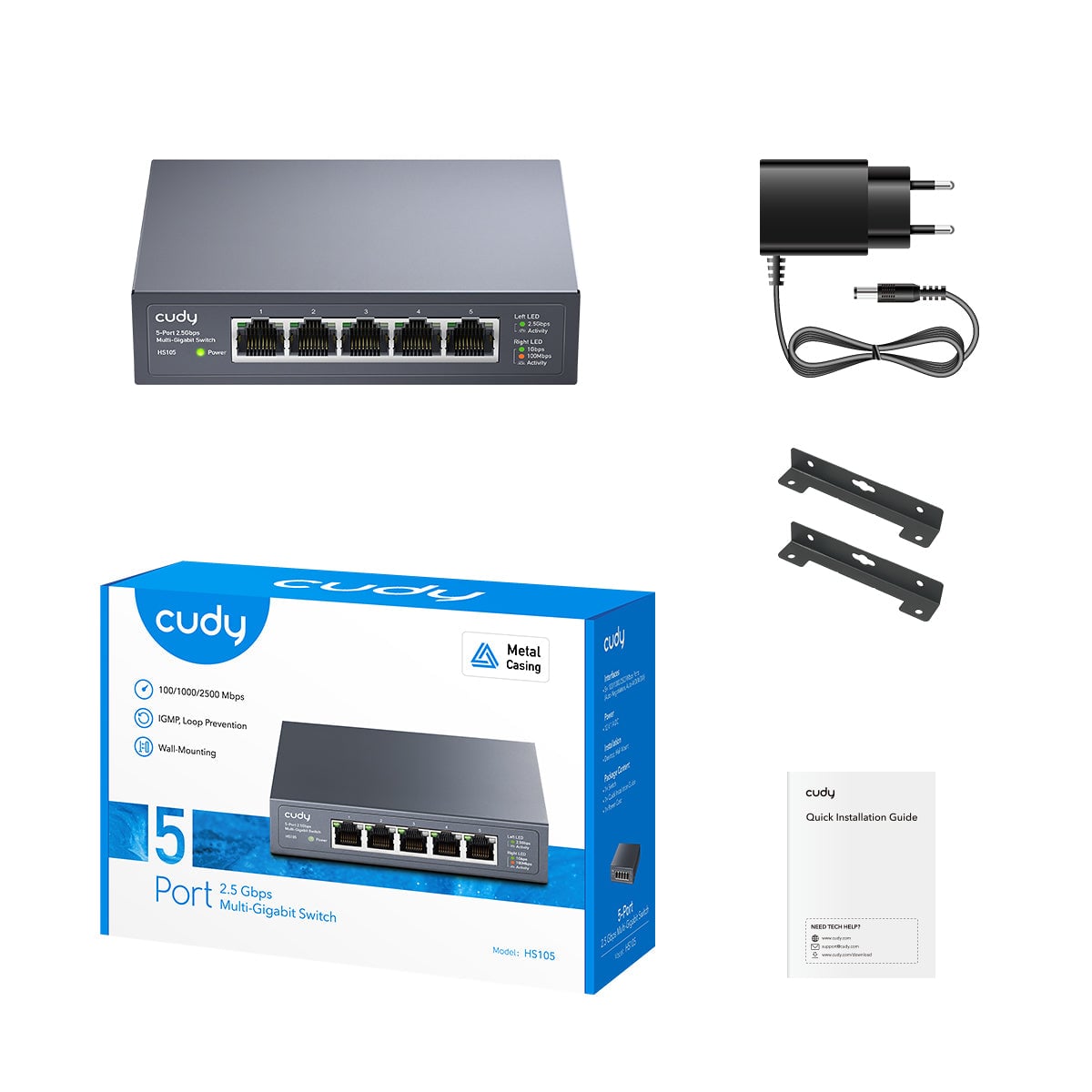

Package contents

•

• ICU-H 105 Switch

• Power supply

• Installation Guide

• Ethernet cable

• Assembly kit
