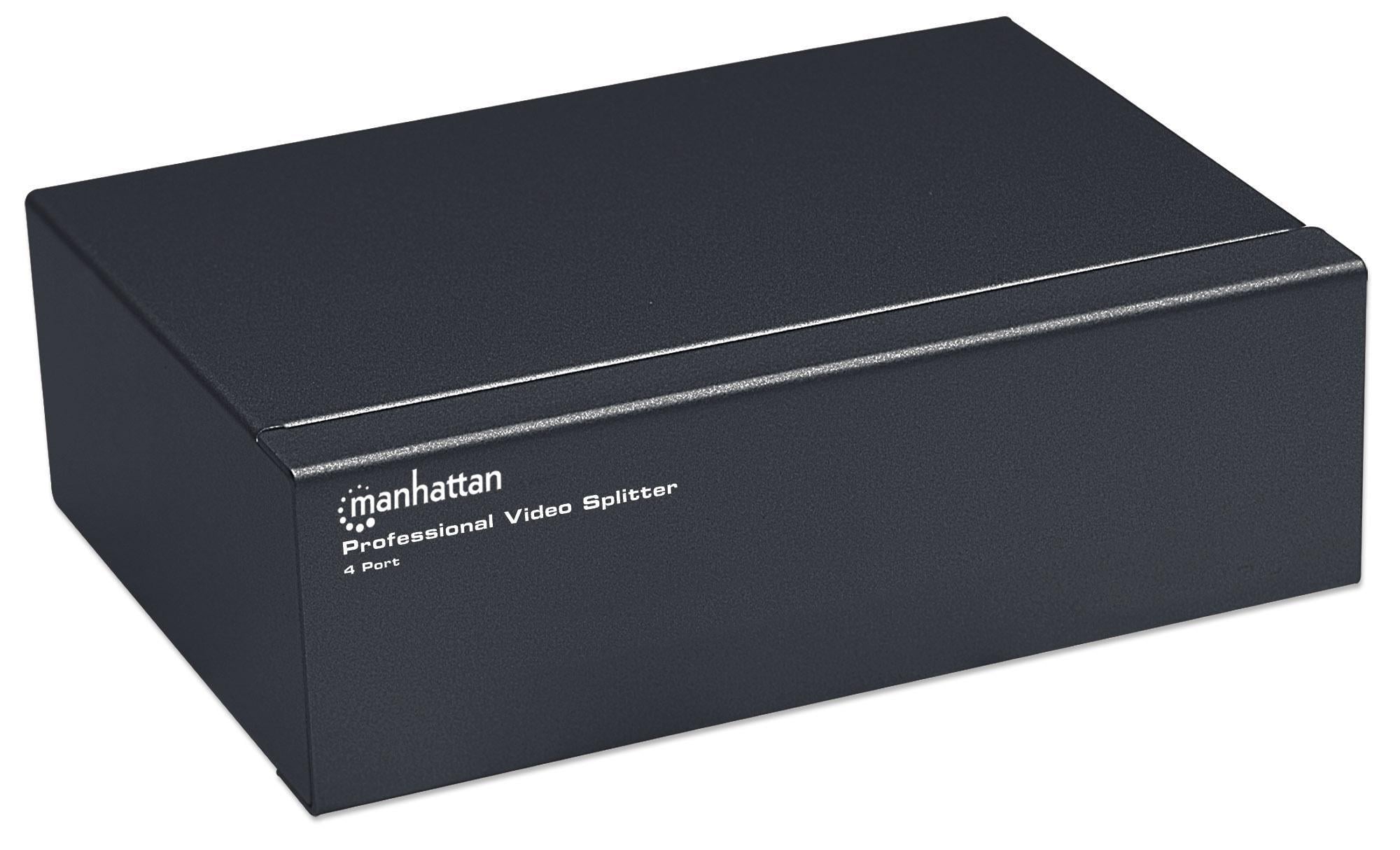

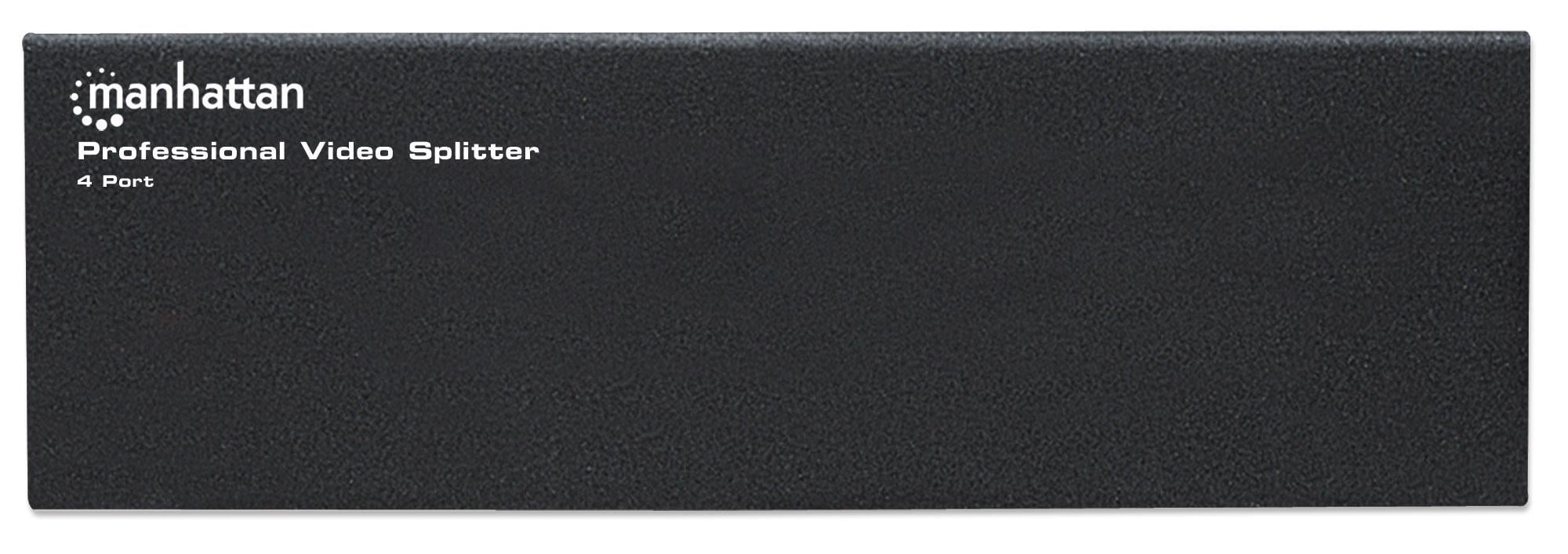

Video Splitter VGA Professional 4 Vie 350 MHz - Manhattan IDATA IVIEW-MS 4

€49.75
Tax included €40.80 excl. VAT

Professional VGA splitter that duplicates a VGA signal on 4 outputs. Supports bandwidth up to 350 MHz, resolutions up to 1920 x 1680 and distance up to 65 m. Power supply 9 V AC, 300 mA. Certifications FCC, CE, ISO 9002.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Duplicates a single VGA signal to four VGA outputs

  • Supports bandwidth up to 350 MHz and resolutions up to 1920 x 1680 with effective transmission distance up to 65 m

  • Provides clear and clear signal from a PC to monitors, projectors or other VGA, SVGA and MultiSync equipment

  • Waterfall up to three levels to expand signal distribution to more ù monitor

  • The power saving function is activated automatically until the VGA signal is restored

  • Easy to install — not è required no configuration



Standards and Certifications

  • FCC

  • CE

  • ISO 9002



General information

  • LED indicator: On (green)

  • Cable length, maximum: 65 m

  • Connection: input (1) HD 15 male; output, (4) HD 15 female

  • Power supply: 9 V AC, 300 mA



Signal

  • Signal bandwidth: 350 MHz

  • Signal type: VGA, SVGA, multi-sync

  • Input voltage, minimum: 0.5 V p-p

  • Input voltage, maximum: 1.0 V p-p

  • I/O impedance: 75 Ohms

  • Computer-splitter distance video: 7,5 m

  • Distance between splitter monitor and monitor series: 65 mt



Resolution

  • Resolution: 1920 x 1680

  • Horizontal frequency: 30 – 120 KHz

  • Vertical frequency: 40 – 120 Hz

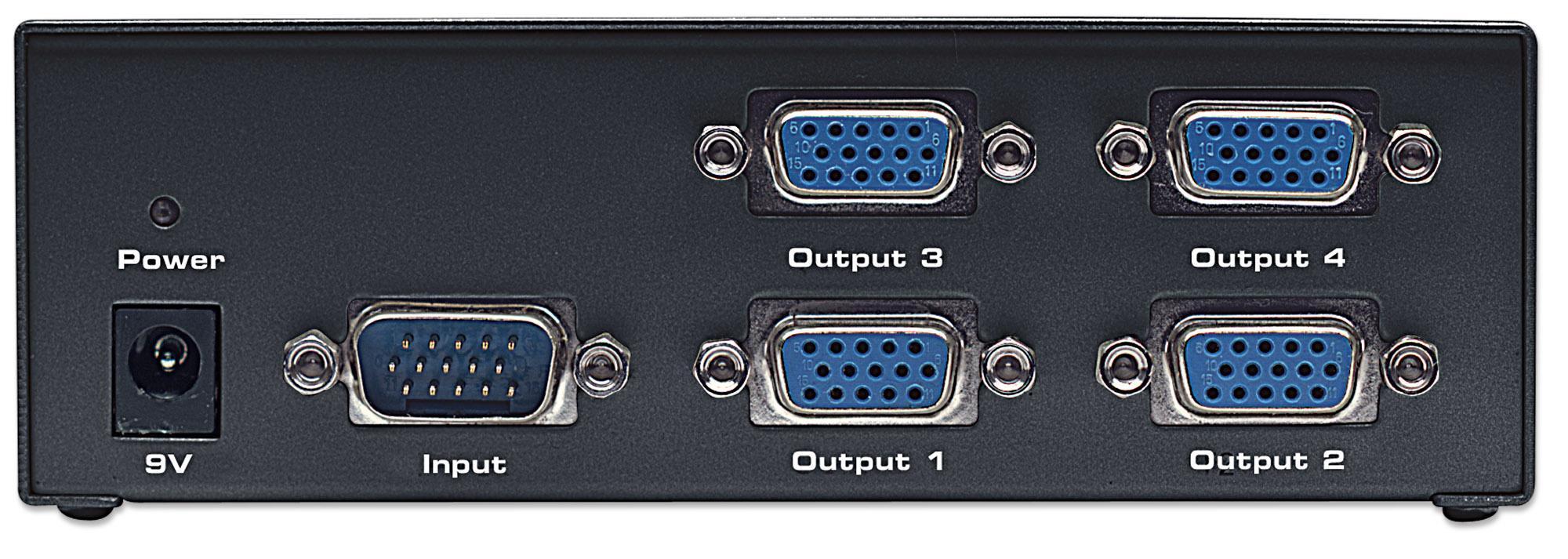

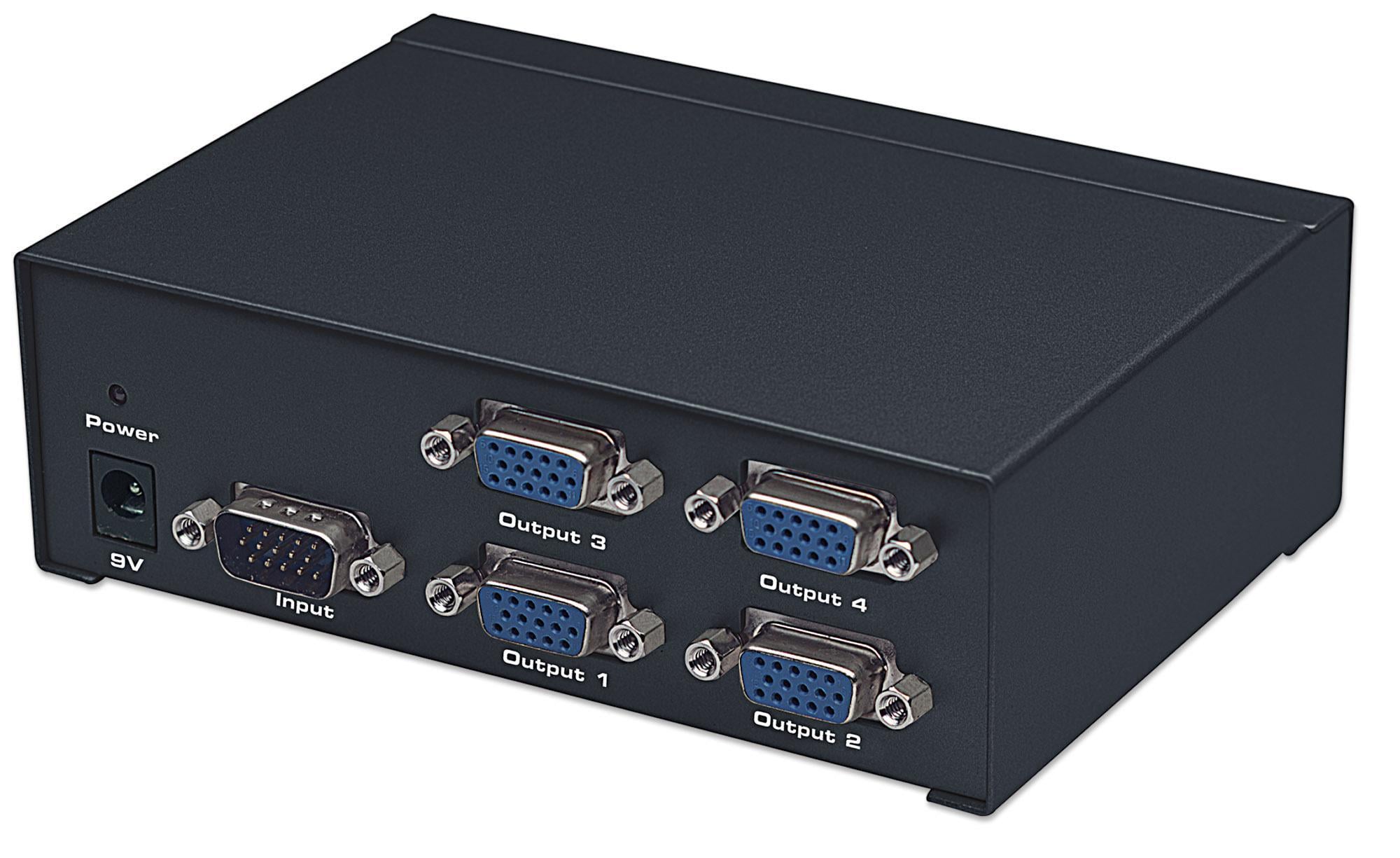

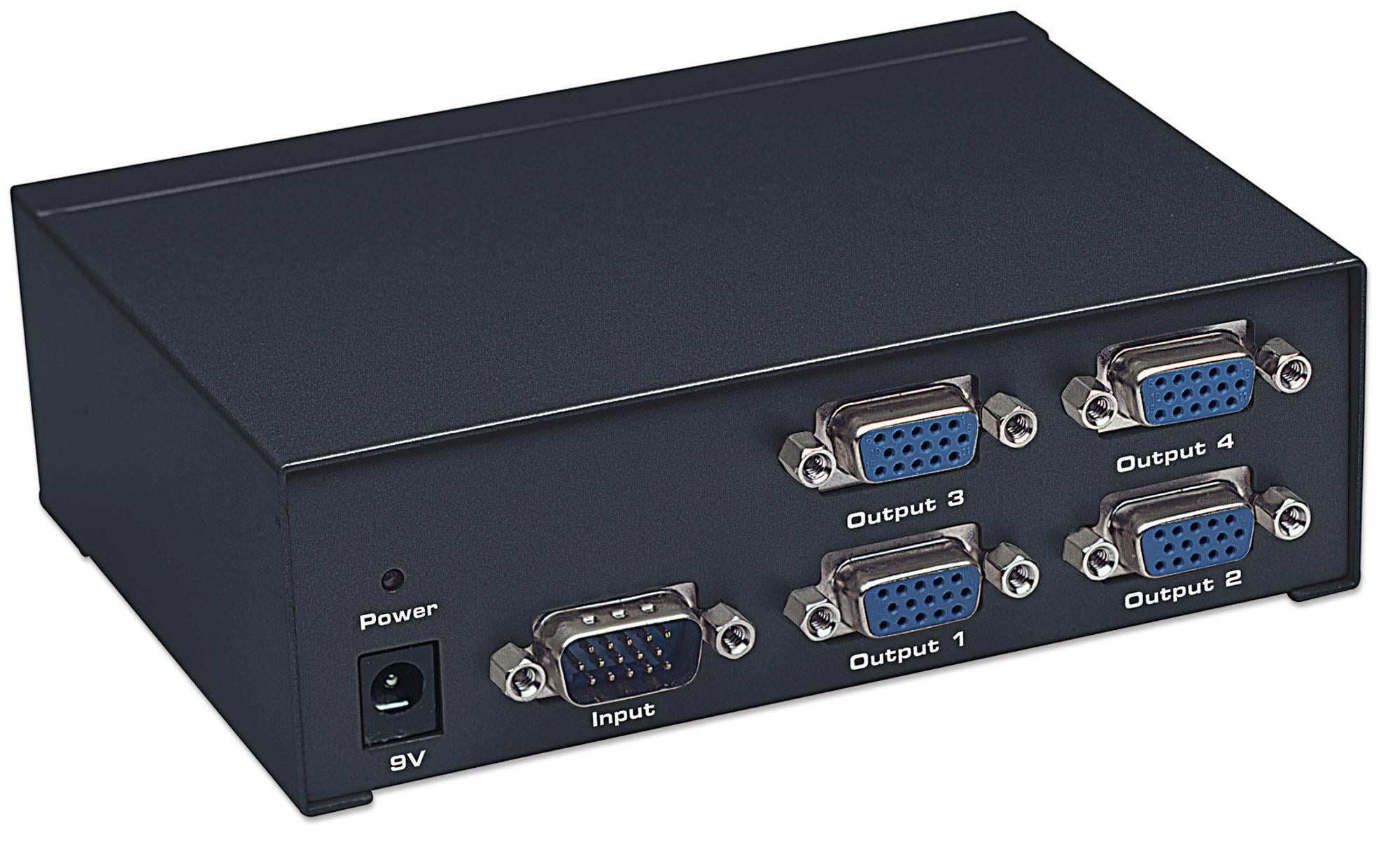

Doors

  • (1) HD 15 male

  • (4) HD 15 female

  • (1) 9 V power supply door, 1000 mA



Physical information:

  • Housing: metal

  • Dimensions: 133 x 94 x 42 mm

  • Weight: 396 g



Package contents

  • Professional Video Splitter

  • Power supply

  • Education manual

  • Brand
  • Reference
    IDATA IVIEW-MS4
  • In stock
    126 Items
  • EAN13
    0766623207348
