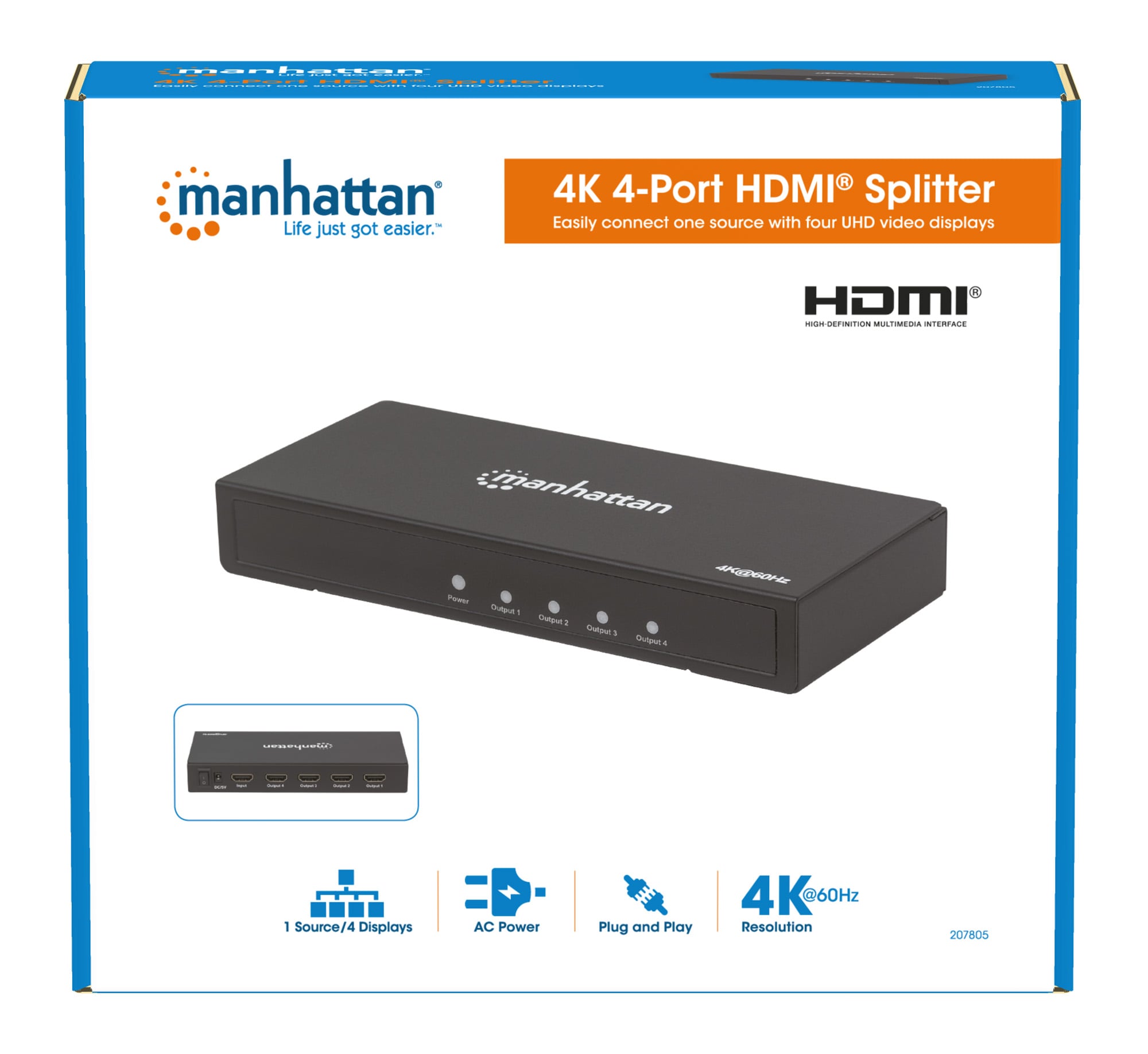

Splitter HDMI 2.0 4 K UHD 3 D 4 routes - Manhattan IDATA HDMI 2 - 4 K 4 MH

€64.03
Tax included €52.50 excl. VAT

Splitter HDMI 2.0 4 K UHD 3 D 4 via Manhattan. Replica a UHD digital audio/video signal on four screens. Resolution 4 K@ 60 Hz, supports HDR, Deep Color and 4: 4: 4 . Source-splitter and splitter-screen distance up to 10 m.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Replicates an Ultra-High-definition (UHD) digital audio/video signal for four UHD HDMI screens

  • Resolution 4 K@ 60 Hz, full 3 D, Deep Color and High Dynamic Range (HDR) video

  • Supports videoband amplification up to 600 MHz and 6.0 Gbps per channel (18 Gbps in total) for 4 Kx 2 K screens

  • Supports 36 -bit Deep Color (12 -bit per channel), 4 : 4 : 4 Chrome subsampling and YCbCr 4: 2: 0 Color formatting

  • Supports Master Audio DTS-HD compressed, 7.1 surround sound, Dolby TrueHD and uncompressed audio LPCM 8 channels

  • HDCP compatible

  • Multiple splitters (up to three in total) can be cascaded to support 10 4 K screens

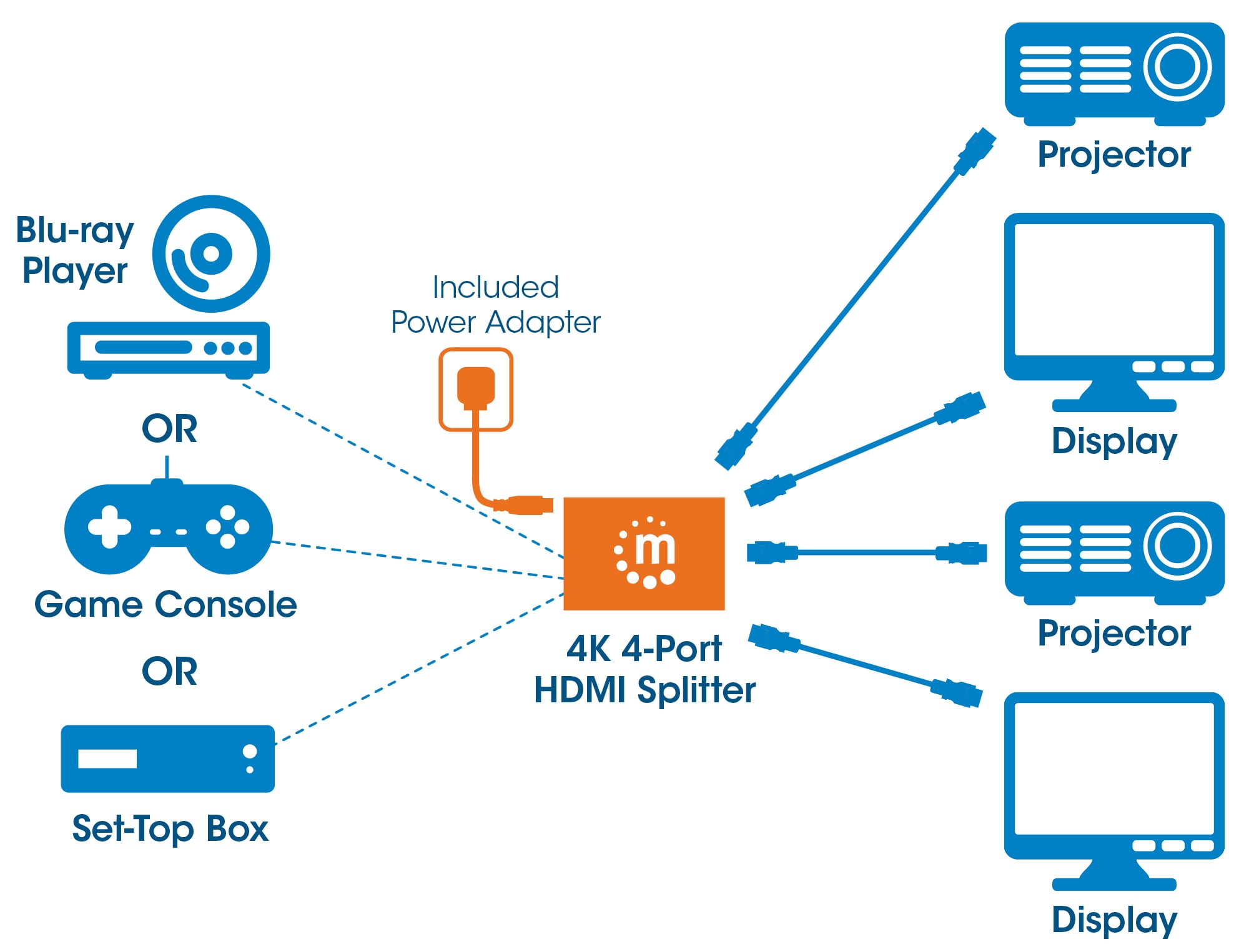

  • Works with game consoles like PlayStation and Xbox, Blu-ray players, digital terrestrial receivers and satellite receivers and much more

  • Plug and play

  • Golden contacts for a long duration of time



General information

  • Source-splitter and splitter-screen distance: up to 10 m

  • Power supply: 5 VDC / 2 A; 1.2 m

  • Power consumption: 5 W

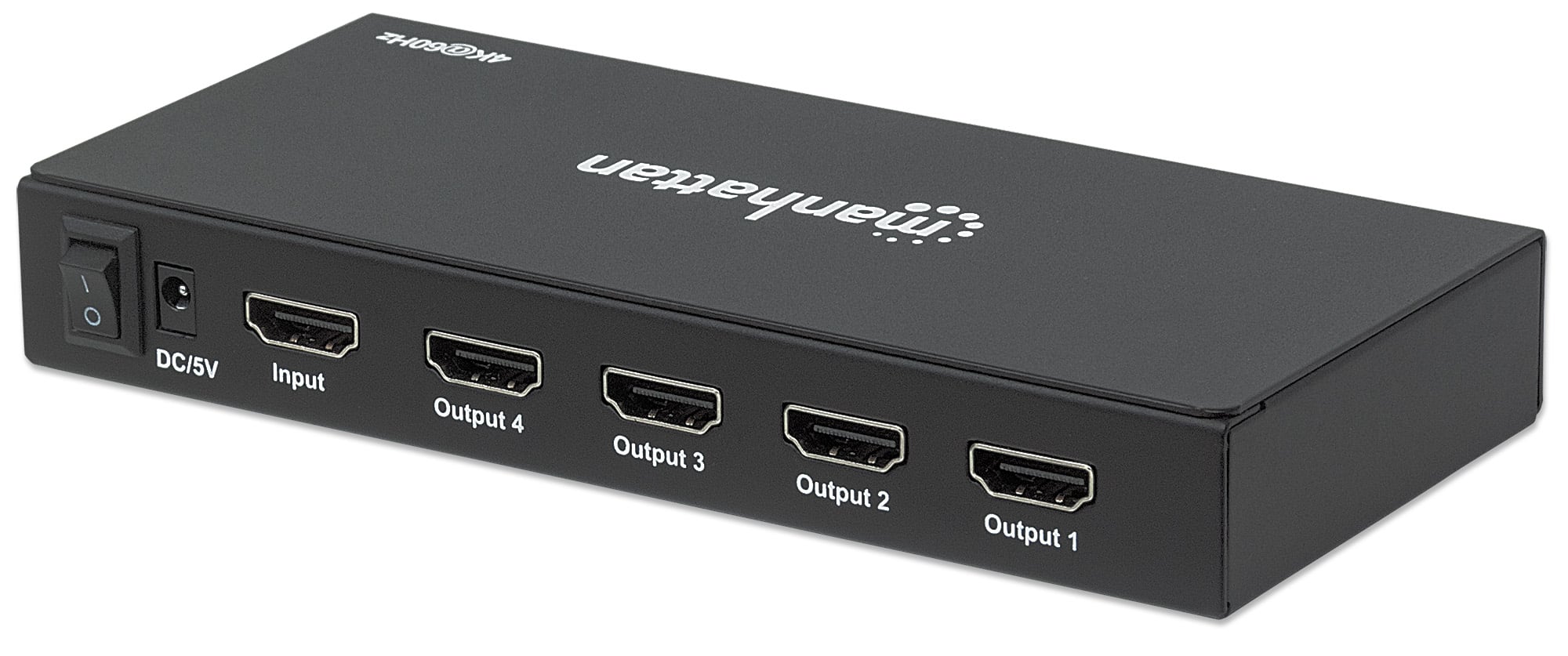

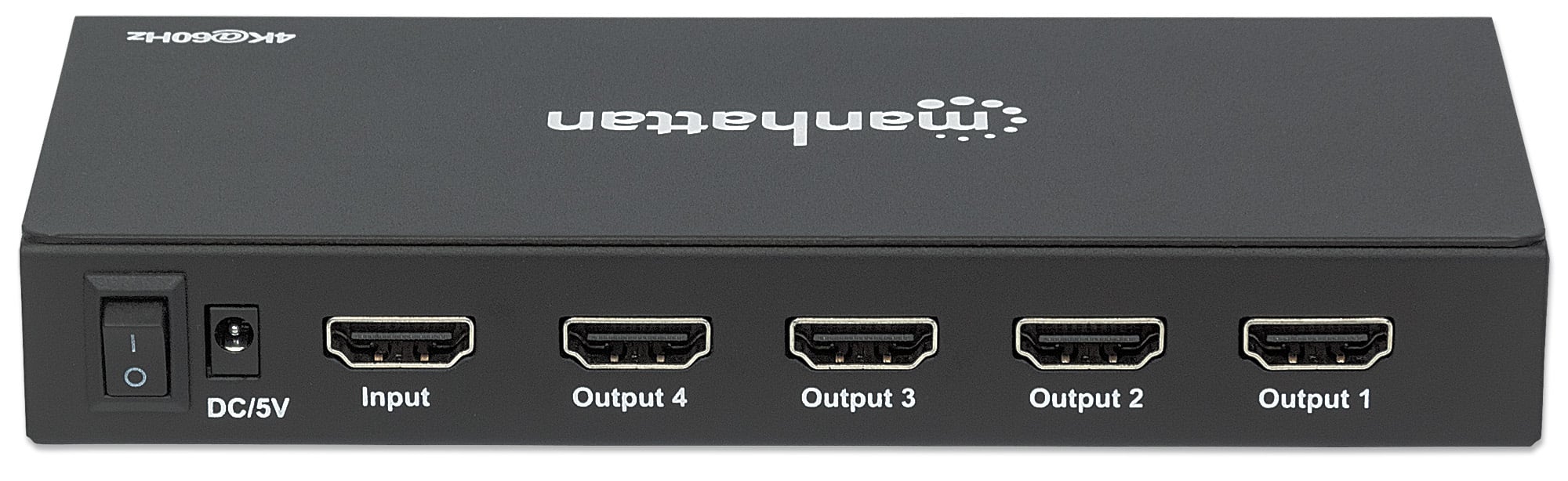

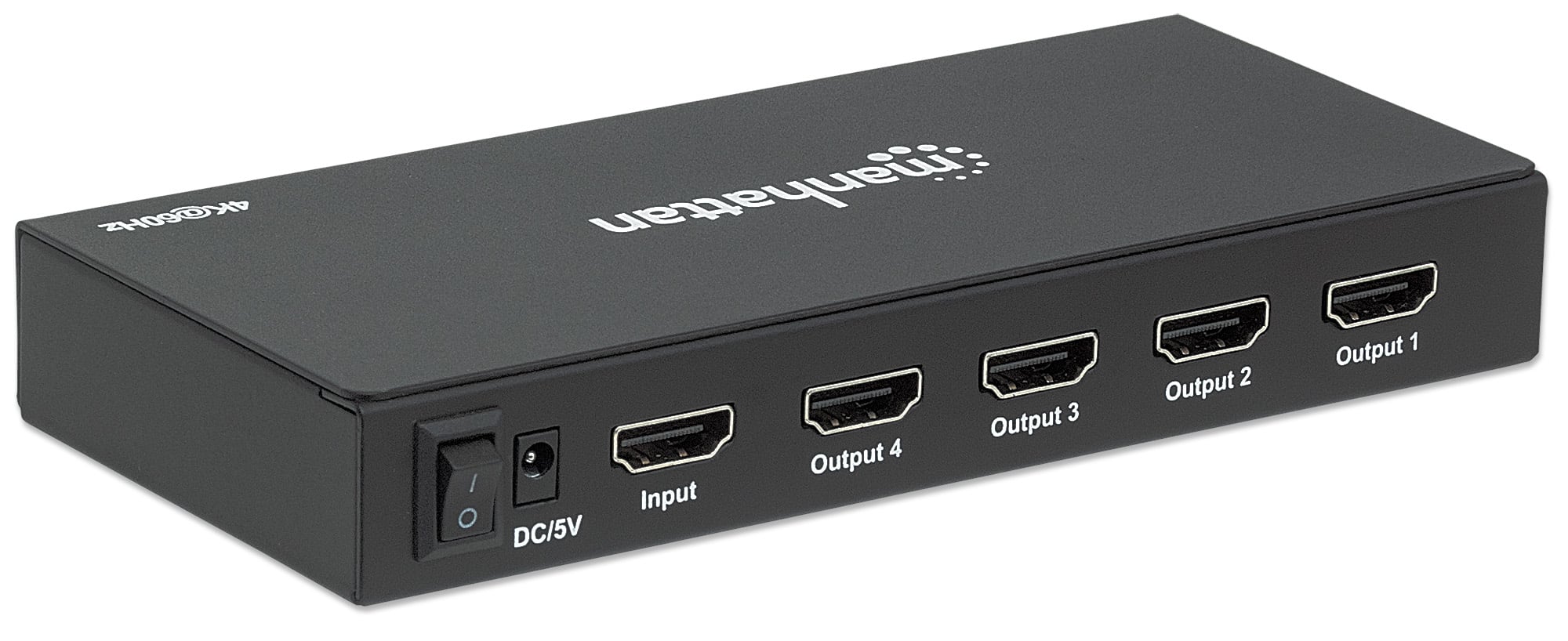

Connections

  • A female HDMI, 19 -pin (entrance)

  • Four female HDMI, 19 -pin (exit)

  • Female 5 VDC power jack (input)



Input/Exit Signal

  • Video signal input: 0.5 – 1.0 V p-p

  • Incoming DDC signal: 5 V p-p (TTL)

  • Maximum single-link range: 18 Gbps and 4096 x 2160 resolution at 60 Hz

  • Video output: HDMI 2.0 , HDCP 2.2



Supported video resolution

  • DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 4 K@ 60 Hz



Physical information

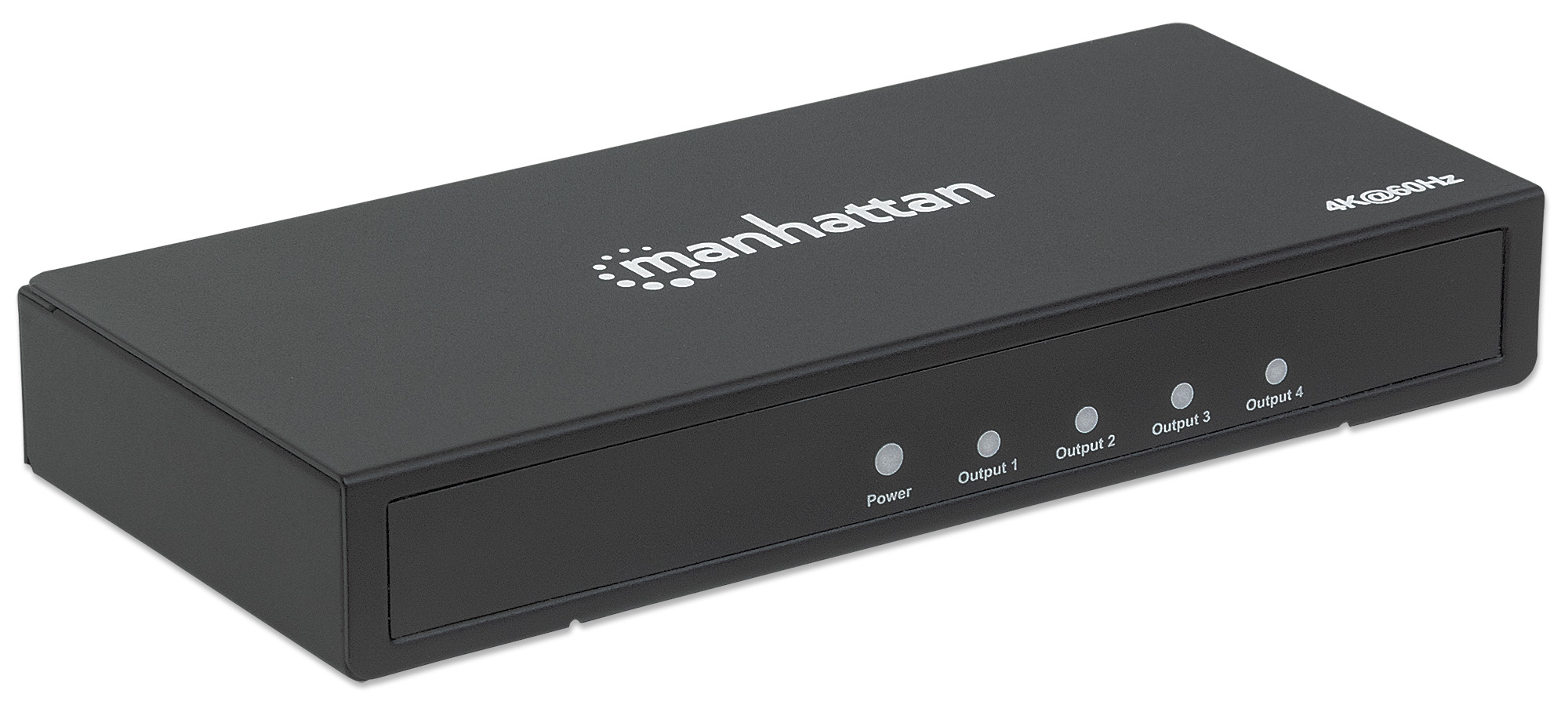

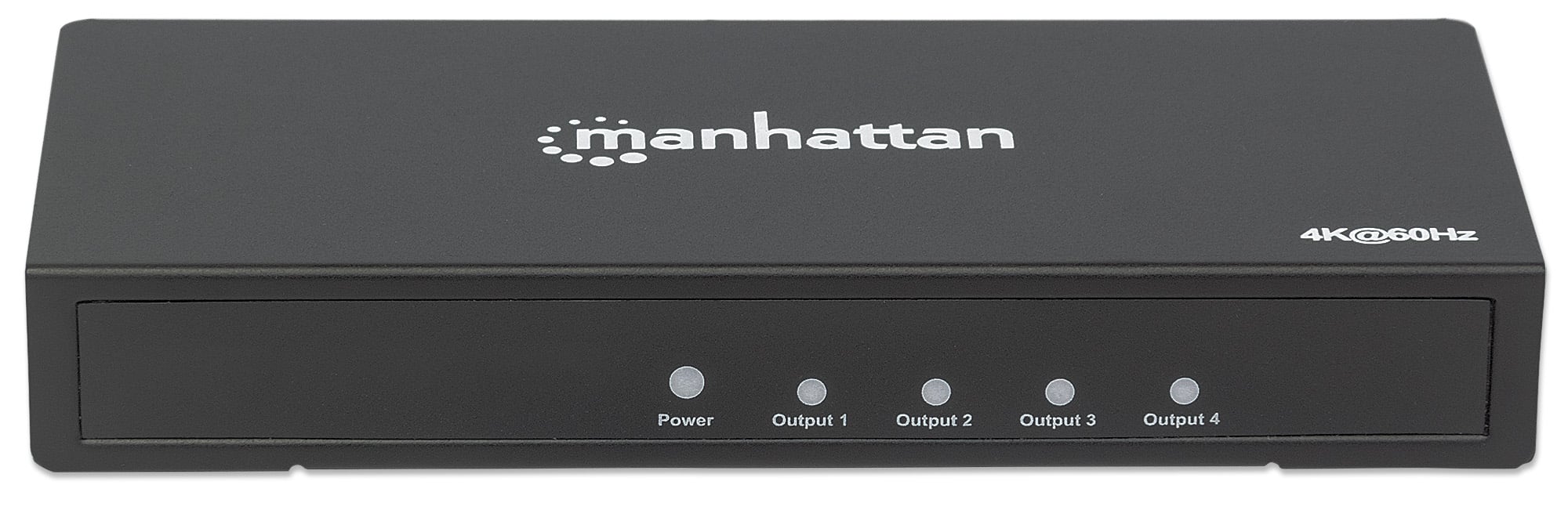

  • LED power supply and connection indicators

  • Switch

  • Dimensions: 154 x 69 x 23 mm

  • Weight: 0.25 kg

  • Housing: metal



Environmental features

  • Operating temperature: 0 - 40°C

  • Storage temperature: - 20 - 60 °C

  • Humidità (without condensation): 0 - 96 %



Standards and Certifications

  • HDCP 2.2 / 1.4

  • CTS 1.4 b

  • CE

  • FCC

  • RoHS2



Package contents

  • Splitter HDMI 4 ports 4 K

  • Power supply

  • User manual

  • Brand
  • Reference
    IDATA HDMI2-4K4MH
  • In stock
    21 Items
  • EAN13
    0766623207805
