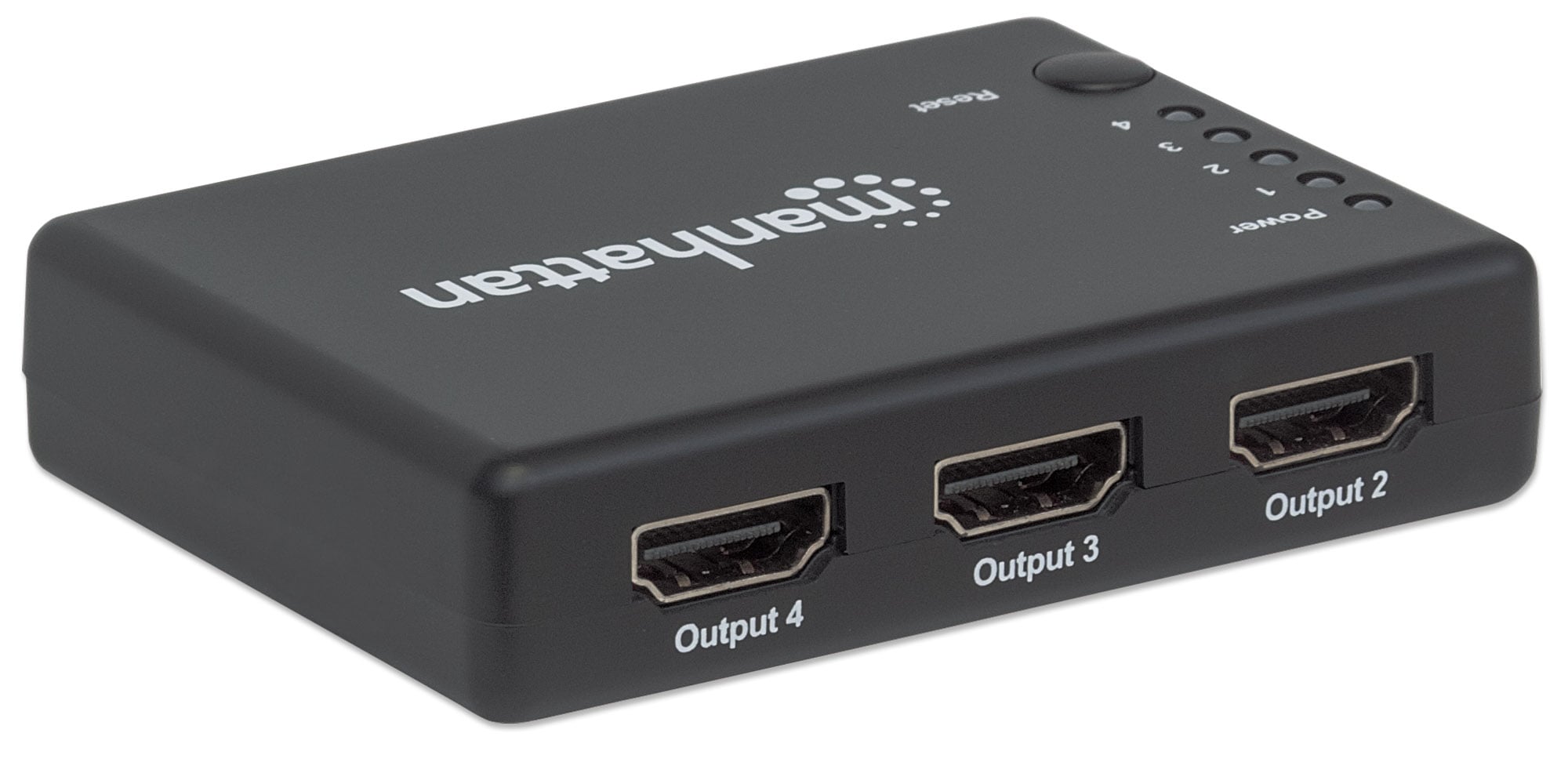

Splitter HDMI 4 K UHD 3 D with LED 4 way - Manhattan IDATA HDMI- 4 K 4 PMH

€40.66
Tax included €33.30 excl. VAT

Splitter HDMI 4 K UHD 3 D with 4 LED via Manhattan. Replicates a UHD digital audio/video signal on four screens. Resolution 4 K@ 30 Hz, supports full 3 D and Deep Color video. Source-splitter and splitter-screen distance up to 15 m.



Return policy



Delivery policy



Direct contact for info



Secure Payment

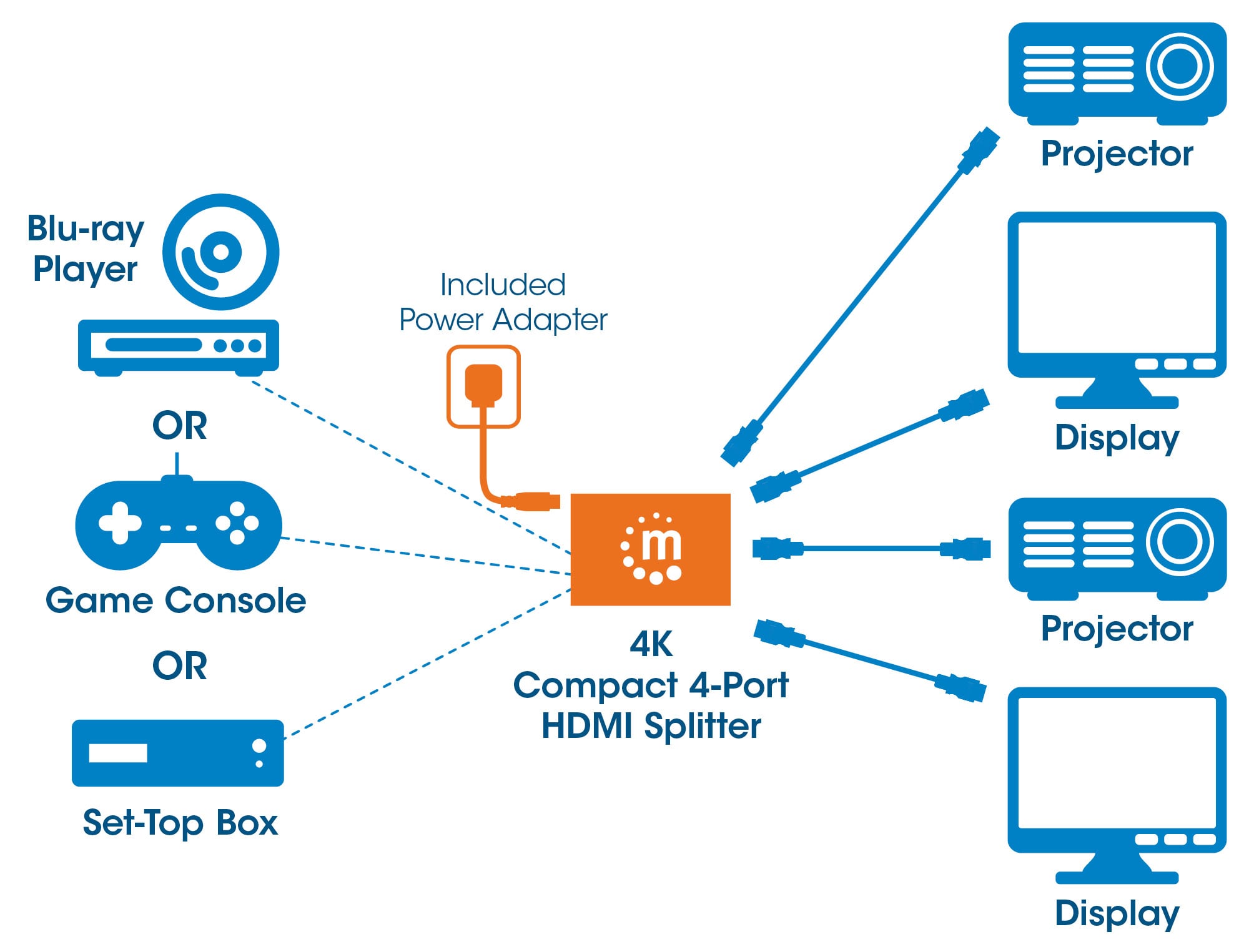

  • Replicates an Ultra-High-definition (UHD) digital audio/video signal for four UHD HDMI screens

  • Resolution 4 K@ 30 Hz, full 3 D and Deep Color video

  • Supports videoband amplification up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps in total) for 4 Kx 2 K screens

  • Supports 36 -bit Deep Color (12 -bit per channel) and sYCC Color Space

  • Supports Master Audio DTS-HD compressed, 7.1 surround sound, Dolby TrueHD and uncompressed audio LPCM 8 channels

  • HDCP compatible

  • Multiple splitters (five in total) can be cascaded to support 16 4 K screens

  • Works with game consoles like PlayStation and Xbox, Blu-ray players, digital terrestrial receivers and satellite receivers and much more

  • Plug and play

  • Golden contacts for a long duration of time



General information

  • Source-splitter and splitter-screen distance: up to 15 m

  • Power supply: 5 VDC / 1 A; 70 cm

  • Power consumption: 5 W

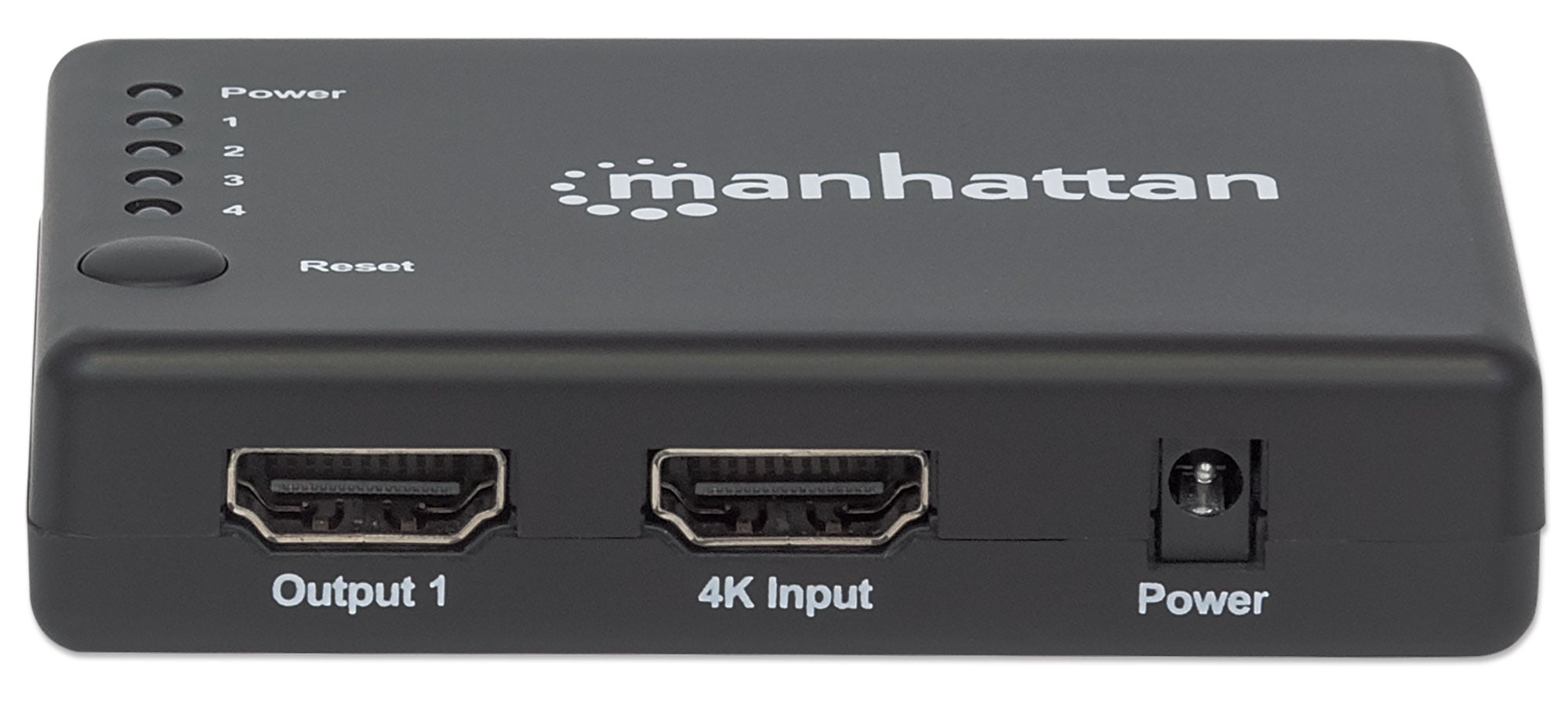

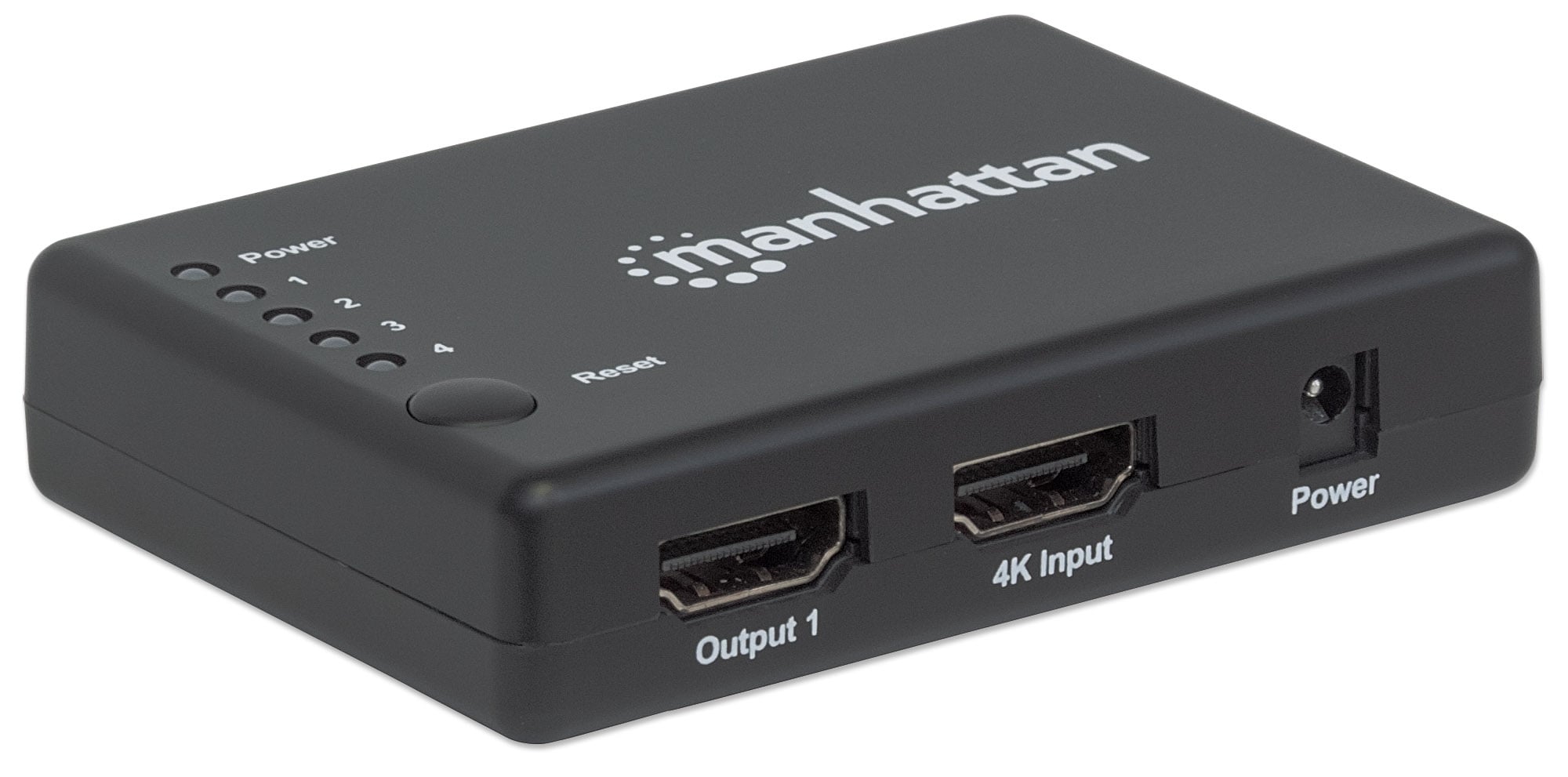

Connections

  • A female HDMI (entry)

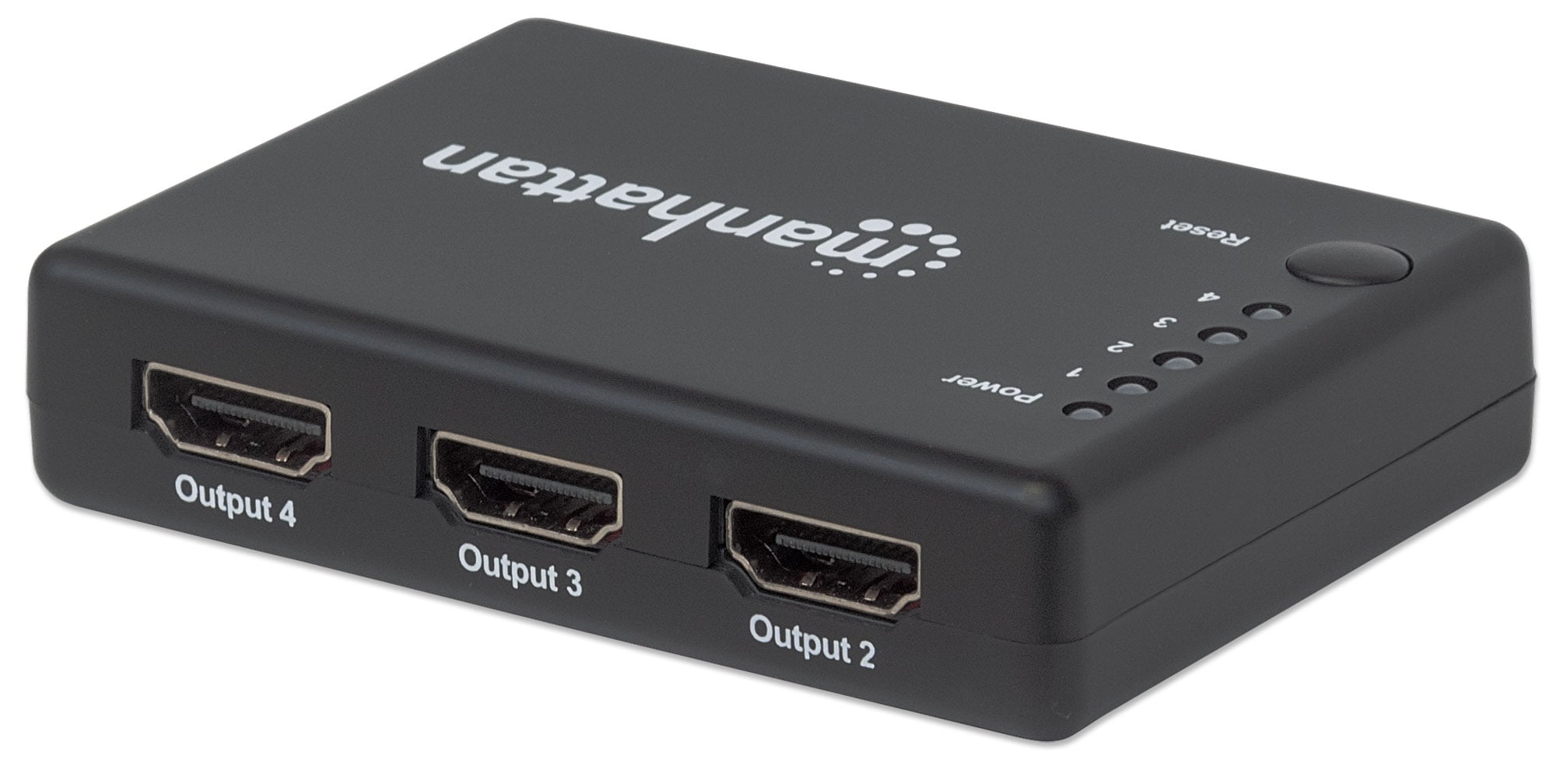

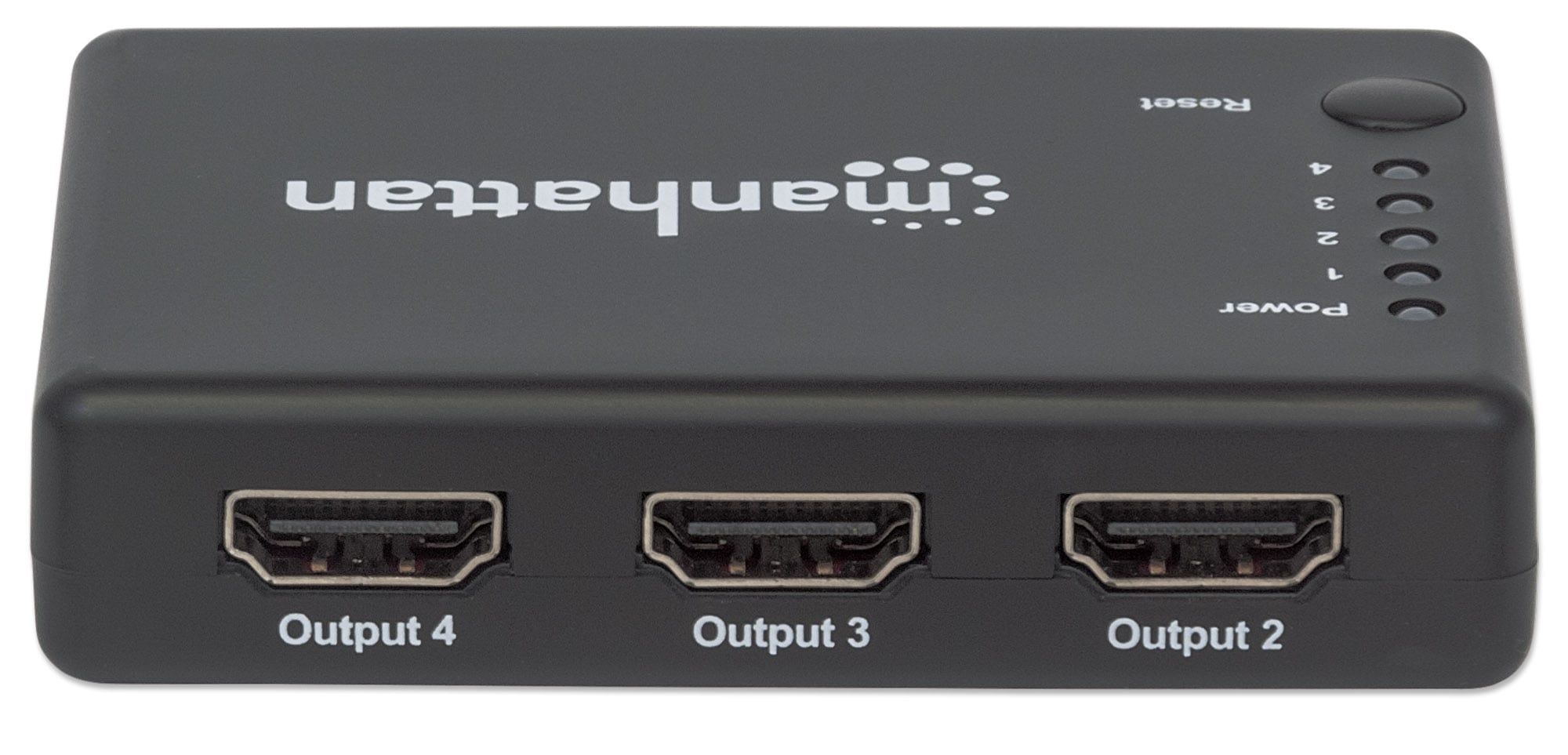

  • Four female HDMI (exit)

  • A female 5 VDC power jack (entry)



Input/Exit Signal

  • Video signal input: 0.5 – 1.0 V p-p

  • Incoming DDC signal: 5 V p-p (TTL)

  • Maximum single-link range: 10.2 Gbps and 4096 x 2160 resolution at 24 Hz

  • Video output: HDMI 1.4 , HDCP 1.4



Supported video resolution

  • DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 4 K@ 30 Hz



Physical information

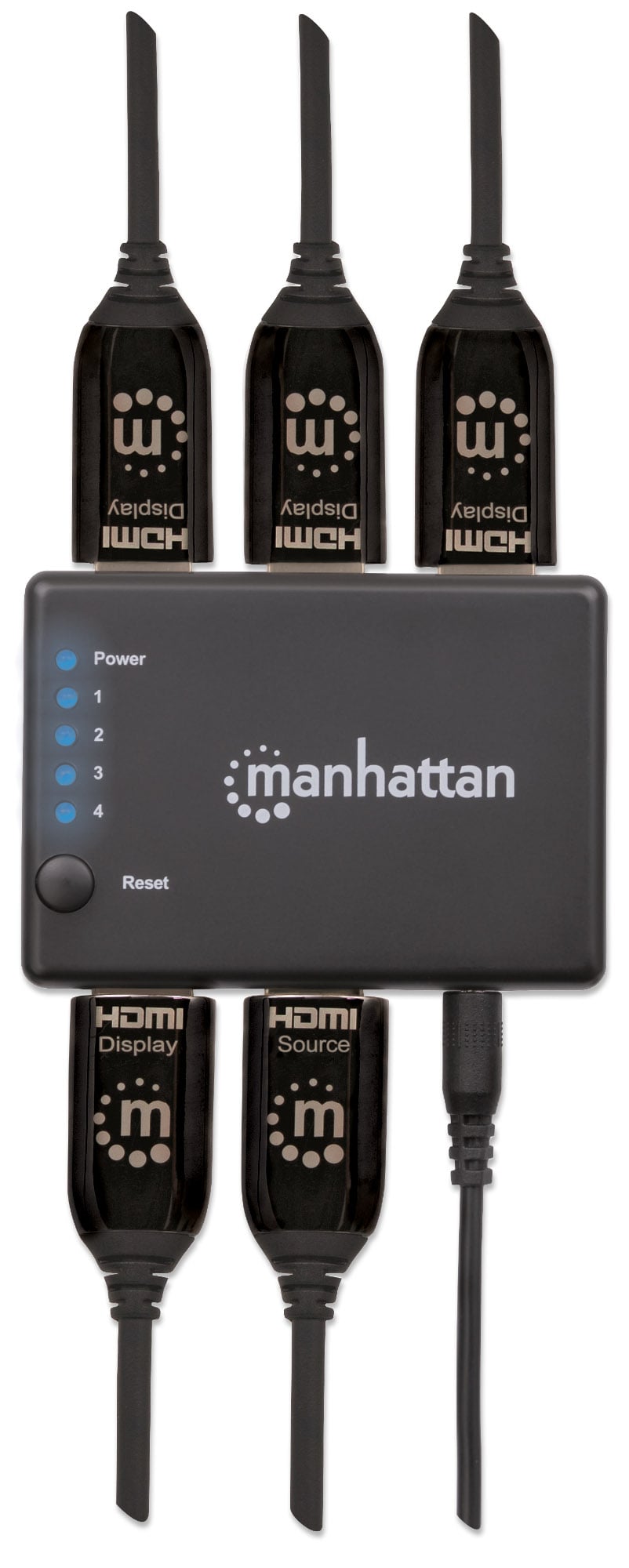

  • LED power supply and connection indicators

  • Reset Key

  • Dimensions: 81 x 58 x 18 mm

  • Weight: 0.3 kg

  • Housing: plastic



Environmental features

  • Operating temperature: 0 - 40°C

  • Storage temperature: - 20 - 60 °C

  • Humidità (without condensation): 0 - 96 %



Standards and Certifications

  • HDCP 1.4

  • CTS 1.4 b

  • CE

  • FCC

  • RoHS2



Package contents

  • Splitter HDMI 4 doors 4 K compact

  • Power supply

  • User manual

  • Brand
  • Reference
    IDATA HDMI-4K4PMH
  • In stock
    14 Items
  • EAN13
    0766623207706
