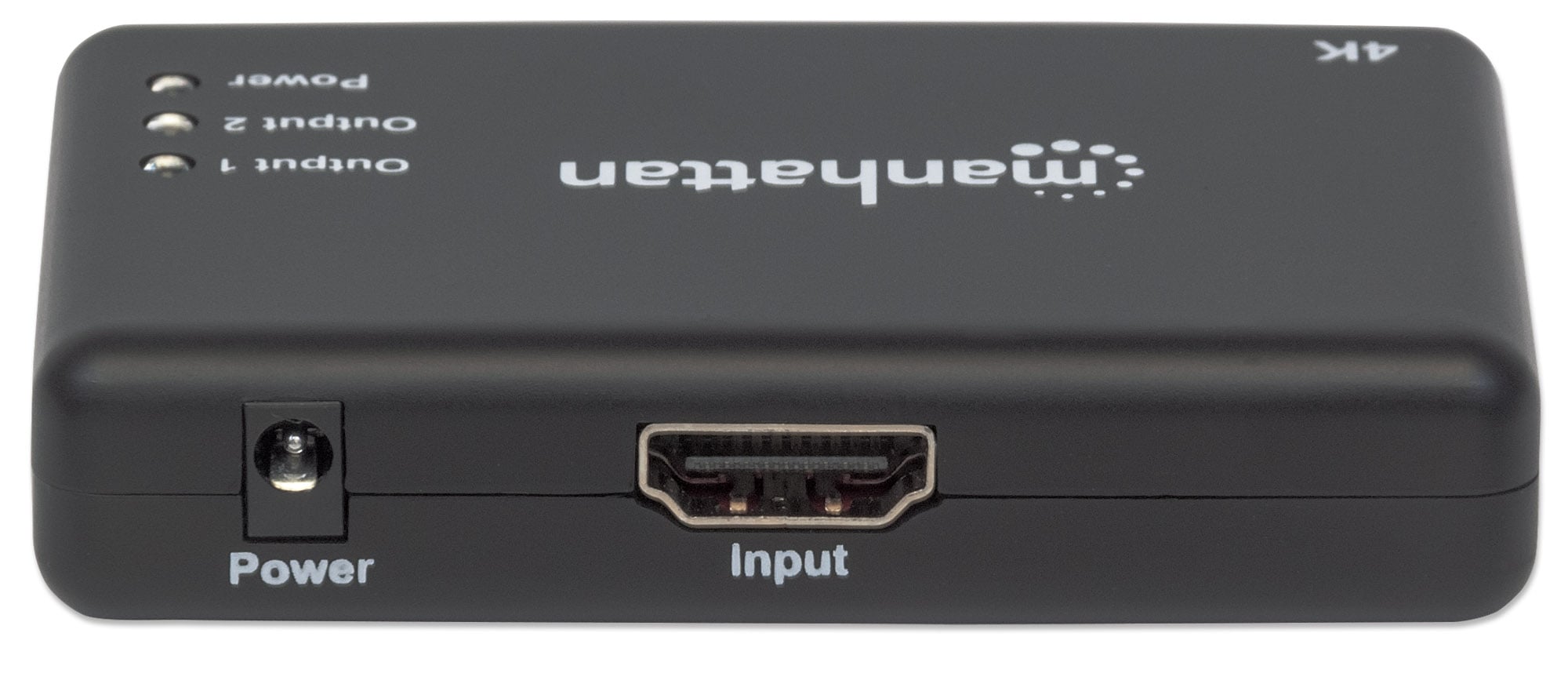

Name: Splitter HDMI 4 K UHD 2 via LED - Manhattan IDATA HDMI- 4 K 2 PMH
Brand: MANHATTAN
SKU: IDATA HDMI-4K2PMH
Price: 28.12 EUR
Availability: InStock

€28.12

Tax included

Splitter HDMI 2 routes that duplicates an UHD signal on two screens. Resolution 4 K@ 30 Hz, support 3 D, Deep Color and DTS-HD/Dolby TrueHD audio. HDCP compatible, gold contacts.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Splitter can duplicate an Ultra-High-definition (UHD) digital audio/video signal for two UHD HDMI displays
Resolution 4 K@ 30 Hz, full 3 D and Deep Color video
Supports videoband amplification up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps in total) for 4 Kx 2 K screens
Supports Master Audio DTS-HD compressed, 7.1 audio surround, Dolby TrueHD and uncompressed audio LPCM 8 channels
Supports Deep Color 48 -bit (12 -bits per channel) and xvYCC (x.vColor)
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
HDCP compatible
Powered AC with Plug and Play installation; no special configuration required
Up to three splitters can be cascaded to support four 4 K screens
Golden contacts for a long duration of time

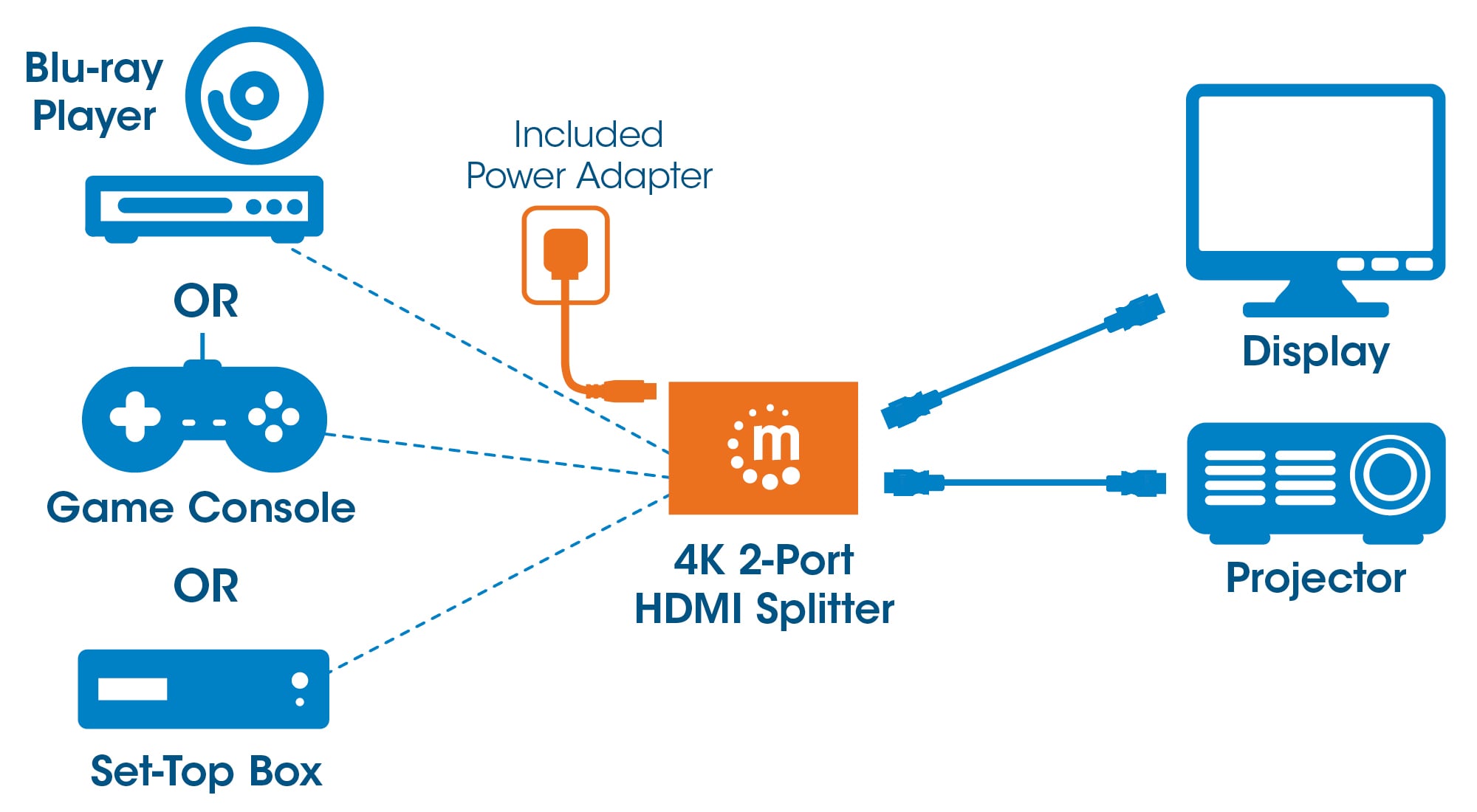

Works with Playstation and Xbox game consoles, Blu-ray players, set-top boxes, satellite receivers and more

General information

Source-splitter distance: up to 15 m
Splitter-screen distance: up to 15 m
Power supply: 5 VDC; AC power supply, 0.9 m

Connections

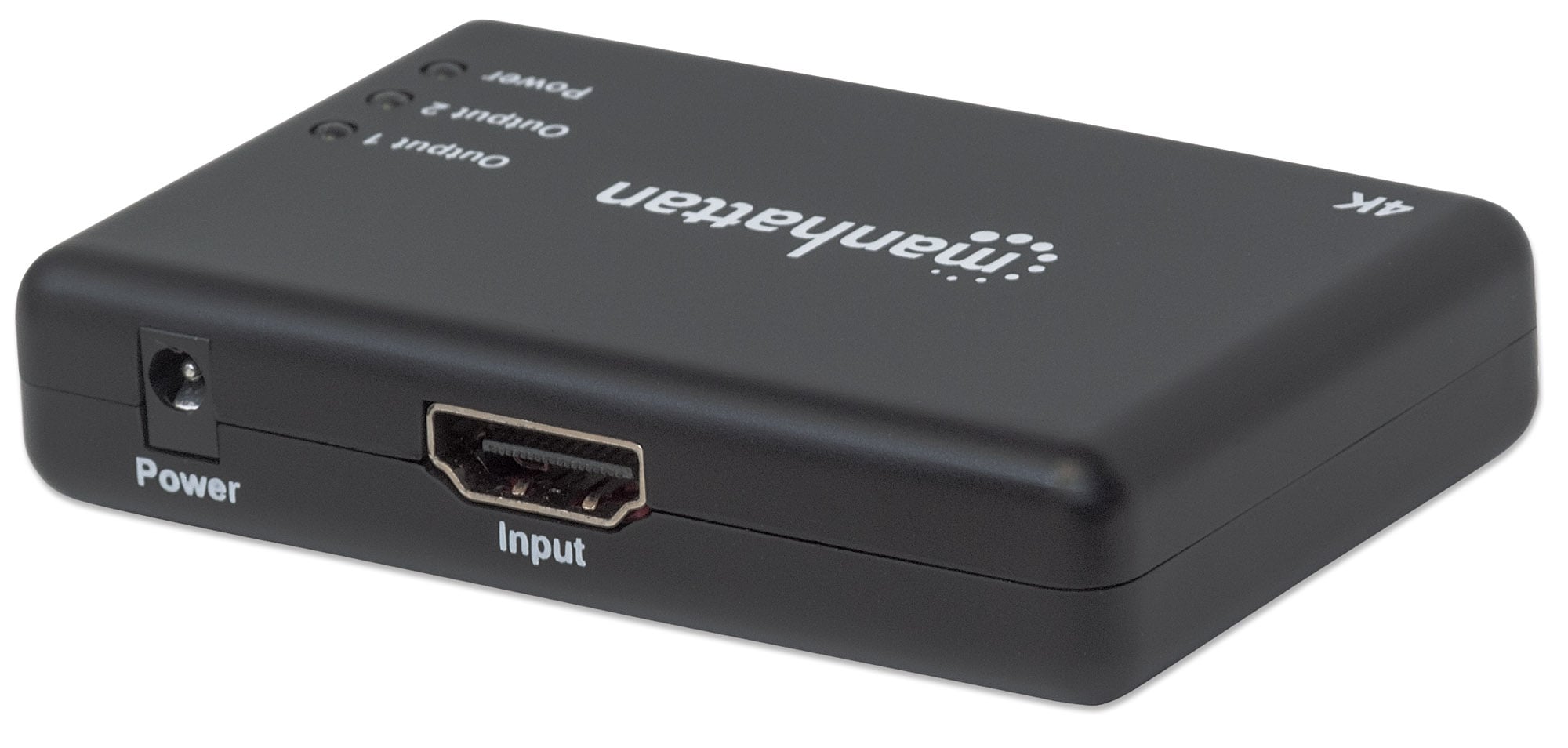

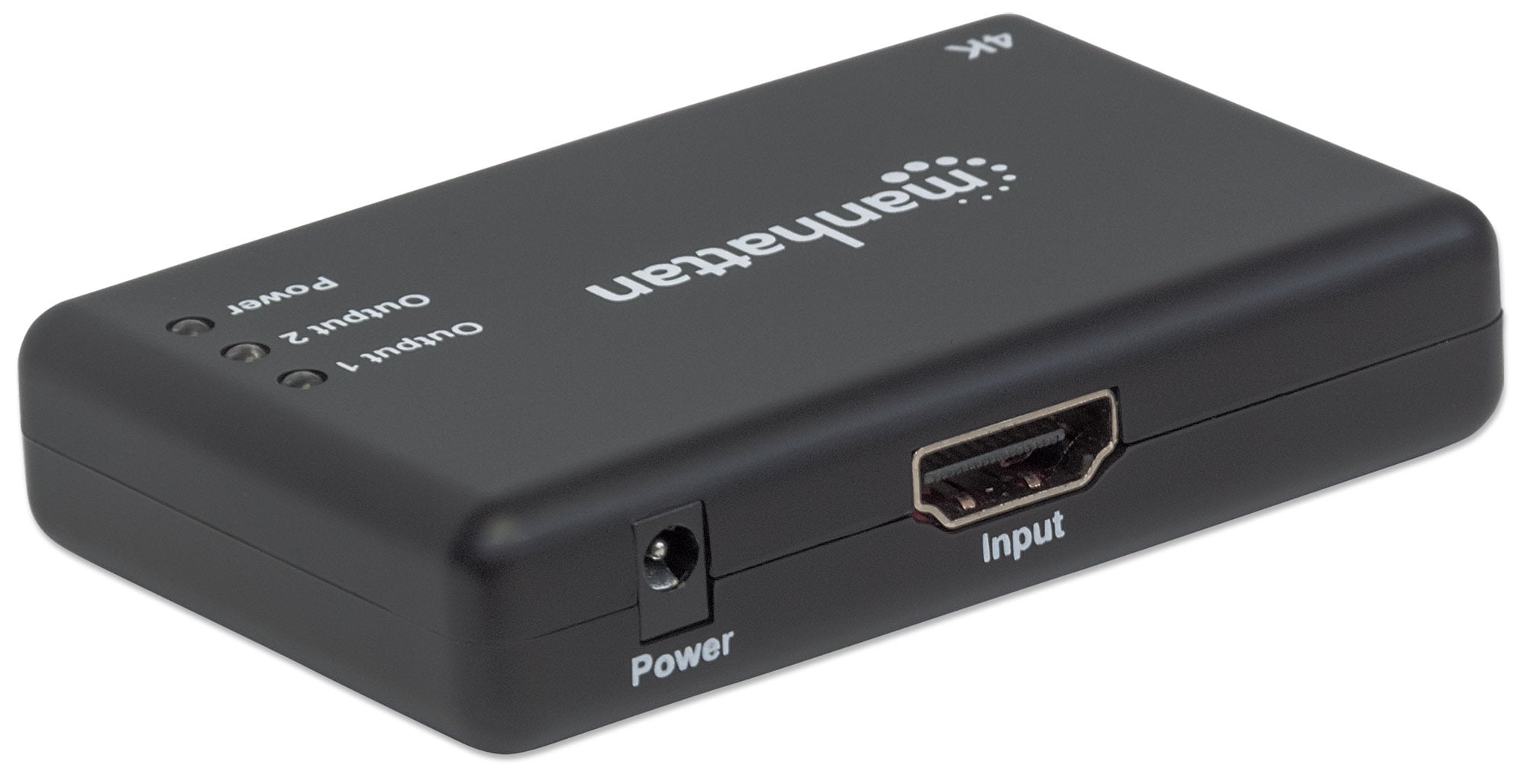

A female HDMI, 19 -pin (entrance)

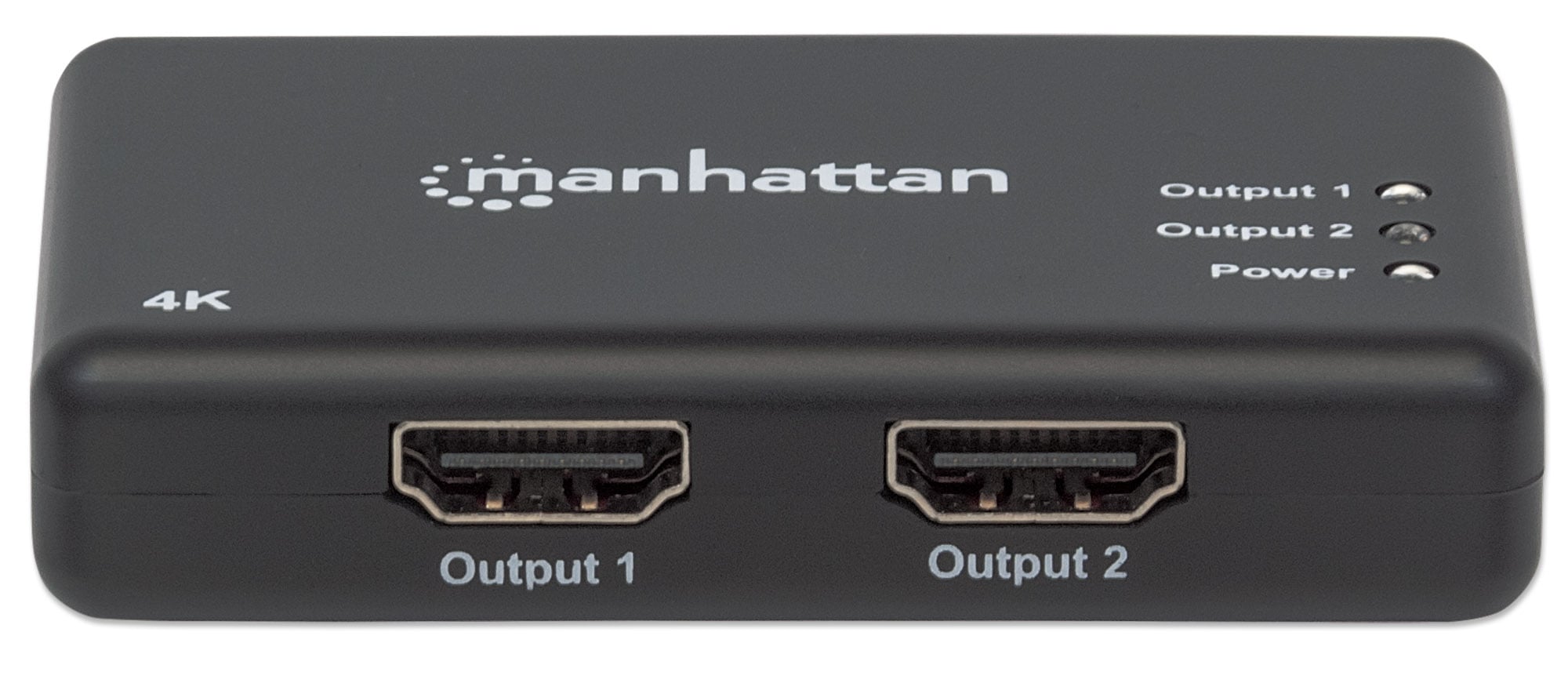

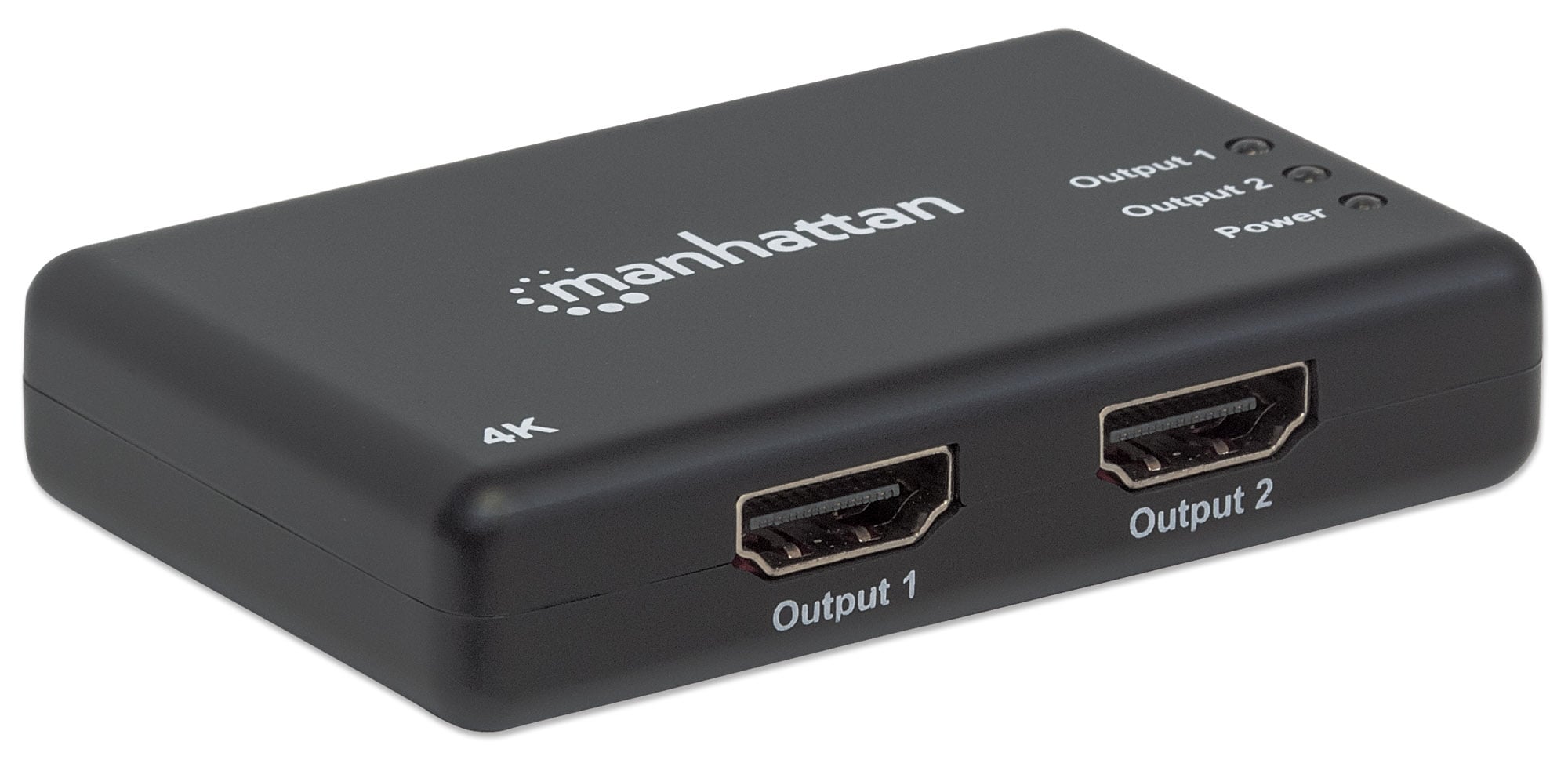

Two female HDMI, 19 -pin (exit)
A female DC power connector, OD 3.5 mm / ID 1.3 mm (input)

Input/Exit Signal

Video signal input: 0.5 – 1.0 V p-p
Incoming DDC signal: 5 V p-p (TTL)
Maximum single-link range: 3840 x 2160 resolution at 30 Hz, 4096 x 2160 at 24 Hz
Video output: HDCP 1.4 , DVI 1.0
Frequency: 3.4 Gbps / 340 MHz
