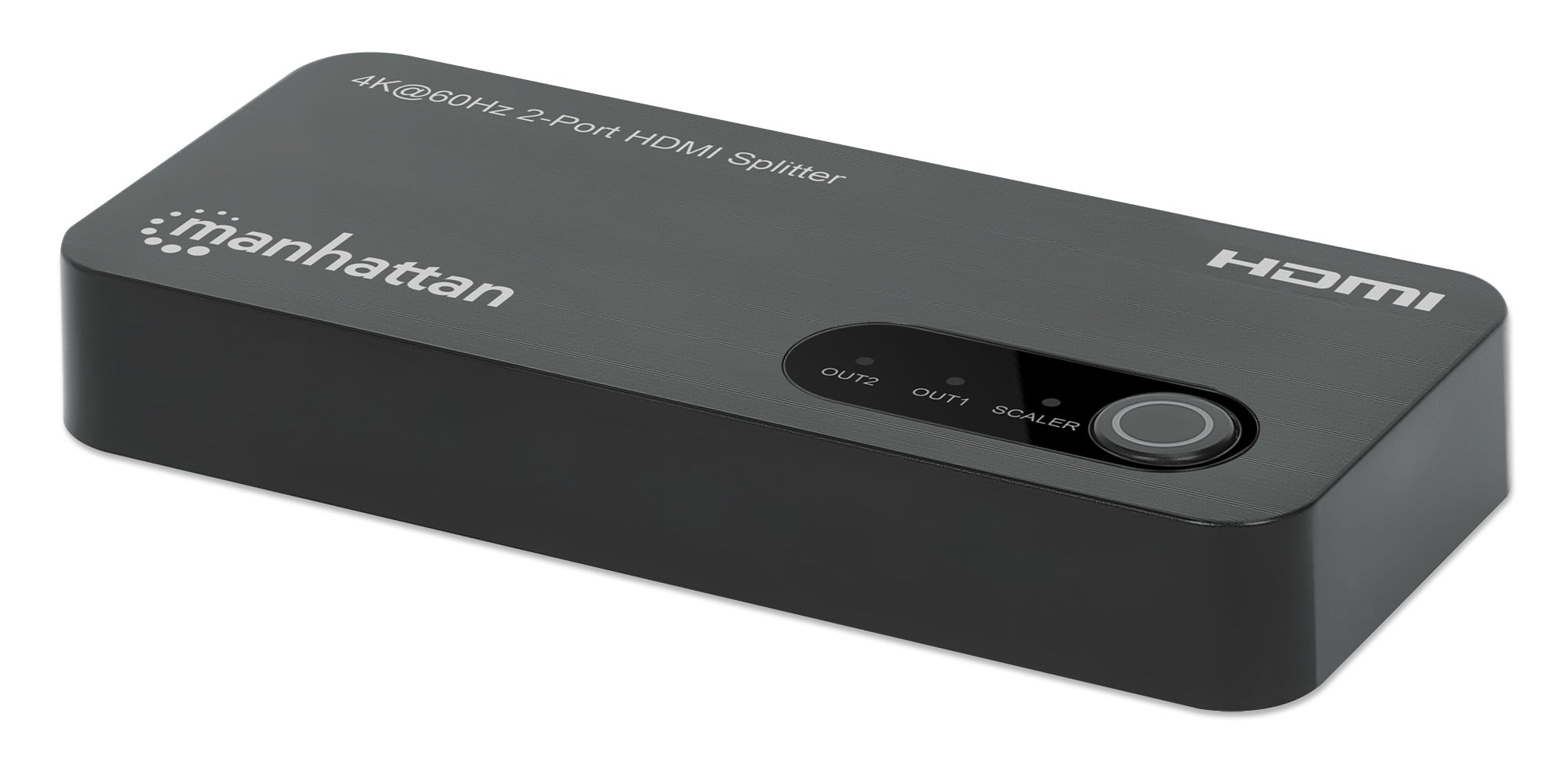

Splitter HDMI 4 K@ 60 Hz UHD 3 D with LED 2 Vie - Manhattan IDATA HDMI- 4 K 2 P 60 MH

€36.50
Tax included €29.90 excl. VAT

Splitter HDMI Manhattan 2 via, supports 4 resolution K@ 60 Hz (3840 x 2160), HDR, 3 D, bandwidth 18 Gbps. Switch EDID, Deep Color 36 -bit, audio LPCM 7.1 and Dolby TrueHD. Compatible with TV, projectors, console.



Return policy



Delivery policy



Direct contact for info



Secure Payment

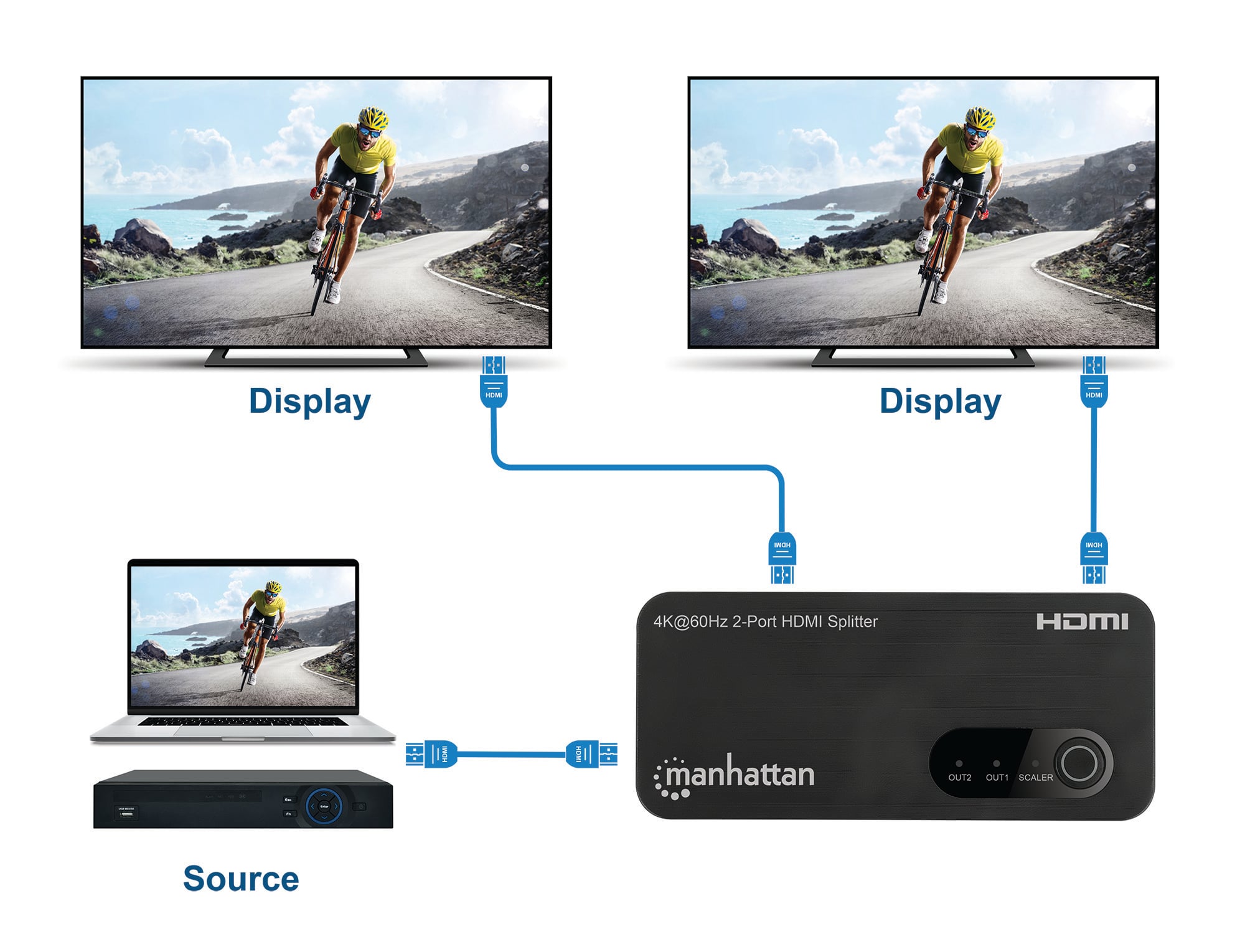

  • Doubles a single audio/video signal from an HDMI source on two HDMI screens

  • Supports resolution up to Ultra-High-Definititon (UHD) 4 K@ 60 Hz (3840 x 2160)

  • High Dynamic Range (HDR) for superior contrast and bright colors

  • 4 : 4 : 4 chrominance subsampling

  • Up to 18 Gbps total bandwidth with 6 Gbps per channel at 600 MHz

  • Fully back compatible with 4 K@ 30 Hz and 1080 p screens

  • EDID switch for automatic image optimization, ensures that settings such as native resolution and update frequency are configured correctly

  • Possibility to connect up to three splitters in cascade to support four 4 K screens

  • 36 -bit Deep Color (12 bits per channel)

  • Supports video 3 D

  • Supports DTS-HD Master Compressed Audio, LPCM 8 audio channels (7.1 surround sound) and Dolby TrueHD as well as audio 32 channels

  • Compatible with every HDMI device - TV, projectors, monitors, laptops, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS 4 /PS 5), Xbox® (One/Series S/Series X), Blu-ray players and much more

  • Ideal for digital signage in retail stores and exhibition stands or multiscreen presentations in training, trade fair or sports events

  • Plug-and-play installation; no configuration required

  • HDCP 2.3 compatible

  • Non-slip rubber feet for desktop use

  • Power cable from Micro-USB to USB-A included



Standards and certifications

  • HDMI 2.0

  • HDCP 2.3

  • CE

  • FCC

  • RoHS

  • REACH

  • UKCA



General information

  • Supported resolutions: 480 p/ 576 i/ 720 p/ 1080 i/ 1080 p/ 4 K@ 30 Hz/ 4 K@ 60 Hz

  • Maximum video bandwidth: 18 Gbps / 600 MHz

  • Consumption: 5.0 W (max)

  • Waterfall support: up to 3 splitter / layers (allowed connection cable between each unità up to maximum 5 m/ 16 ft.)



Connections/keys

  • Three female HDMI 19 -pin (one input, two outputs)

  • A power connection 5.0 V DC / 1.0 A female, Micro-USB

  • An EDID switch

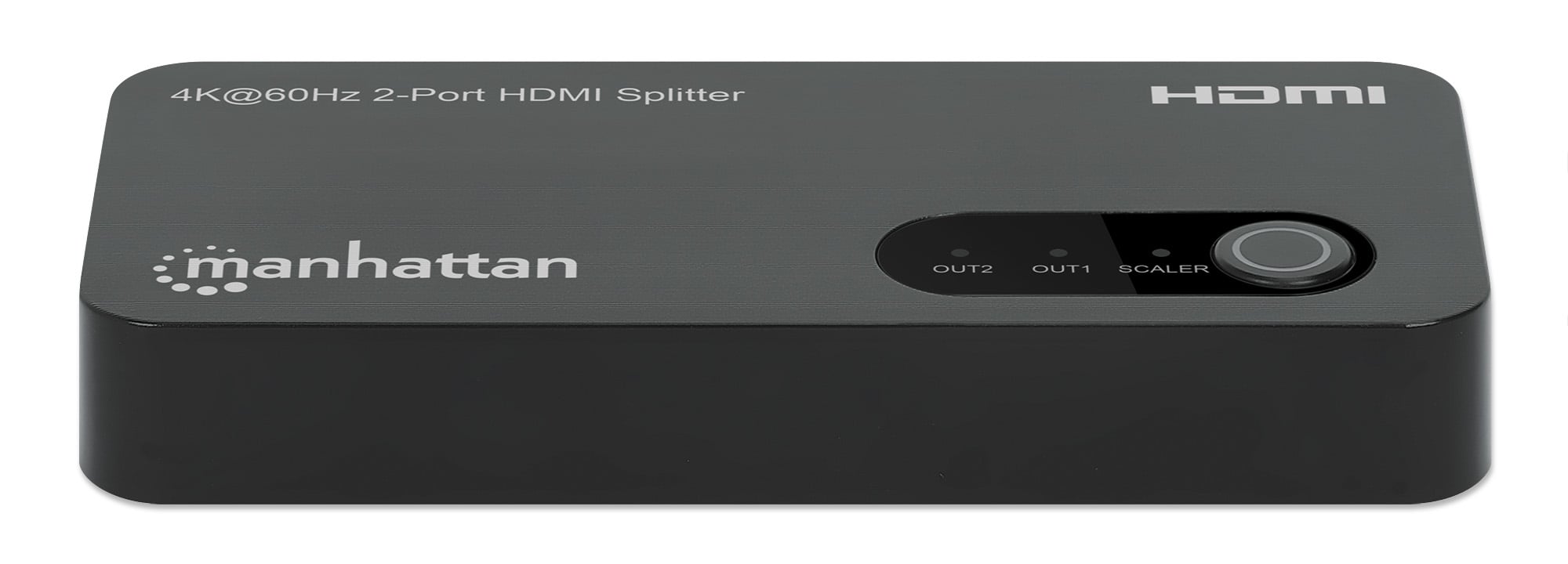

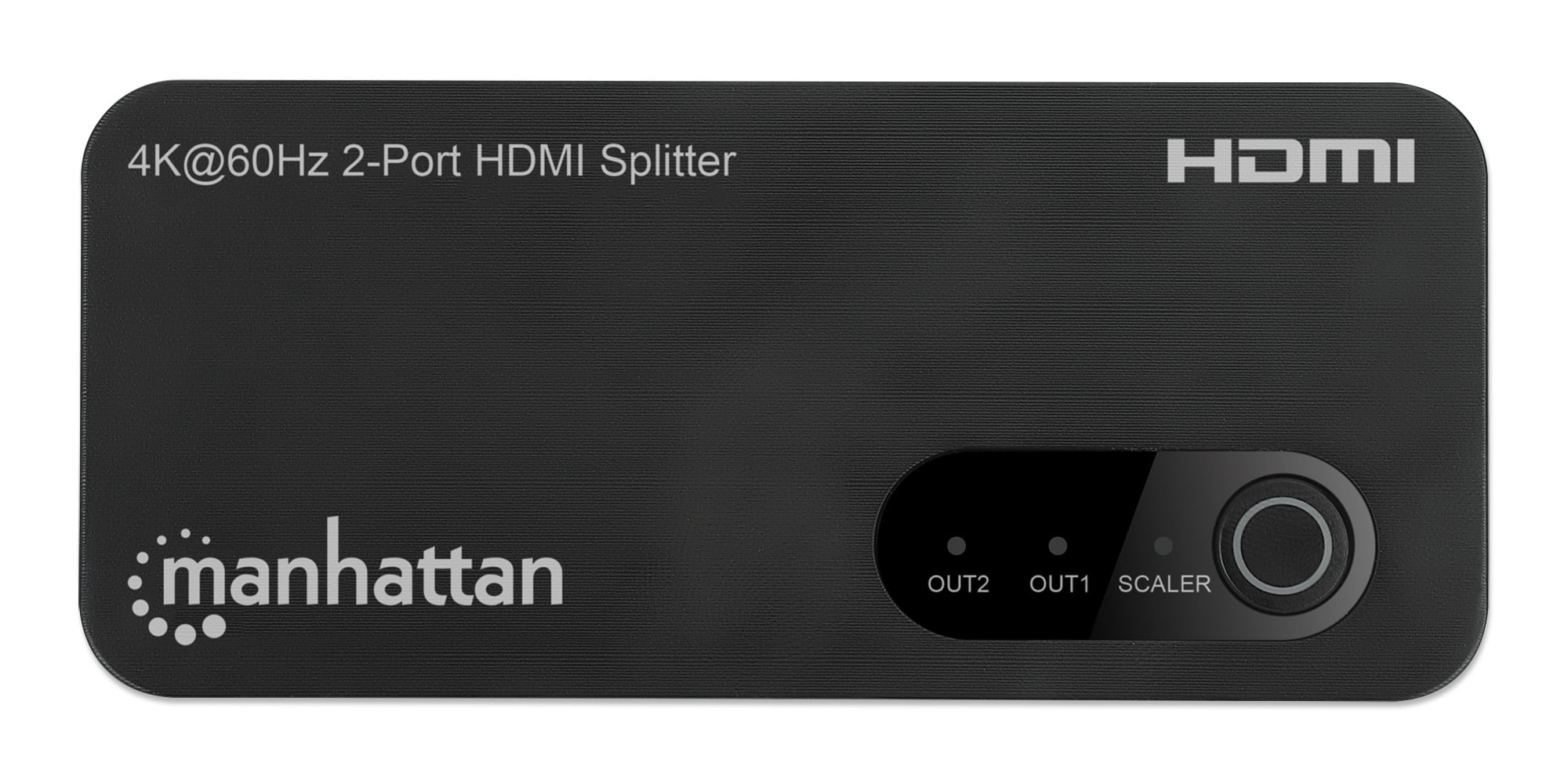

LEDs

  • OUT 1

  • OUT 2

  • Ms SCALER



Physical information

  • Dimensions (P x L x A): 102 x 45 x 15 mm

  • Net weight: 47 g

  • Gross weight: 185 g

  • Housing: plastic



Environmental information

  • Operating temperature: from 0 to 70 °C

  • Storage temperature: from - 20 ° to 80 °C

  • Humidità (without condensation): 5 - 90 %

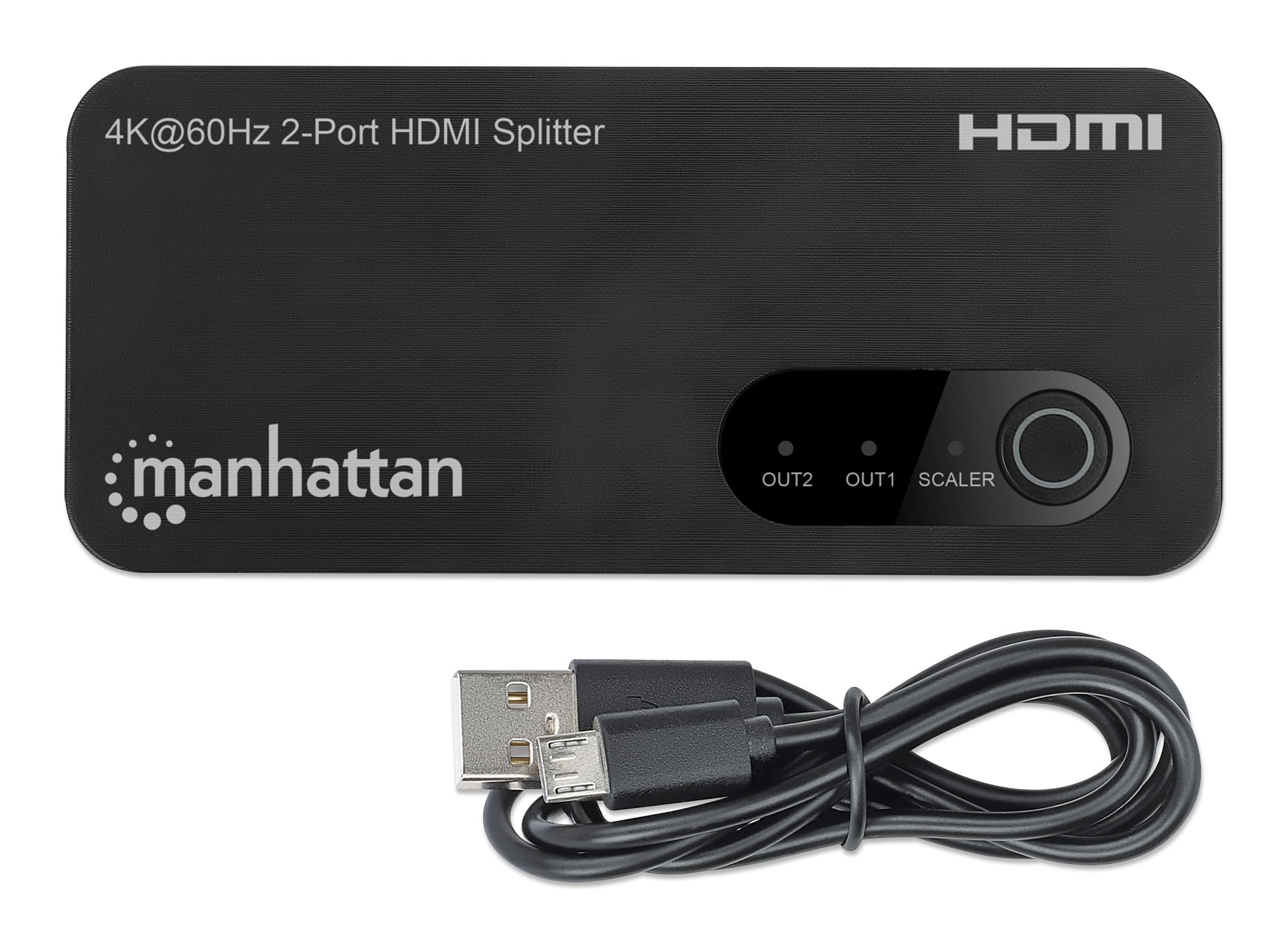

Package contents

  • Splitter HDMI 2 ports 4 K@ 60 Hz

  • Power cable from Micro-USB to USB-A, 0.8 m

  • Instructions

  • Brand
  • Reference
    IDATA HDMI-4K2P60MH
  • In stock
    30 Items
  • EAN13
    0766623207614
