Name: Switch HDMI 2 Doors 8 K@ 60 Hz Bidirectional - Manhattan IDATA HDMI- 22 BI 8 K
Brand: MANHATTAN
SKU: IDATA HDMI-22BI8K
Price: 25.3 EUR
Availability: InStock

€25.30

Tax included

Manhattan dual-directional switch to 2 ports. Supports resolutions up to 8 K@ 60 Hz, 4 K@ 120 Hz, dynamic HDR, Dolby Vision and Atmos. Bandwidth up to 48 Gbps.

Return policy

Delivery policy

Direct contact for info

Secure Payment

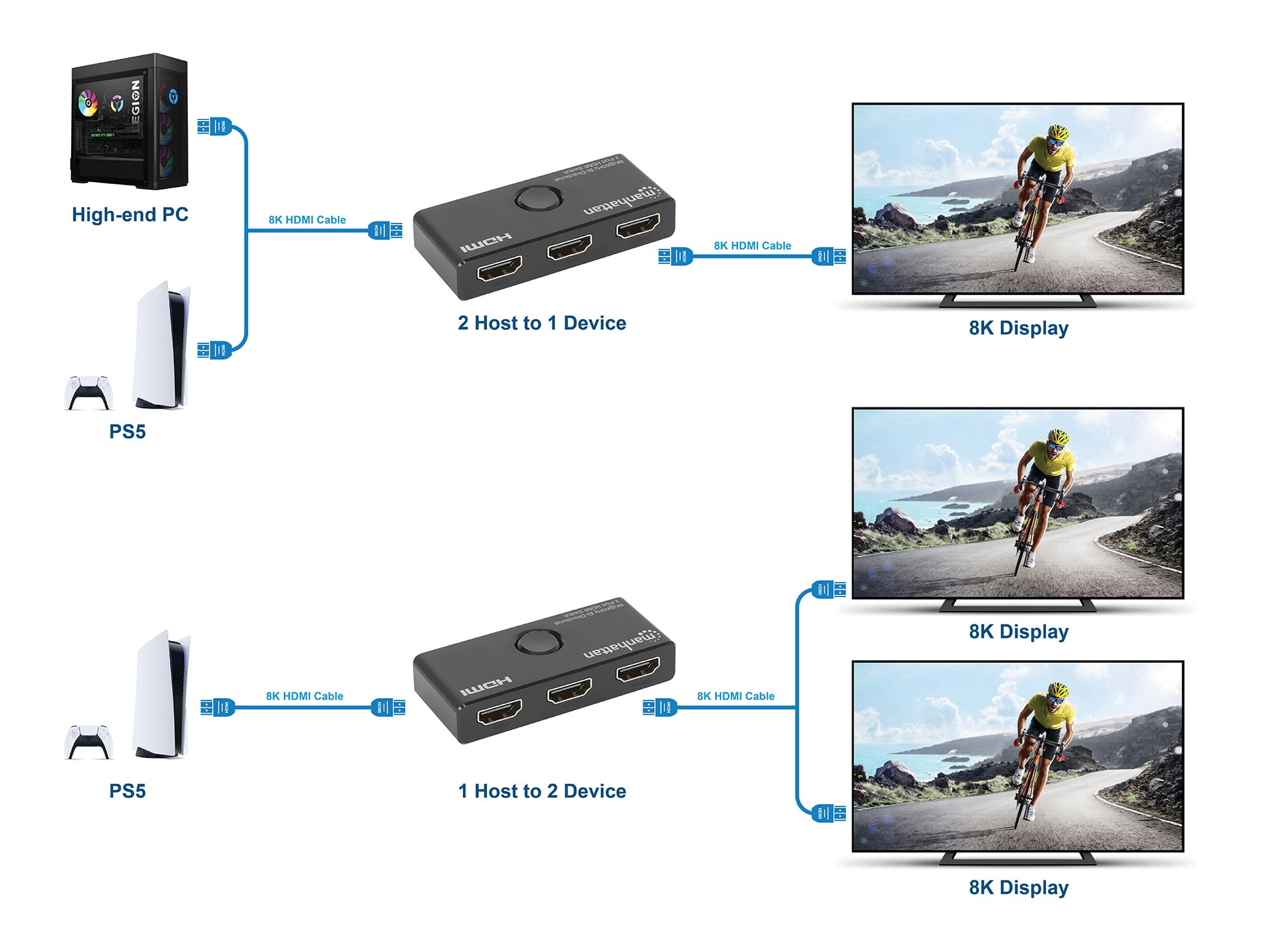

Switch between two HDMI sources on a single screen or between two screens on a single source (not simultaneous output on two screens)
Supports 8 K@ 60 Hz, 4 K@ 120 Hz, 1440 p@ 144 Hz (WQHD) and 1080 p@ 240 Hz
Dynamic HDR for superior contrast and bright colors
Supports Dolby Vision™ and Dolby Atmos®
Golden contacts for anticorrosion connections
Up to 48 Gbps total bandwidth with 12 Gbps per channel at 1200 MHz
Fully back compatible with 4 K@ 30 Hz and 1080 p screens
Supports 4 chromance subsampling 4 : 4

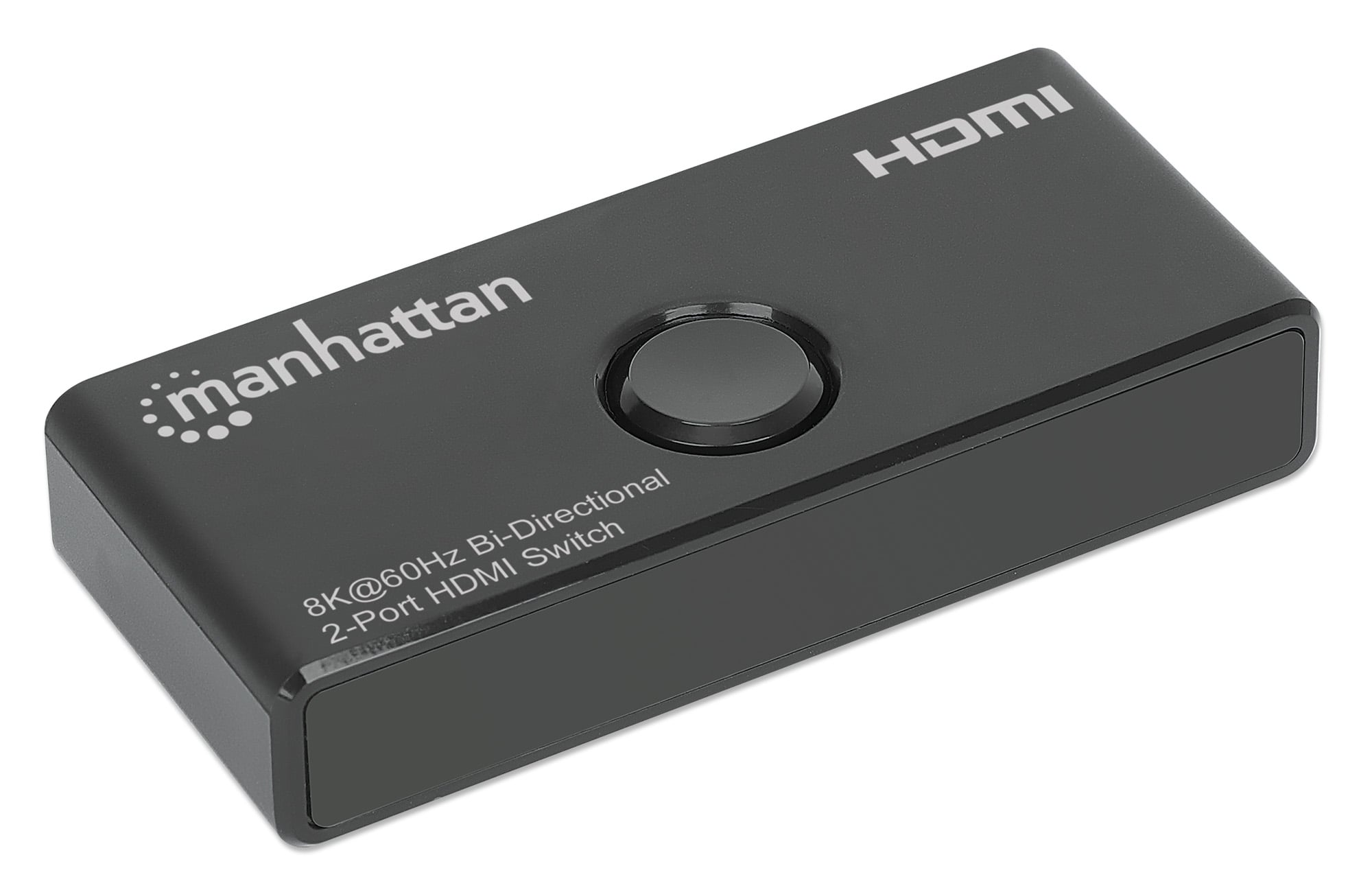

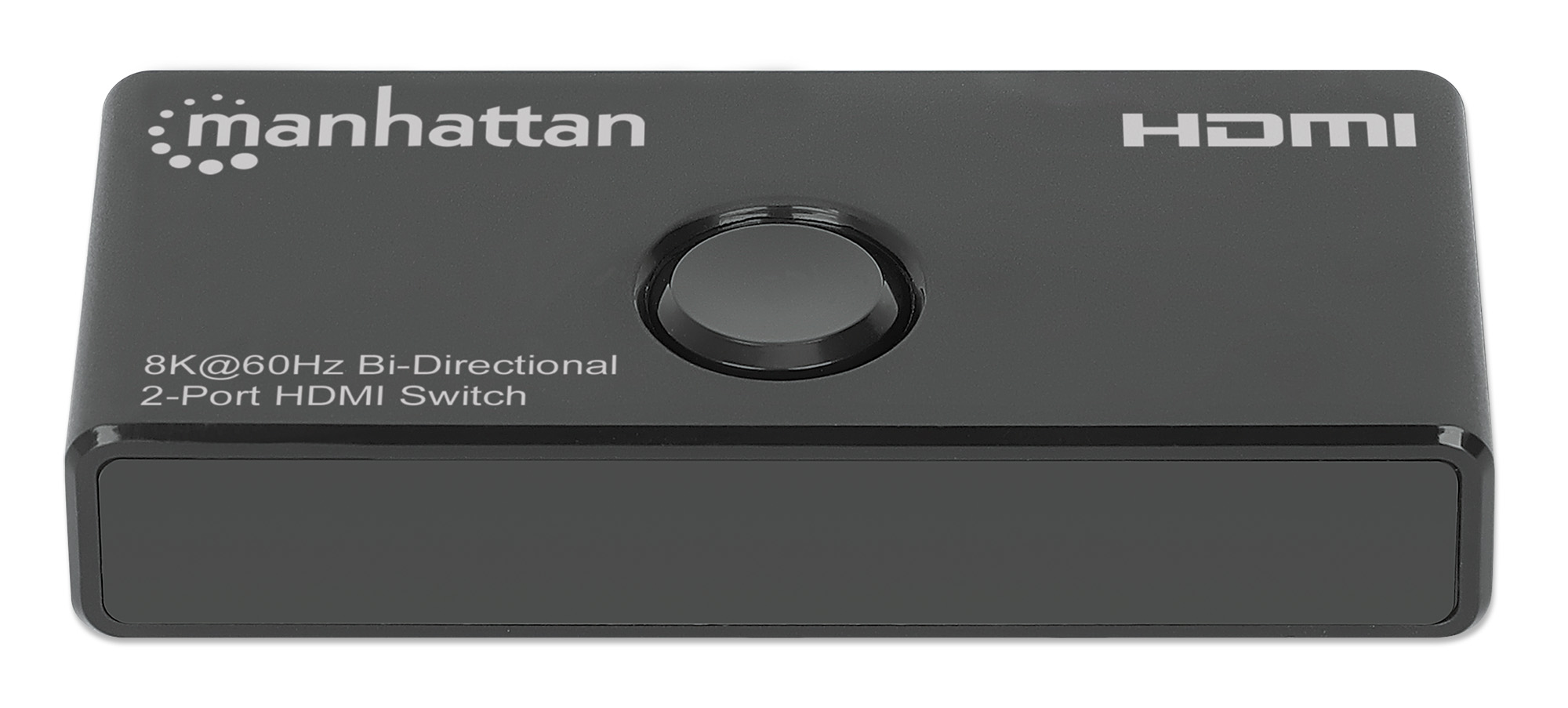

The button on the top of the housing allows switching between sources or screens
LED indicators for active power supply and input/output
Improved functionality à include Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM)
Supports compressed audio DTS-HD Master Audio, audio LPCM 8 uncompressed channels (7.1 surround sound) and Dolby TrueHD as well as audio 32 channels

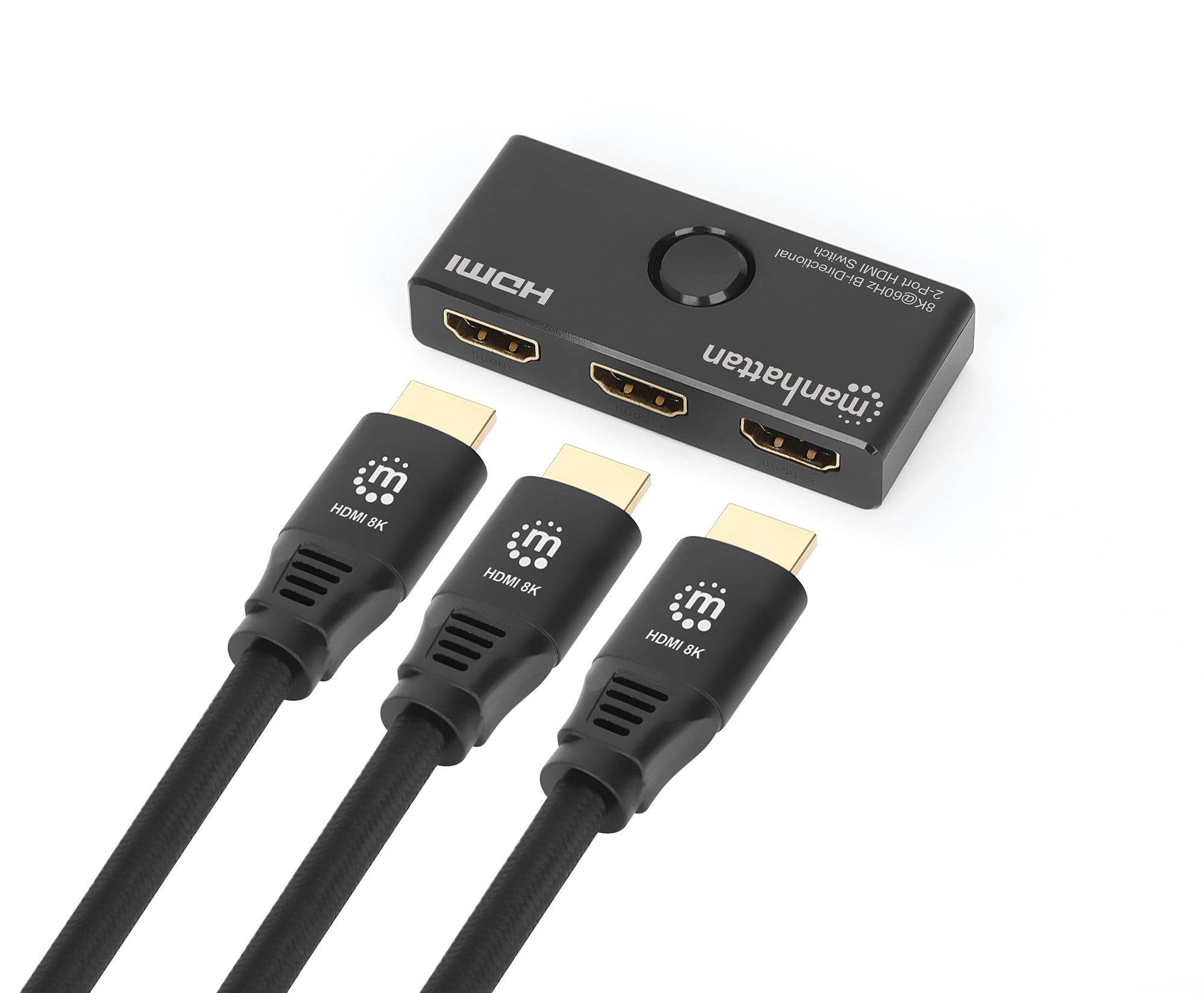

Compatible with every HDMI device - TV, projectors, monitors, laptops, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS 4 /PS 5), Xbox® (One/Series S/Series X), Blu-ray players and much more
Plug-and-play installation; no configuration required
Fully compatible HDCP 2.3 , compatible with previous versions
Rubber bottom to avoid slipping on the desk
Bus feed: no external power supply required

Standards and certifications

HDMI 2.1
HDCP 2.3
CE
FCC
RoHS
REACH
UKCA

General information

Supported resolutions:

480 p/ 576 i/ 720 p/ 1080 i/ 1080 p@ 240 Hz/ 1440 p@ 144 Hz/ 4 K@ 120 Hz/ 8 K@ 60 Hz

Maximum video bandwidth: 48 Gbps / 1200 MHz
Consumption: 5.0 W (maximum)
Transmission: bidirectional

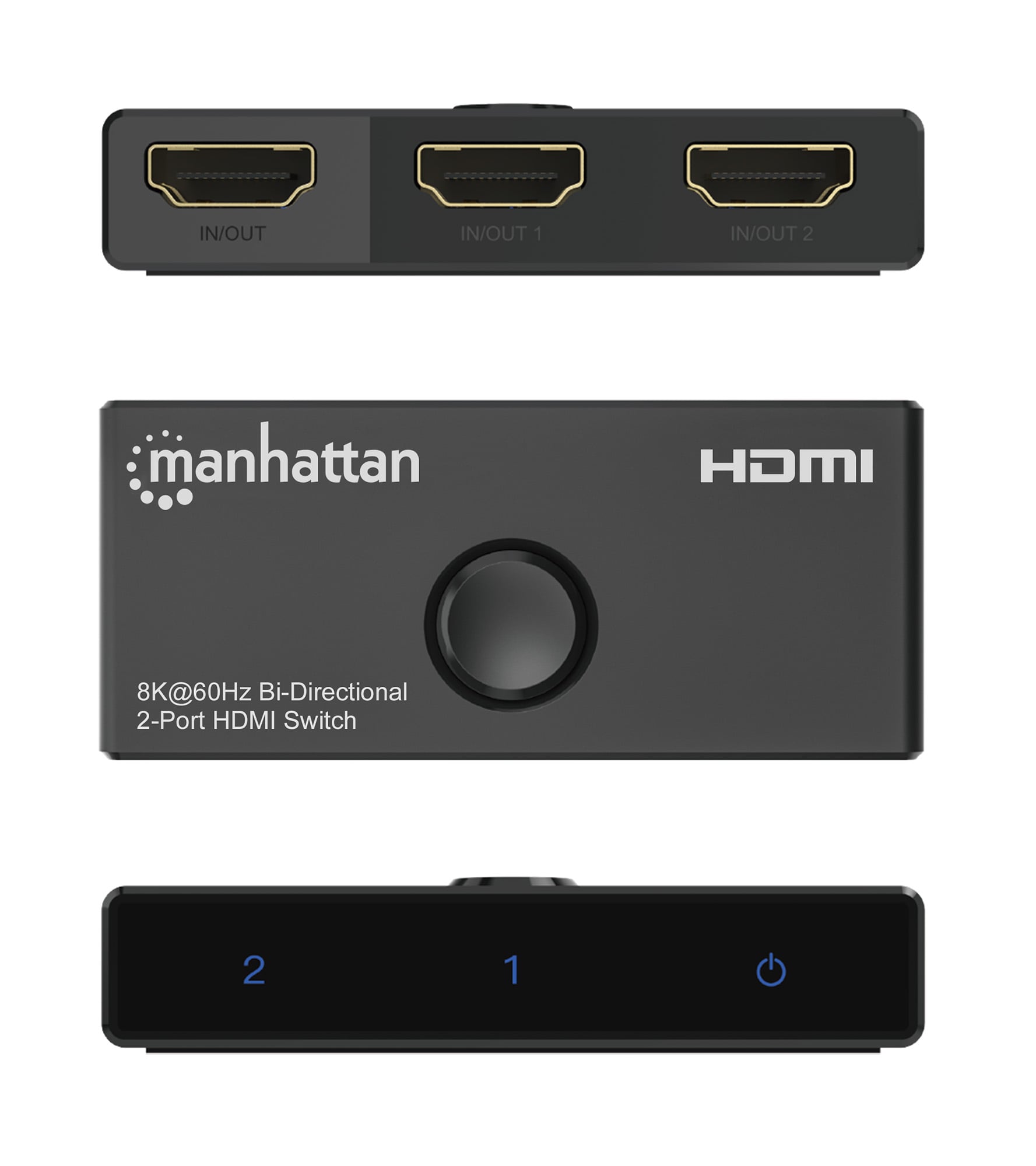

Connections/keys

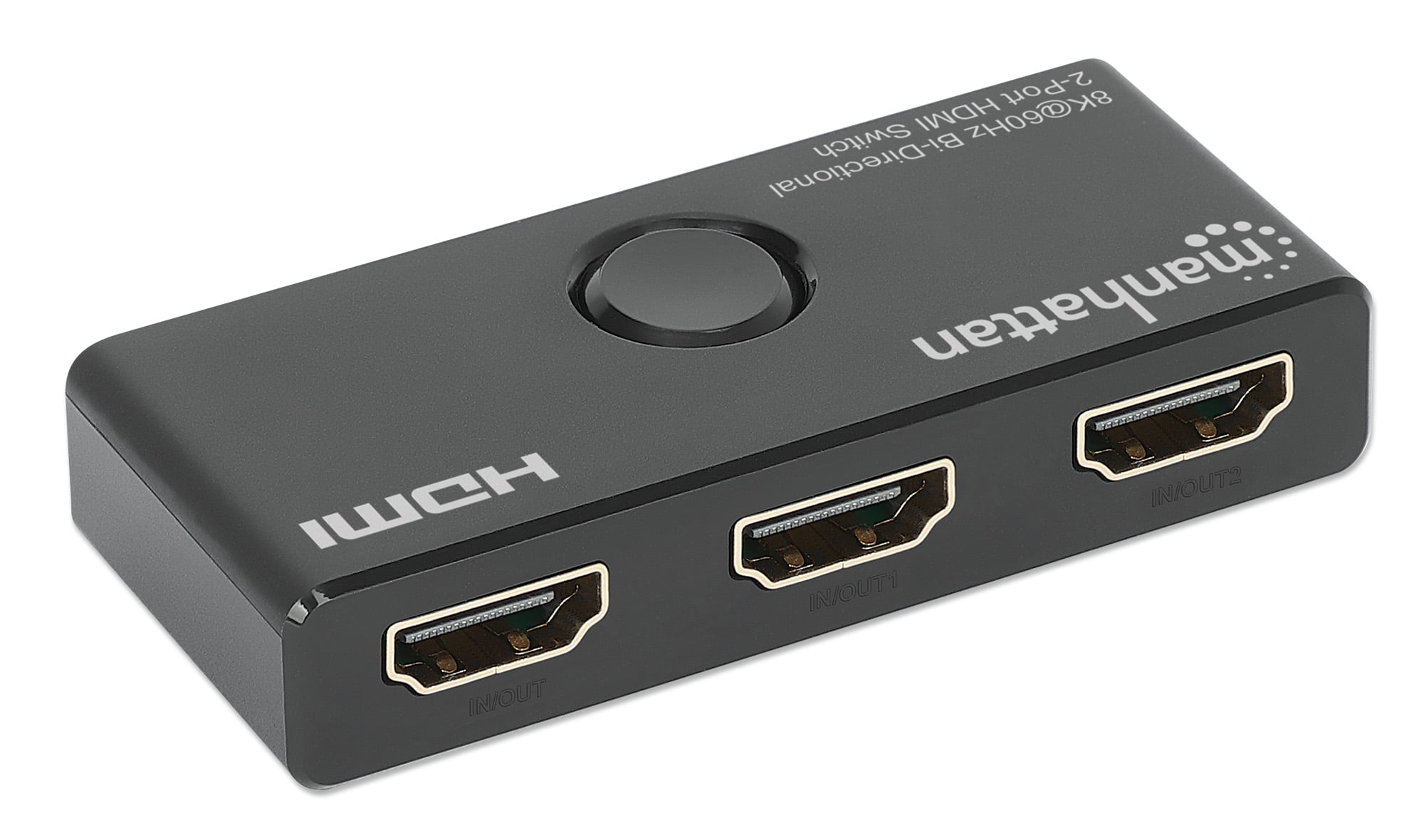

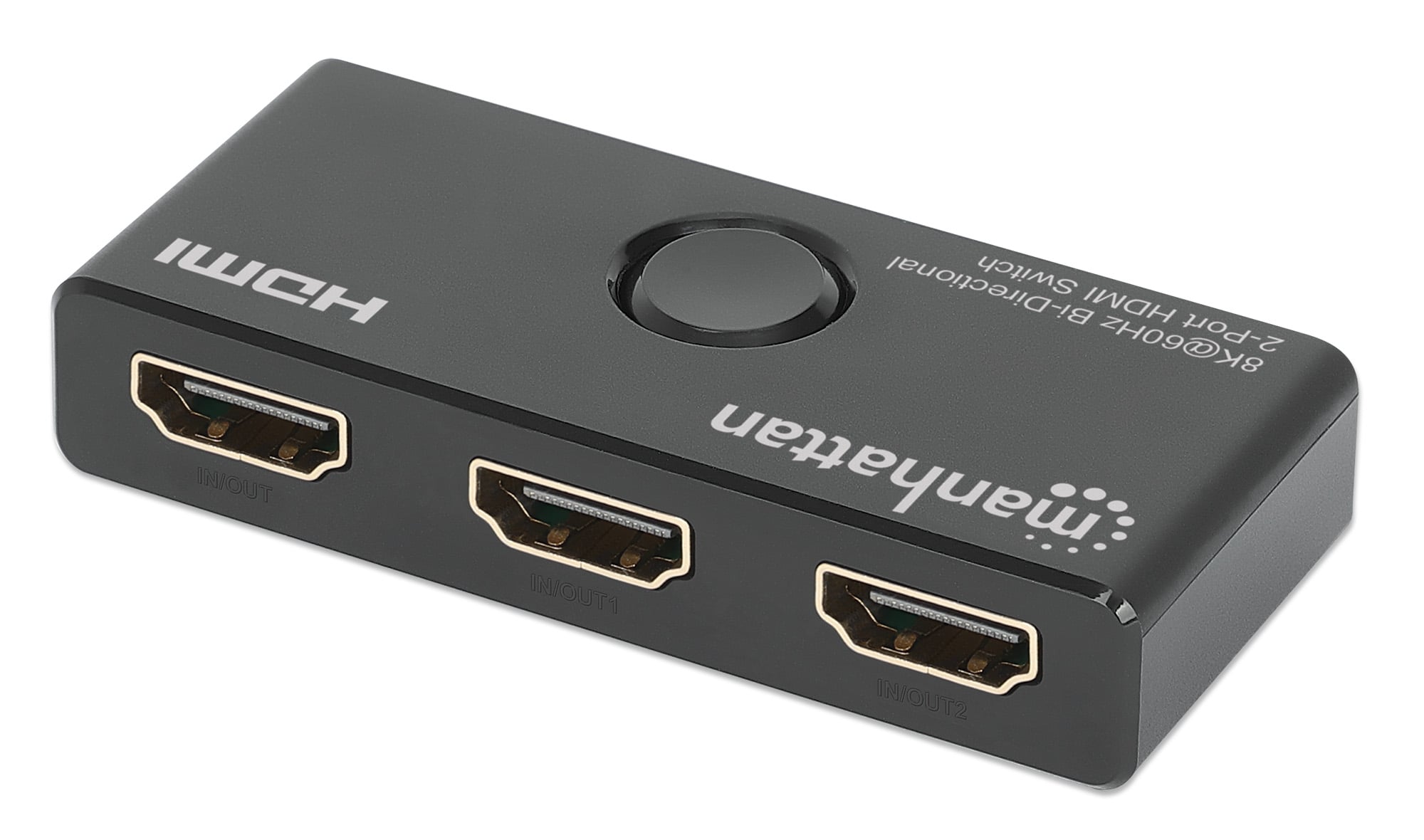

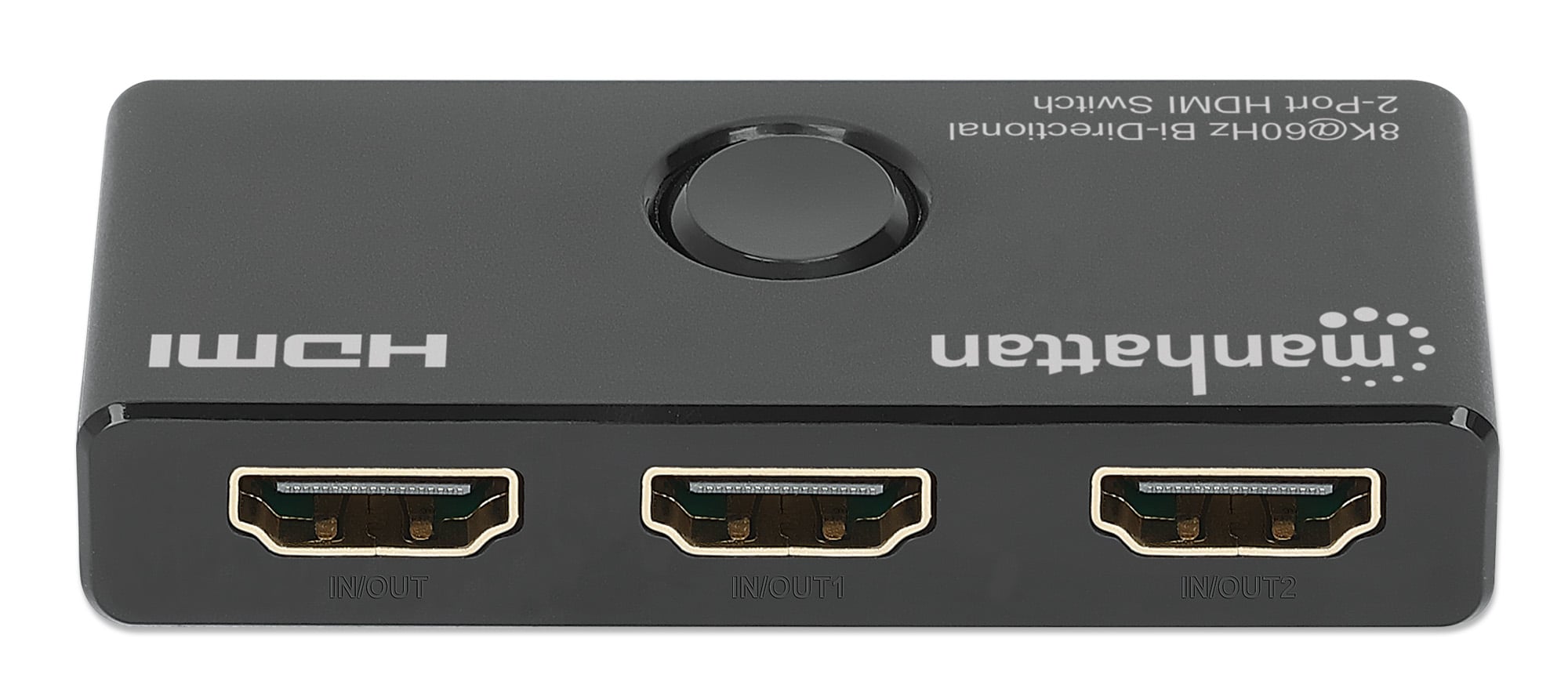

Three female HDMI 19 pin
A selection key

LED

Feeding
Input/Exit 1
Input/Exit 2

Physical information:

Dimensions (P x L x A): 74 x 32 x 15 mm
Net weight: 28 g
Gross weight: 48 g
Housing: ABS plastic

Environmental information

Operating temperature: from 0 to 70 °C
Storage temperature: - 20 to 80 °C
Humidità (without condensation): 5 - 90 %

Package contents

Switch HDMI 2 ports 8 K@ 60 Hz Bidirectional
User manual

NOTE: if used to switch from one display to another from one HDMI source, this device does not support simultaneous output on both displays. For this application, è requires an HDMI splitter (available from Manhattan).
