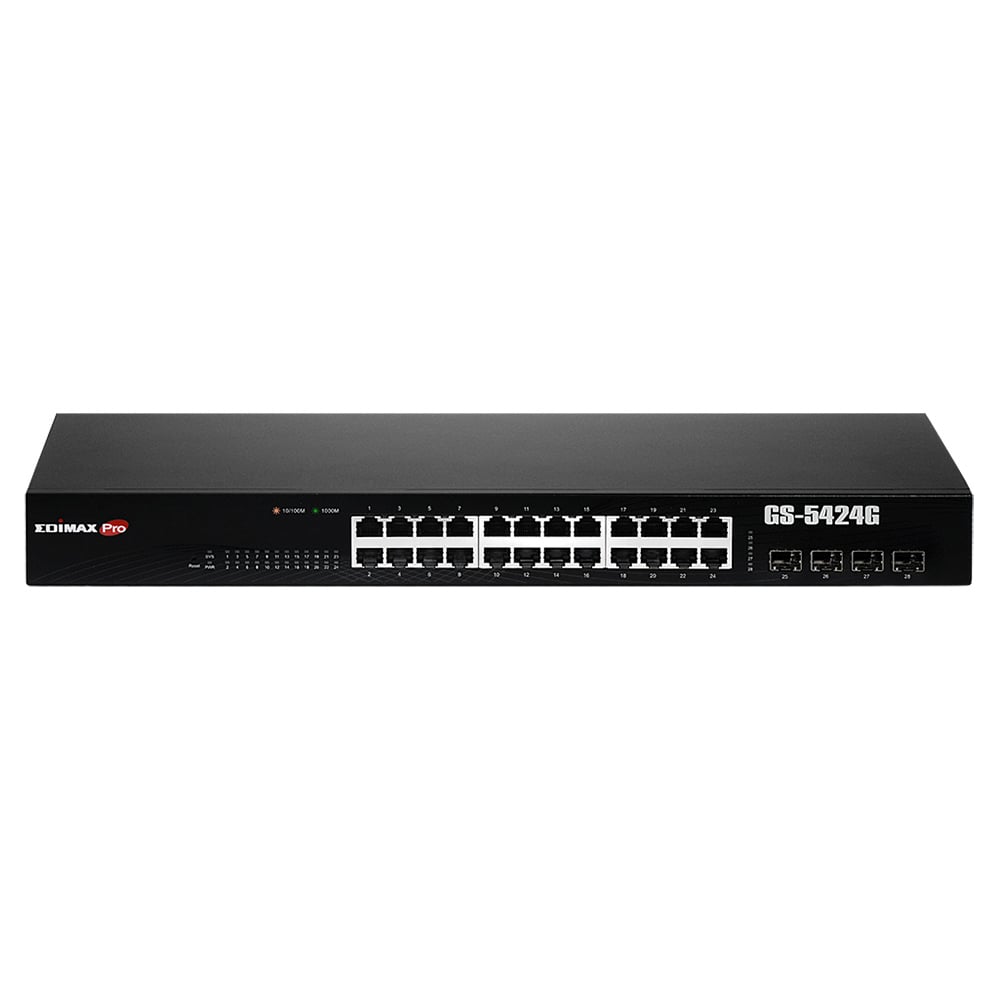

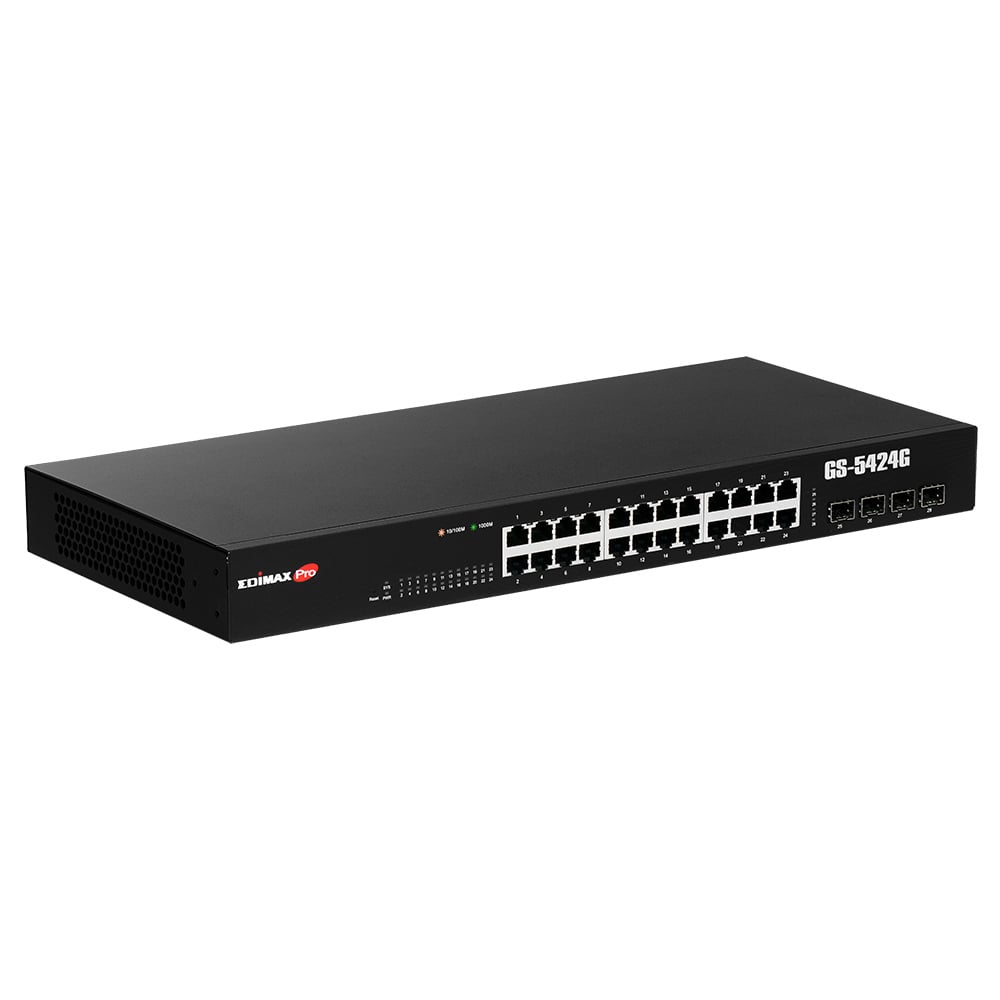

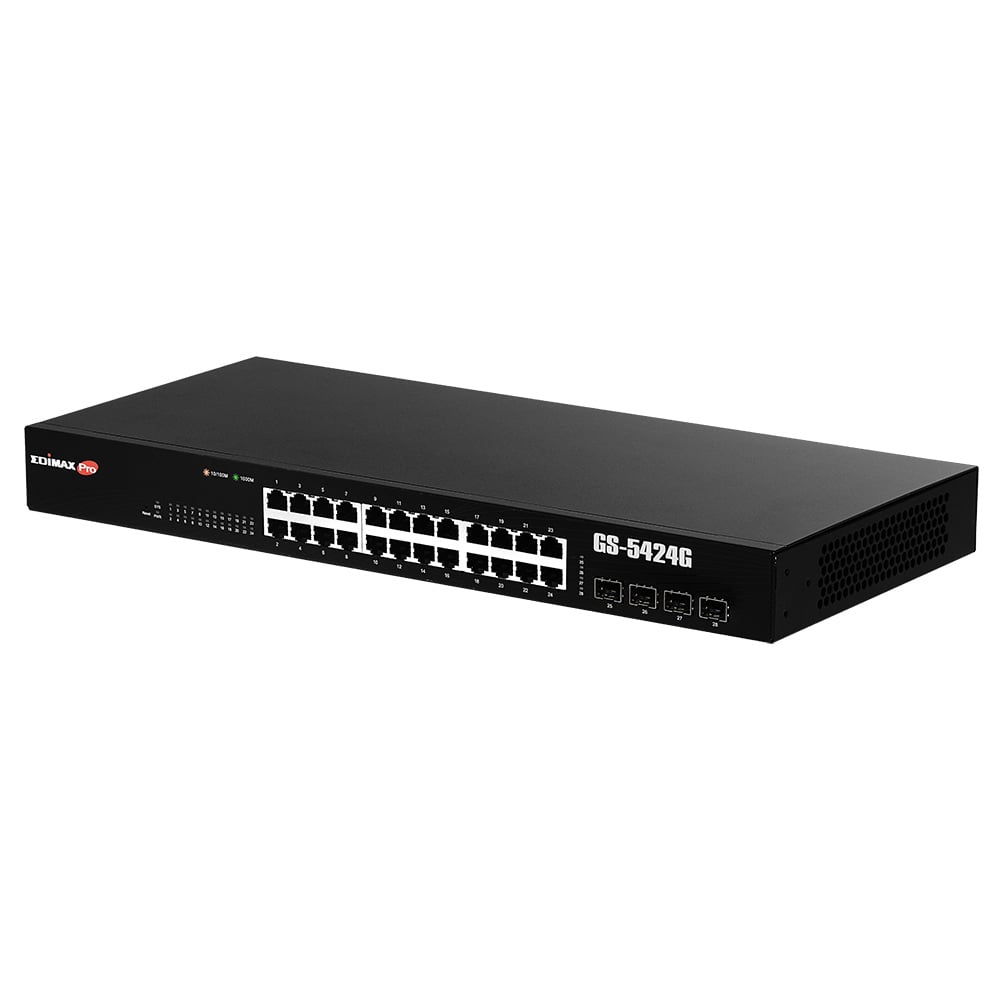

Gigabit Ethernet Switch 24 Doors 4 Slot SFP - Edimax ICE-GS 5424 G

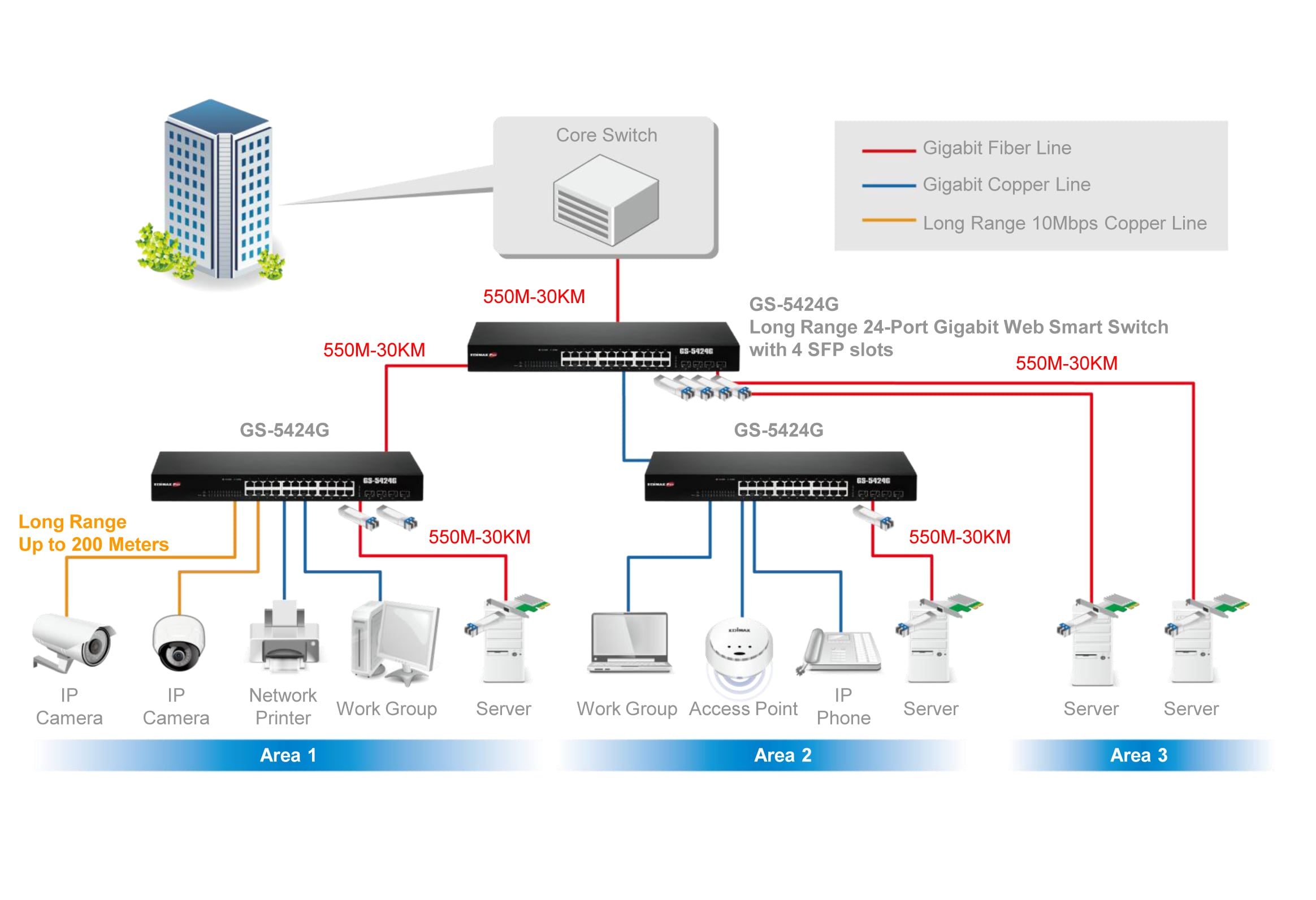

The Edimax Pro GS-5424G smart switch features a web-based user interface, 24 Gigabit ports and 4 SFP slots for optical connections, where multimode or single-mode SFP modules/receivers are used for high-speed and long-range Gigabit data transmission. With intelligent features such as SNMP v3, Dual Firmware, Voice VLAN, DHCP Snooping, QoS, CoS, STP, VLAN 802.1Q, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror, it offers an economical, scalable, and secure switch solution for SMB networks. Edimax's specific long-range mode allows data transmission up to 200 meters at a speed of 10 Mbps to the farthest network devices. The Edimax GS-5424G is the ideal solution to increase the distance/speed of network server and backbone connections.

•

• 24 Gigabit Ethernet ports and 4 SFP fiber slot

• Double firmware to reduce inactivity time; switch

• Voice VLAN to improve IP phone audio quality à

• Snooping DHCP to protect the integrityà of the legitimate DHCP server and its operations

• Modelità long-range with Ethernet cable to extend the flow rate to 200 meters

• Supports SNMP v 3 , Access Control List (ACL), QoS, CoS, STP, VLAN 802.1 Q, IPv 4 /IPv 6 , Port Trunk, Snooping and Mirroring IGMP v 1 /v 2 /v 3

• Capacità 56 Gbps Switch

• Table of MAC addresses from 8 K and support for jumbo frames up to 9 KB

• Designed for mounting on 1 U racks from 19 inches and without fans


Technical Specifications

•

• Doors:


•

• 24 x RJ 45 10 / 100 / 1000 Base-T Gigabit

• 4 x 1000 Base-X SFP Slots


•

• Reset Button

• LED indicators:


•

• For Link/Act port

• For unità: Power


•

• Capacità switching 56 Gbps

• Address MAC 8 K

• Jumbo Frame 9 K Byte

• Memory buffer 4,1 MB


Dimensions

•

• Width: 441 mm

• Depthà: 197 mm

• Height: 45 mm


Environmental features

•

• Operating temperature: 0 ~ 50 °C

• Storage temperature: - 40 ~ 70 °C

• Humidità operating: 10 ~ 90 % (without condensation)

• Storage humidità 10 ~ 90 % (without condensation)


Package contents

•

• Smart switch ICE-GS 5424 G

• User manual
