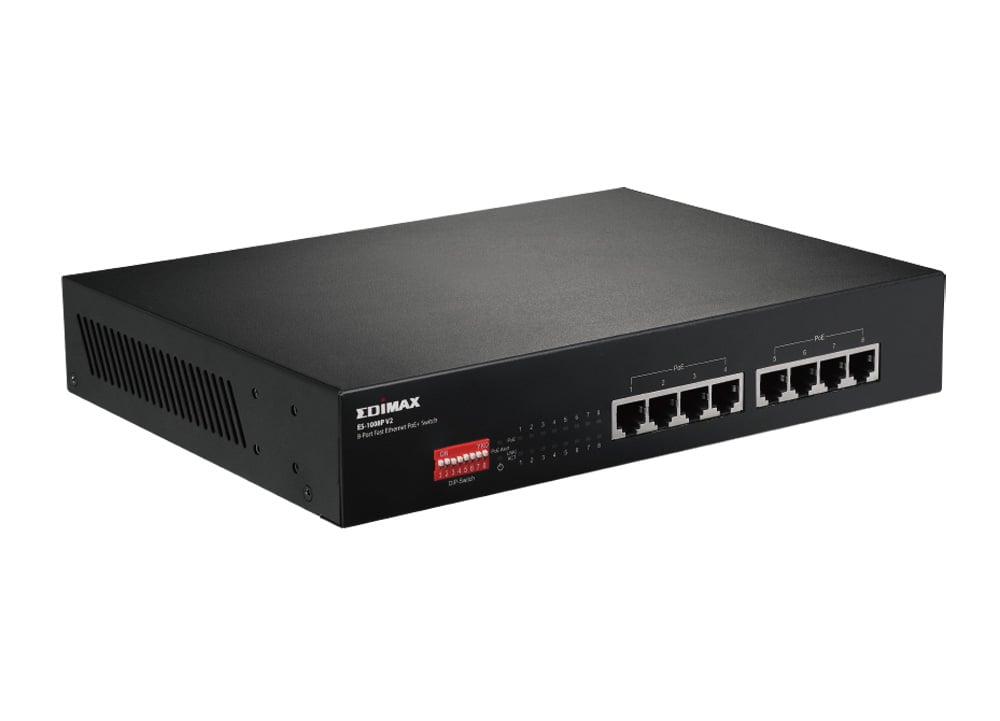

Switch Fast Ethernet PoE+ 8 Doors Long Radius DIP Switch - Edimax ICE-ES 1008 P

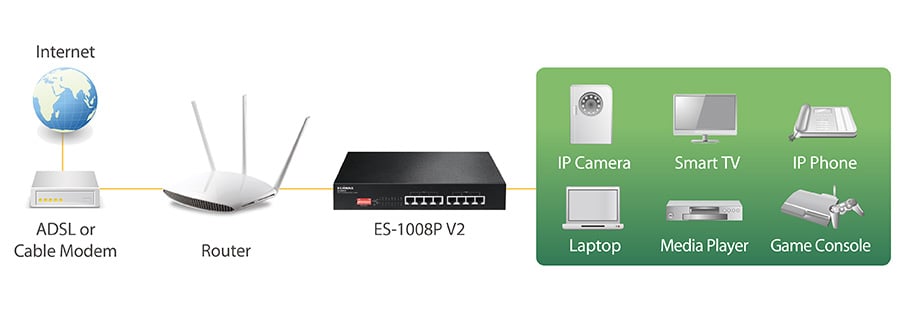

ICE-ES 1008 P è an eight-port PoE+ Fast Ethernet switch designed for use in home network environments, small or medium-sized. With eight DIP switches, PoE ports can be manually set with on-off control, extending PoE delivery distance to 200 meters and è also supported on-/off port-based control for VLAN and QoS. The switch connects easily and provides power to PoE-enabled devices such as wireless access points, network cameras and IP phones, as well as other Ethernet enabled devices such as computers, printers or NAS (Network Attached Storage). Compact size and fan-free design make the switch an ideal solution for expanding home and small businesses networks.



Features

• Eight ports Fast Ethernet PoE+ 10 / 100 Mbps


• IEEE 802.3 af/at PoE conform for simplified distribution and installation

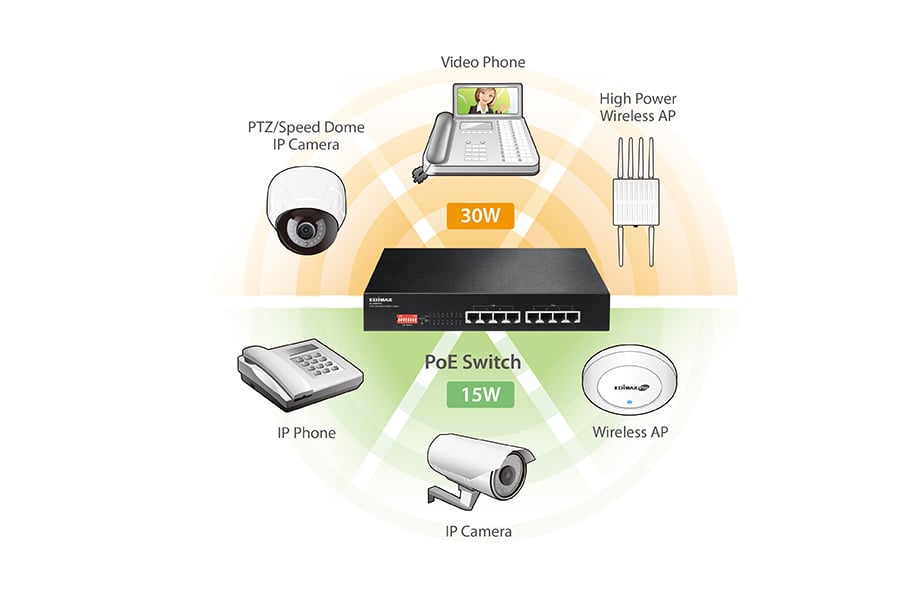

• Up to 30 W for PoE port (total power supply budget: 130 W) for power supply of PoE enabled devices


• Automatic detection of powered devices (PDs) and energy consumption levels

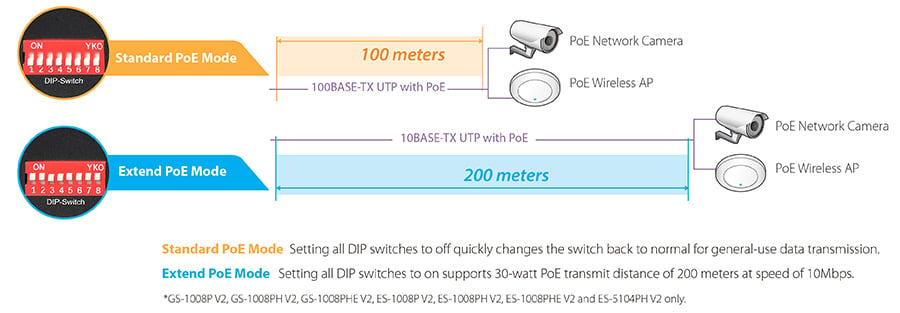

• Hardware DIP switch for selecting "Standard" and "Extend" mode; Extend mode offers a PoE transmission distance of 30 watts of 200 m at a speed of 10 Mbps


• Functionalità VLAN and door-based loop protection

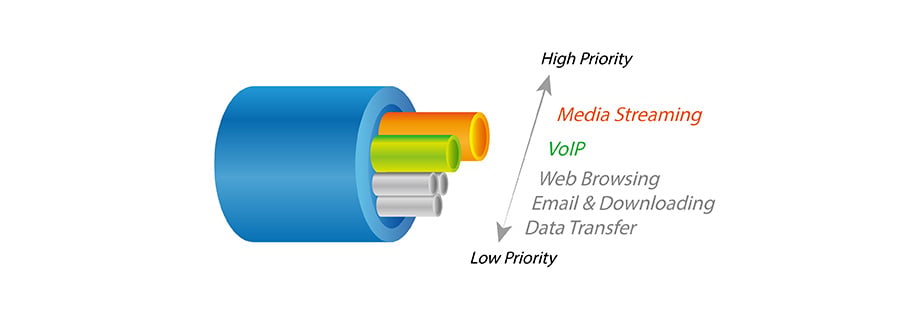

• Supports service qualityà (QoS) 802.1 p



Technical specifications

• Doors: 8 doors RJ- 45 10 / 100 Base-T PoE+


• Transmission method: store and forward

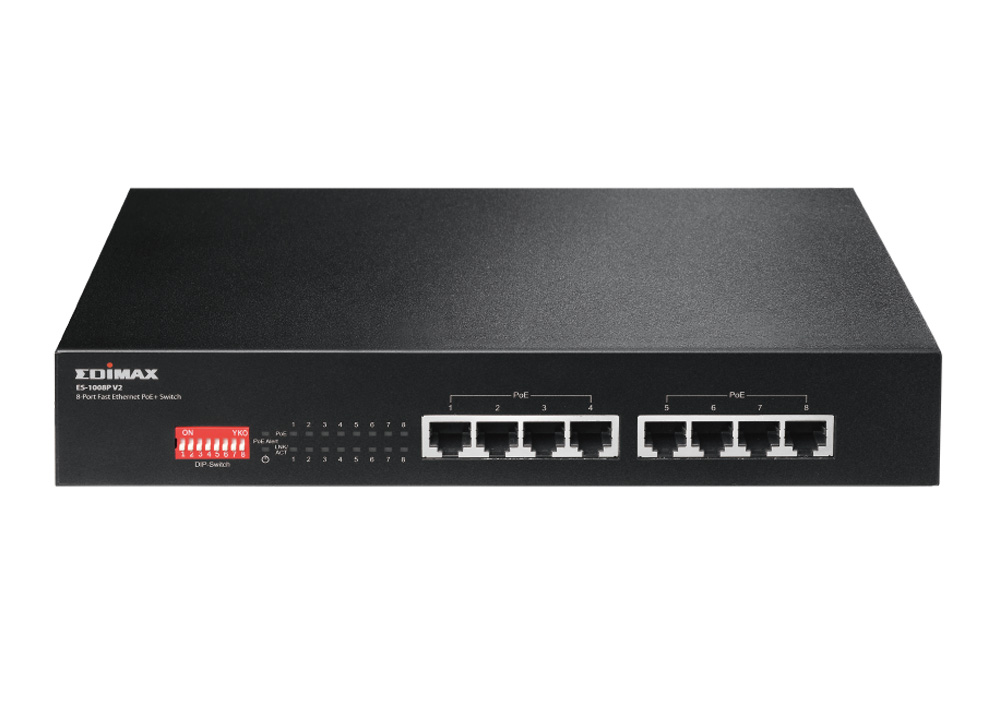

• LED indicators:



- Power supply: green LED

- LNK/ACT: Green LED (Door 1 – Door 8)

- PoE: Green LED (DOOR 1 – door 8)

- PoE warning: Green LED (PoE overload alarm)

• DIP switch: PoE Extend, VLAN, QoS

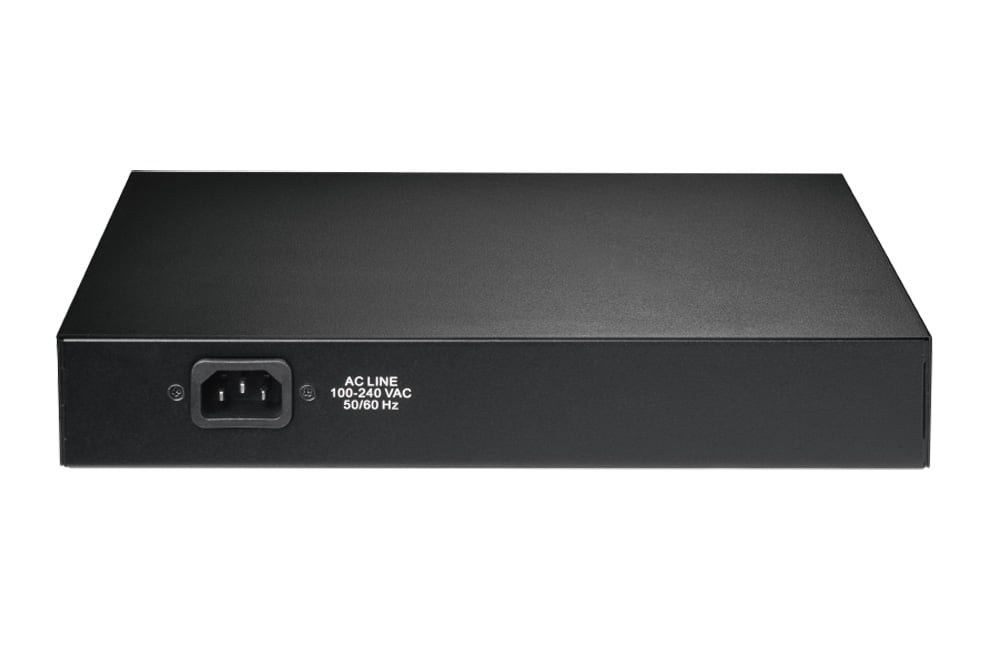

• Feeding:



Input: 100 - 240 V AC

Power supply: 160 W

• Consumption: 5 W


• Capacità switching: 1,6 G


• Address MAC 1 K


• Memory buffer: 56 Kb



POE

• Standard



IEEE 802.3 a

IEEE 802.3 at

• Output power up to 30 W per door


• Assignment pin 1 / 2 (+), 3 / 6 (-)


• Power Budget PoE 130 W



Dimensions

• Width: 265.1 mm


• Depthà: 183.7 mm


• Height: 44 mm



Environmental features

• Temperature:



- Operational: 32 ~ 104 °F (0 ~ 40 °C)

- Storage: - 40 ~ 158 °F (- 40 ~ 70 °C)

• Umidità: (without condensation)



- Operational: 10 ~ 90 %

- Storage: 5 ~ 90 %



Certifications

• CE


• FCC


• LVD



Package contents

• Switch PoE+ ICE-ES 1008 P


• User manual
