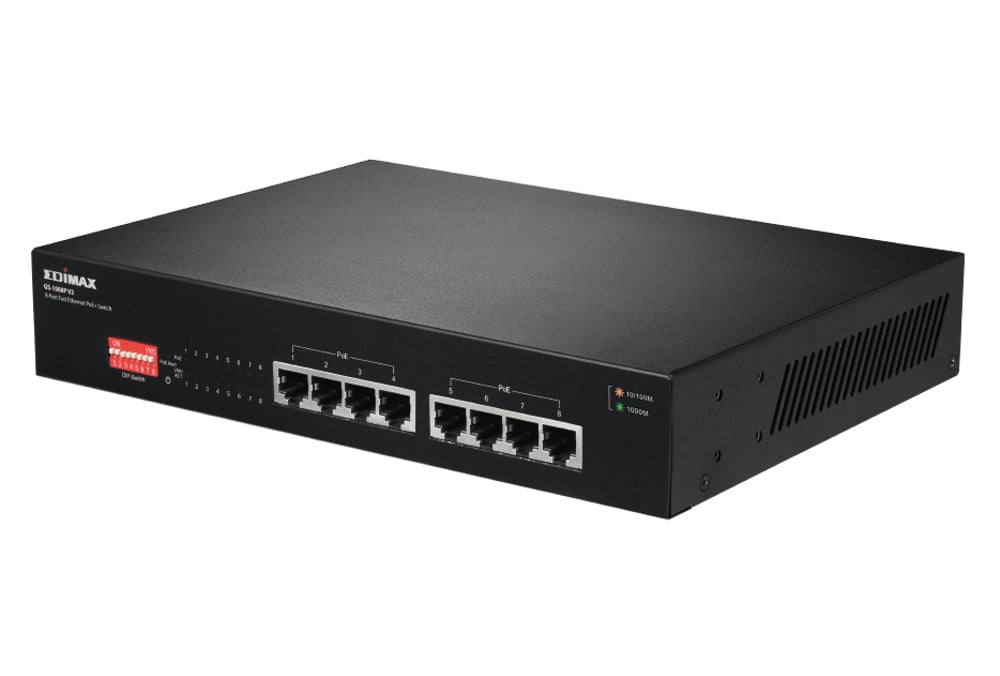

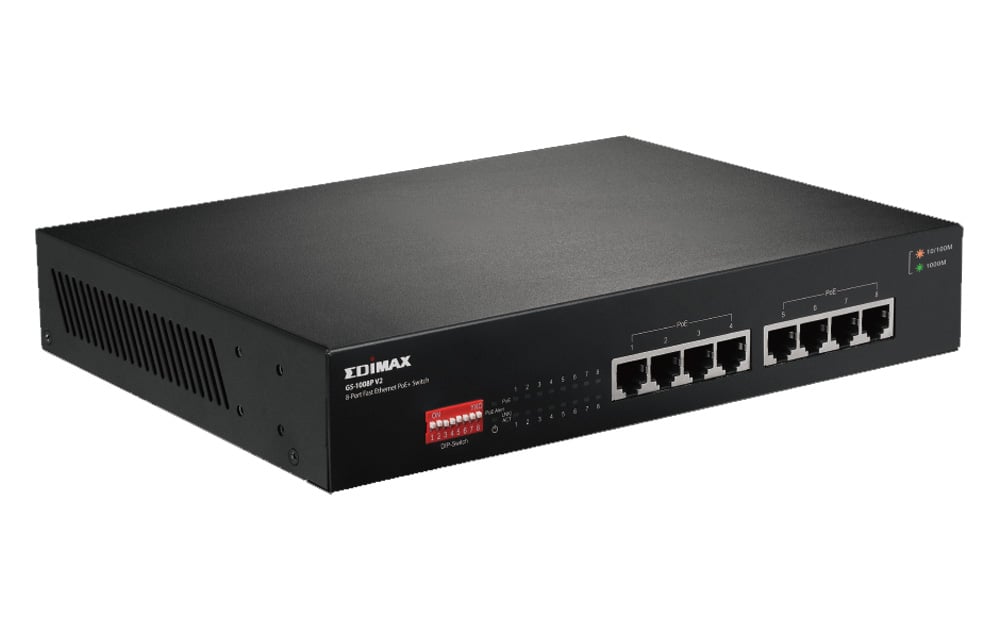

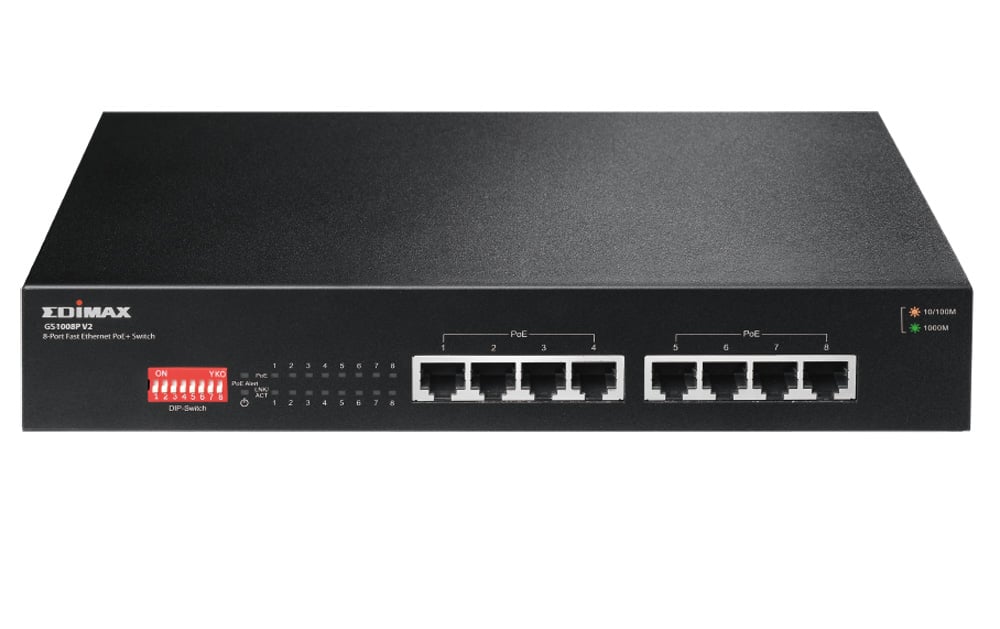

Switch PoE+ Gigabit 8 Doors Long Radius DIP Switch - Edimax ICE-GS 1008 P

Edimax ICE-GS 1008 P V 2 è a Gigabit eight-port PoE+ switch designed for use in small or medium-sized home network environments. With eight DIP switches, PoE ports can be manually set with on-off control, extending the PoE delivery distance to 200 meters and è also supported on-off port-based control for VLAN and QoS. The switch easily connects and provides power to PoE-enabled devices such as wireless access points, network cameras and IP phones, as well as other Ethernet-enabled devices such as computers, printers or NAS (Network Attached Storage). Compact size and fan-free design make the switch an ideal solution for expanding home and small businesses networks.



Automatic detection of Power over Ethernet (PoE+)

It has eight IEEE 802.3 at Power over Ethernet (PoE+) ports that provide up to 30 watts of electricityà per port. It can ` convert standard power from 100 - 240 V CA into low voltage 50 - 57 V CC to power network accessories compliant with IEEE 802.3 at through existing LAN cables. Thanks to PoE detection capacity & ability, the GS- 1008 P V 2 è can verify whether the connected device è complies with IEEE 802.3 at. In case a PoE device is not detected, only network data will be transmitted via the LAN cable, which means easy configuration and management of network devices such as access points and network cameras.



Modelità CCTV

The exclusive DIP switch function in modalità CCTV è ideal for the surveillance network environment. Activation of all DIP switches enables the mode à CCTV that provides PoE + multi-function data extension, door isolation and QoS on the GS- 1008 P V 2 . When using video surveillance systems for homes, companies or institutions, the modeà CCTV offers speed à better for multicast viewing and a more ù simple installation. The setting of all DIP switches on off quickly returns the GS- 1008 P V 2 to normalità for the transmission of general use data.



Extension of power supply distance and data

The built-in DIP switch provides mode/agrave; extended operation on the 1, 2, 5, 6 and 7 switches. The GS- 1008 P V 2 works as a standard PoE IEEE 802 .at/af switch when the DIP switches are off. With the switches on, the GS- 1008 P V 2 works on a base for door with duplex operation at 10 Mbps, but it can ` support a power output PoE from 30 watts on a distance up to 200 meters, exceeding the limit of 100 m on the UTP Ethernet cables. With this brand new functionalityà, GS- 1008 P V 2 provides an additional solution for the PoE 802.3 at/af distance extension and saves the installation costs of the Ethernet cable.



Innovative port-based VLANs

The GS- 1008 P V 2 è equipped with VLAN based on a door where the ports can be isolated from each other via the 3 and 8 DIP switch ports. Ciò can help prevent the IP camera's multicast or broadcast storms from affecting each other.



Plug & Play, no installation required

Simply connect the Ethernet or PoE enabled devices to the switch. Data and power supply can be transmitted via Cat- 5 Ethernet cables and existing standards without additional cables or configuration required. The GS- 1008 P V 2 reduces the difficultyà, time and cost of network configuration.



Technical specifications

• Doors: 8 doors RJ- 45 10 / 100 / 1000 Base-T PoE+


• Transmission method: store and forward


• LED indicators



- Power supply: green LED

- LNK/ACT: Green LED (Door 1 – Door 8)

- PoE: Green LED (DOOR 1 – door 8)

- PoE warning: Green LED (PoE overload alarm)

• Without fan


• DIP Switch PoE Extend, VLAN, QoS

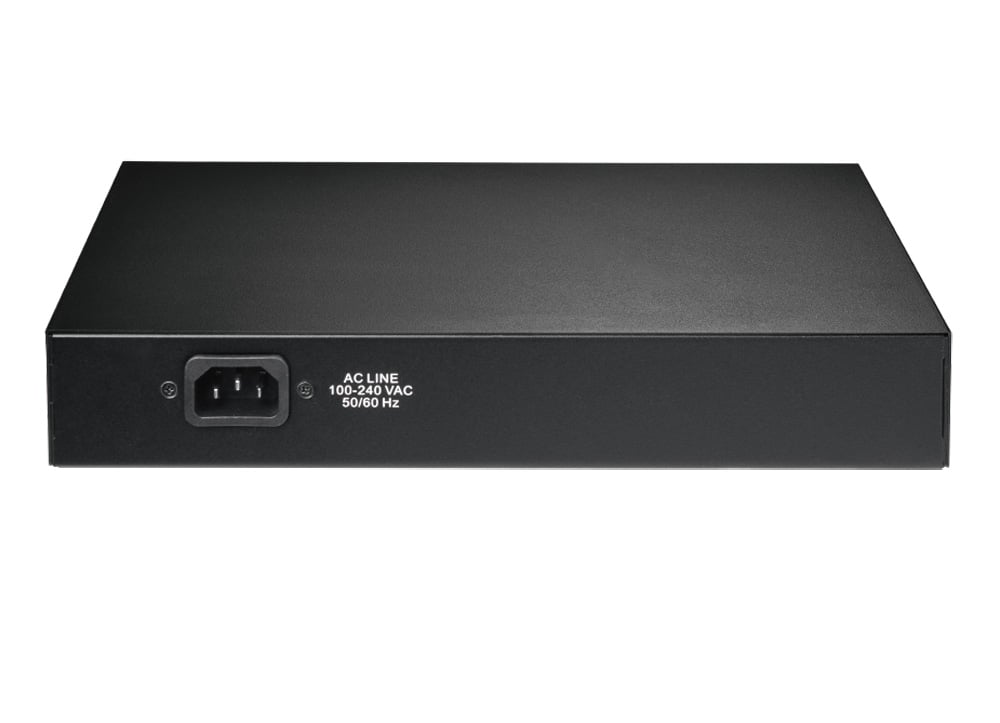

• Power requirements Input: 100 - 240 V CA


• Power supply: 160 W


• Power consumption 5 W



Dimensions

• Width: 265,10 mm


• Depthà: 183,70 mm


• Height: 44 mm


• Weight: 1609,5 g



Environmental features

• Temperature:



- Operational: 32 ~ 104 °F (0 ~ 40 °C)

- Storage: - 40 ~ 158 °F (- 40 ~ 70 °C)

• Umidità: (without condensation)



- Operational: 10 ~ 90 %

- Storage: 5 ~ 90 %



Certifications

• CE


• FCC


• LVD



Package contents

• ICE-GS 1008 P network switch


• User manual
