Video recorder NVR 36 CH 16 MP 48 TB with HDMI and VGA, NVS 36 - Reolink ICR-NVS 36

•

• This multichannel è network video recorder is ideal for monitoring more ù locations, especially for a large area; can ò be connected to 36 cameras running simultaneously, all with resolution up to 16 MP

• It also has additional alarm input/output channels that allow you to customize the various modes; detection/response

• The huge product data can be securely stored in a maximum of 3 HDD by 16 TB (acquistabili seperately) for a total of 48 TB allowing you to include more ù surveillance cameras, keep 24 / 7 recordings and store videos for a longer period of time;

• Integrated audio ports that allow a two-way conversation through the NVR; è can readily respond to suspicious visitors or communicate live with people on site

• 8 alarm-in channels for connecting additional wired sensors (temperature, IR, magnetic sensors, etc.) to detect separate events; 4 alarm-out channels for controlling controllers (door switches, lights, sirens, etc.) for performing actions

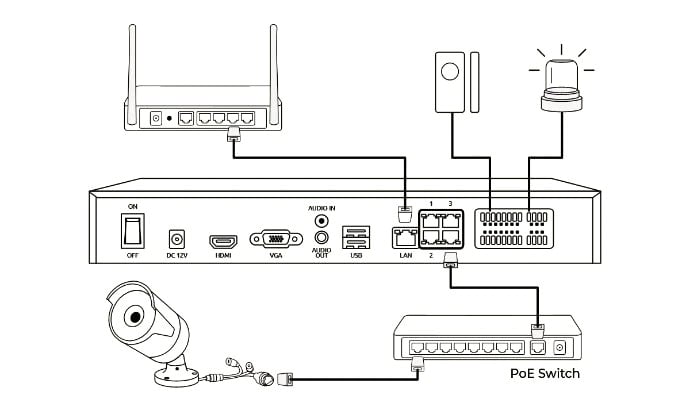

• The NVR has a LAN port for connecting to a router and four Ethernet ports (not PoE) for connecting to PoE switches or directly to cameras. It is also possible to connect the cameras to the NVR via WiFi without wiring


Technical Specifications

•

• IP video input: 36 channels to 16 MP

• Video output: 1 HDMI, 1 VGA

• Audio ports: 1 audio input channel, RCA; 1 audio output channel, RCA

• USB Doors: front panel 1 USB 2.0 ; rear panel: 1 USB 2.0 , 1 USB 3.0

• Ethernet doors: 4 x RJ- 45 , 10 / 100 / 1000 Self-adapting Mbps (for IP cameras); 1 x RJ- 45 , 10 / 100 / 1000 Self-adapting Mbps (for LAN/WAN); no PoE ports

• Alarm: input 8 channels; output 4 channels

• Video: IP camera input; supports up to 36 IPC access channels; each channel up to 16 MP input

• Video output HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024 , 1280 x 720 , 1024 x 768

• Video output VGA: 1920 x 1080 , 1280 x 1024 , 1280 x 720 , 1024 x 768

• Bidirectional audio; integrated audio input and output ports

• Audio input: via microphone cameras; via 1 integrated channel

• Audio output: via 1 integrated channel

• Video compression: H. 265 , H. 264

• Visual resolution live/playback: 7680 × 2160 , 4608 × 1728 , 4512 × 2512 , 4096 × 3072 , 3840 × 2160 , 2560 × 2560 , 2560 × 1920 , 2560 × 1440 , 2048 × 1536 , 2304 × 1296 , 1080 p, 720 p

• Supports only playback to 1 channel if displayed with a resolution of 8 MP or higher

• synchronous reproduction: 1 - 4 channels

• Modelità supported

• Recording of events persons/vehicles; recording activated by movement; Registration 24 / 7

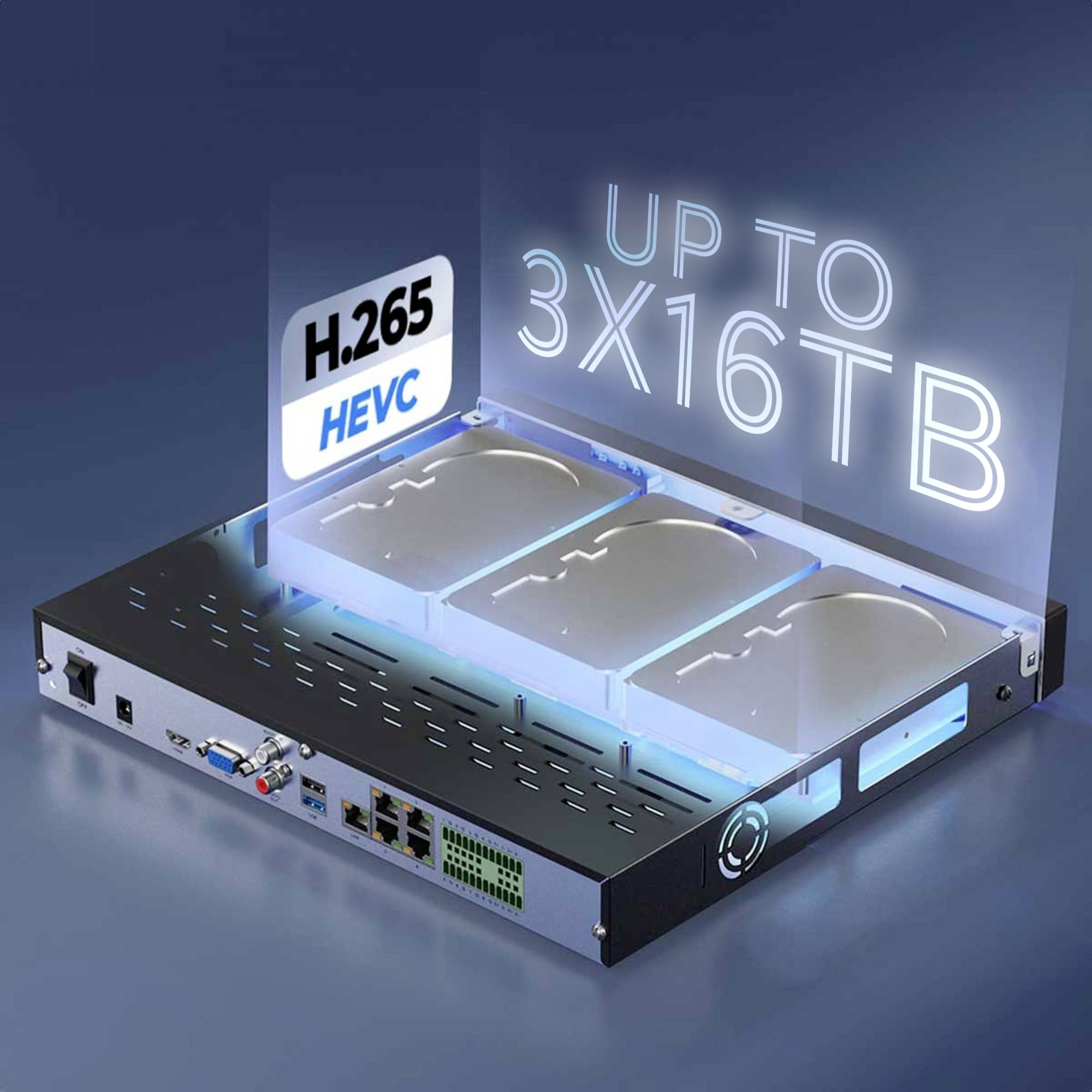

• Internal HDD: 3 SATA ports for 3 HDD (optional)

• Maximum Capacity `: 48 TB (max. 16 TB HDD per SATA)

• Network protocols: HTTP, TCP/IP, UDP, DHCP, P 2 P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP

• Supported browsers: Edge, Firefox, Chrome, Safari

• Maximum User Accesses: 20 users (1 admin account and 19 user account); up to 12 video stream simultaneously (10 substream and 2 mainstream)

• Power supply: DC 12 V/ 5.4 A

• Power consumption: < 10 W(without HDD)


Supported Operating Systems

•

• PC: Windows; Mac OS;

• Smartphone: iOS, Android


Environmental Characteristics

•

• Temperature: - 10 °C ~+ 45 °C (14 °F~ 113 °F)

• Humidità: 10 %~ 90 %

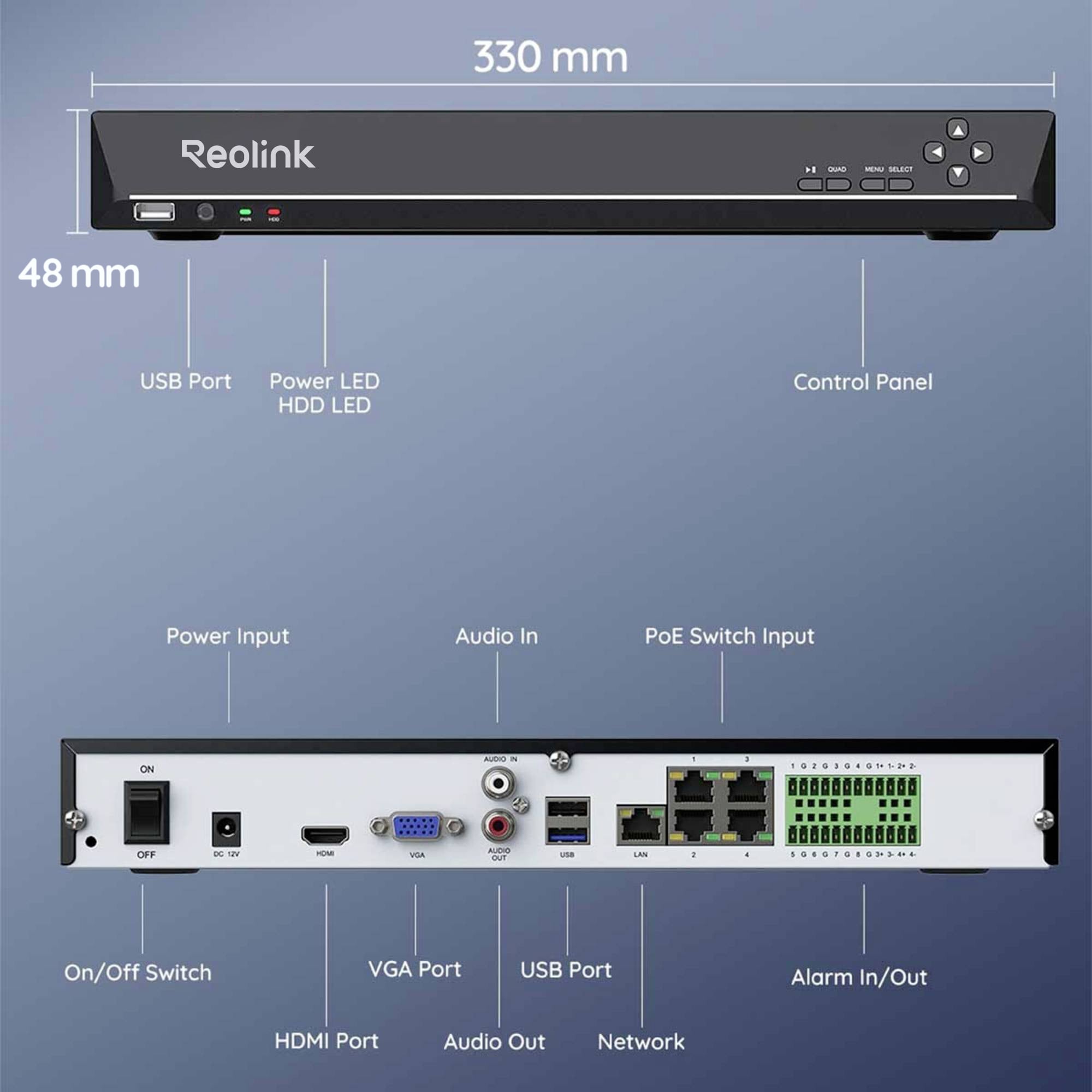

Dimensions

•

• Width 330 mm

• Depthà 310 mm

• Height 48 mm

• Weight 2,26 kg (without HDD)


Package contents

•

• NVR video recorder ICR-NVS 36

• User manual
