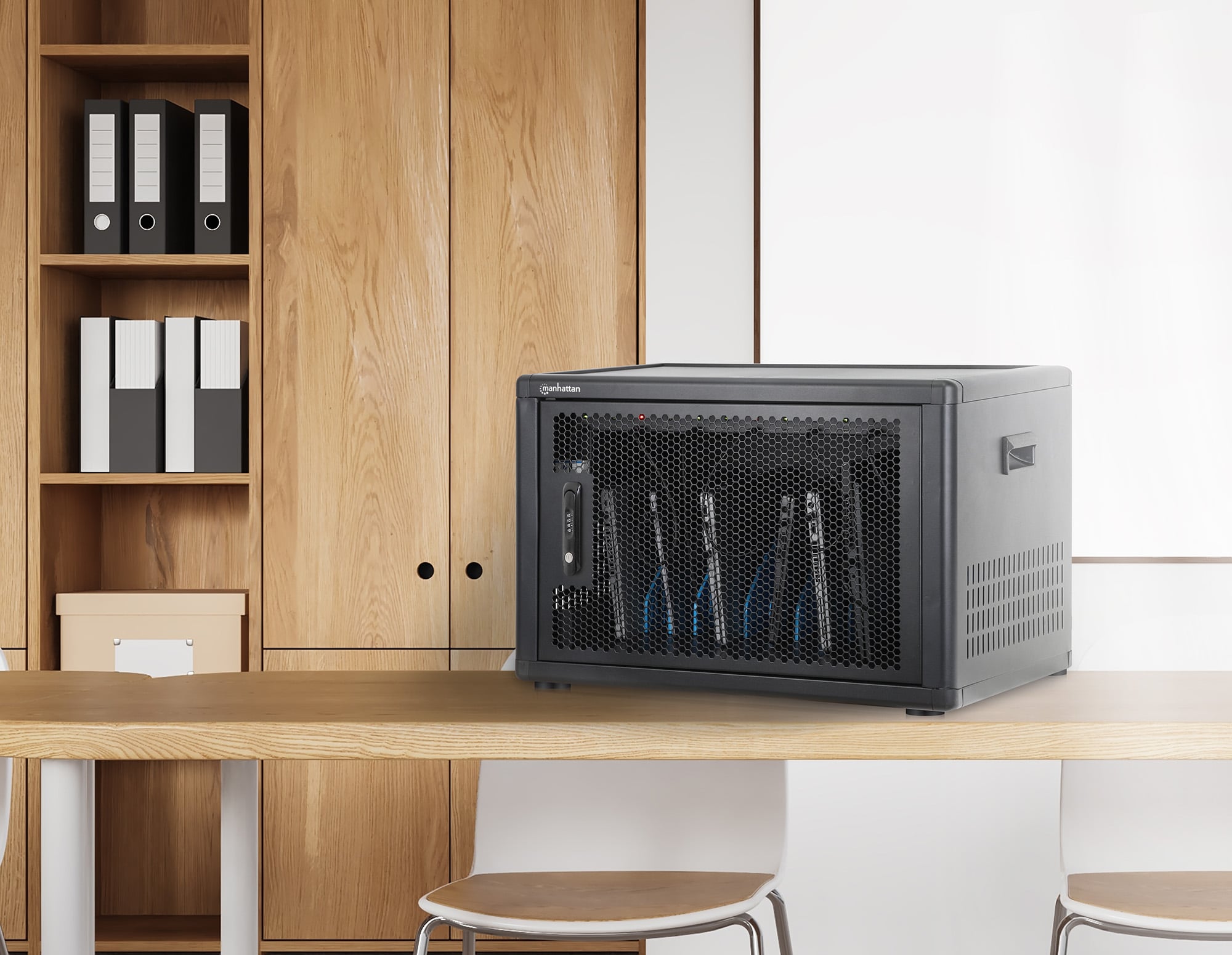

Desktop/Wall-Mount Charging Station Cabinet 12 USB-C Ports 780W - Manhattan I-CABINET-12C65

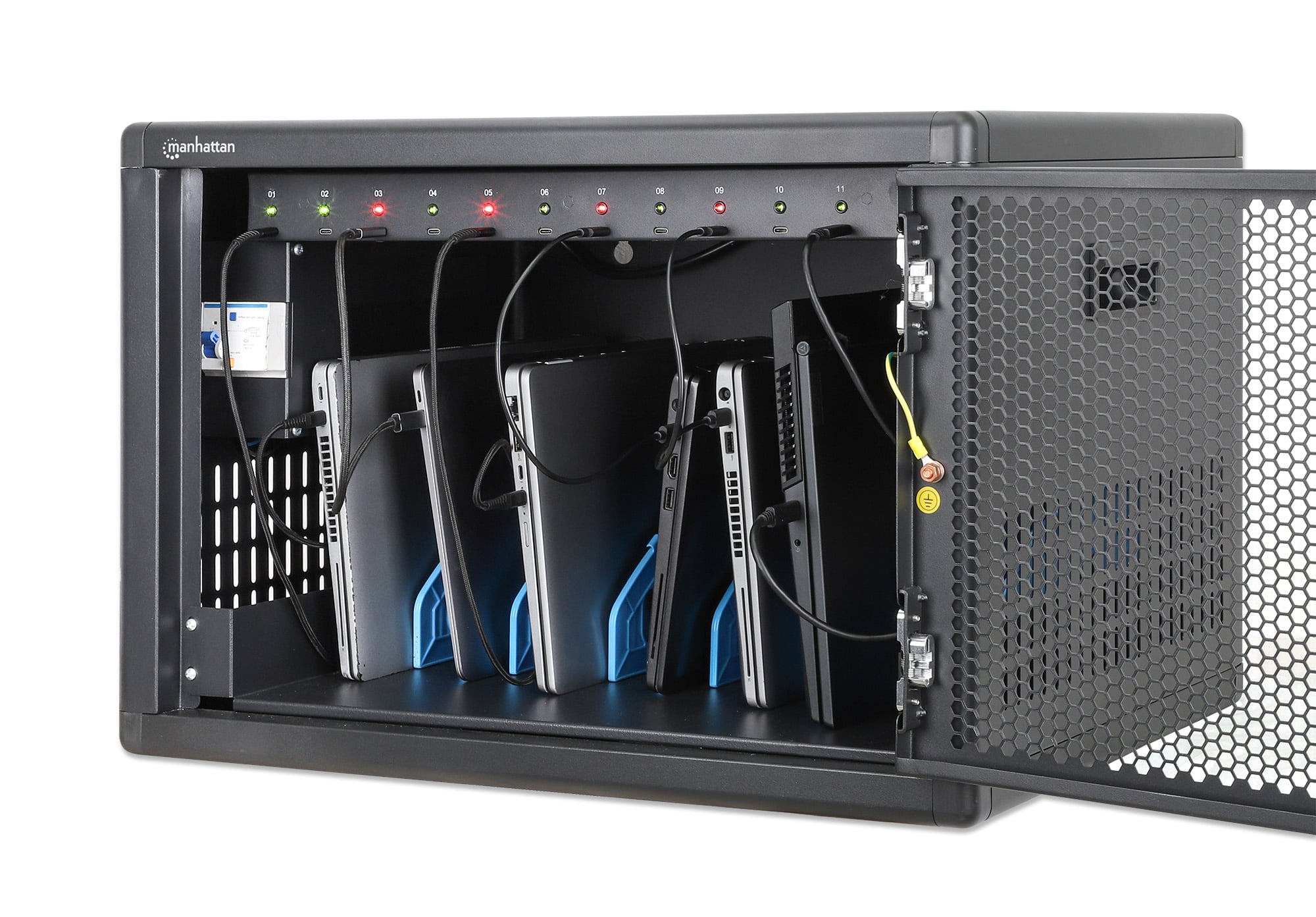

• Safely stores and charges laptops, tablets, iPad®, MacBook®, Chromebook, phones and other devices up to 16
• High-speed USB-C™ Power Delivery charging ports support up to 65 W per port and 780 W total; no AC adapters or wall chargers required
• Protection against overloads, overcurrents, short circuits and voltage surges

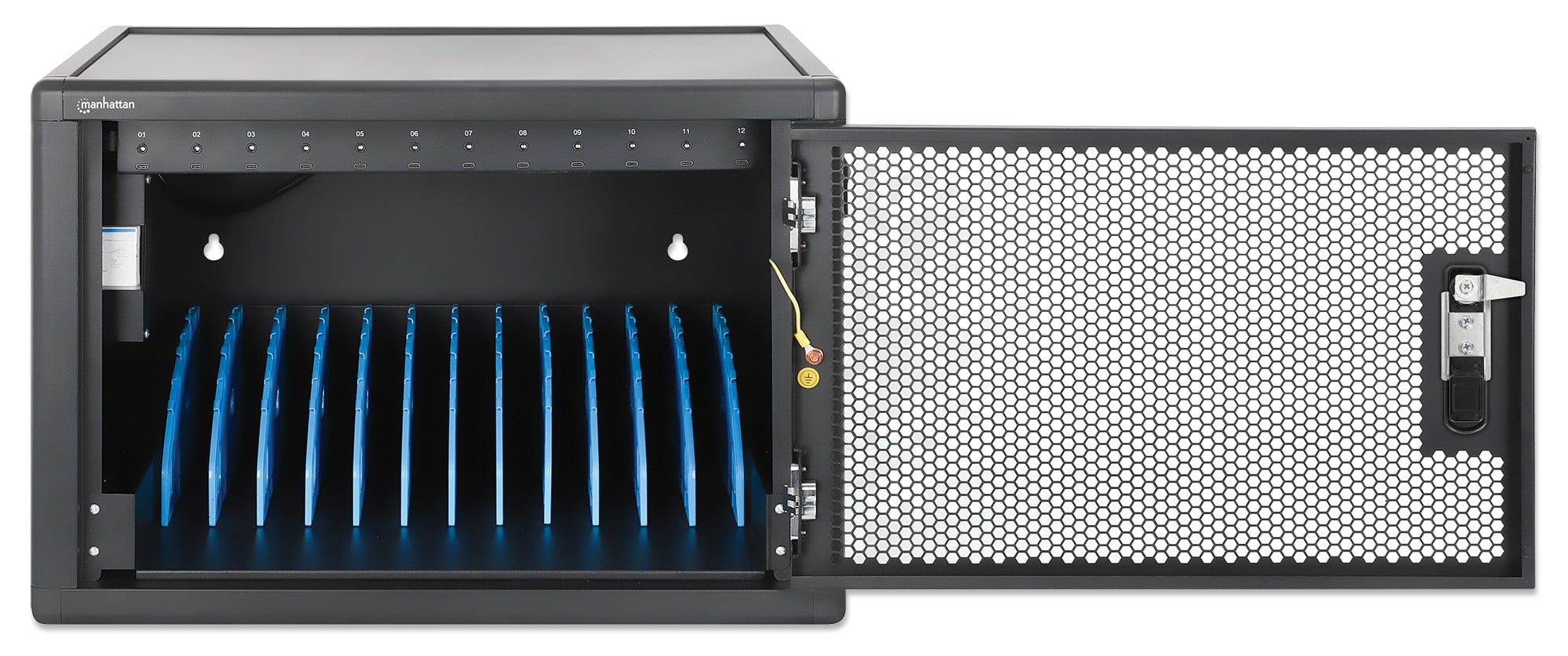

• Twelve spacious device compartments, 395 (D) x 32,5 (W) x 290 (H) mm each, with dividers featuring an integrated cable management system
• Twelve USB-C™ to USB-C™ charging cables included
• Robust and secure metal construction with steel up to 2 mm thick and powder coating

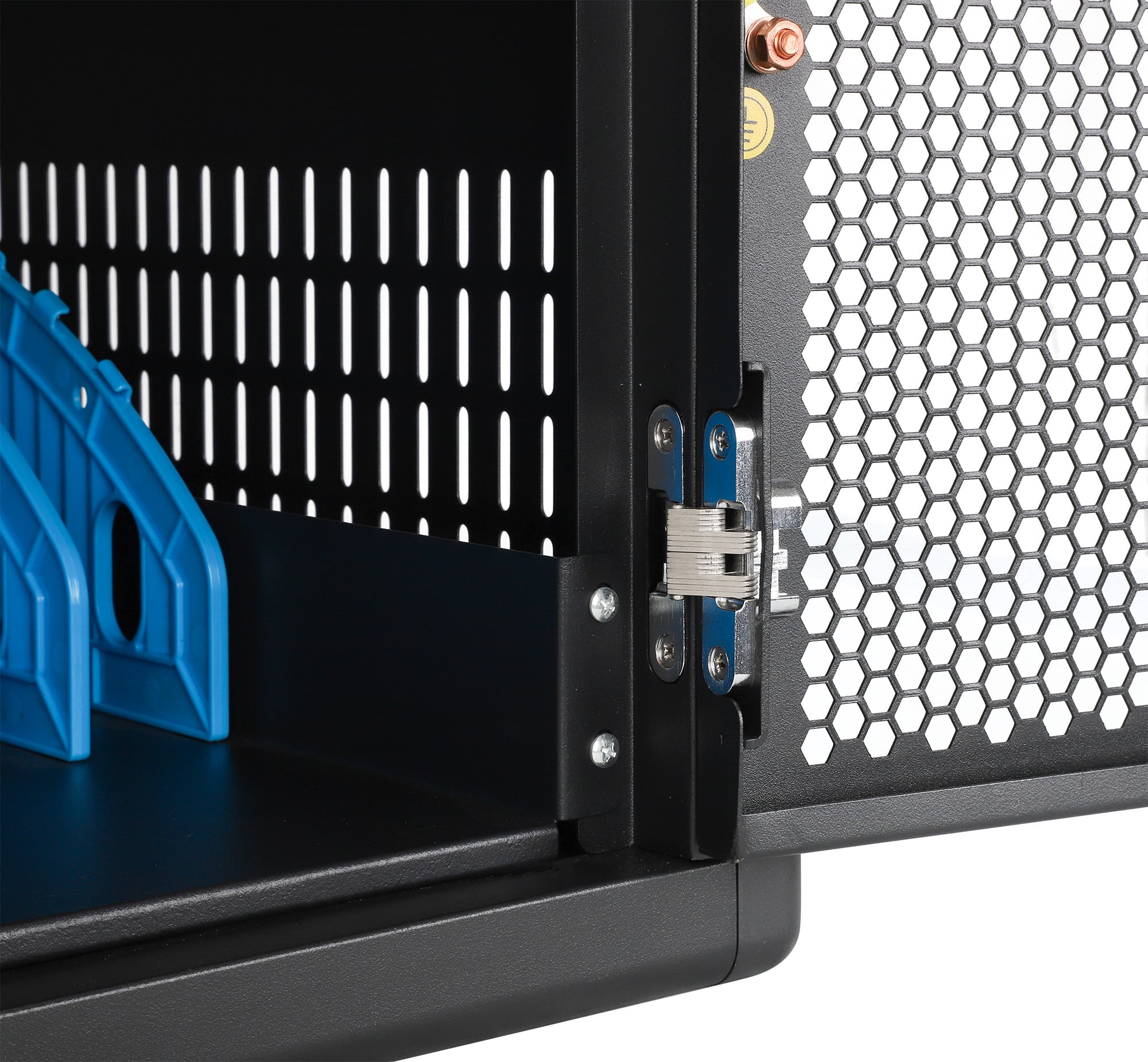

• Perforated steel front door with swing handle and three-point lock; key or four-digit combination locking system

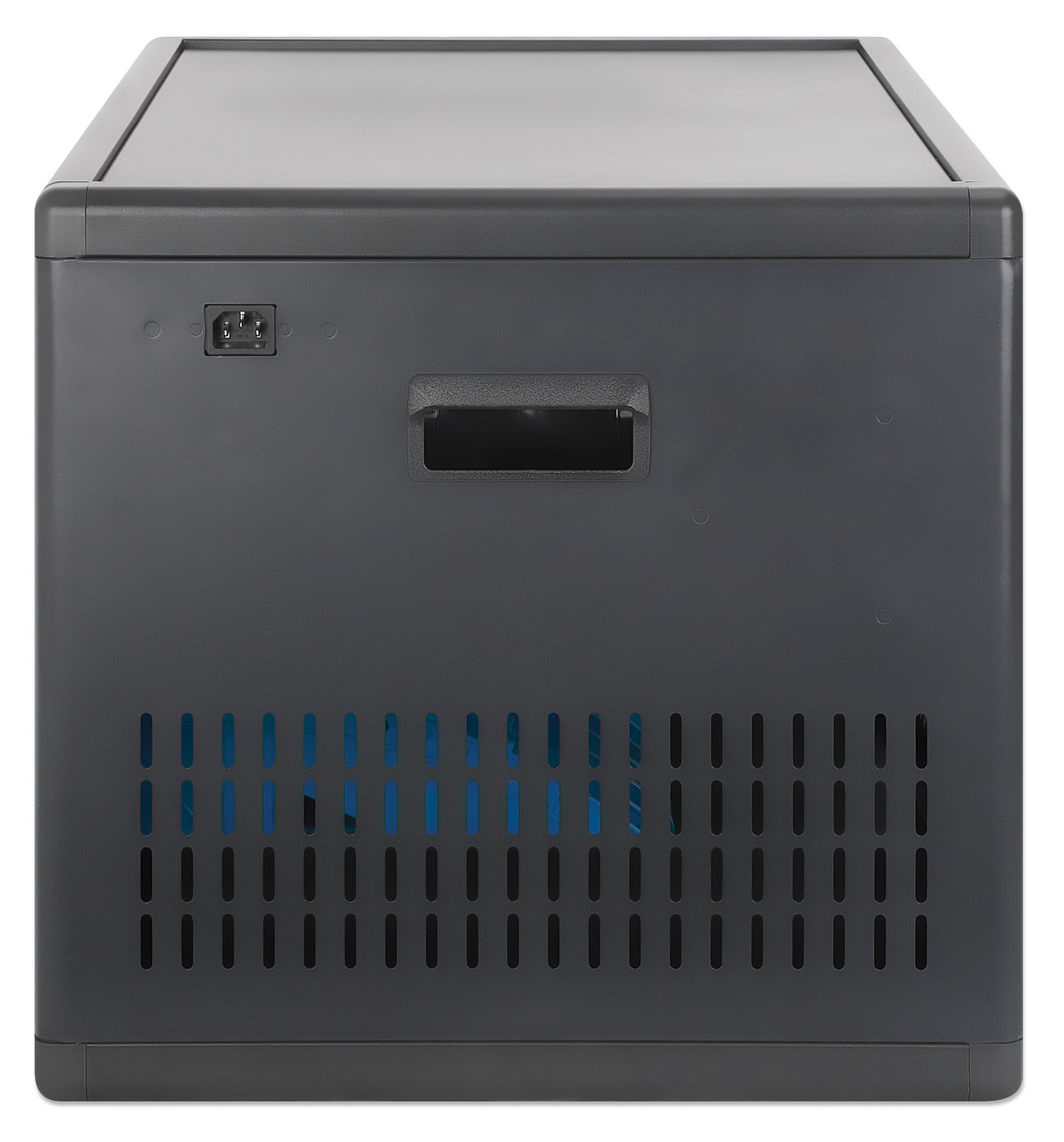

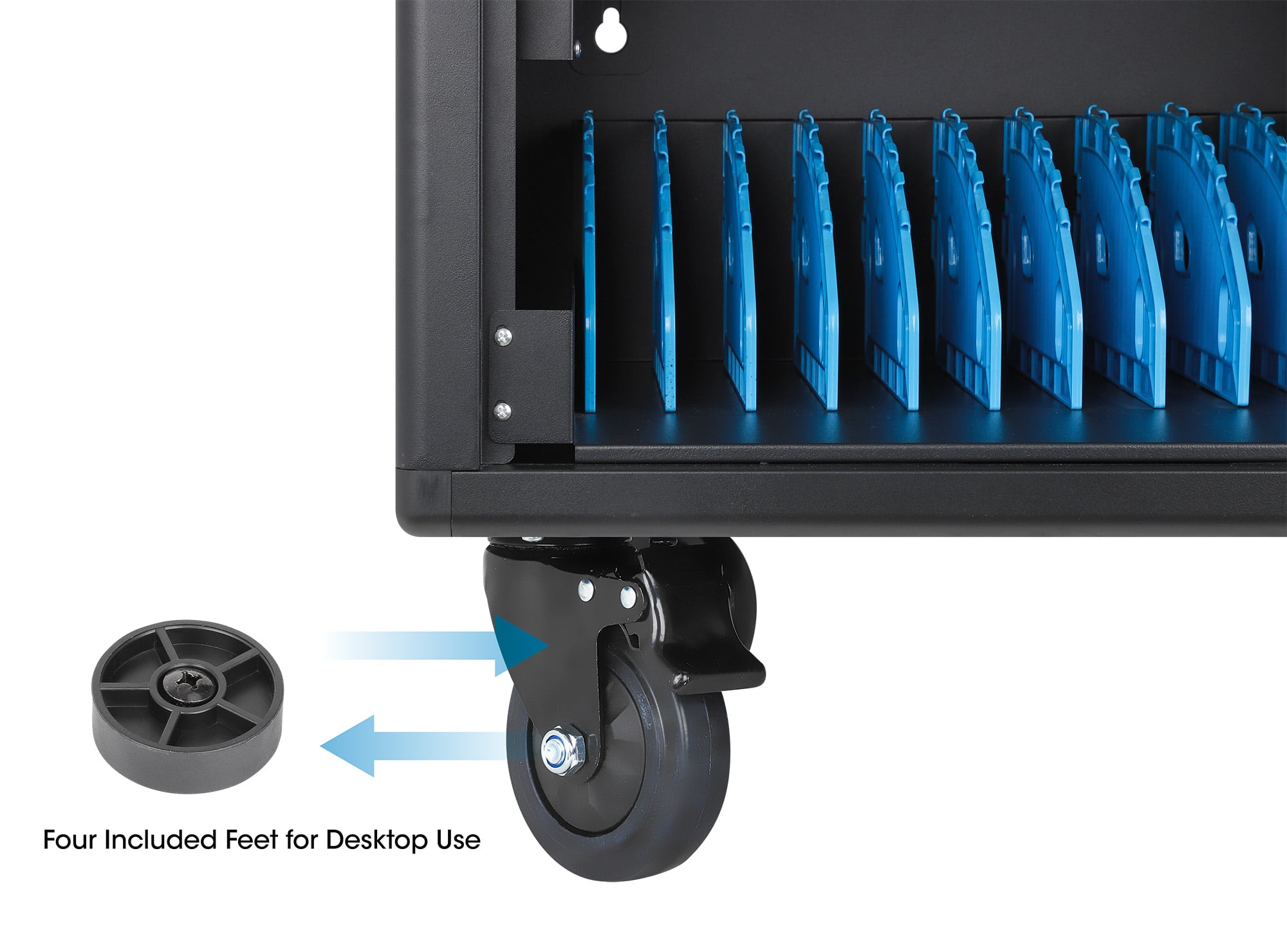

• Integrated handles for easy movement and option to install four heavy-duty wheels, two with brakes, for maximum mobility

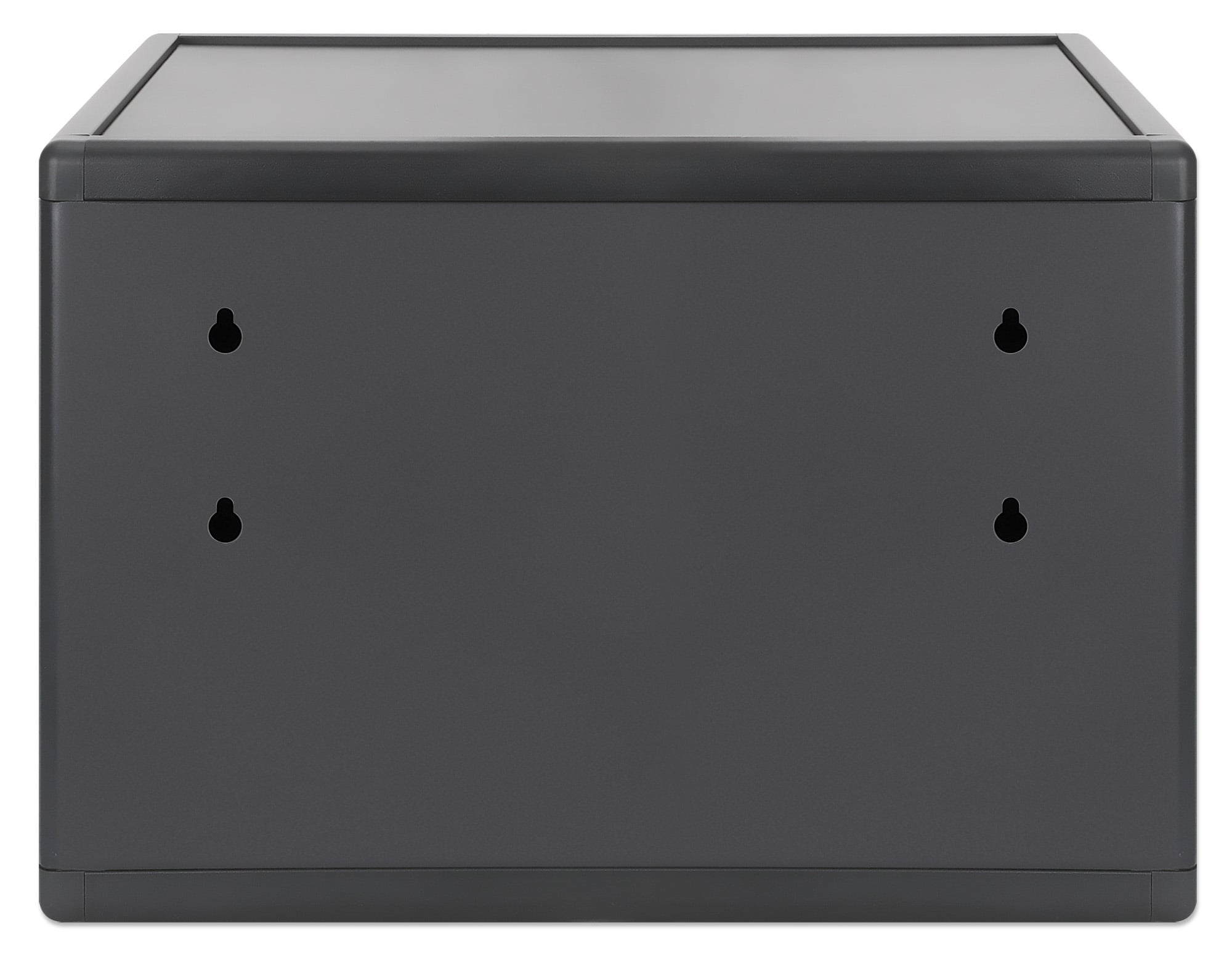

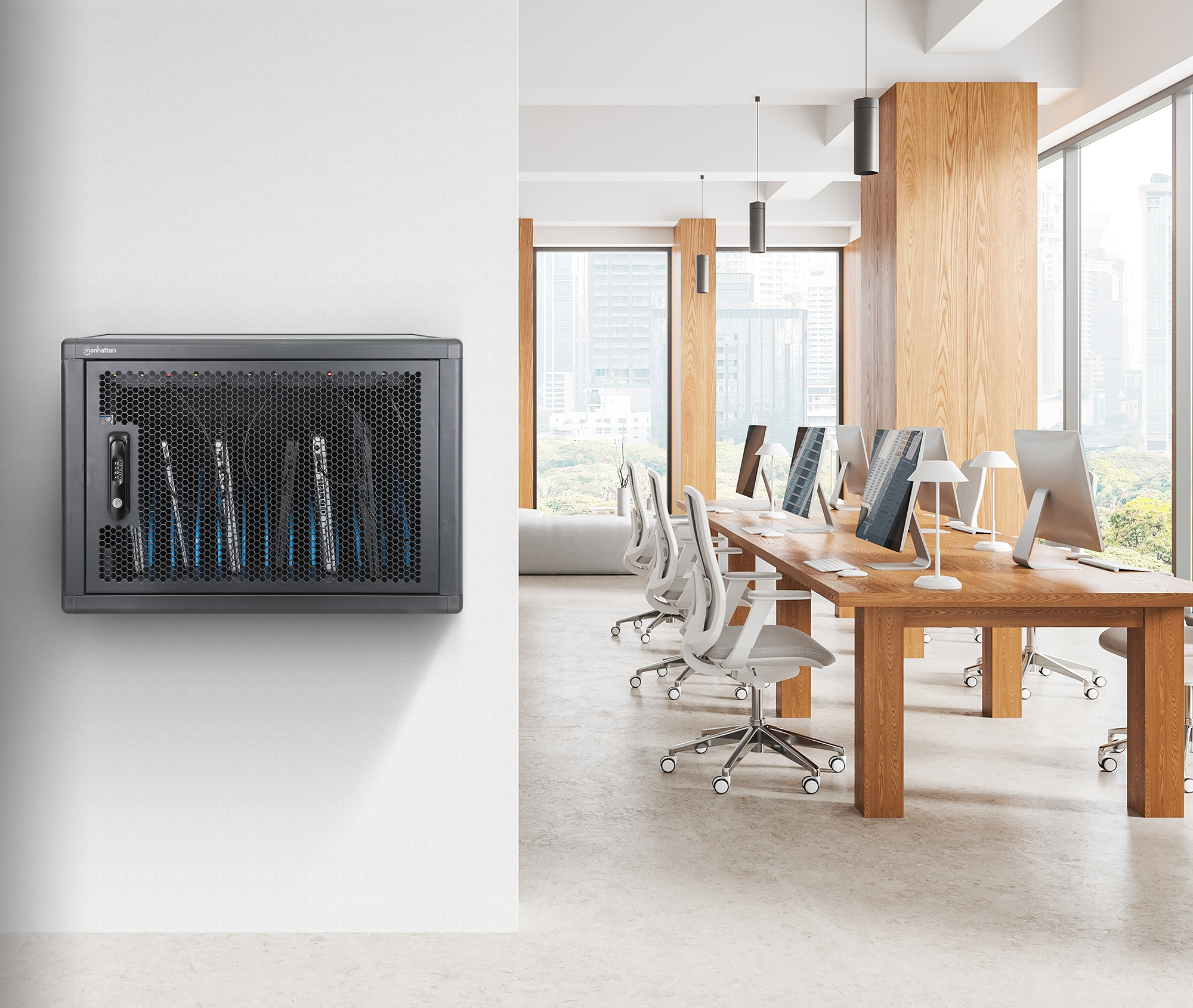

• Integrated wall-mounting holes on the rear for wall installation, saves space and helps prevent theft - mounting hardware included
• Rounded edges to prevent injuries in crowded environments
• Two power cables included with C13 plugs for EU and UK, 2 m
• Grounding kit included to protect equipment from external electrical surges
• For indoor use only
• Not stackable

Standards and Certifications

• CE
• RoHS
• REACH
• UKCA
• PD 3.0

Electrical Information

• AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
• Operating voltage: 230.0 V
• Maximum load: 780.0 W
• Integrated PSUs: 2 x 500.0 W
• Voltage/current/power settings
• - USB-C PD output (65.0 W max. per port):

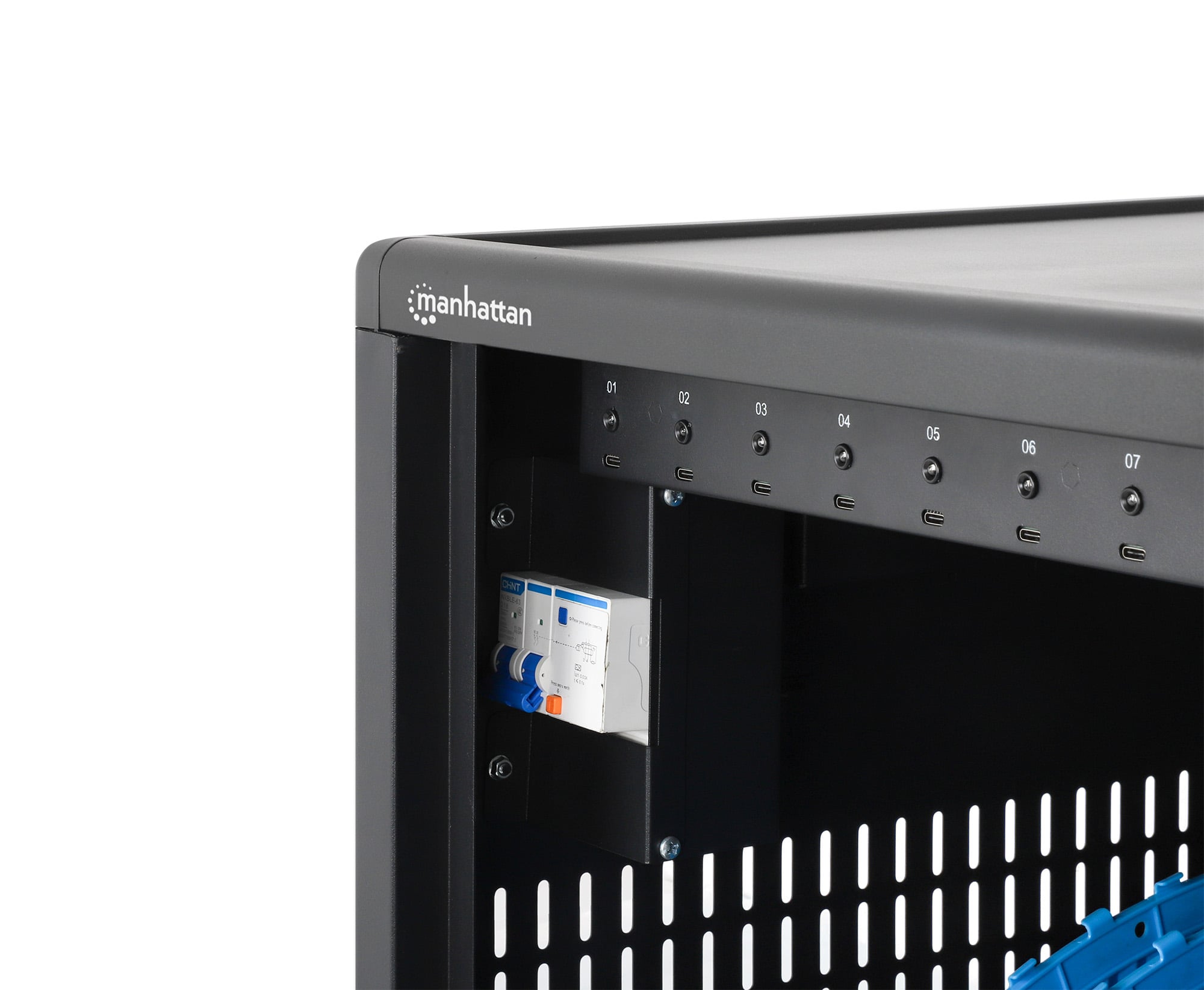

• Overload protection: 10.0 A maximum load current

Protection Features

• Short circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) - current limit: 150% (max)

Physical Information

• Materials: cold-rolled steel, powder-coated, flame-retardant ABS plastic and aluminum frame
• Perforated steel front door
• External unit dimensions (W x D x H): 440 x 600 x 410 mm
• External unit dimensions with wheels installed (W x D x H): 440 x 600 x 538 mm
• Dimensions of each internal compartment (W x D x H) (12): 32,5 x 395 x 290 mm
• Device size compatibility: suitable for most 16 laptops; please check your device dimensions before use
• AC power cable length: 2 m
• Cable type: H05VV-F 3G 1.5 mm²
• Net weight: 25 kg
• Gross weight: 28 kg
• Wheel details

Environmental Information

• Operating temperature: from 0 to 45°C
• Storage temperature: from -15 to 45°C
• Humidity (non-condensing): 20 - 80%

Package Contents

• 12-Port USB-C™ Desktop Charging Cabinet - 780 W
• Two AC power cables, 2 m, C13 to EU and UK plug
• Two door keys
• 12 charging cables, USB-C™ male to USB-C™ male, 0.7 m
• 4 wheels (2 with brakes)
• Wall installation hardware
• 4 feet for desktop installation
• Grounding cable
• Documentation
