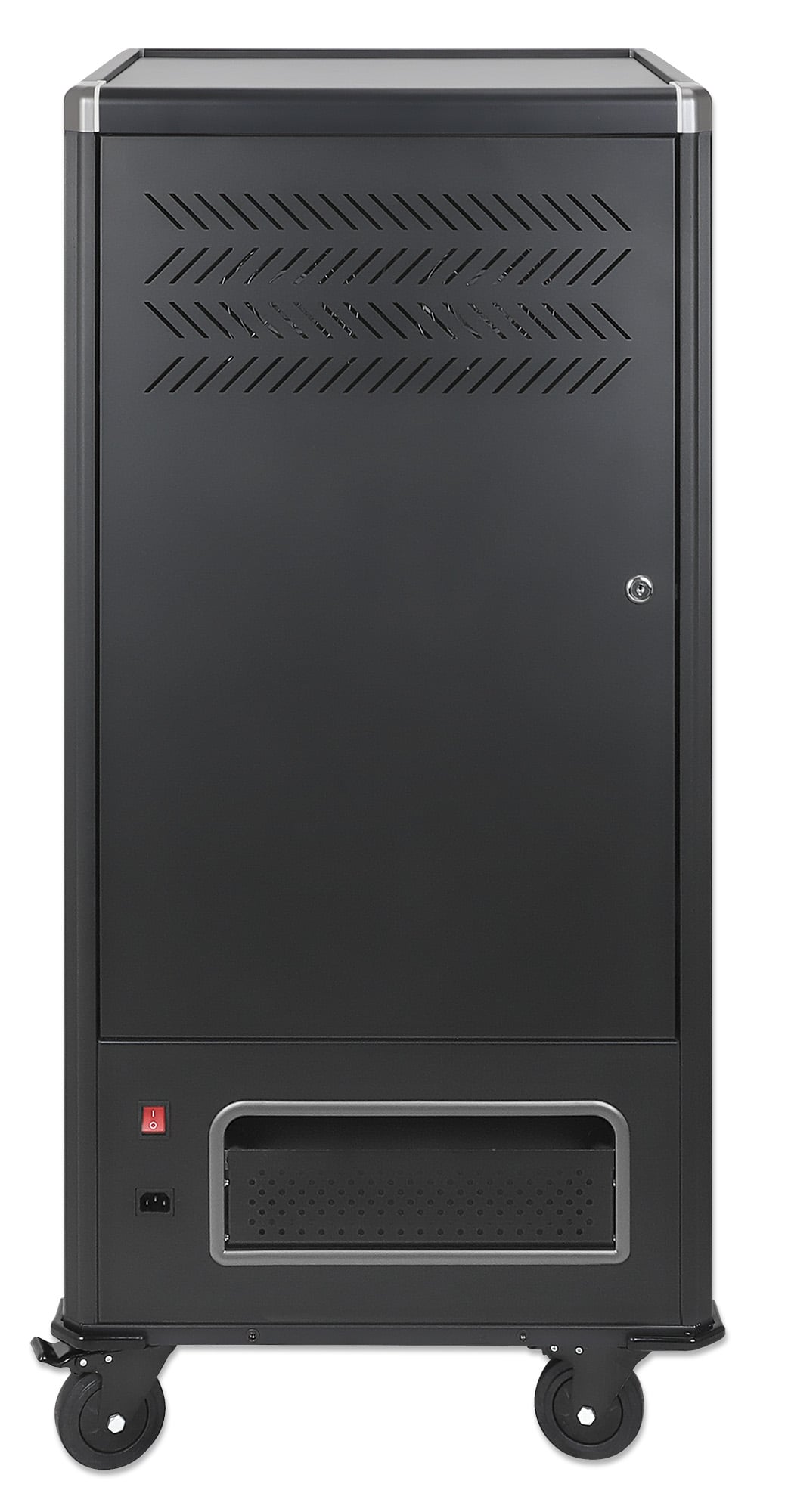

USB-C Charging Cart 30 Ports - 1920 W - Manhattan I-CABINET-30C65

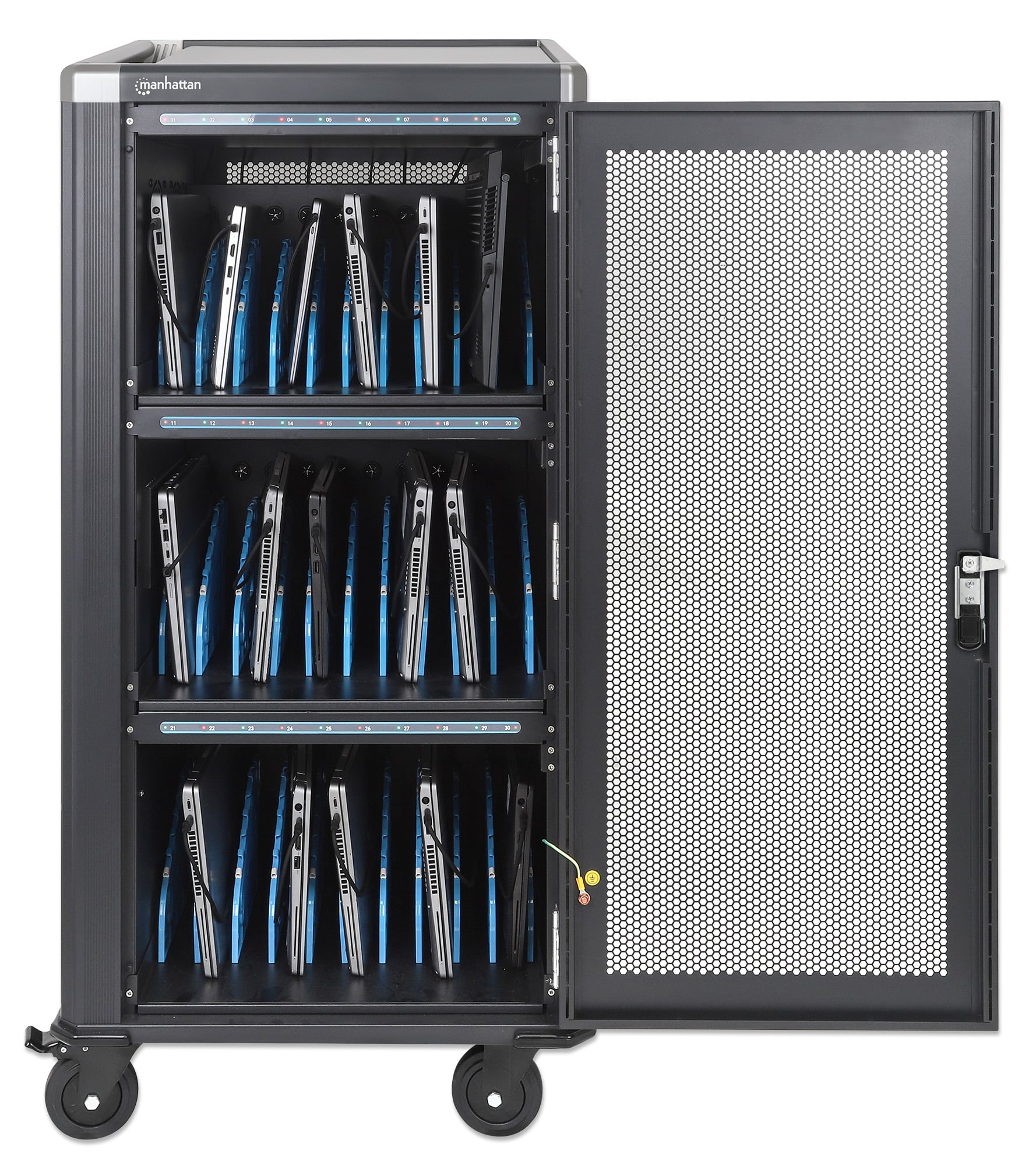

• Safely store and charge laptops, tablets, iPad®, MacBook®, Chromebooks, phones and other devices up to 16
• USB-C™ Power Delivery ports for fast charging with up to 65 W per port; no AC adapter or wall charger required
• Protection against overload, overcurrent, short circuit and voltage spikes

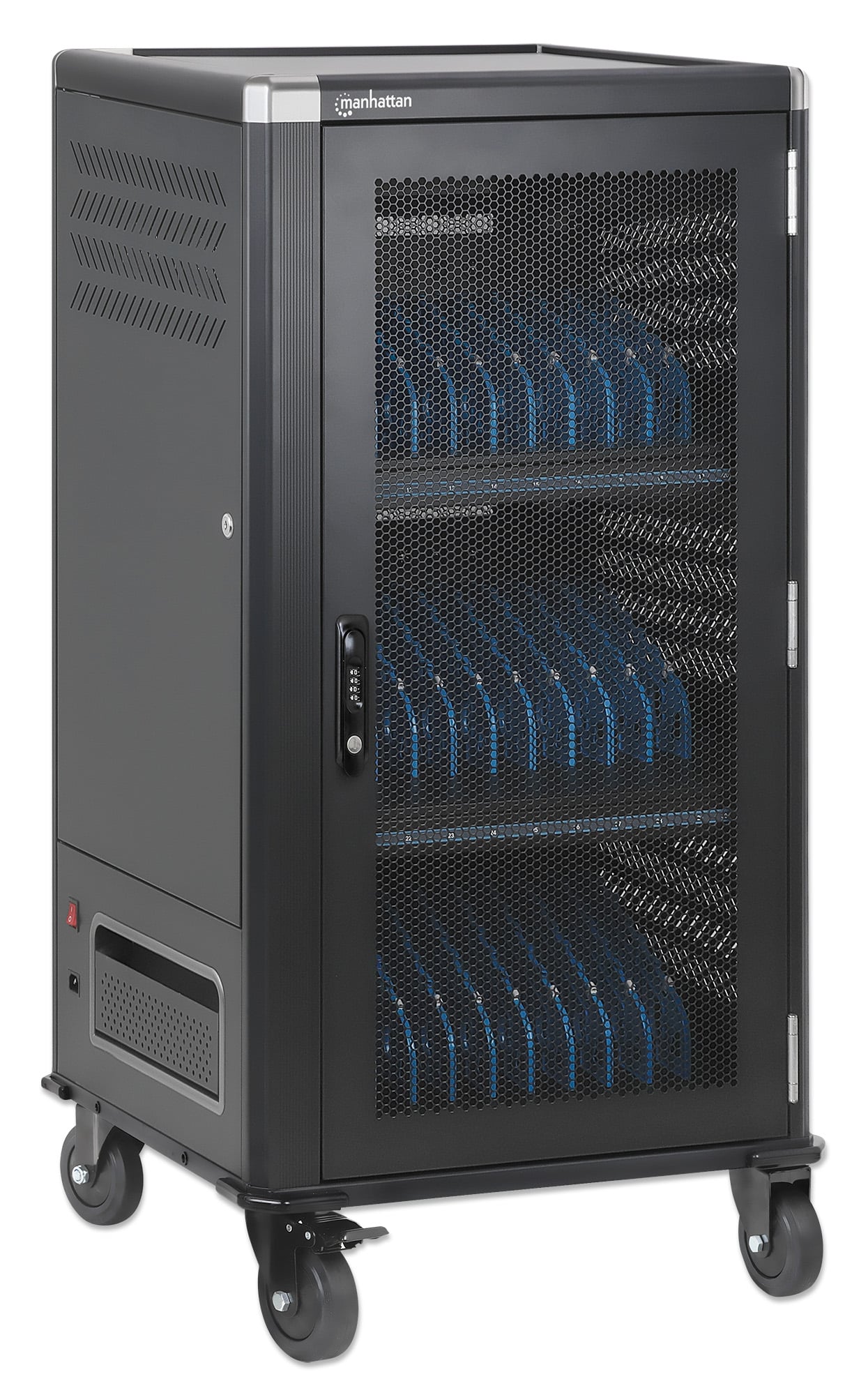

• Robust and secure verniciato a polvere metal structure with front and rear perforated steel doors
• Three-point lock with lever handle on front and rear; lock with keys or four-digit combination

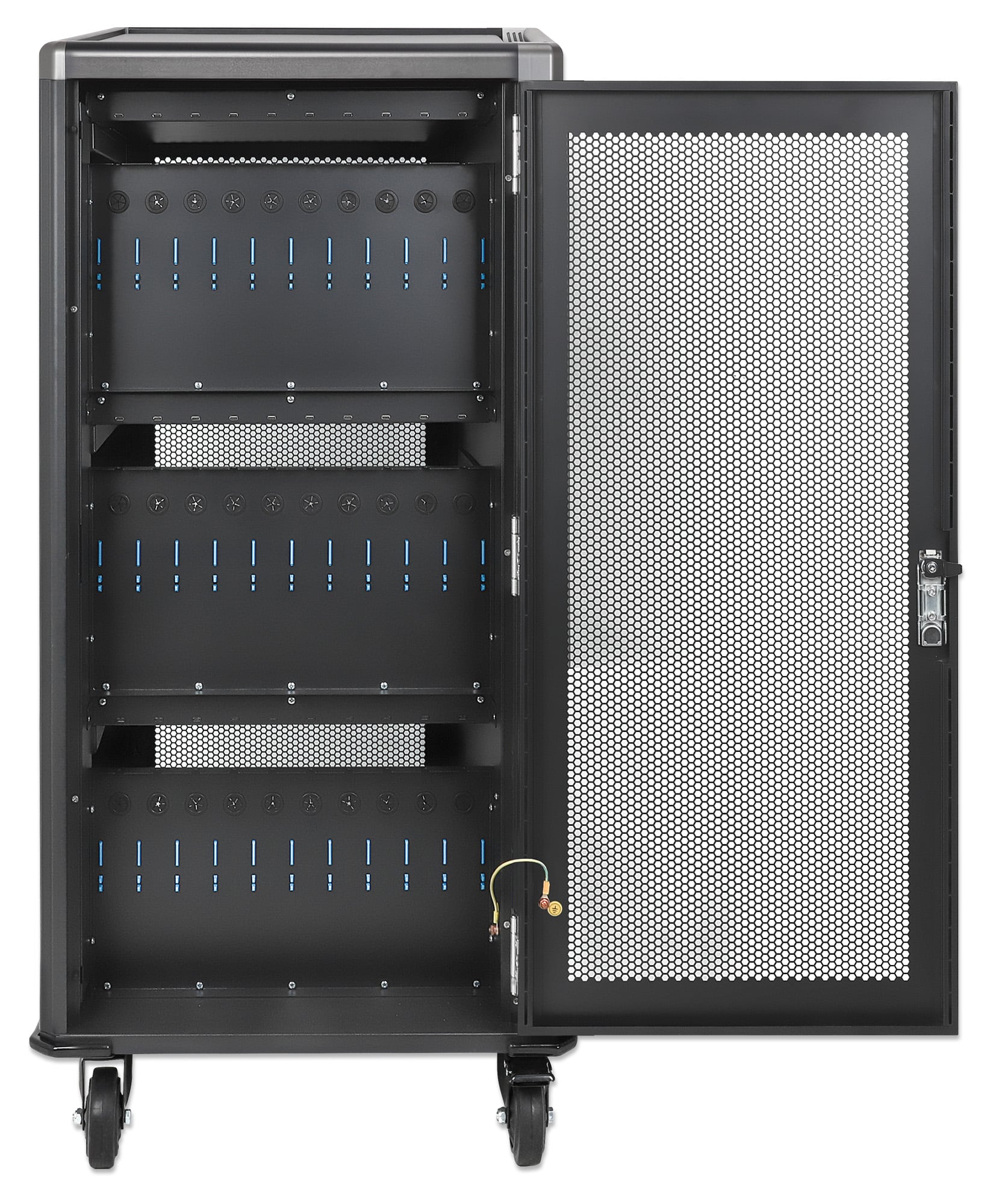

• 30 spacious device slots, 400 (P) x 34 (L) x 275 (A) mm each, with integrated cable management in the dividers
• 30 USB-C™ to USB-C™ charging cables included
• Status LEDs indicate charging progress, red indicates charging and green indicates fully charged
• Plastic pads on each shelf to prevent slipping and protect devices from scratches

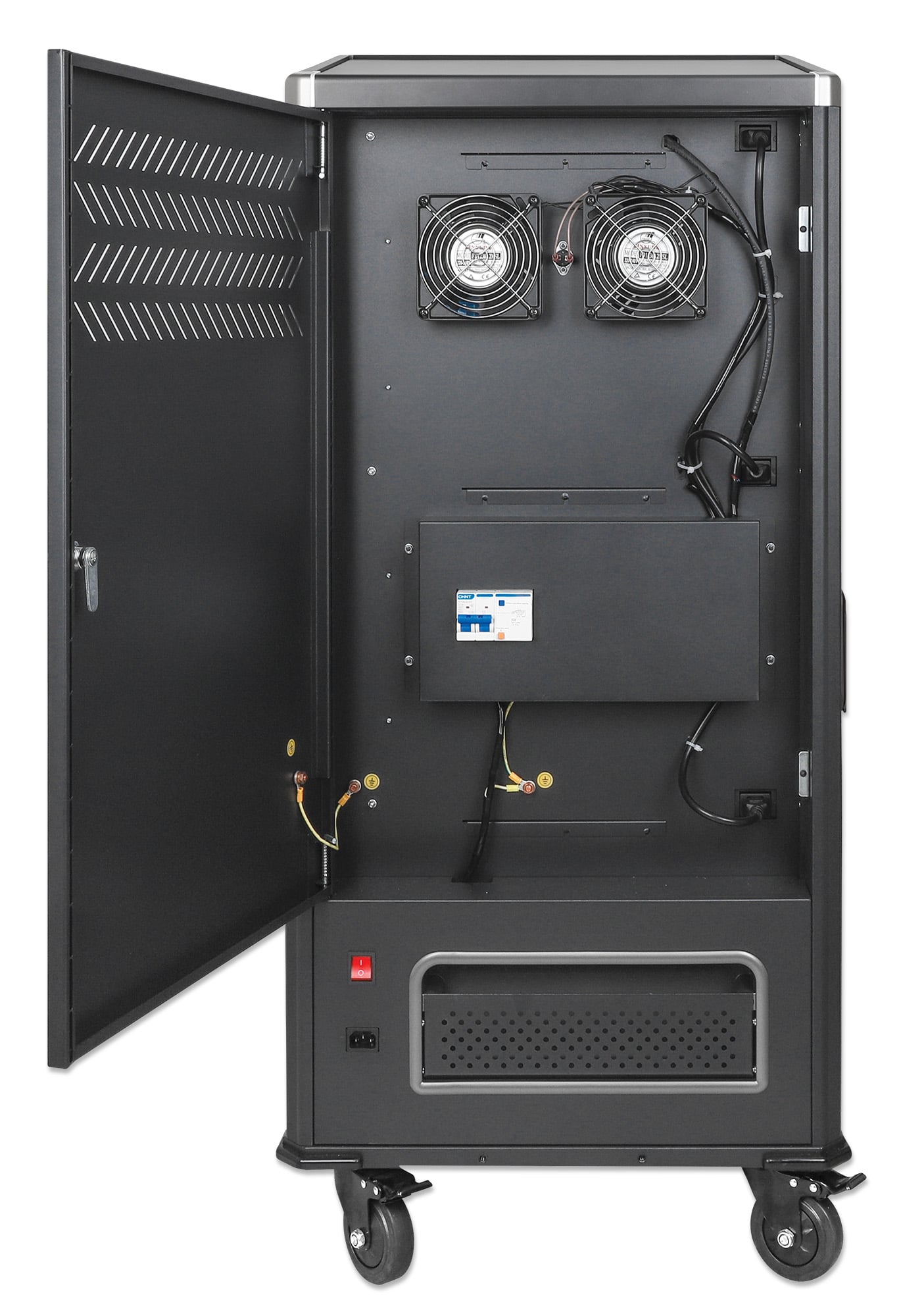

• Side door with key lock for access to the power management system, fans and fuse switch
• di alta qualità aluminum structure for a lighter, more robust, corrosion-resistant, and thermally efficient construction
• Integrated fans and ventilation openings to maximize airflow and cooling efficiency

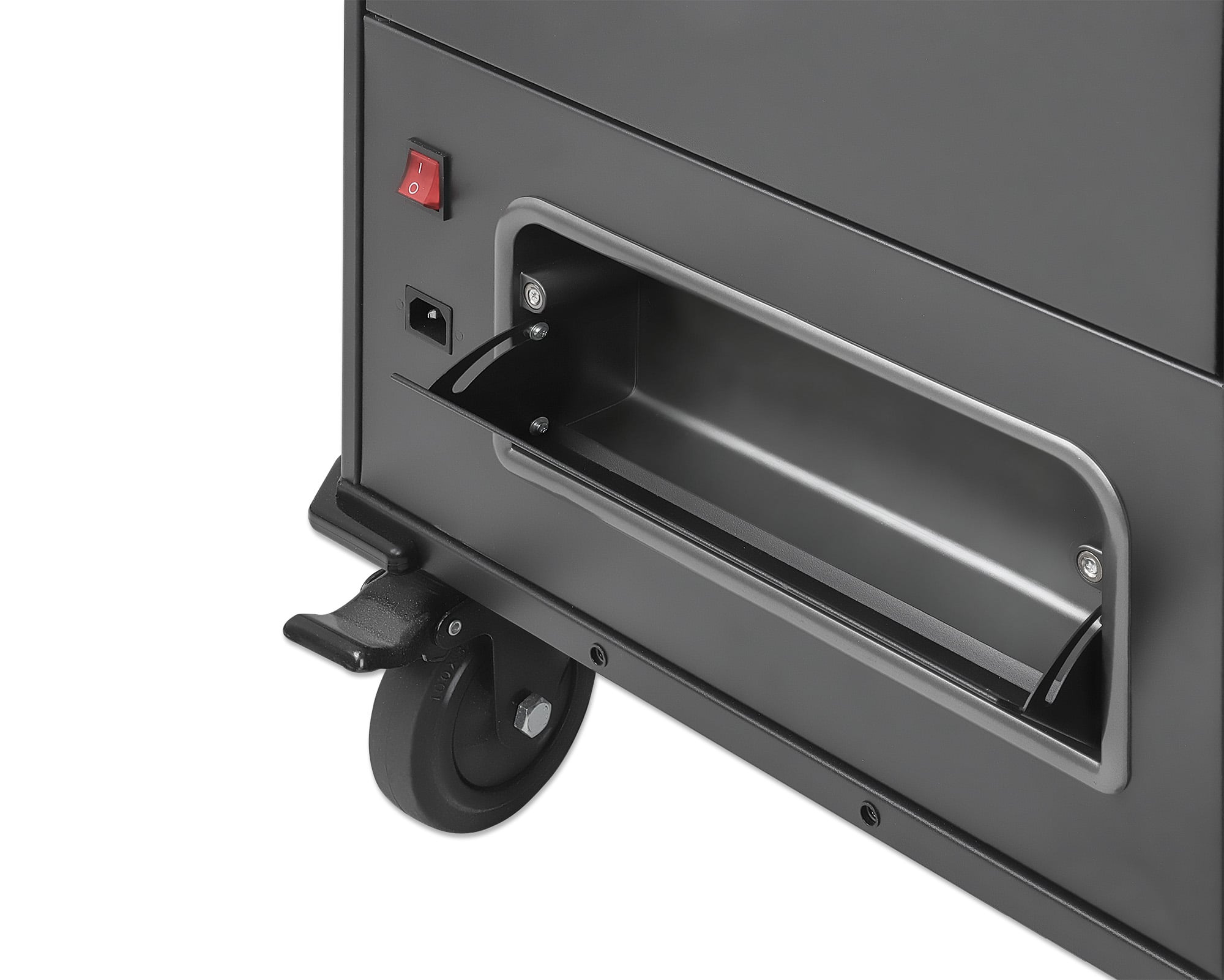

• Integrated handle and four sturdy wheels, two with brakes
• Two-pole on/off switch
• Rounded edges to prevent injuries in crowded environments
• Two power cables included with C13 plugs for EU and UK, 2 m
• Grounding kit included to protect equipment from external electrical surges
• Indoor use only

Standards and Certifications

• CE
• RoHS
• REACH
• UKCA
• PD 3.0

Electrical information

• AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
• Operating voltage: 230.0 V
• Integrated PSUs: 6 x 320.0 W
• carico massimo: 1.920,0 W up to 65 W per port
• Voltage/current/power settings
• - USB-C PD output (65.0 W max. per port):
• - 5.0 V / 3.5 A / 17.5 W
• - 9.0 V / 3.5 A / 31.5 W
• - 12.0 V / 3.5 A / 42.0 W
• - 15.0 V / 3.5 A / 52.5 W
• - 20.0 V / 3.25 A / 65.0 W
• Overload protection: 10.0 A carico massimo current

Fan Specifications

• Two fans
• Airflow: 102 m³/h (60 cfm) per fan
• Noise level: 38 to 40 db (A)
• Rated power: 8.0 W
• Rated speed: 1900 rpm +/-5%
• Static pressure: 5.4 mmH2O
• Unit weight: 450 g
• Rotation: counterclockwise
• MTBF (at 25°C): 30.000 hours
• Temperature range: -20 to 80°C
• Operating voltage: 220.0 - 240.0 V, 50 - 60 Hz, 0.06 A
• Operating humidity: 20 - 80%

Protection Features

• Short-circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) - current limit: 150% (max)

Physical information

• Materials: cold-rolled steel, powder coated, flame retardant ABS plastic and aluminum frame
• Front and rear perforated steel doors
• External dimensions of the unit including wheels (D x W x H): 555 x 575 x 1150 mm
• External dimensions of the unit excluding wheels (D x W x H): 555 x 575 x 1022 mm
• Internal device compartment dimensions (Depth x Width x Height) (30): 400 x 34 x 275 mm
• Device size compatibility: suitable for most laptops from 16; please check your device dimensions before use
• AC power cable length: 2 m
• Cable type: H05VV-F 3G 1.5 mm²
• Four heavy-duty removable wheels, two with brakes
• Net weight: 78 kg
• Gross weight: 87 kg

Wheel details

• - Wheel materials: TPR
• - Wheel diameter: 100 mm
• - Wheel width: 26 mm
• - Wheel height: 128 mm
• - Plate dimensions: 92.5 x 62.5 mm
• - Hole spacing: 75 x 45 mm
• - Support thickness: up to 3 mm
• - Load capacity: 100 kg

Environmental information

• Operating temperature: from 0 to 45°C
• Storage temperature: from -15 to 45°C
• Humidity (non-condensing): 20 to 80%

Package Contents

• USB-C™ Charging Cart 30 Ports - 1920 W
• Two AC power cables, 2 m, C13 with EU and UK plugs
• Six keys for the door (two keys each for the front, rear, and side door)
• 30 charging cables, USB-C™ male to USB-C™ male, 0.7 m
• 4 wheels (two with brake)
• Grounding cable
• Documentation
