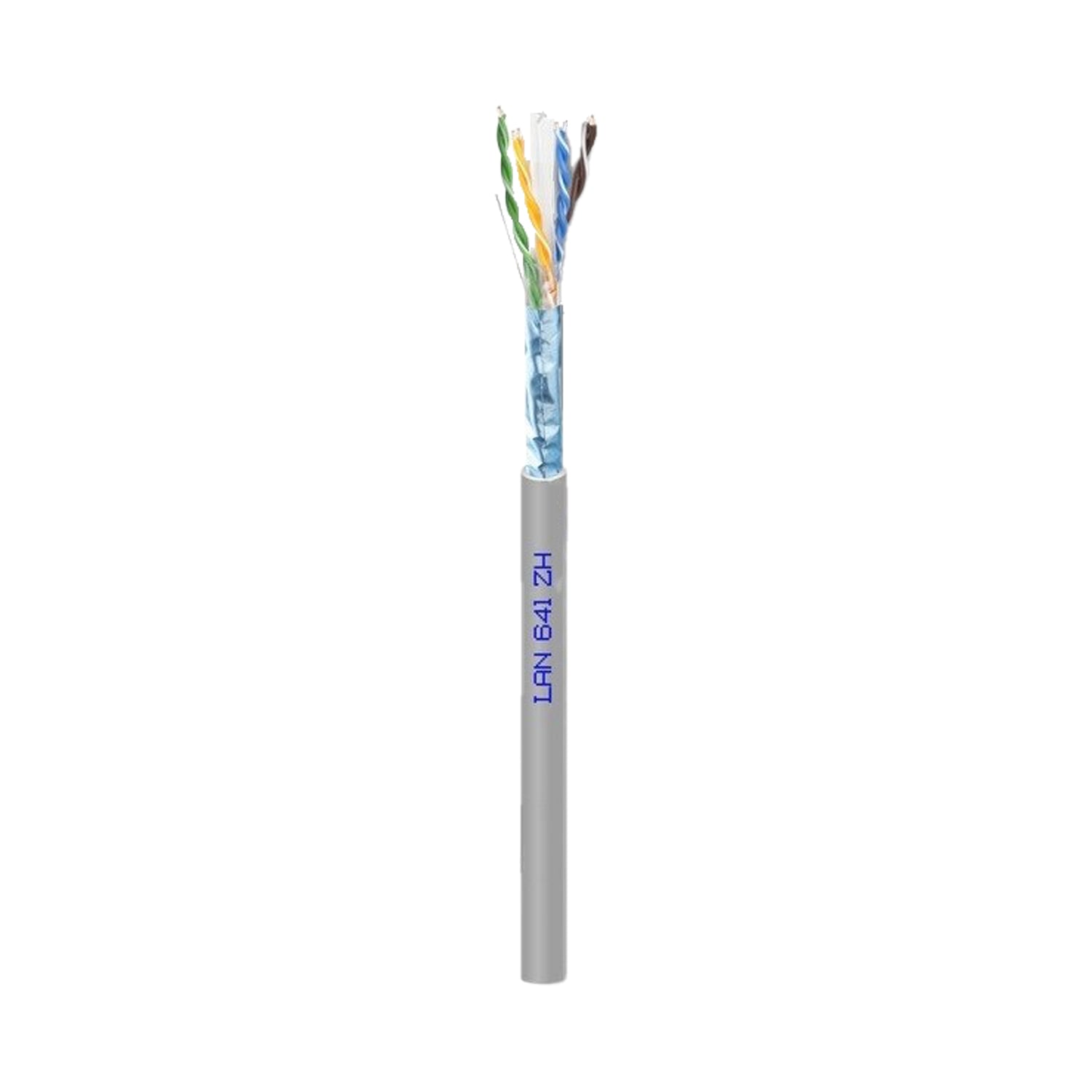

Cable Cat 6 Hard F/UTP LSZH in Matassa 200 m Grey - Cavel ITP 6 F- 200 LZ

•

• CAT LAN cable. 6 F/UTP for indoor and outdoor installation

• Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal

• 4 rigid cable braided pairs with red copper conductor (4 x 2 xAWG 23); LSZH outer sheath

• Standards: ISO/IEC 11801 Class E; EN 50288 - 5 - 1 ; EN 50173 ; EIA-TIA 568; CEI-UNEL 36762 C- 4 (U 0 = 400 V); CPR class: Eca

• Reaction to fire: EN 50575


Applications

•

• Primary (Campus), Secondary (Riser), Tertiary (Horizontal)

• IPTV; HbbTV 2.0 .n

• IEEE 802.3: 10 Base-T; 100 Base-T; 1000 Base-T;

• IEEE 802.5 16 MB: ISDN; TPDDI; ATM; PoE

• Inner and Outdoor Laying


Features

•

• AWG 23 / 1 hard cable

• impedance: 100 Ohm ± 5

• Installation temperature: 0 + 50 °C

• Operating temperature: - 20 + 80 °C

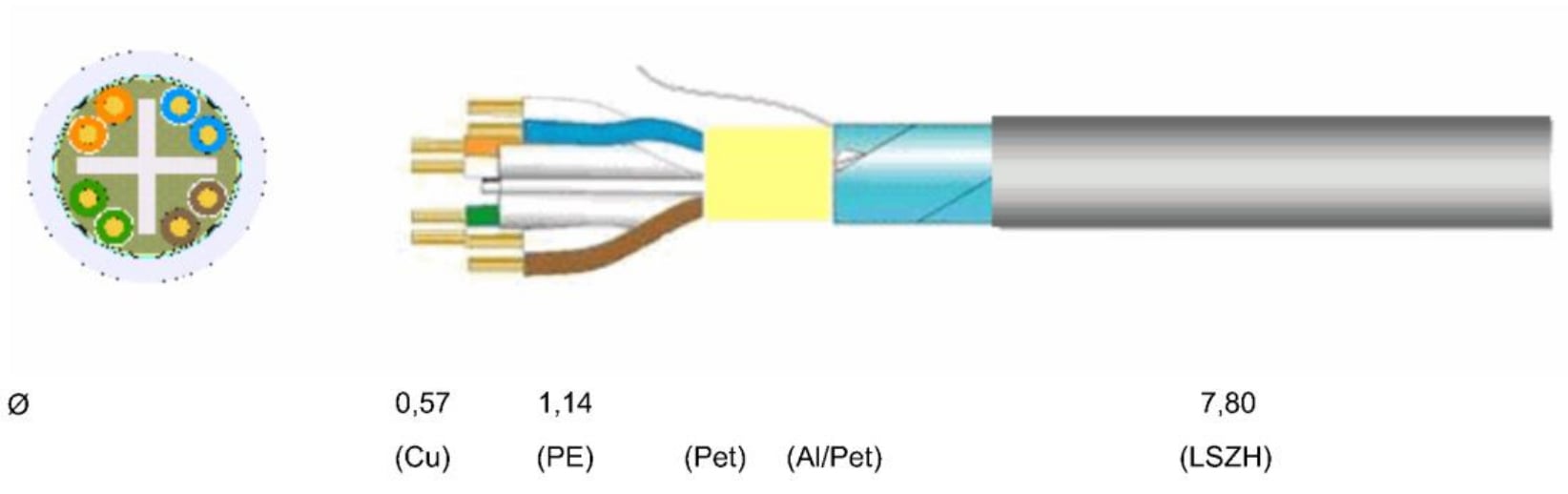

• 4 pairs with red copper conductor, diameter 0,57 mm

• Solid polyethylene (PE), diameter 1,14 mm

• Cross separator in plastic material

• Aluminum/Polyester outer tape (Al/Pet)

• LSZH grey outer sheath, diameter 7,8 mm

• With metric scale

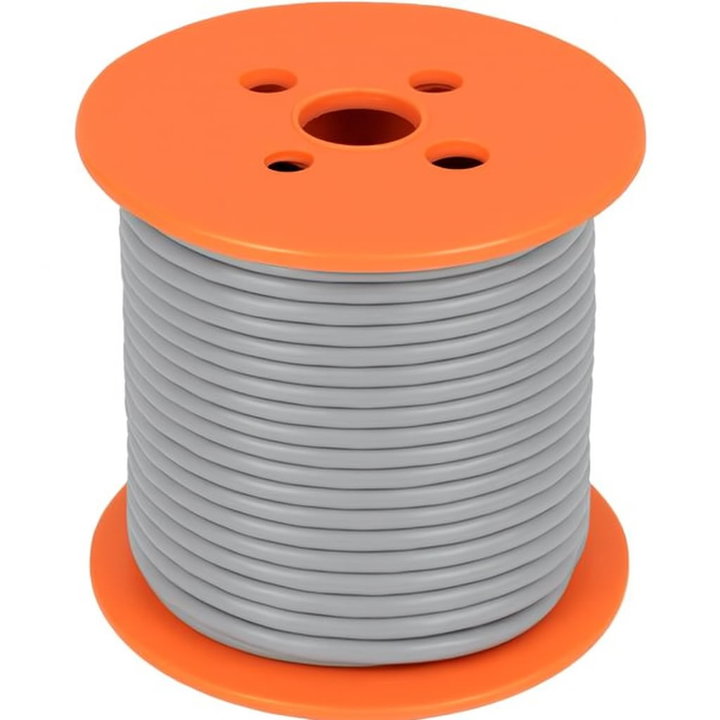

• Length: 200 m

• Color: grey (RAL 7001)


Certifications

•

• CE

• RoHS
