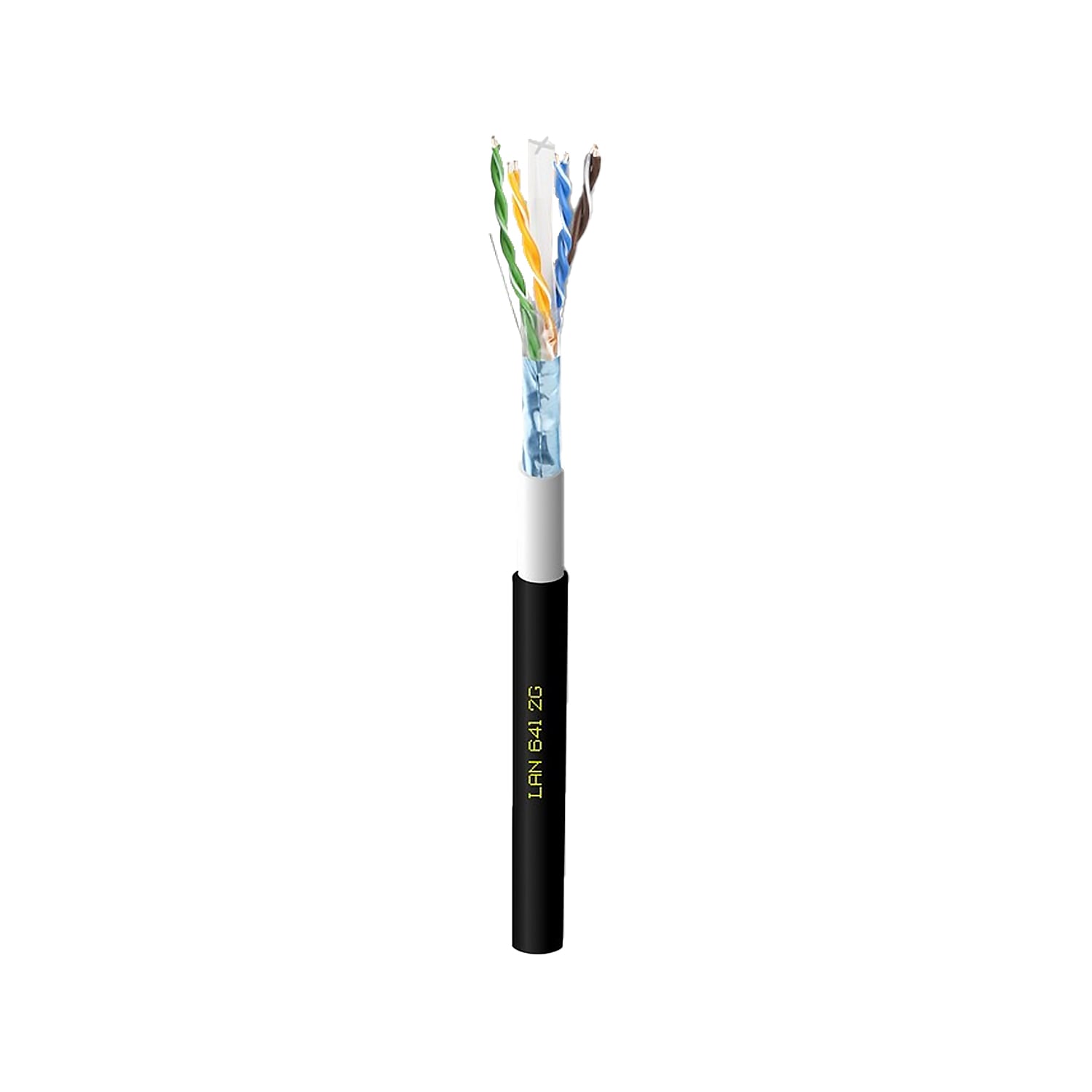

Cable Cat 6 Hard F/UTP Double PVC+PE sheath in Matassa 500 m Black - Cavel ITP 6 F- 500 - 2 G

•

• CAT LAN cable. 6 F/UTP for outdoor and underground installation

• Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal

• 4 rigid cable braided pairs with red copper conductor (4 x 2 xAWG 23)

• Standards: EIA-TIA 568 ; CEI-UNEL 36762 C- 4 (U 0 = 400 V); CPR class: Fca

• Reaction to fire: EN 50575


Applications

•

• Primary (Campus), Secondary (Riser), Tertiary (Horizontal)

• IPTV; HbbTV 2.0 .n

• IEEE 802.3: 10 Base-T; 100 Base-T; 1000 Base-T

• IEEE 802.5: ISDN; TPDDI; ATM; CATV; Broadband Video; PoE/PoE+

• Outdoor and underground laying


Features

•

• AWG 23 / 1 hard cable

• impedance: 100 Ohm ± 5

• Installation temperature: 0 + 50 °C

• Operating temperature: - 20 + 70 °C

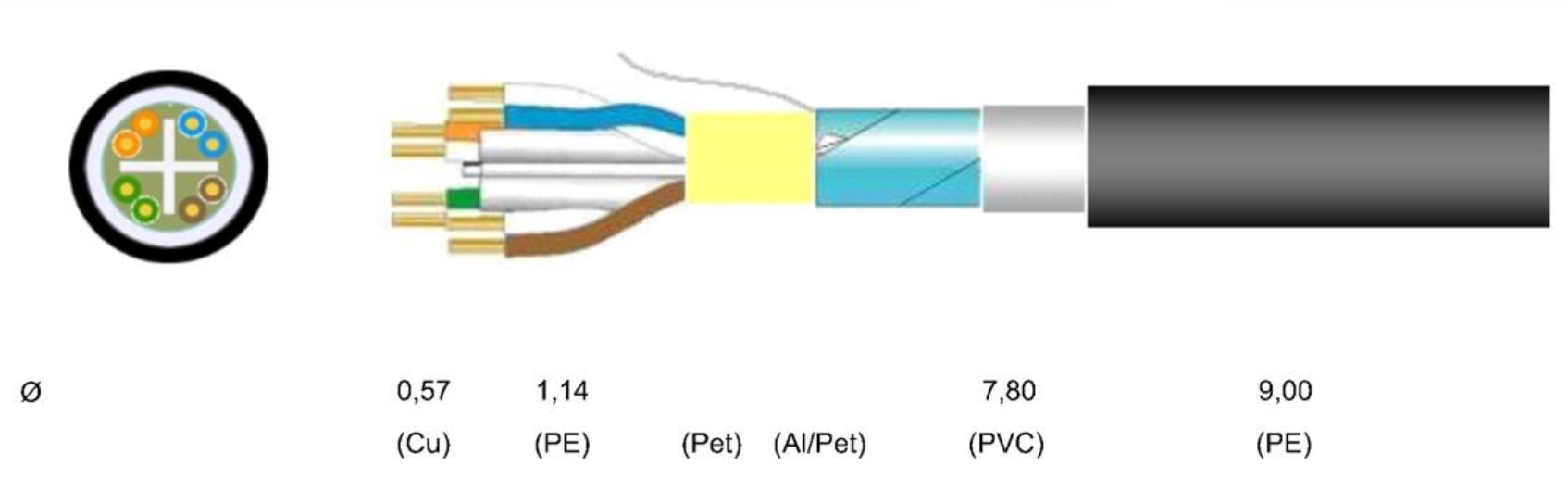

• 4 pairs with red copper conductor, diameter 0,57 mm

• Cross separator in plastic material

• Solid polyethylene insulation (PE) diameter 1,14 mm

• Aluminium/polyester outer tape (Al/Pet)

• White inner sheath made of polyvinyl chloride (PVC), diameter 7,80 mm

• Outer polyethylene sheath (PE), diameter 9 mm

• With metric scale

• Length: 500 m

• Color: black (RAL 9011)


Certifications

•

• CE

• RoHS
