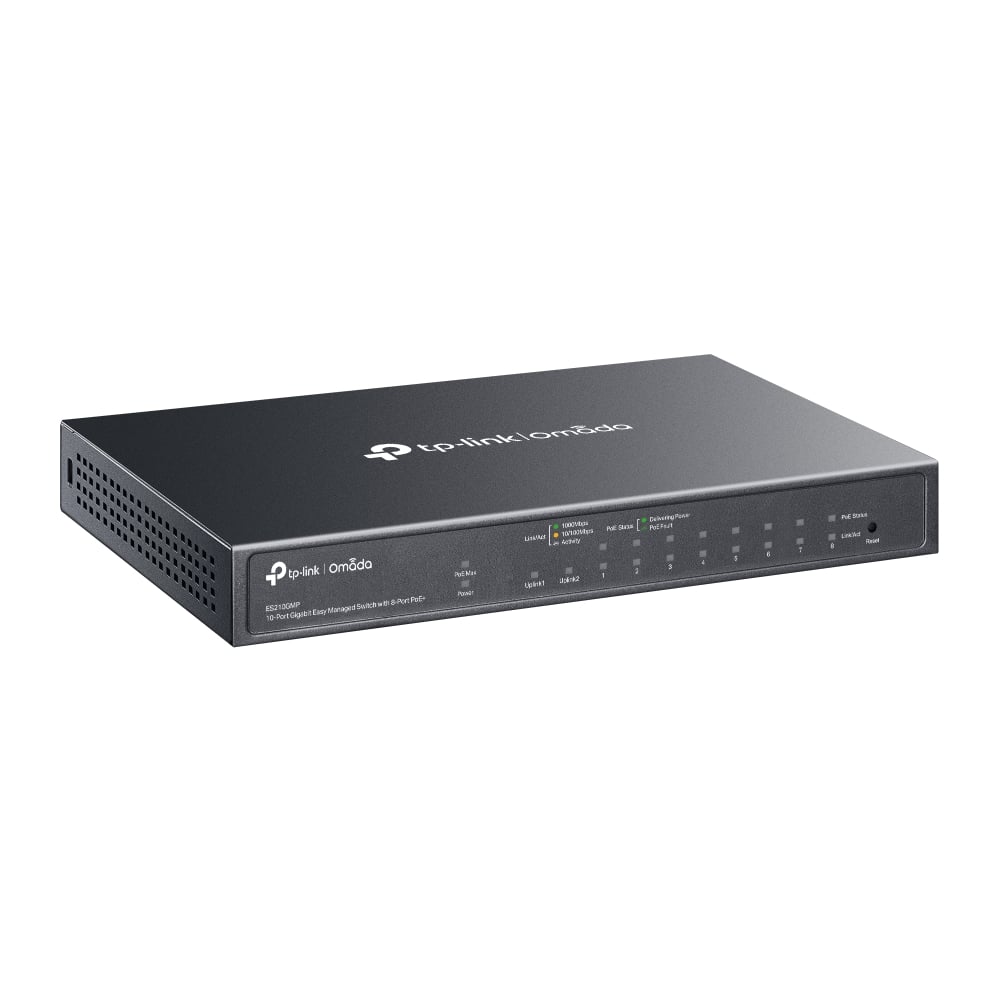

Switch 10 Gigabit Easy Managed Doors with 8 PoE+ Doors, 1 SFP, 123 W, ES 210 GMP - Omada ICTP-ES 210 GMP

•

• 8 × ports RJ 45 Gigabit PoE+ 802.3 at/af-compliant

• 1 × Gigabit RJ 45 port

• 1 × combo port Gigabit RJ 45 and SFP

• Power Budget 123 W, with up to 30 W for each PoE port

• Centralized cloud management via web or Omada app

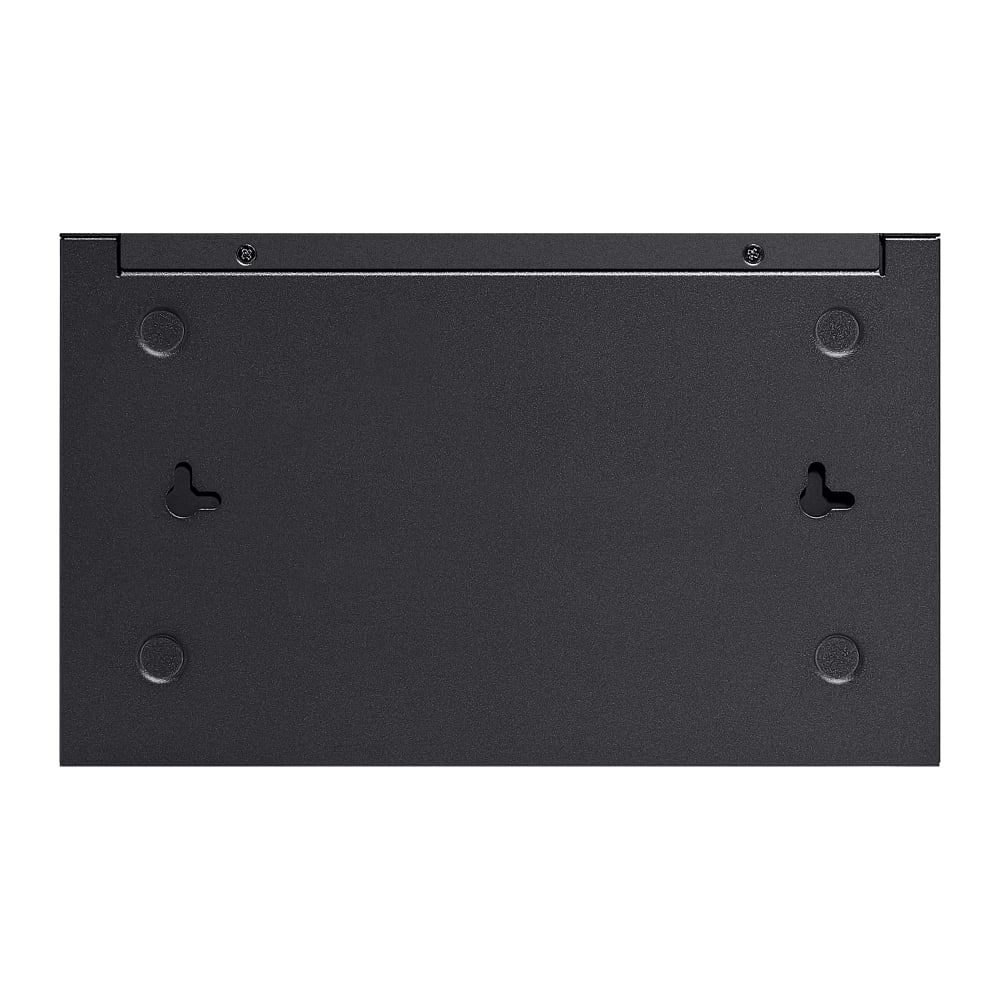

• Desktop or wall mountable


Technical specifications

•

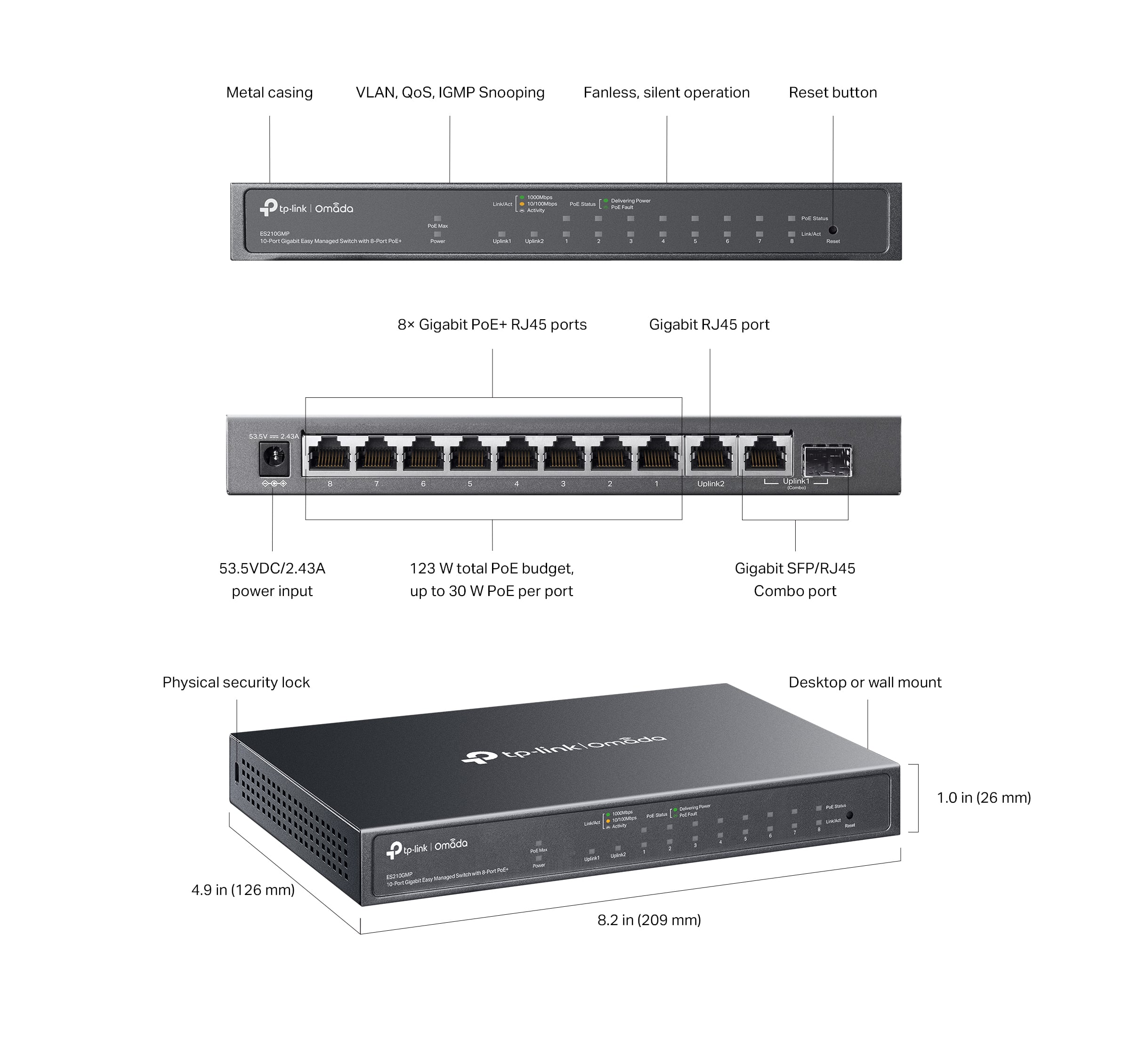

• Interfaces: 8 doors 10 / 100 / 1000 Mbps PoE+ RJ 45 ; 1 door 10 / 100 / 1000 Mbps RJ 45 ; 1 door Gigabit SFP/RJ 45 Combo

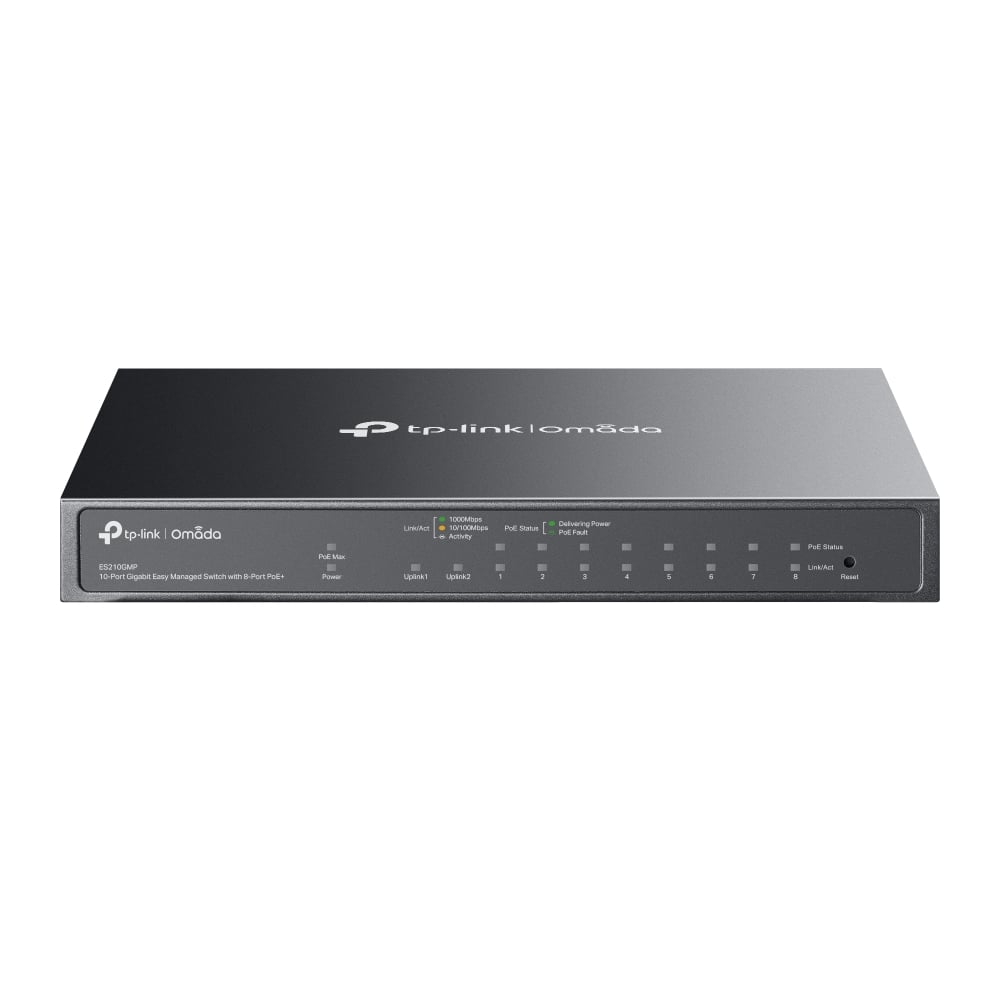

• LED: Power supply; Speed/Link/ACT for each port; safety lock

• Flash Memory: 64 Mbit

• Capacità switching 20 Gbps

• Velocità packet forwarding 14.88 Mpps

• MAC Address Table: 8 K

• Mbit 4 Package Buffers

• Transmission method: storage and forwarding

• Frame jumbo 15 KB

• Overvoltage protection: ± 6 kV in modalità common for Ethernet ports

• ESD protection: air: ± 8 kV, contact: ± 4 kV


PoE

•

• Standard PoE 802.3 af/at

• PoE doors: 8 , up to 30 W per door

• PoE Power Budget: 123 W


Feeding

•

• Power input: 53.5 V DC / 2.43 A


Switching

•

• IEEE 802.3 i: 10 BASE-T Ethernet

• IEEE 802.3 u: 100 BASE-X Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (Optic Fiber)

• IEEE 802.3 x: Flow control

• IEEE 802.1 p: Traffic Class Expediting and Dynamic Multicast Filtering

• IEEE 802.1 q: Virtual Bridged Local Area Networks


SDN Support

•

• Support Hardware Controller, Software Controller/Cloud-Based Controller

• Automatic Device Discovery

• Batch configuration

• Batch Firmware Upgrading

• Unified Configuration


Specifications L 2

•

• Link aggregation; Static Link aggregation; Up to 4 aggregation groups and up to 6 door per group

• Loopback Detection

• Flow Control; 802.3 x Flow Control

• Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both

• Port Statistics; Port Mirror Status; Traffic Statistics

• 802.1 ab LLDP

• IGMP Snooping

• IGMP v 1 /v 2 /v 3 Snooping

• Fast Leave


VLAN

•

• MTU VLAN

• Port-Based VLAN

• 802.1 Q Tags VLAN

• Max 32 VLAN Groups

• 4 K VID


QoS

•

• 802.1 p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode; WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control; Port-Based Rating Limit

• Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unicast Control


Management

•

• Web-based GUI

• DHCP Client

• Cable Diagnostics


Environmental Characteristics

•

• Operating temperature: from 0 °C to 40 °C

• Storage temperature: from - 40 °C to 70 °C

• Operating Humidità from 10 % to 90 % relative humidity without condensation

• Storage humidità from 5 % to 90 % relative humidità without condensation


Dimensions

•

• Width: 209 mm

• Depthà: 126 mm

• Height: 26 mm

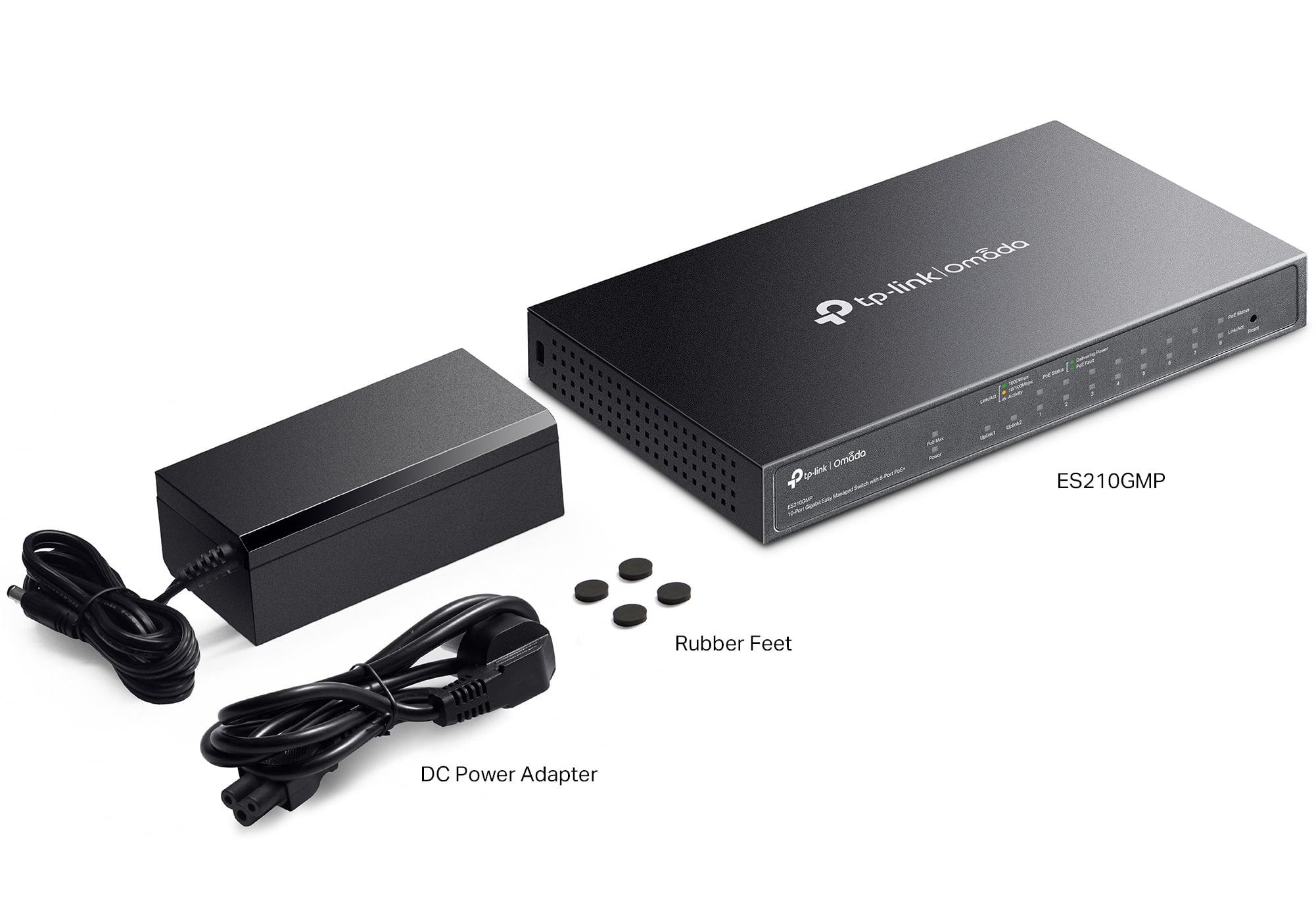

Package contents

•

• Switch 10 Gigabit Easy Managed Doors with 8 PoE+ Doors, 1 Combo RJ 45 and SFP, 123 W ICTP-ES 210 GMP

• Power supply

• Power cable

• 4 rubber feet

• User manual
