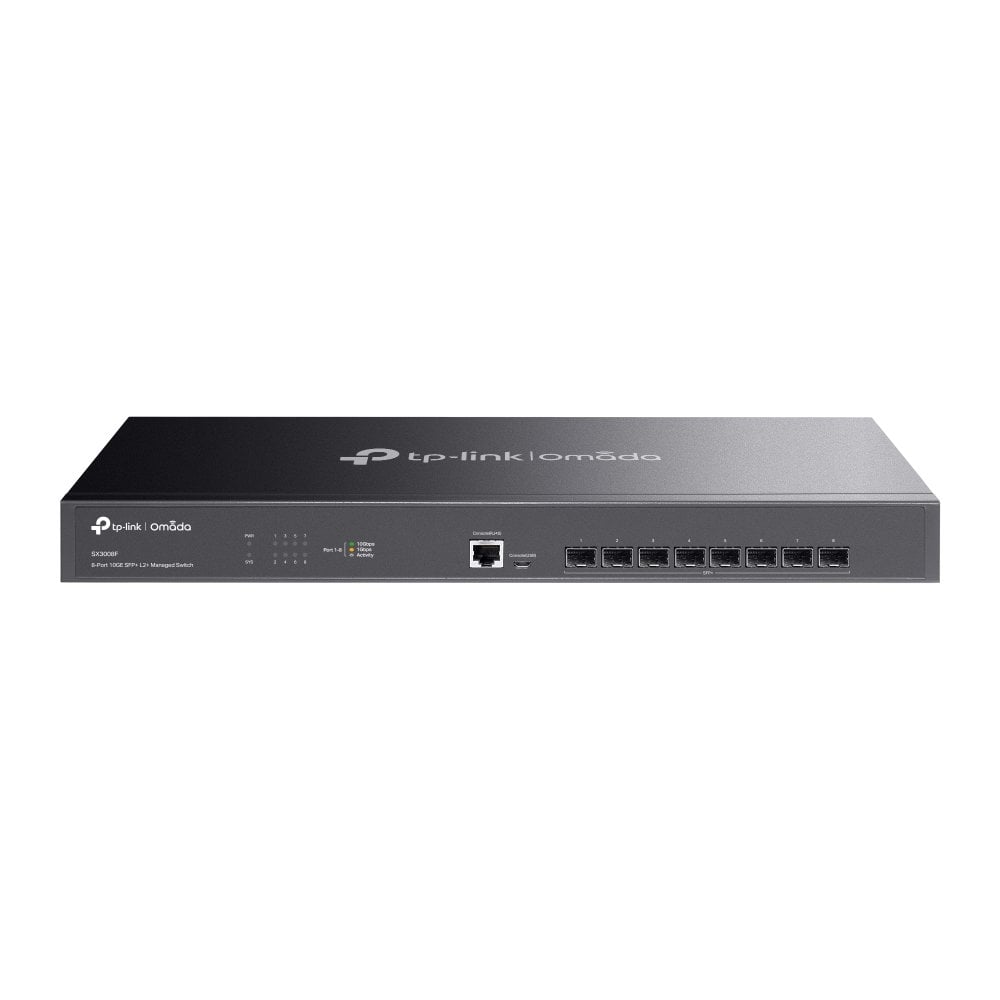

Switch Managed L 2 + with 8 Doors 10 GE SFP+ - Omada ICTP-SX 3008 F

•

• Switch Managed L 2 + with 8 ports 10 GE SFP+; 1 port Console RJ 45 and 1 port Console Micro-USB

• Centralized cloud management via web or Omada app

• Design without fan

• Installable to rack or desktop


Technical specifications

•

• Interfaces: 8 slot 10 GE SFP+

• Console: 1 port Console RJ 45 and 1 port Console Micro-USB

• LED: Power supply; Speed/Link/ACT for each port; safety lock

• Flash Memory: 32 Mbit

• DRAM: 256 MB

• Capacità switching: 160 Gbps

• Velocità packet forwarding 119,04 Mpps

• MAC Address Table: 32 K

• Package buffers: 16 Mbit

• Transmission method: storage and forwarding

• Frame jumbo 9 KB


Feeding

•

• Power input: 100 - 240 V AC~ 50 / 60 Hz

• Maximum power consumption: 5.91 W (220 V/ 50 Hz)

• Inactive energy consumption: 7.8 W


Switching

•

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (Optic Fiber)

• IEEE 802.3 ae: 10 Gigabit Ethernet on fiber


SDN Support

•

• Support Hardware Controller, Software Controller

• Automatic Device Discovery

• Batch configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedules


Specifications L 3 /l 2 /L 2 Multicast/ACL/Security/ISP/IPv 6 Support/MIBs

•

• See Datasheet


VLAN

•

• VLAN Group (802.1 Q VLAN); Max. 4 K VLAN Groups

• 802.1 Q Tagged VLAN

• MAC VLAN entries: 30

• VLAN tags

• MAC VLAN (12 entries)

• Protocol VLAN: Protocol Template 16 , Protocol VLAN 12

• GVRP

• VLAN VPN; VLAN Mapping; VLAN Replace

• Voice VLAN


QoS

•

• 8 Priority Queues

• 802.1 p Cos/DSCP Priority

• Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR

• Bandwidth Control; Port/Flow Based Rating Limit

• Smoother Performance

• Action for Flows; QoS mark (802.1 P Remark, DSCP Remark


Management

•

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv 1 /v 2 c/v 3 ; Trap/Inform; RMON (1,2 , 3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1 ab LLDP/LLDP-MED

• DHCP Auto Install

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log


Environmental Characteristics

•

• Operating temperature: from 0 °C to 50 °C

• Storage temperature: from - 40 °C to 70 °C

• Operating Humidità from 10 % to 90 % relative humidity without condensation

• Storage humidità from 5 % to 90 % relative humidità without condensation

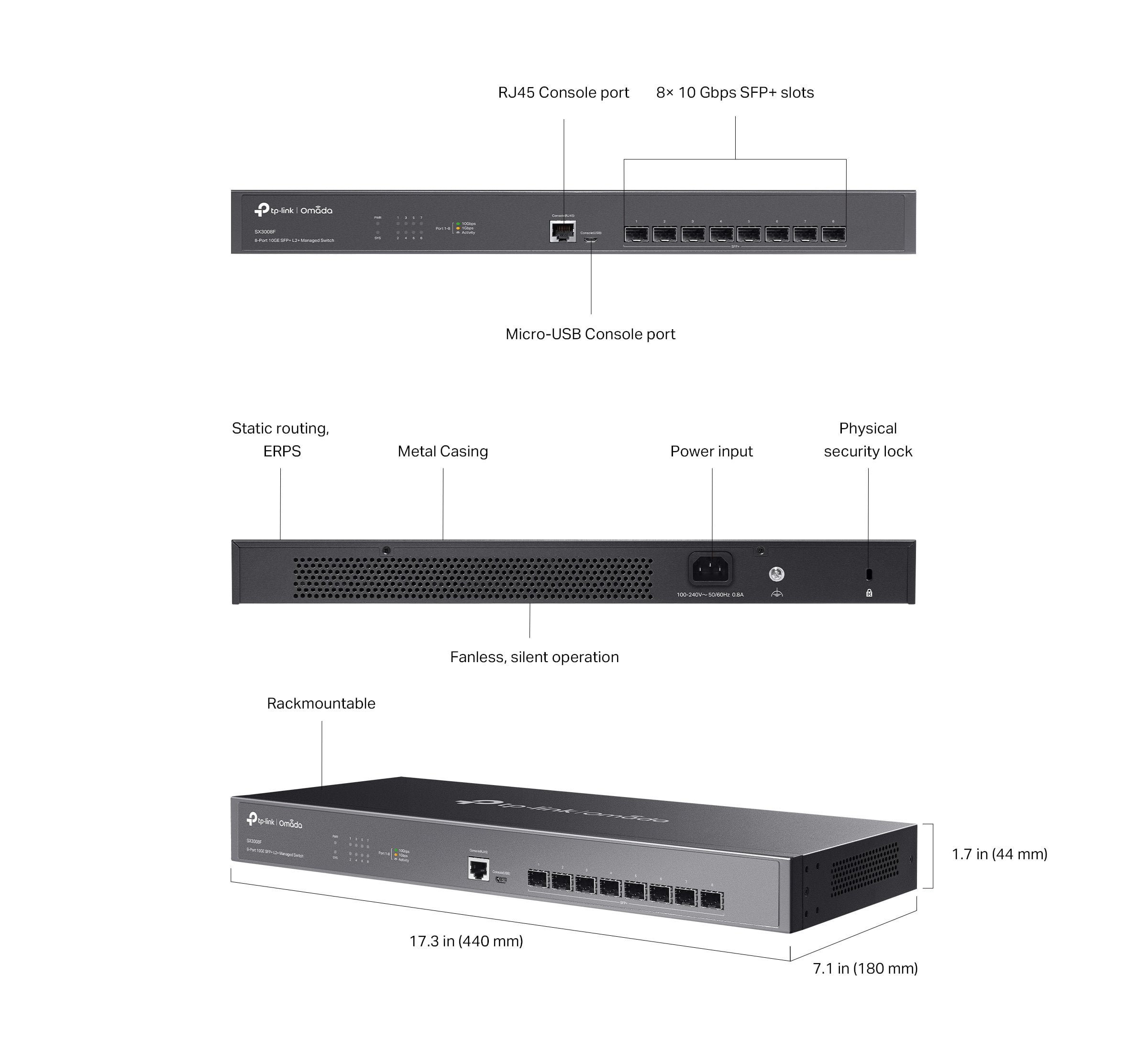

Dimensions

•

• Width: 440 mm

• Depthà: 180 mm

• Height: 44 mm

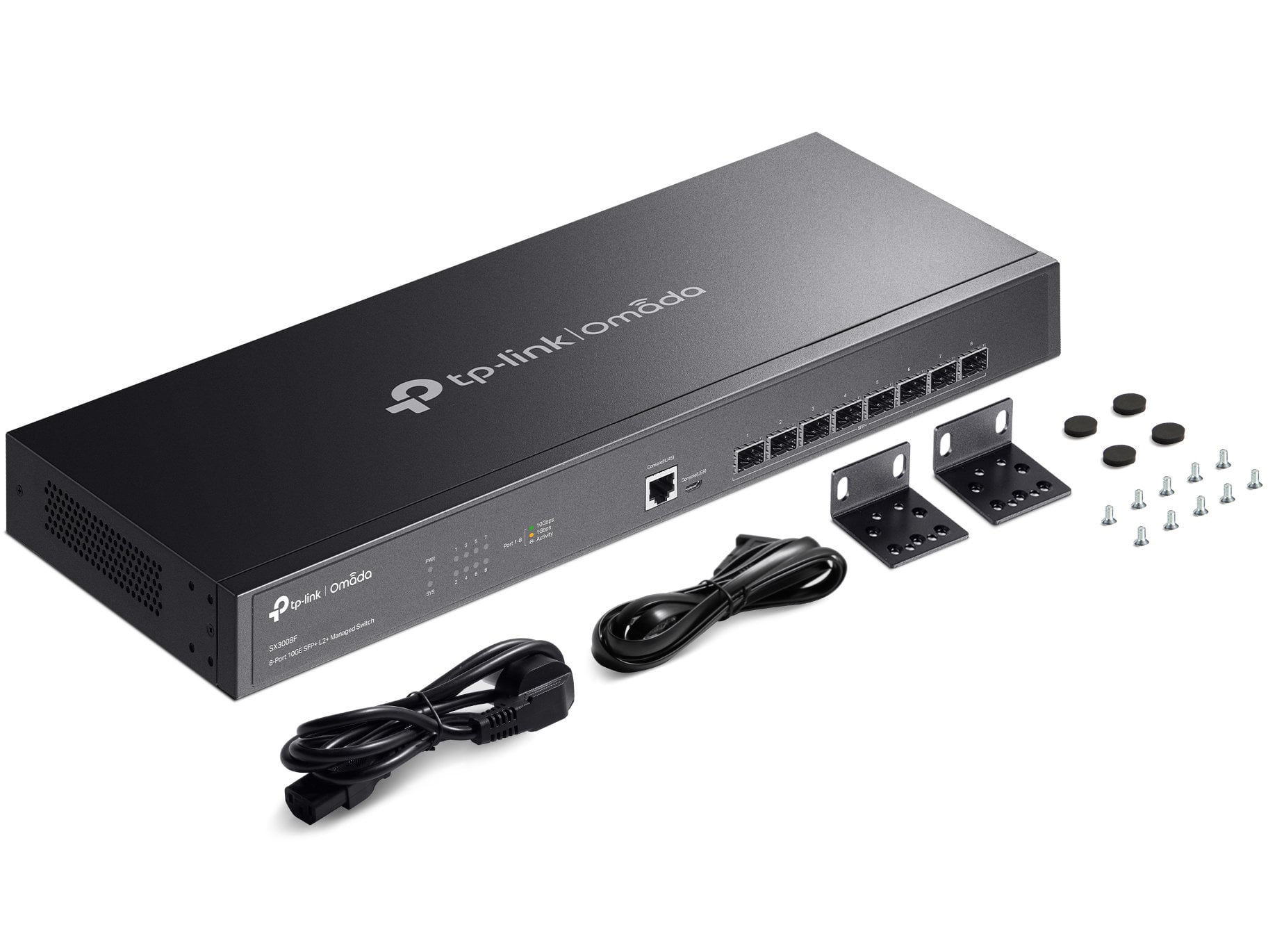

Package contents

•

• Switch Managed L 2 + with 8 Doors 10 GE SFP+, ICTP-SX 3008 F

• 2 rack fixing brackets

• 10 Screws

• 1 power cable

• 1 cable Console RJ 45 - RS 232

• 4 rubber feet

• Quick Installation Guide
