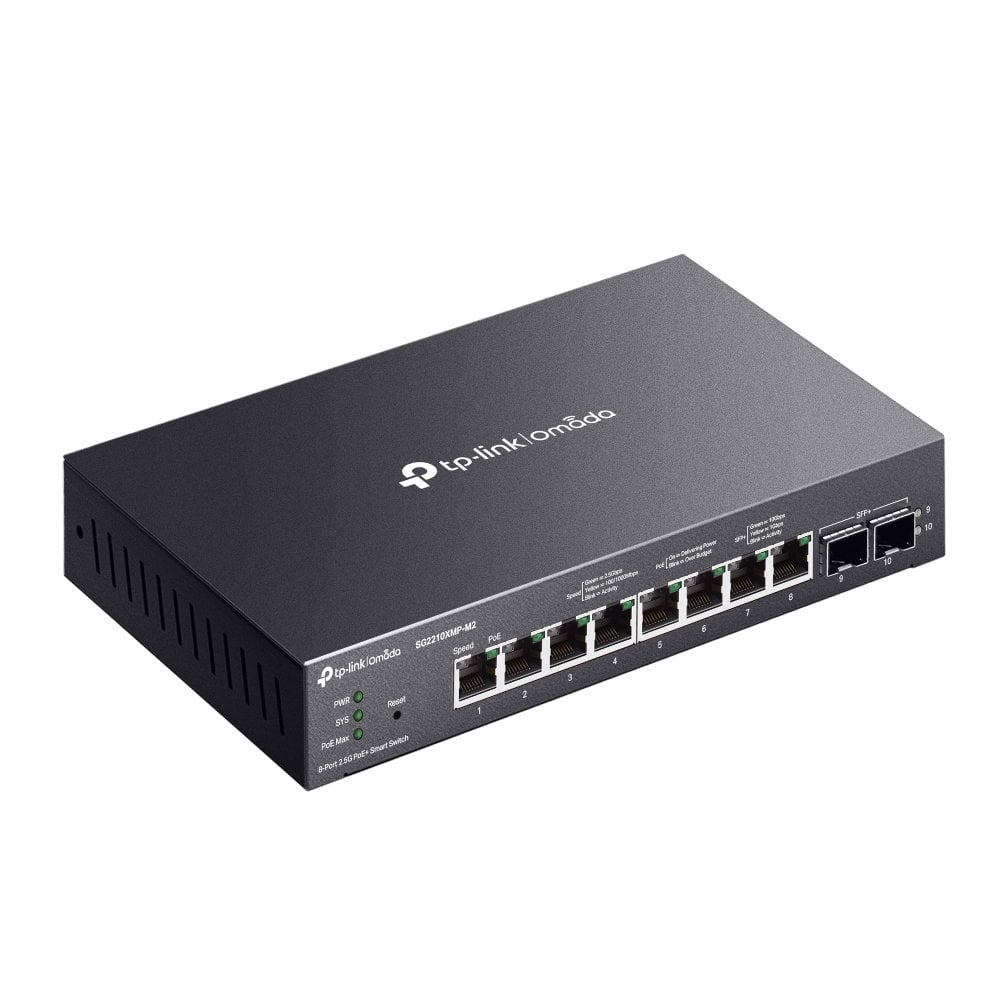

Smart switch with 10 Doors, 8 2.5 GBASE-T, 2 Doors 10 GE SFP+ and 8 Doors PoE+ - Omada ICTP-SG 2210 XMP-M 2

•

• Switch Smart Managed with 8 PoE+ ports 2.5 Gbps 802.3 at/af and 2 Slot 10 G SFP+

• Power budget PoE total 160 W, up to 30 W per door

• Centralized cloud management via web or Omada app

• Design without fan

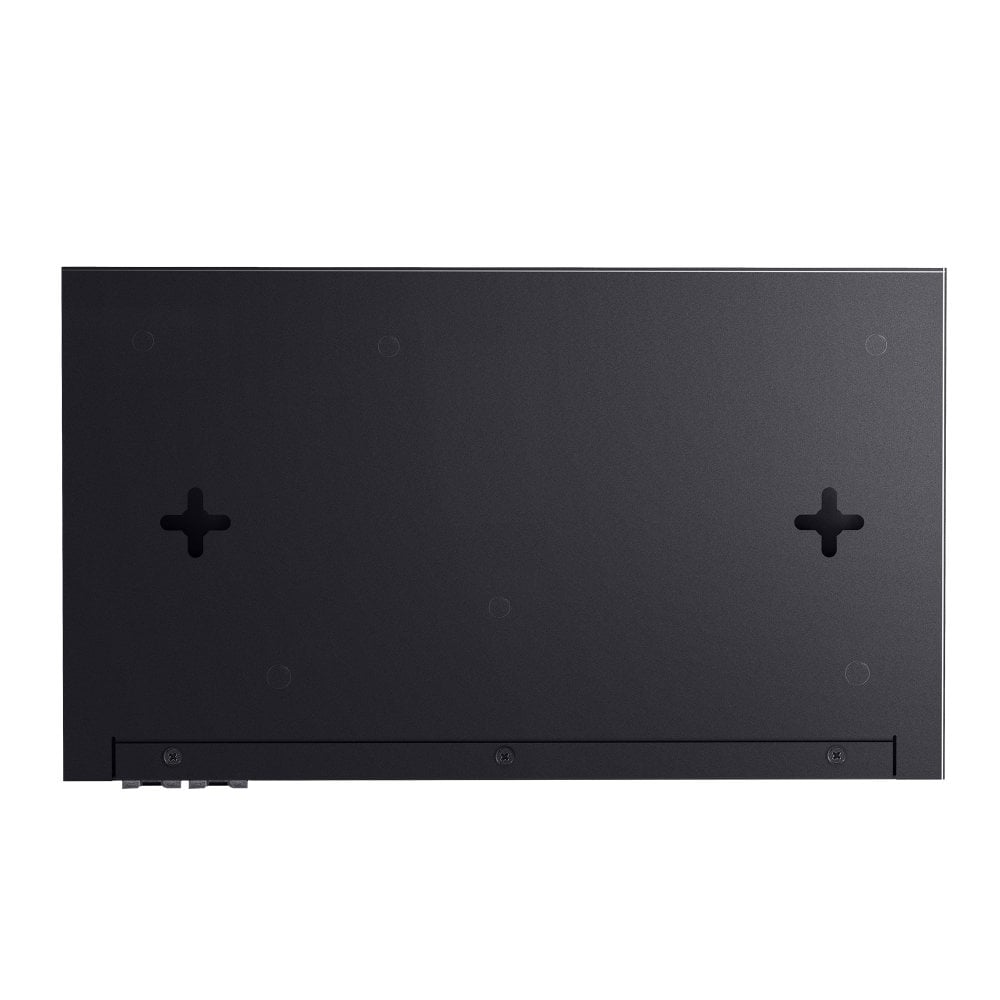

• Desktop or wall mountable


Technical specifications

•

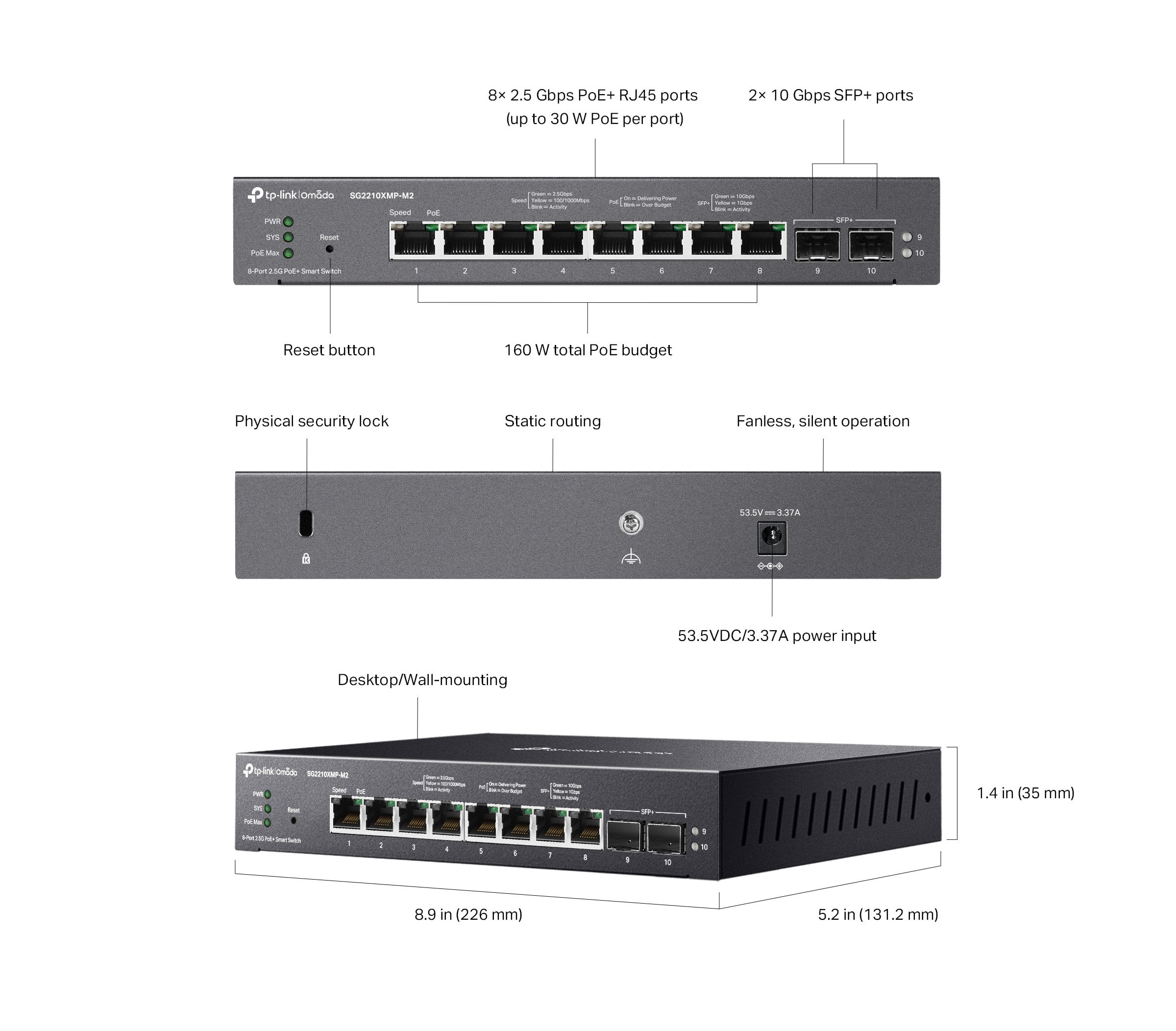

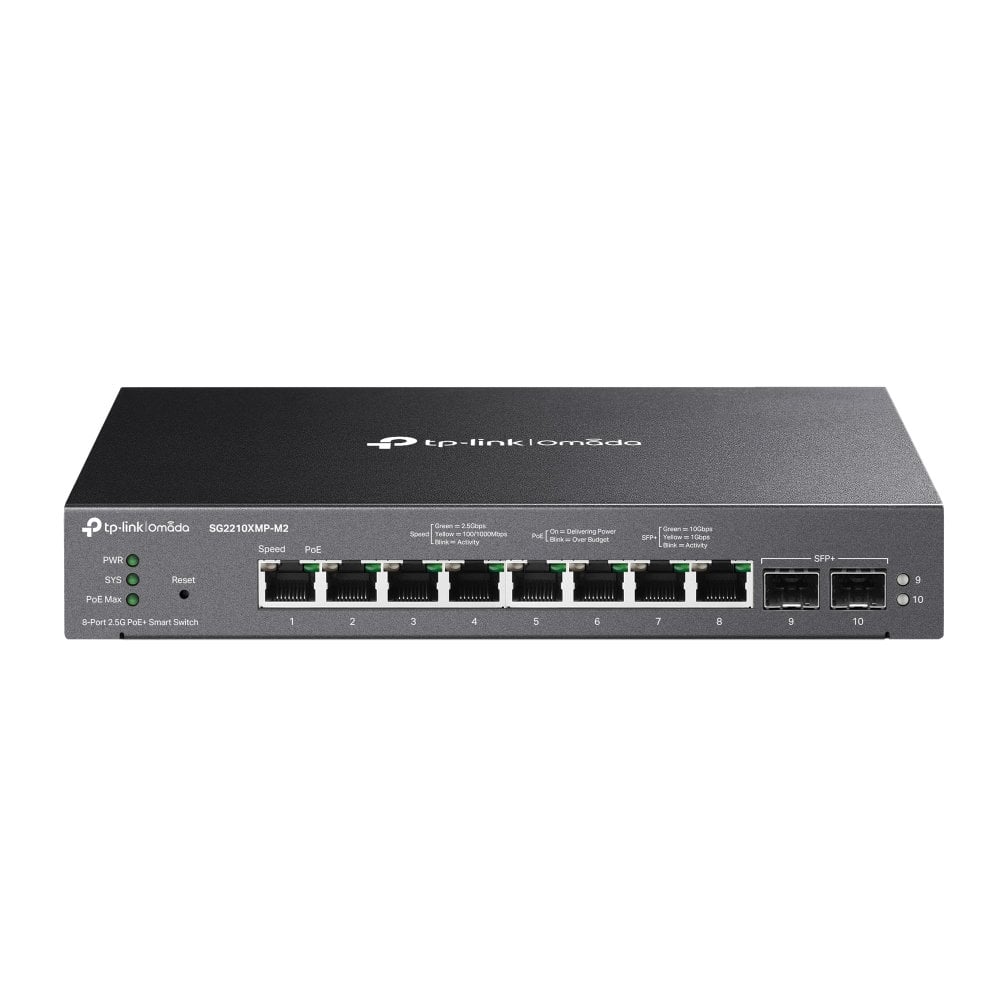

• Interfaces: 8 doors 100 / 1000 / 2500 Mbps RJ 45 PoE+ and 2 Slot 10 GE SFP+

• LED: Power supply; Speed/Link/ACT for each port; safety lock

• Flash Memory: 32 Mbit

• DRAM: 256 MB

• Capacità switching 80 Gbps

• Velocità packet forwarding 59,52 Mpps

• MAC Address Table: 16 K

• Package buffers: 12 Mbit

• Transmission method: storage and forwarding

• Frame jumbo 9 KB


PoE

•

• Standard PoE 802.3 af/at

• PoE doors: 8 , up to 30 W per door

• PoE Power Budget: 160 W


Feeding

•

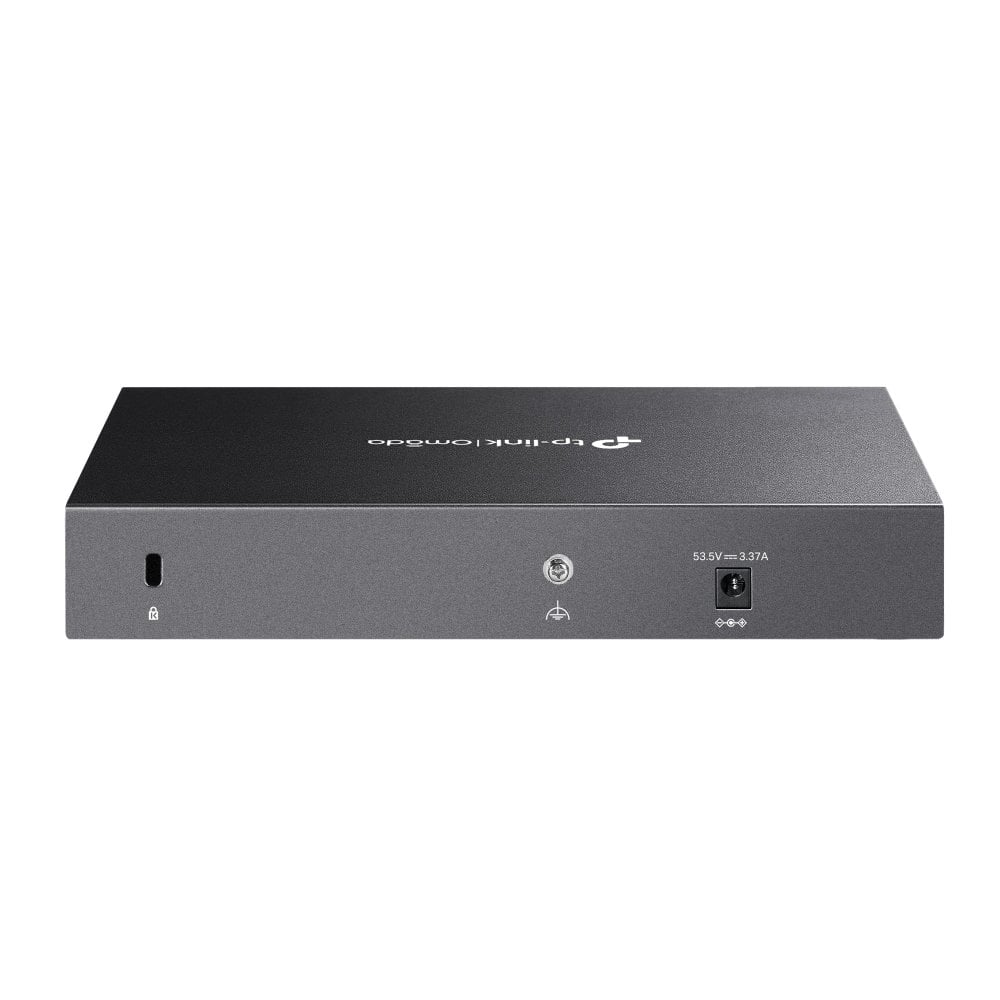

• Power input: 53.5 VDC/ 3.37 A

• Maximum power consumption: 180,1 W (110 V/ 60 Hz) (with PD from 160 W connected)

• Inactive energy consumption: 13.3 W


Switching

•

• IEEE 802.3 i: 10 BASE-T Ethernet;

• IEEE 802.3 u: 100 BASE-X Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 bz: 2.5 GBASE-T Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (Optic Fiber)

• IEEE 802.3 ae: 10 Gigabit Ethernet on fiber


SDN Support

•

• Support Hardware Controller, Software Controller

• Automatic Device Discovery

• Batch configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedules


Specifications L 2 +/L 2 Multicast/ACL/Security/ISP/IPv 6 Support/MIBs

•

• See Datasheet


VLAN

•

• VLAN Group; Max. 4 K VLAN Groups

• 802.1 Q VLAN tag

• MAC VLAN (12 entries)

• Protocol VLAN

• GVRP

• Voice VLAN


QoS

•

• 802.1 p Cos/DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode; SP (Strict Priority); WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control; Port/Flow Based Rating Limit

• Smoother Performance

• Storm Control; Multiple Control Modes (kbps/ratio); Broadcast/Multicast/Unicast Control


Management

•

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv 1 /v 2 c/v 3 ; Trap/Inform; RMON (1,2 , 3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1 ab LLDP/LLDP-MED

• DHCP Auto Install

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log


Environmental Characteristics

•

• Operating temperature: from 0 °C to 40 °C

• Storage temperature: from - 40 °C to 70 °C

• Operating Humidità from 10 % to 90 % relative humidity without condensation

• Storage humidità from 5 % to 90 % relative humidità without condensation


Dimensions

•

• Width: 226 mm

• Depthà: 131 mm

• Height: 35 mm

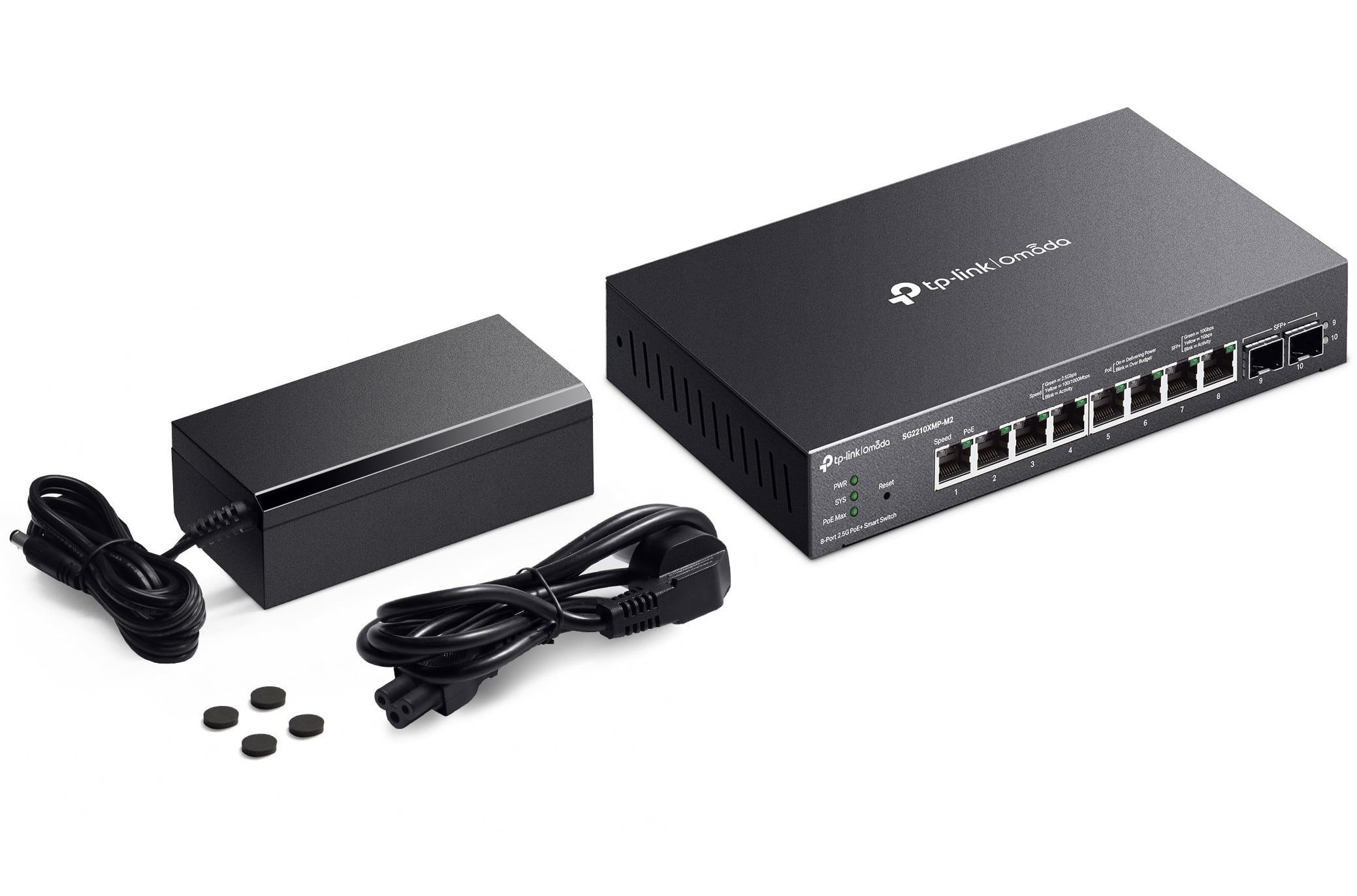

Package contents

•

• Switch Smart 10 doors, with 8 Doors 2.5 GBASE-T, 2 Doors 10 GE SFP+ and 8 Doors PoE+, ICTP-SG 2210 XMP-M 2

• Power supply + power cable

• 4 rubber feet

• User manual
