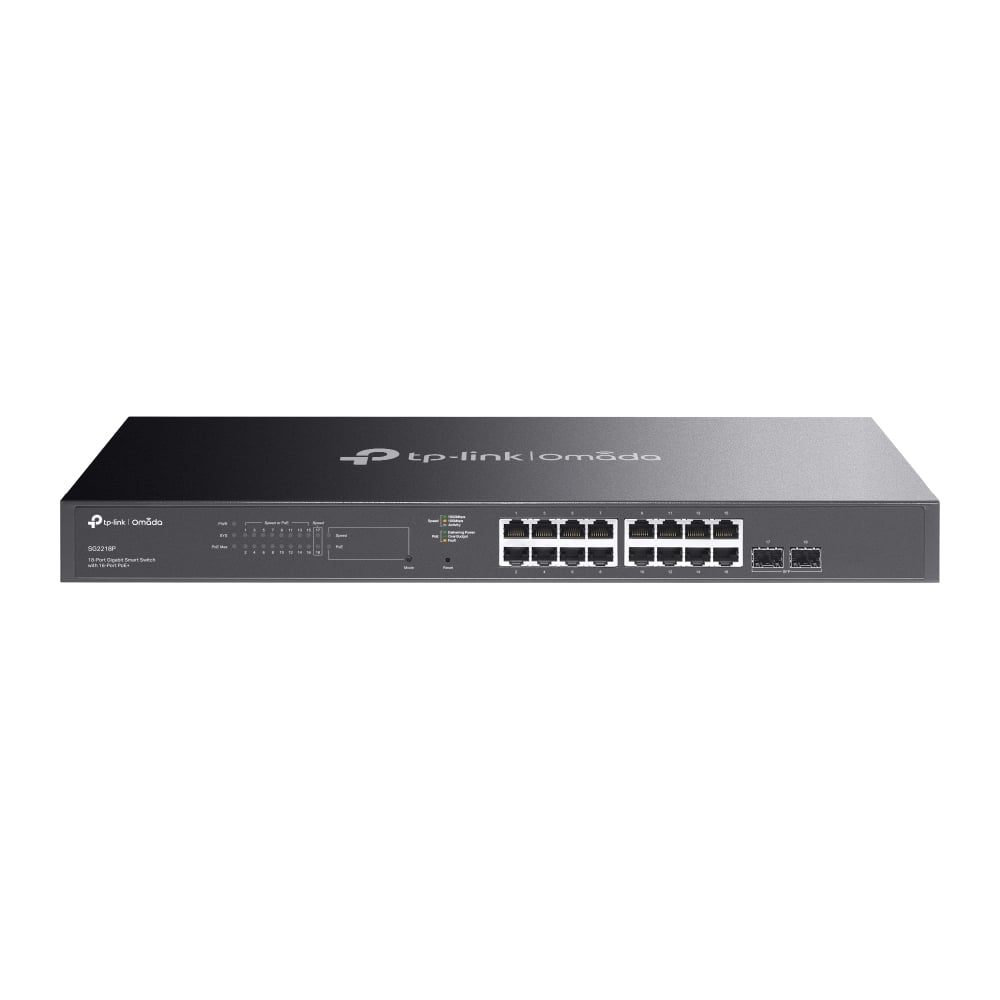

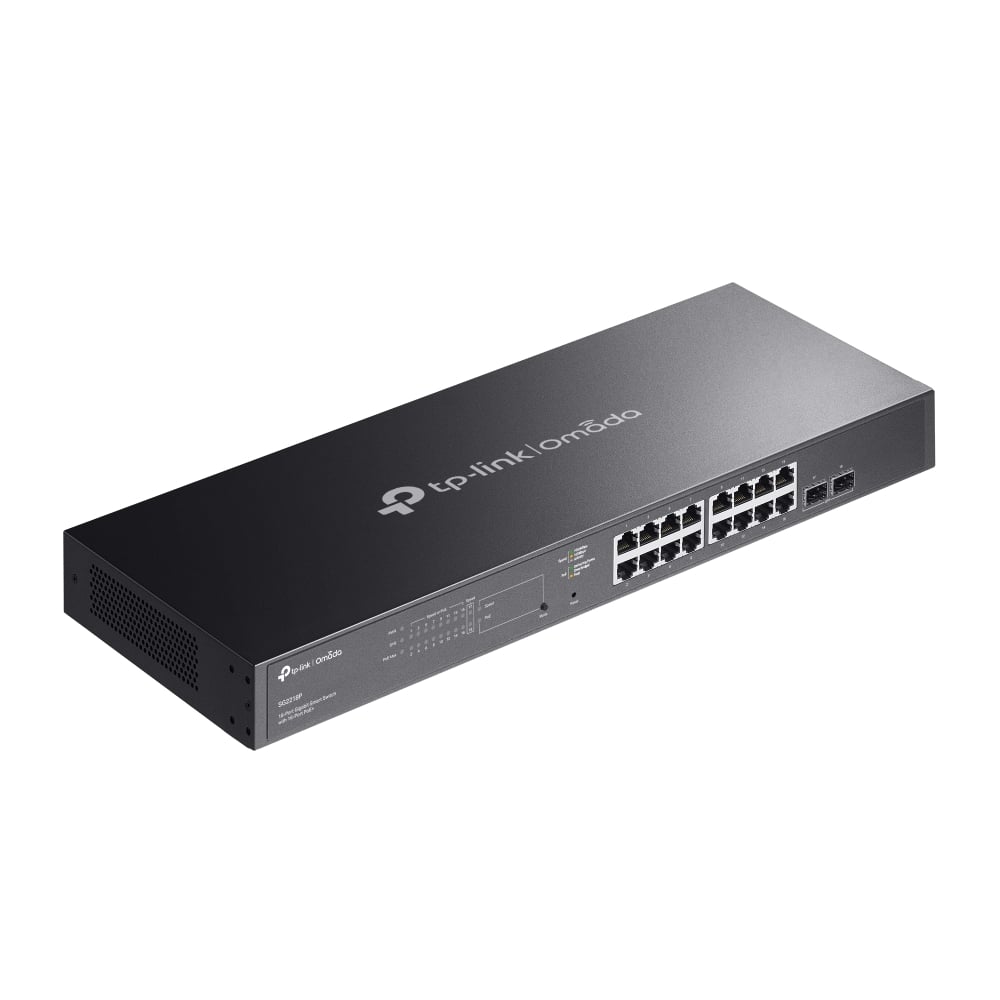

Switch Smart 16 Gigabit PoE+, 2 SFP - Omada ICTP-SG 2218 P

•

• 16 ports RJ 45 10 / 100 / 1000 Mbps PoE+ compatible with 802.3 af/at

• 2 Slot Gigabit SFP

• Power Budget of 150 W, with a maximum of 30 W for each PoE port

• Centralized cloud management via web or Omada app

• Installable to rack or desktop


Technical specifications

•

• Interfaces: 16 doors 10 / 100 / 1000 Mbps PoE+ RJ 45 and 2 Slot SFP Gigabit

• LED: Power supply; Speed/Link/ACT for each port; safety lock

• Flash Memory: 32 Mbit

• DRAM: 256 MB

• Capacità switching 36 Gbps

• Velocità packet forwarding 26,78 Mpps

• MAC Address Table: 8 K

• Mbit 4,1 Package Buffers

• Transmission method: storage and forwarding

• Frame jumbo 9 KB


PoE

•

• Standard PoE 802.3 af/at

• PoE doors: 16 , up to 30 W per door

• PoE Power Budget: 150 W


Feeding

•

• Power input: 100 - 240 V AC, 50 / 60 Hz

• Maximum power consumption: 181,4 W (110 V/ 60 Hz) (with power supply from 150 W connected); 178,3 W (220 V/ 50 Hz) (with power supply from 150 W connected)

• Inactive energy consumption: 9,7 W (110 V/ 60 Hz); 9,5 W (220 V/ 50 Hz)


Switching

•

• IEEE 802.3 i: 10 BASE-T Ethernet

• IEEE 802.3 u: 100 BASE-X Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (Optic Fiber)


SDN Support

•

• Support Hardware Controller, Software Controller

• Automatic Device Discovery

• Batch configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedules


Specifications L 2 /L 2 +/L 2 Multicast/ACL/Security/IPv 6 Support

•

• See Datasheet


VLAN

•

• VLAN Group; Max. 4 K VLAN Groups

• 802.1 Q VLAN tag

• MAC VLAN (12 entries)

• Protocol VLAN

• GVRP

• Voice VLAN


QoS

•

• 802.1 p Cos/DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode; SP (Strict Priority); WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control; Port/Flow Based Rating Limit

• Smoother Performance

• Storm Control; Multiple Control Modes (kbps/ratio); Broadcast/Multicast/Unicast Control


Management

•

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv 1 /v 2 c/v 3

• SNMP Trap/Inform

• RMON (1,2 , 3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log


Environmental Characteristics

•

• Operating temperature: from 0 °C to 50 °C

• Storage temperature: from - 40 °C to 70 °C

• Operating Humidità from 10 % to 90 % relative humidity without condensation

• Storage humidità from 5 % to 90 % relative humidità without condensation

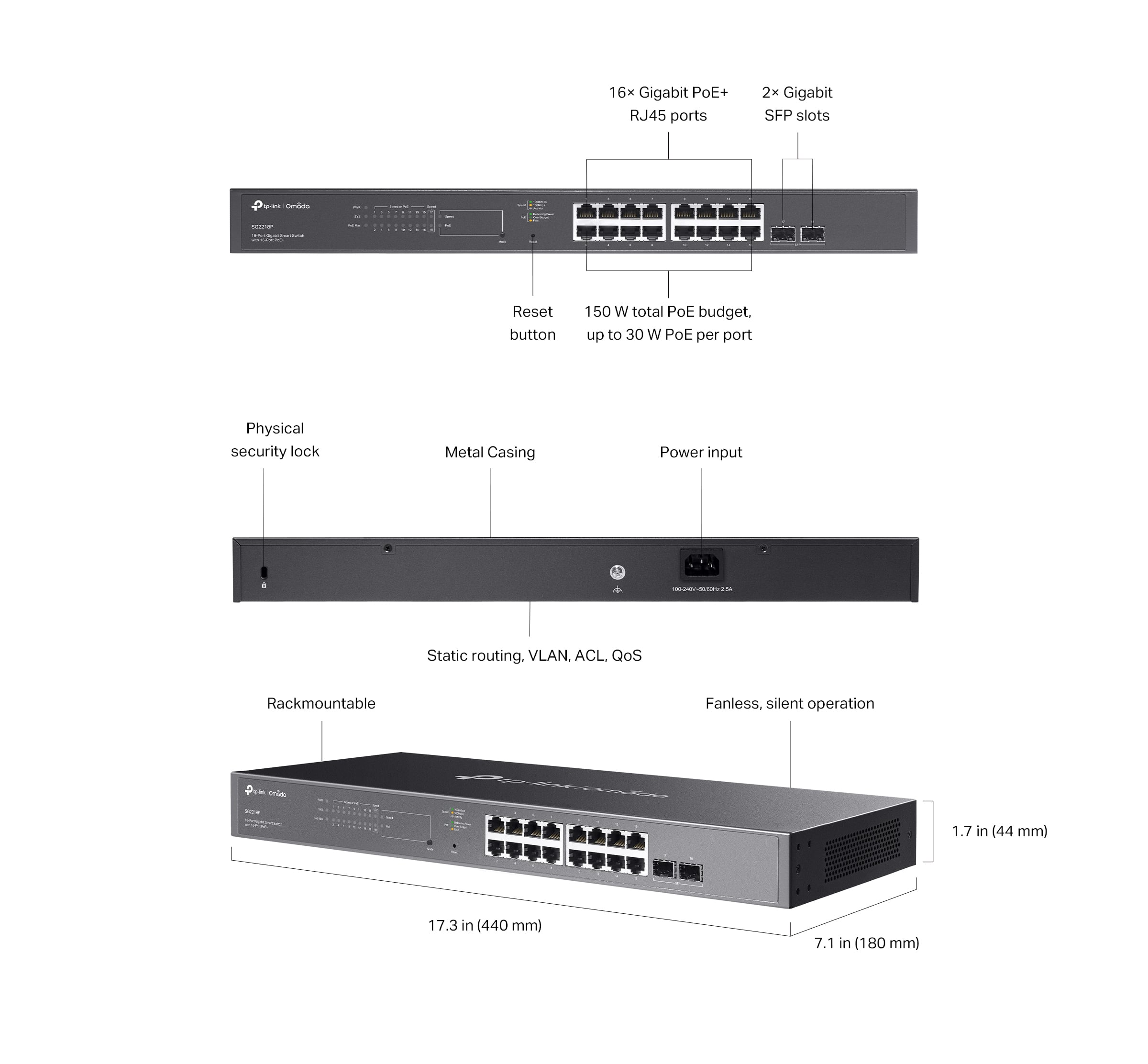

Dimensions

•

• Width: 440 mm

• Depthà: 180 mm

• Height: 44 mm

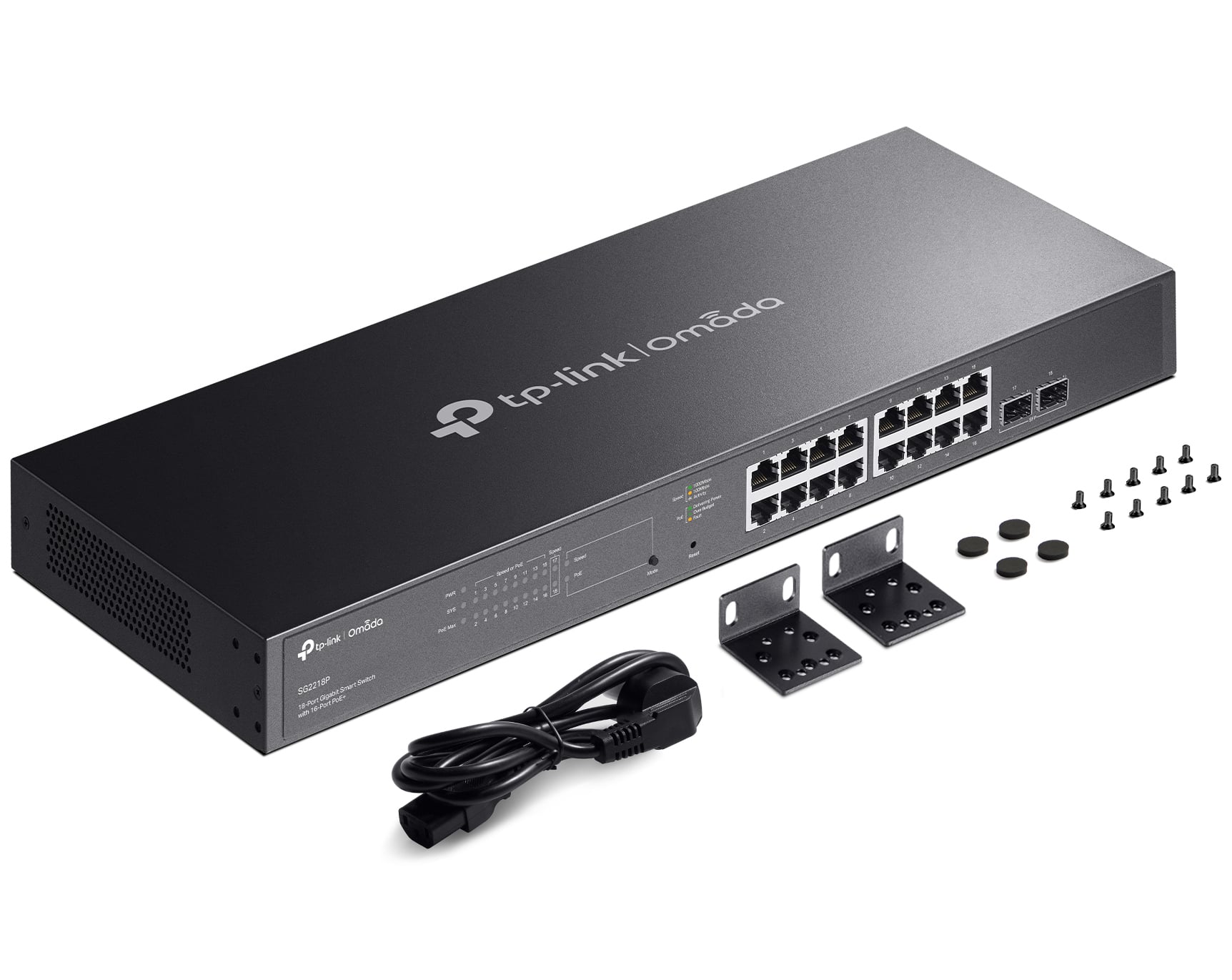

Package contents

•

• Switch Smart Desktop 16 Gigabit PoE+, 2 SFP, ICTP-SG 2218 GP

• Power cable

• 4 rubber feet

• 2 brackets for rack fastening

• 10 screws

• User manual
