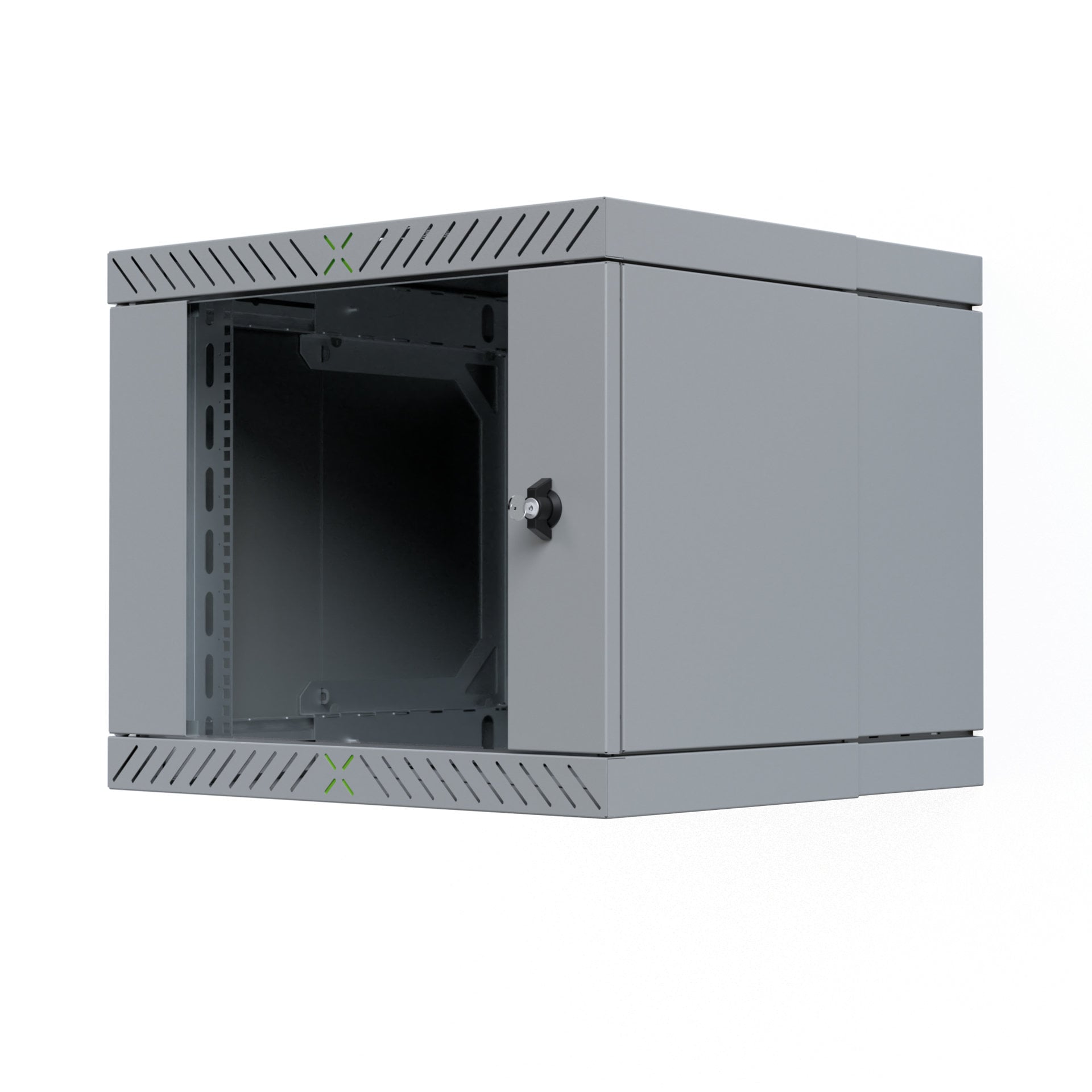

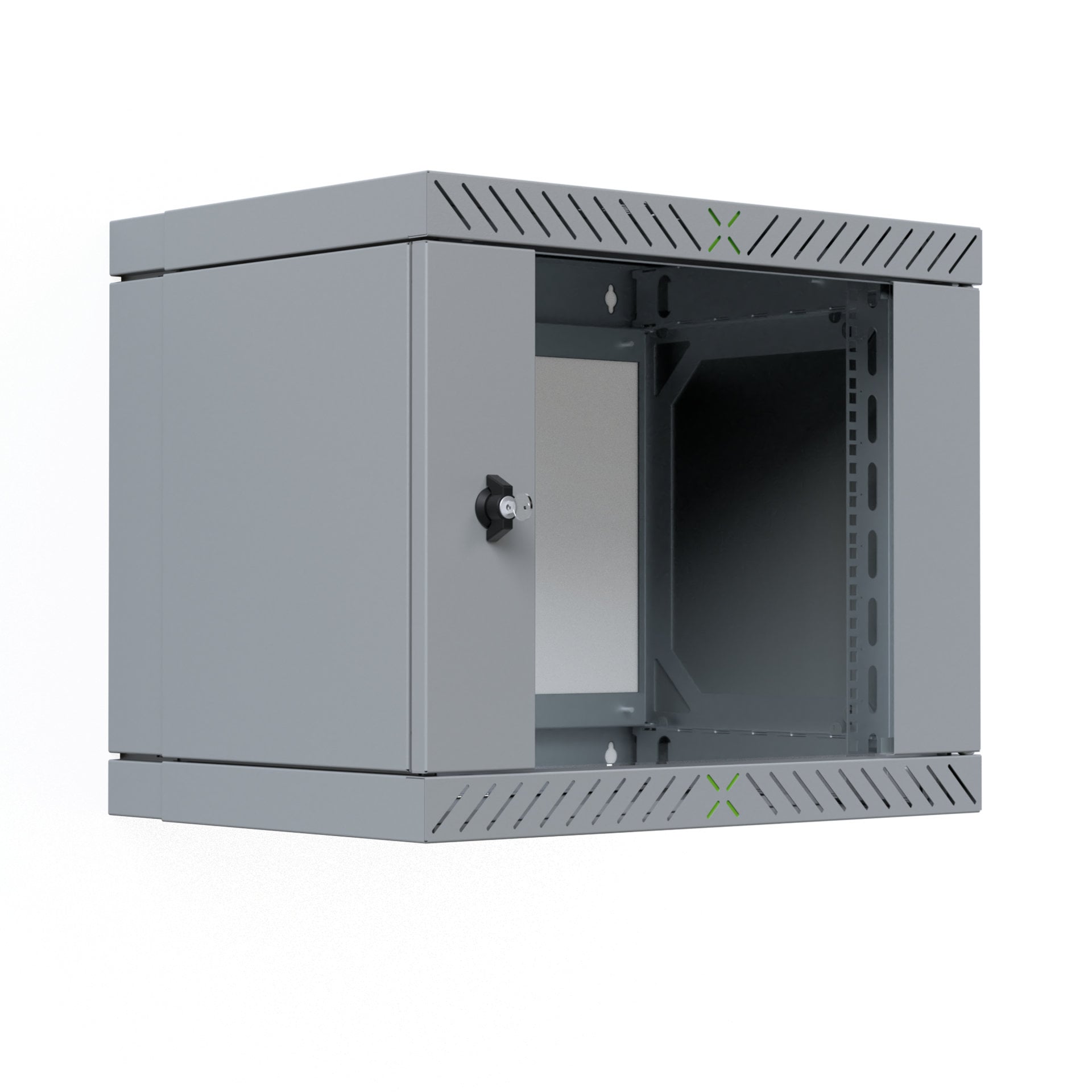

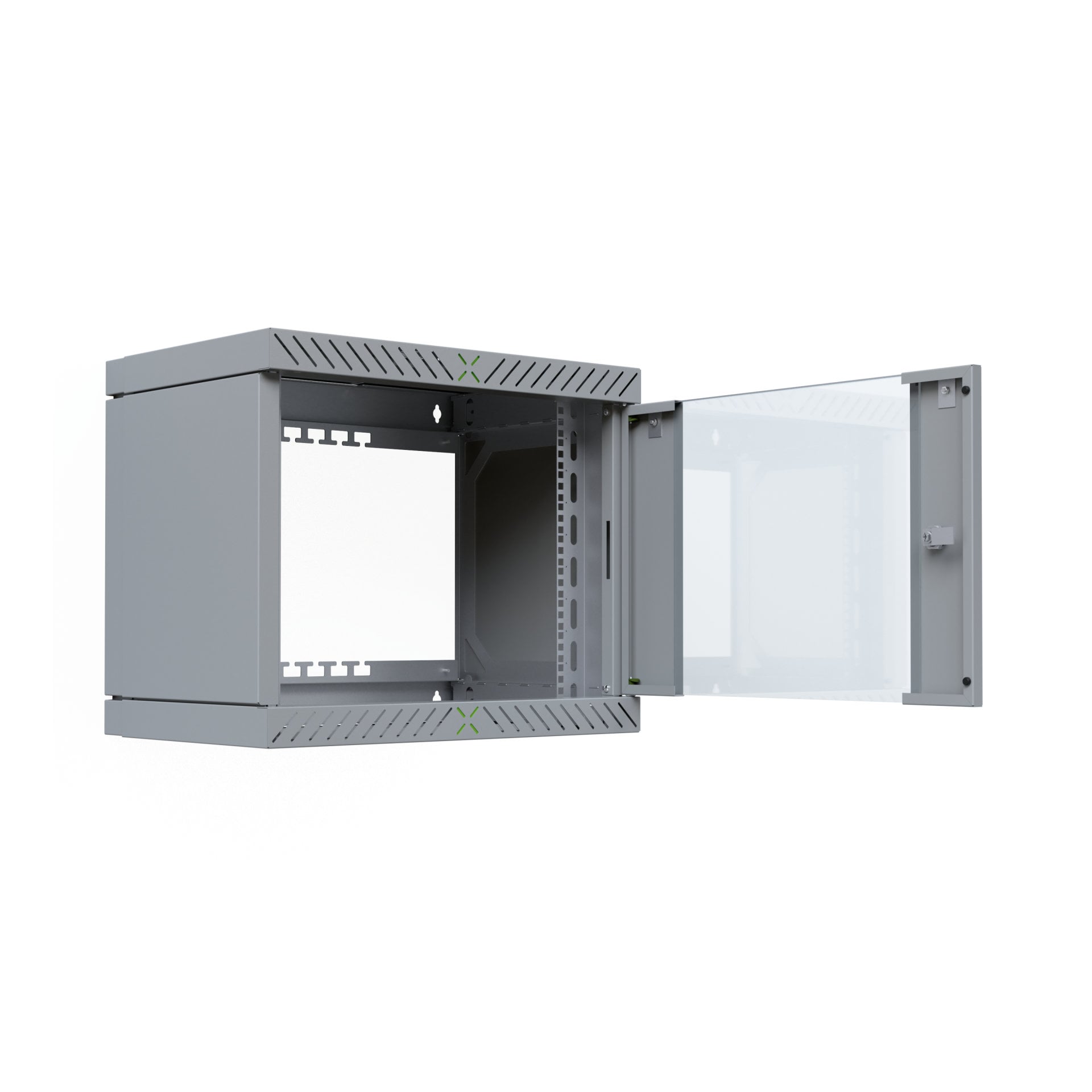

Wall Mount Rack Cabinet 19" 9U Knockdown Depth 400-600 mm Gray - X-RACK I-CASE EWX-2009G

•

• Wall mount cabinet 9U gray RAL7035 with glass door 400-600 mm

• Provides 360 degree access to components during installation

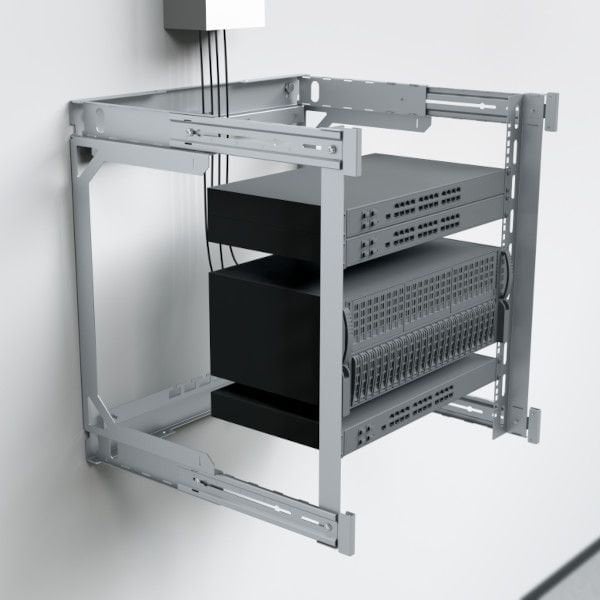

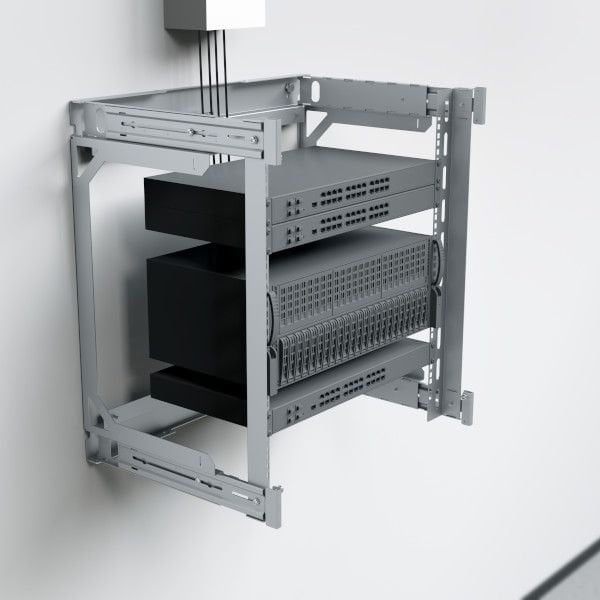

• It is possible to slide the depth of the rear frame to achieve maximum freedom of movement and optimal access to components from every side

• The cabinet can be assembled effortlessly by one person

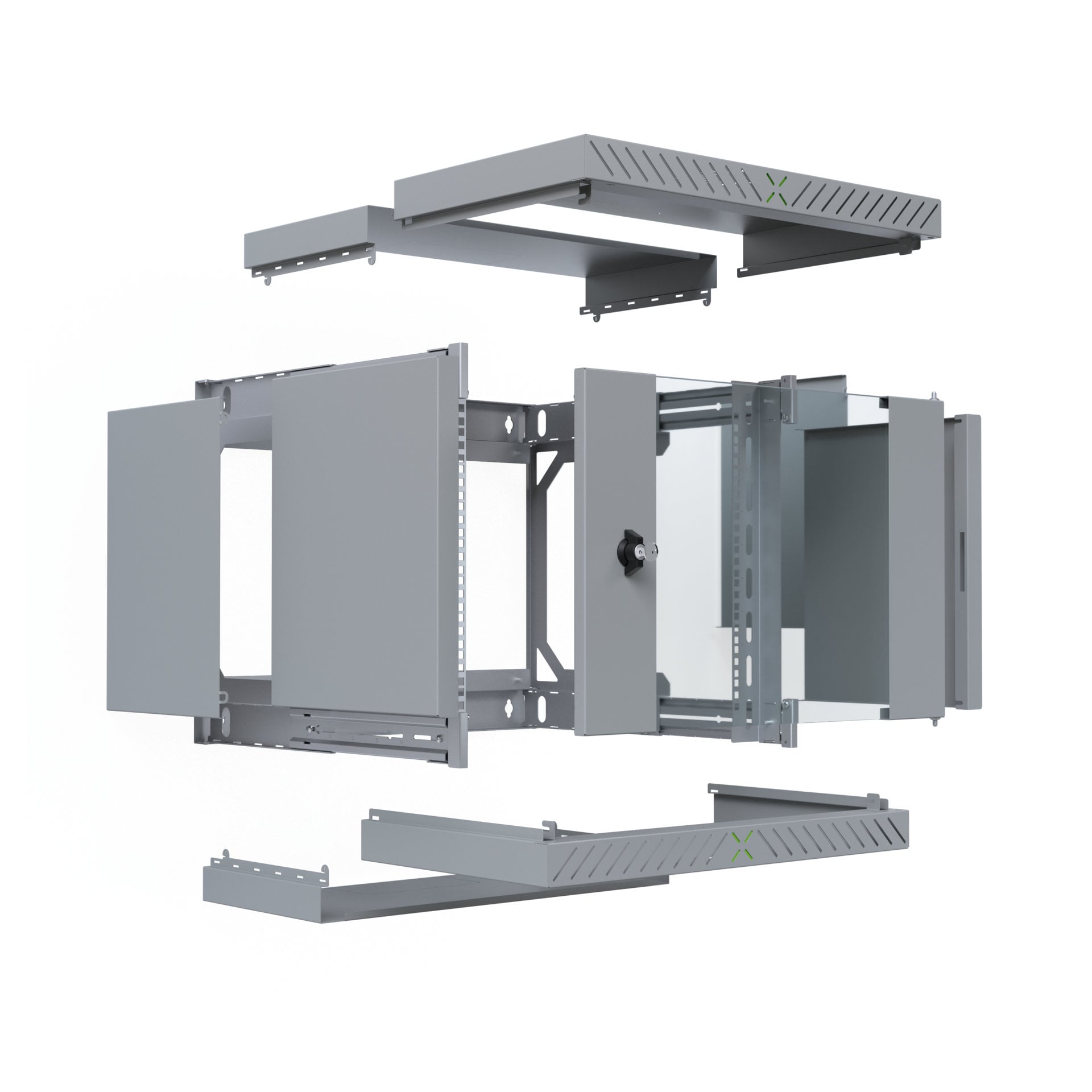

• Steel sheet housing with swivel frame, self-ventilated, not pre-assembled

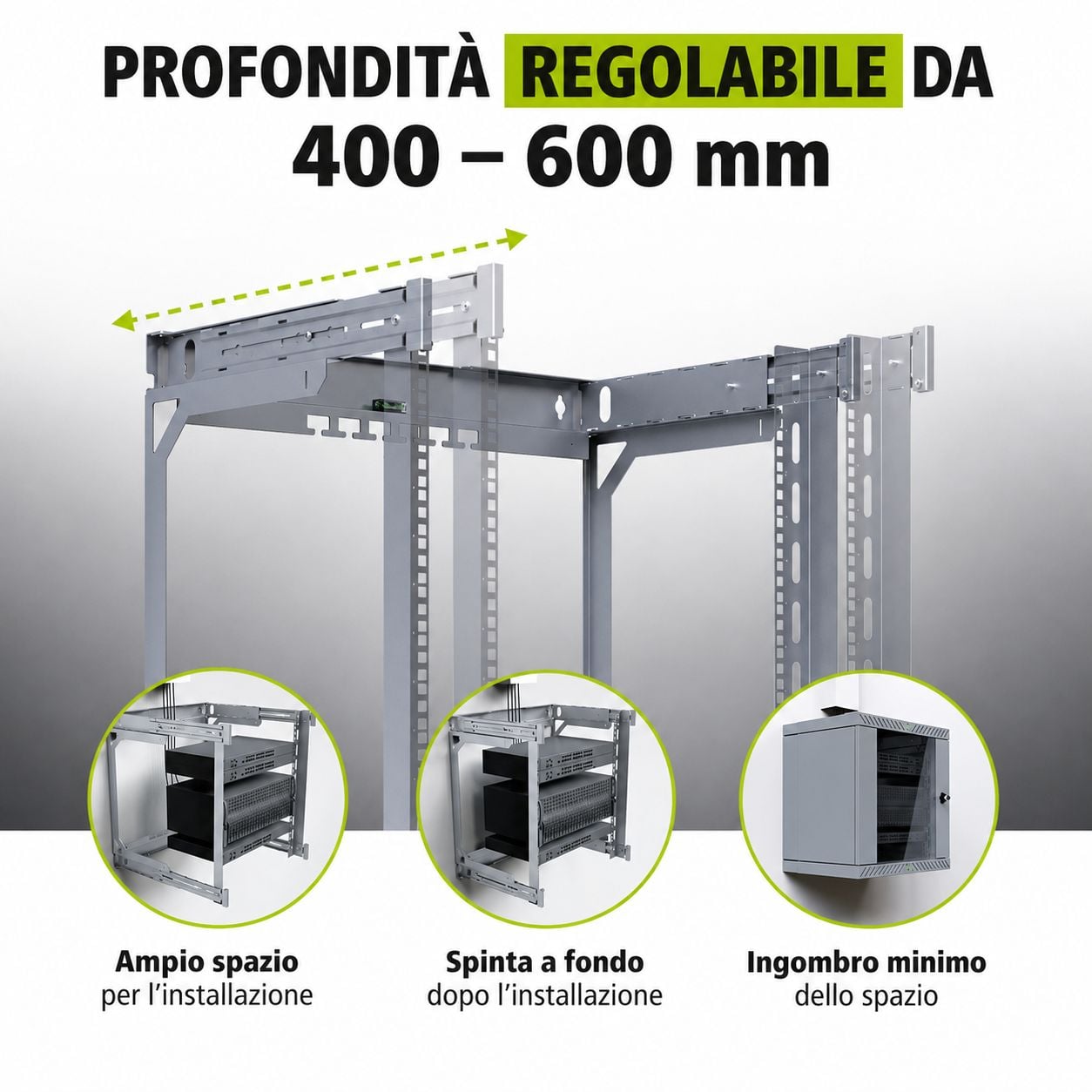

• Adjustable housing depth with depth adjustable to 400/450/500/550/600 mm; installation depth min. - max.: 310 - 510 mm

• Fixed side panels, removable only after opening the front door

• 2 front mounting rails 19 adjustable in depth by 50 mm

• Front door with certified safety glass window (4 mm) and snap closure

• Reversible entry door hinge

• Interchangeable door stop thanks to sturdy metal spring hinges

• Adjustable door angle thanks to adjustable hinges

• Door opening angle 120°

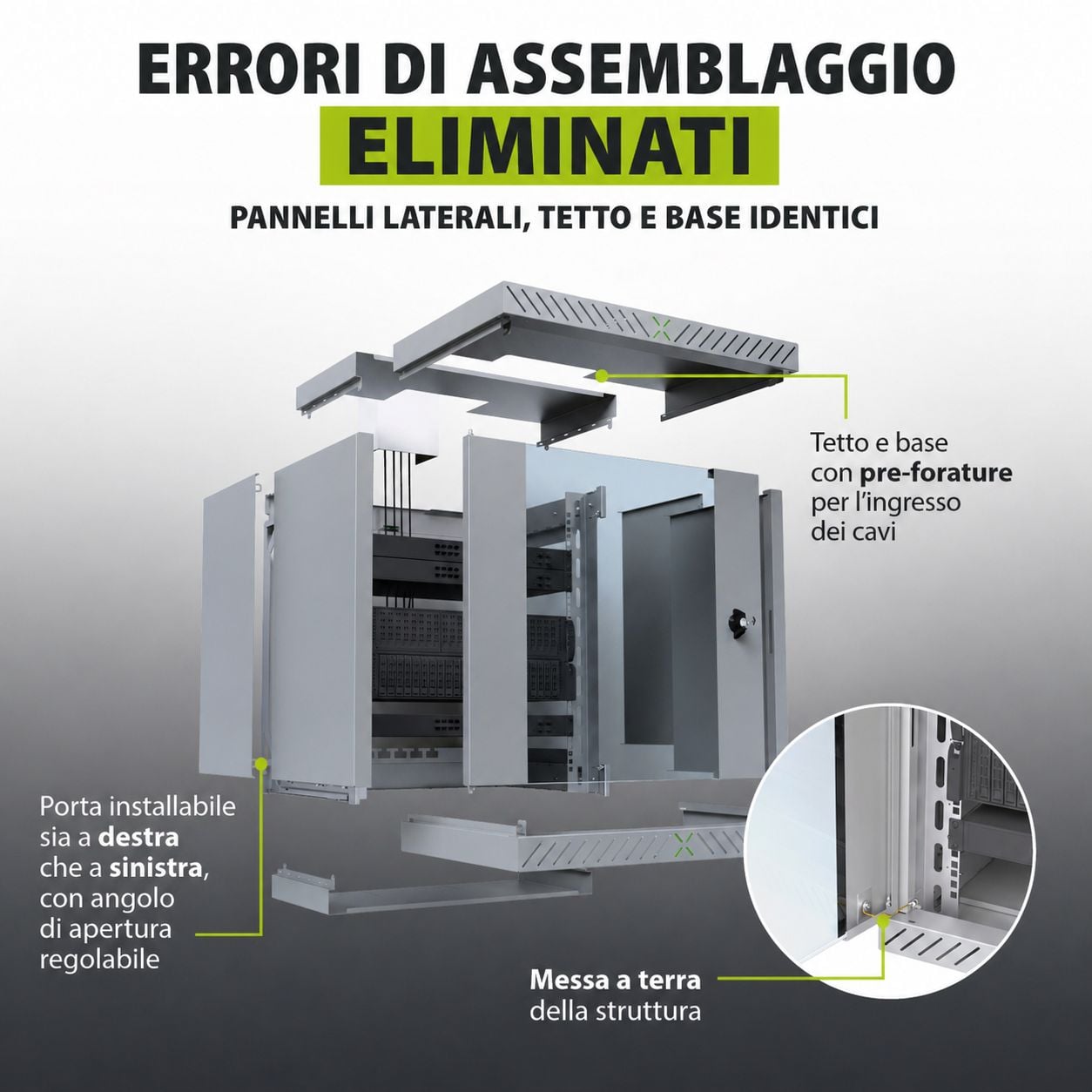

• Top and bottom with pre-drilled holes for cable entry (190 x 90 mm)

• Open rear frame with additional positions for cable management

• Top and bottom prepared for housing a single fan

• Internal parts of the cabinet fully grounded, grounding bolt M5 on the base frame

• carico massimo: 60 kg (statically uniformly distributed)

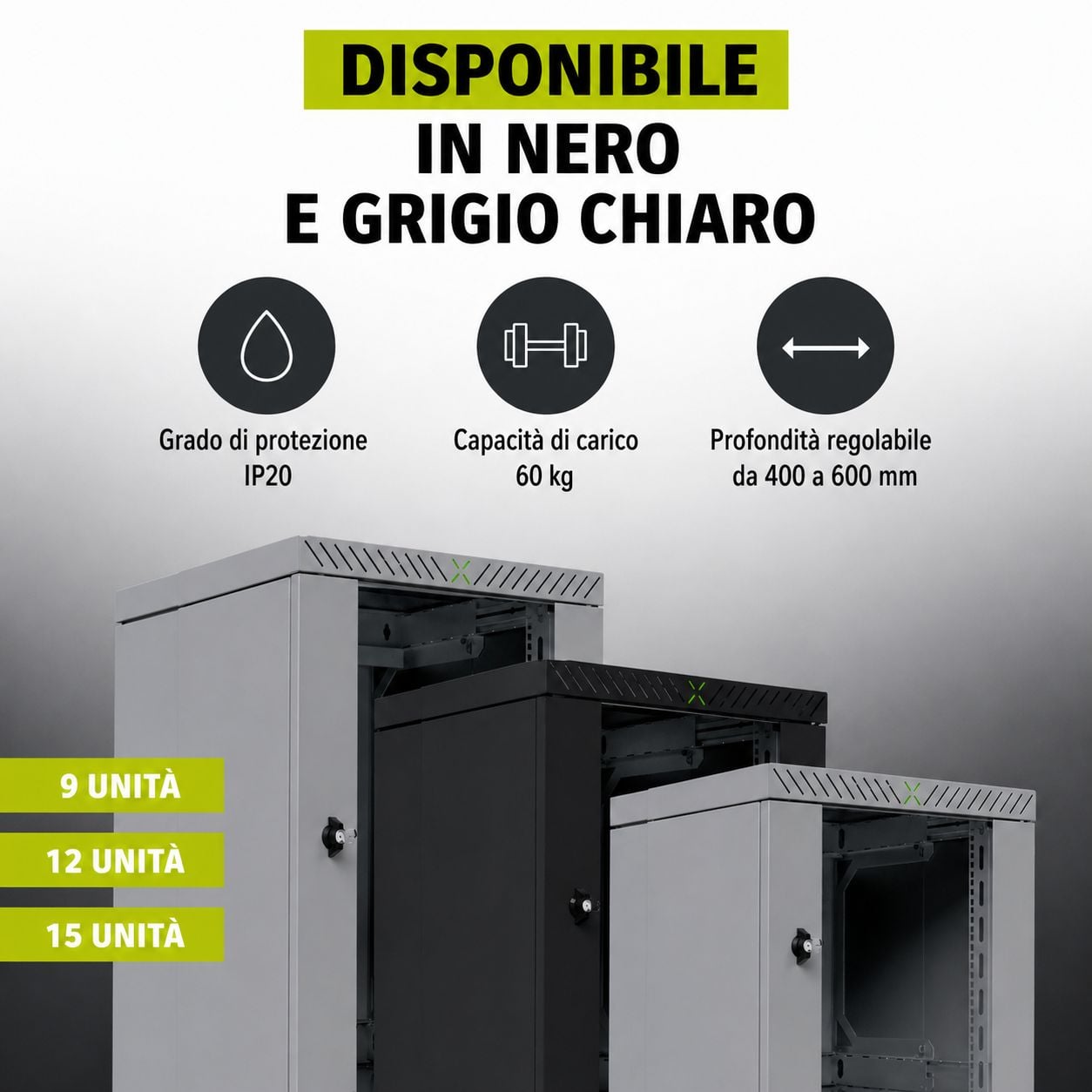

• Protection rating: IP20

• Material: steel

• Coating: powder coated

• Color: RAL7035 (gray)


Dimensions

•

• Width: 600 mm

• Height: 500 mm

• Depth: 400 - 600 mm


Package contents

•

• Rear frame

• External parts

• Front door

• 2 keys

• 1 grounding cable
