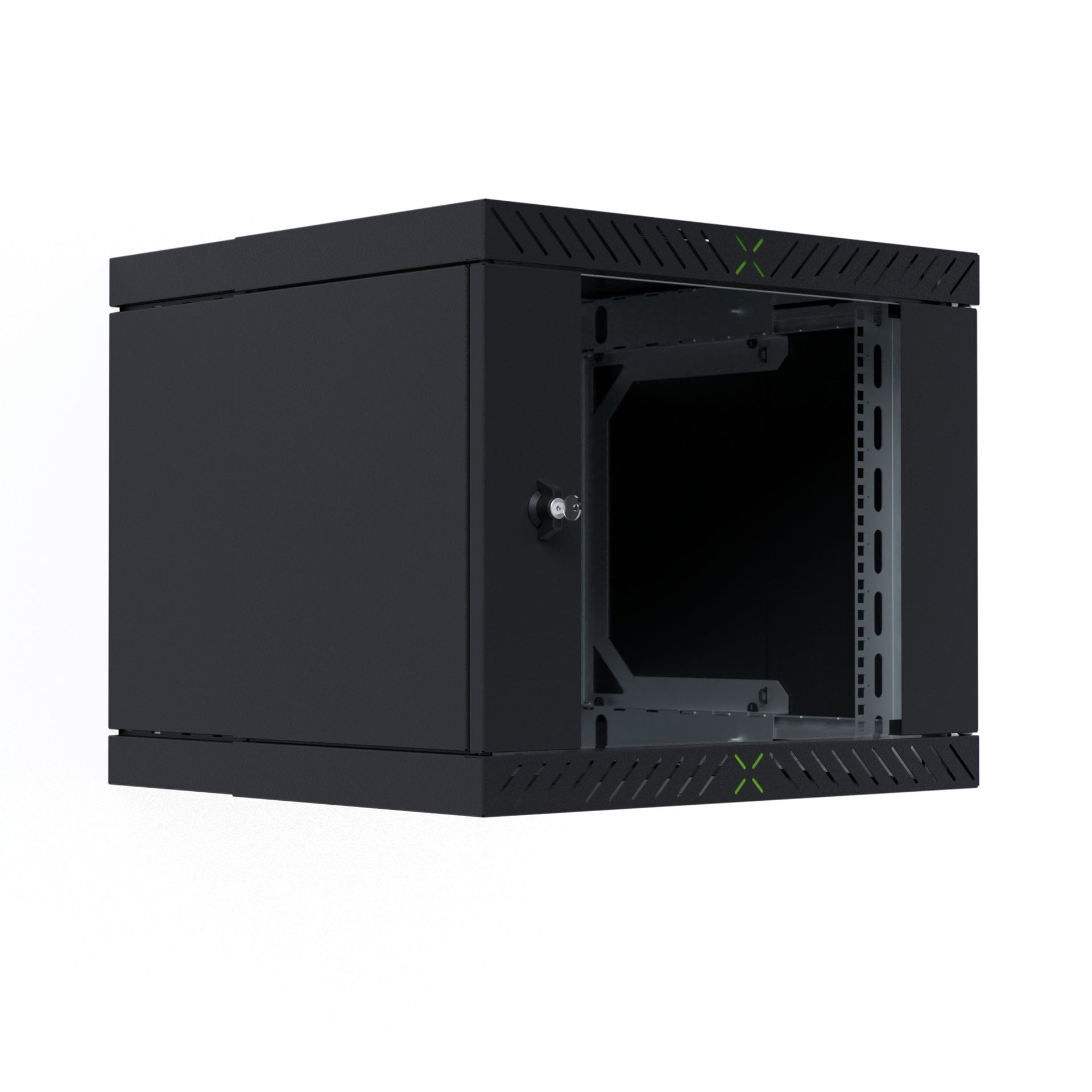

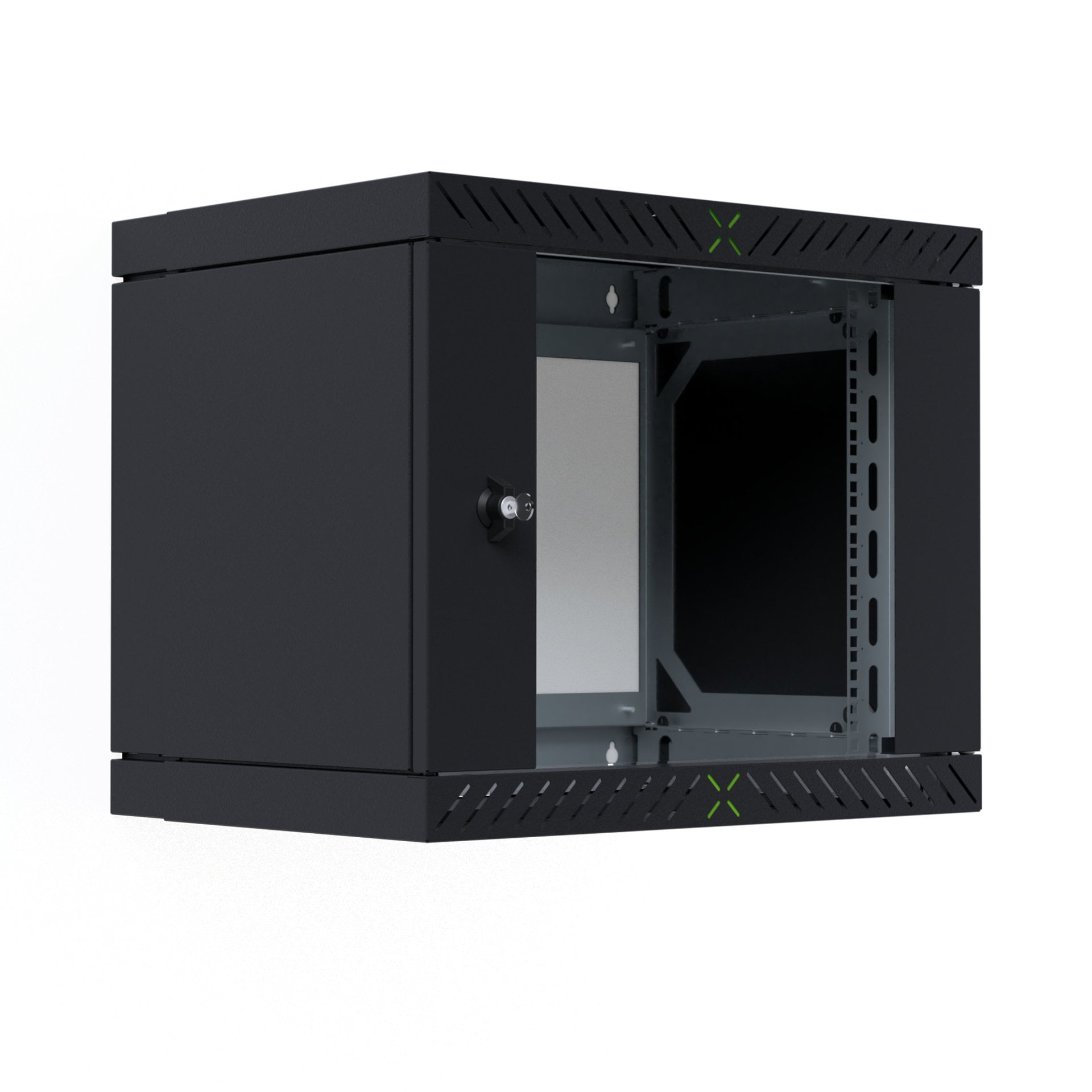

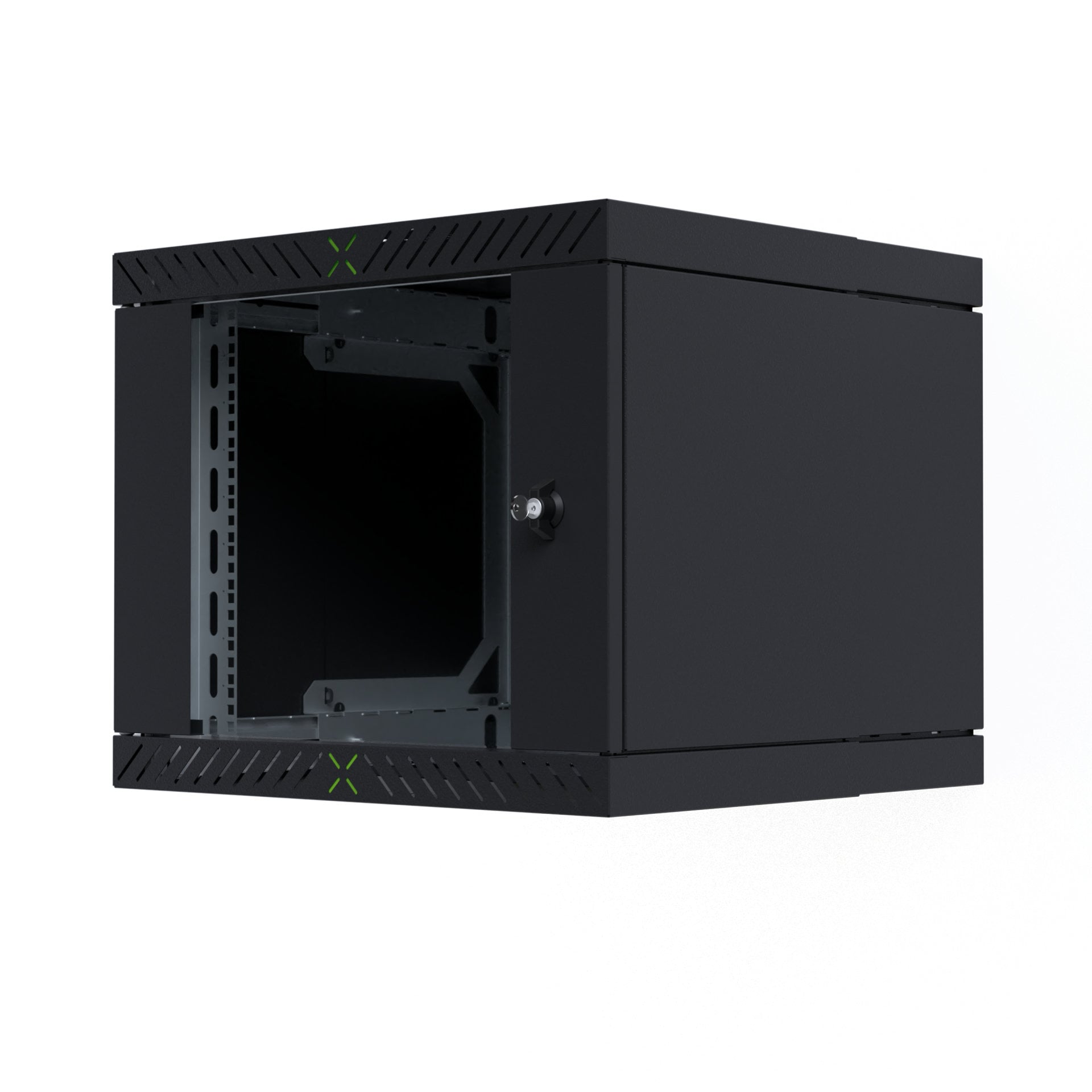

19" Wall-Mount Rack Cabinet 9U Unassembled Depth 400-600 mm Black - X-Rack I-CASE EWX-2009BK

•

• Wall-mount cabinet to be assembled, 9 units with adjustable depth at 400/450/500/550/600 mm

• Certified 4 mm safety glass door, easily removable and reversible, opening of 120°, snap lock

• Open rear frame with additional positions for cable management; blind side panels removable only after opening the front door

• Front mounting rails adjustable in depth by 50 mm; installation depth min. - max.: 310 - 510 mm

• Dimensions: 600x500x400-600 (WxHxD); color: RAL 9005 (black)


•

• Wall-mount cabinet 9U black RAL9005 with glass door 400-600 mm

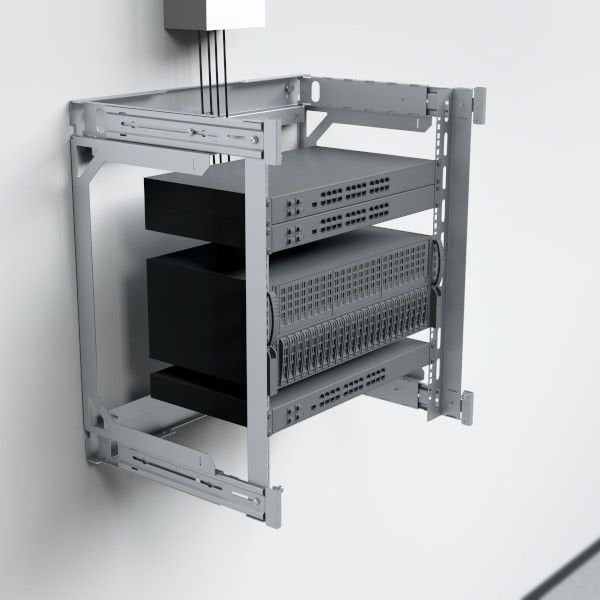

• Offers 360-degree access to components during installation

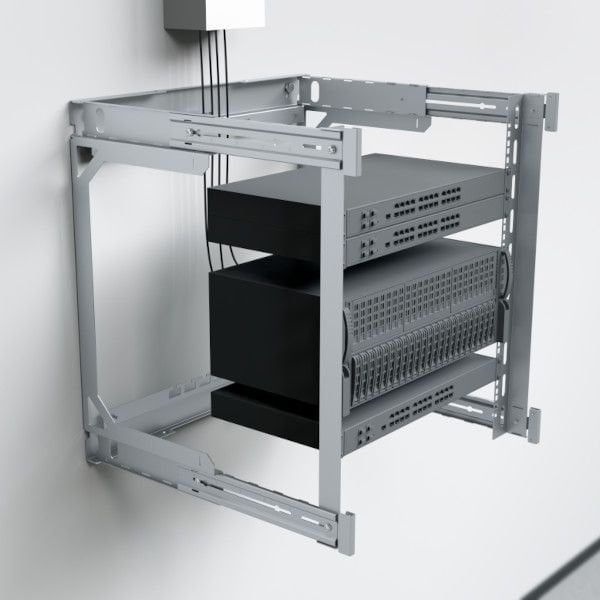

• It is possible to slide the depth of the rear frame to obtain maximum freedom of movement and optimal access to components from every side

• The cabinet can be assembled effortlessly by one person

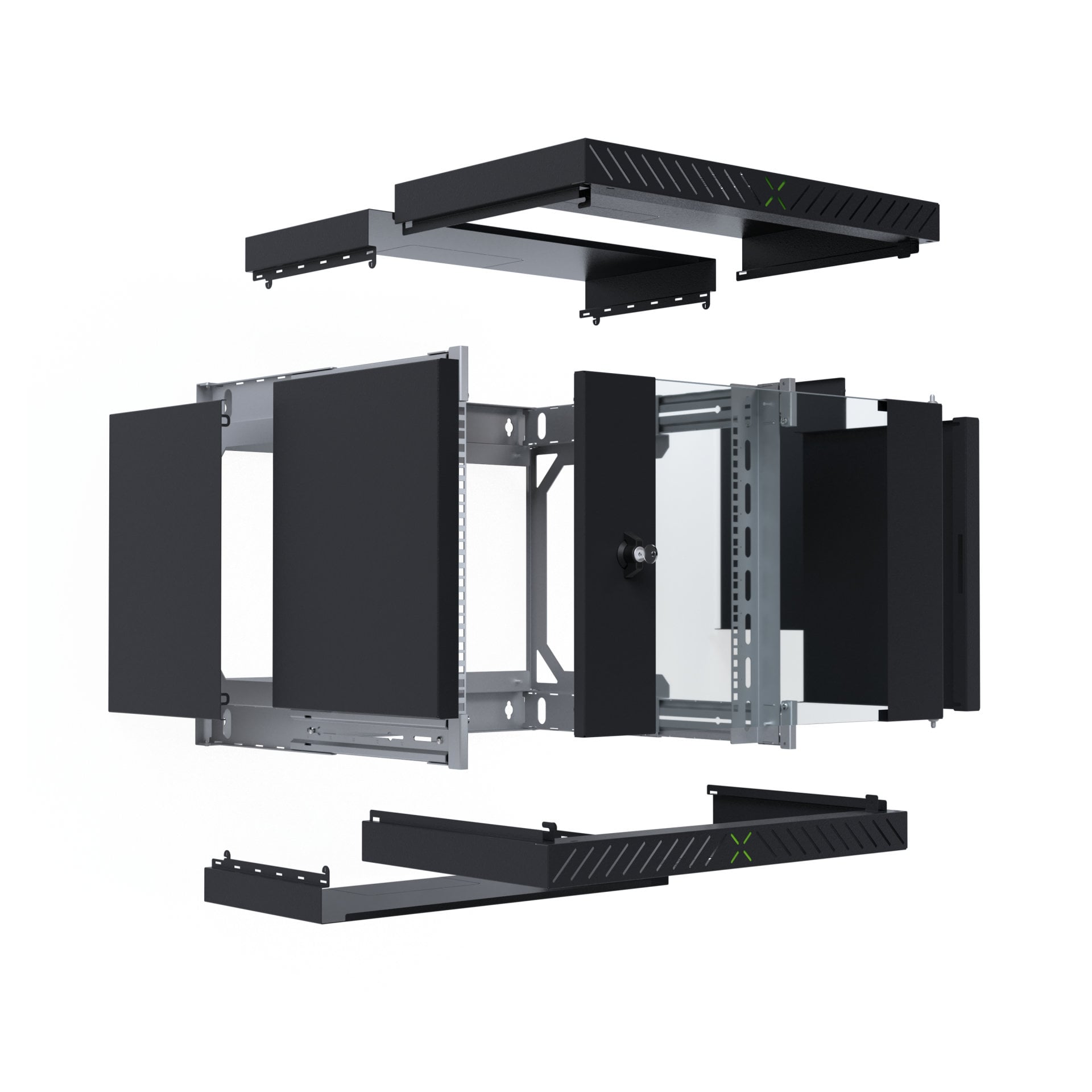

• Housing in sheet steel with swivel frame, self-ventilated, not pre-assembled

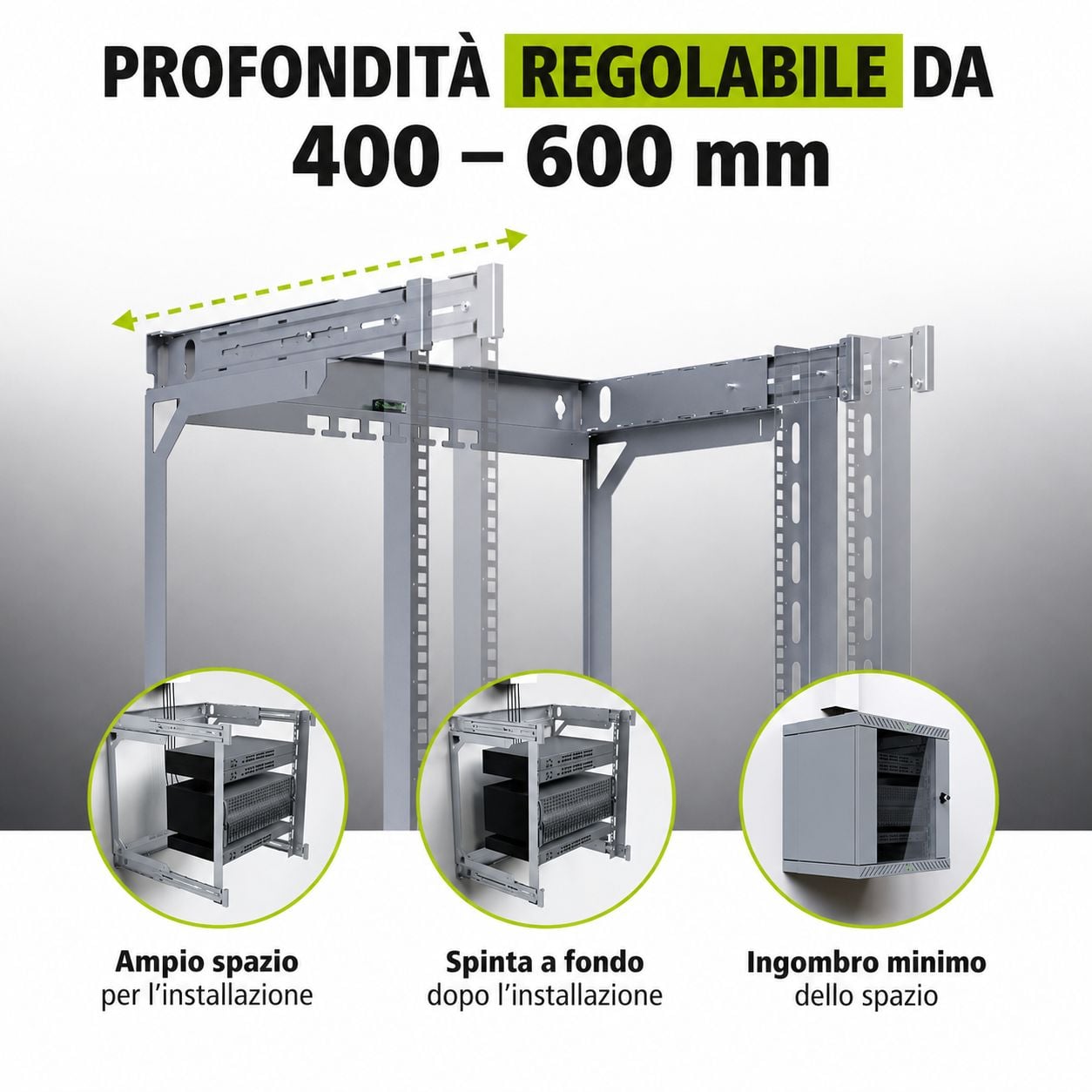

• Depth of housing adjustable with adjustable depth at 400/450/500/550/600 mm; installation depth min. - max.: 310 - 510 mm

• Fixed side walls, removable only after opening the front door

• 2 front 19 mounting rails adjustable in depth by 50 mm

• Front door with certified safety glass window (4 mm) and snap lock

• Reversible door hinge

• Interchangeable door stop thanks to robust spring metal hinges

• Adjustable door angle thanks to adjustable hinges

• Door opening angle 120°

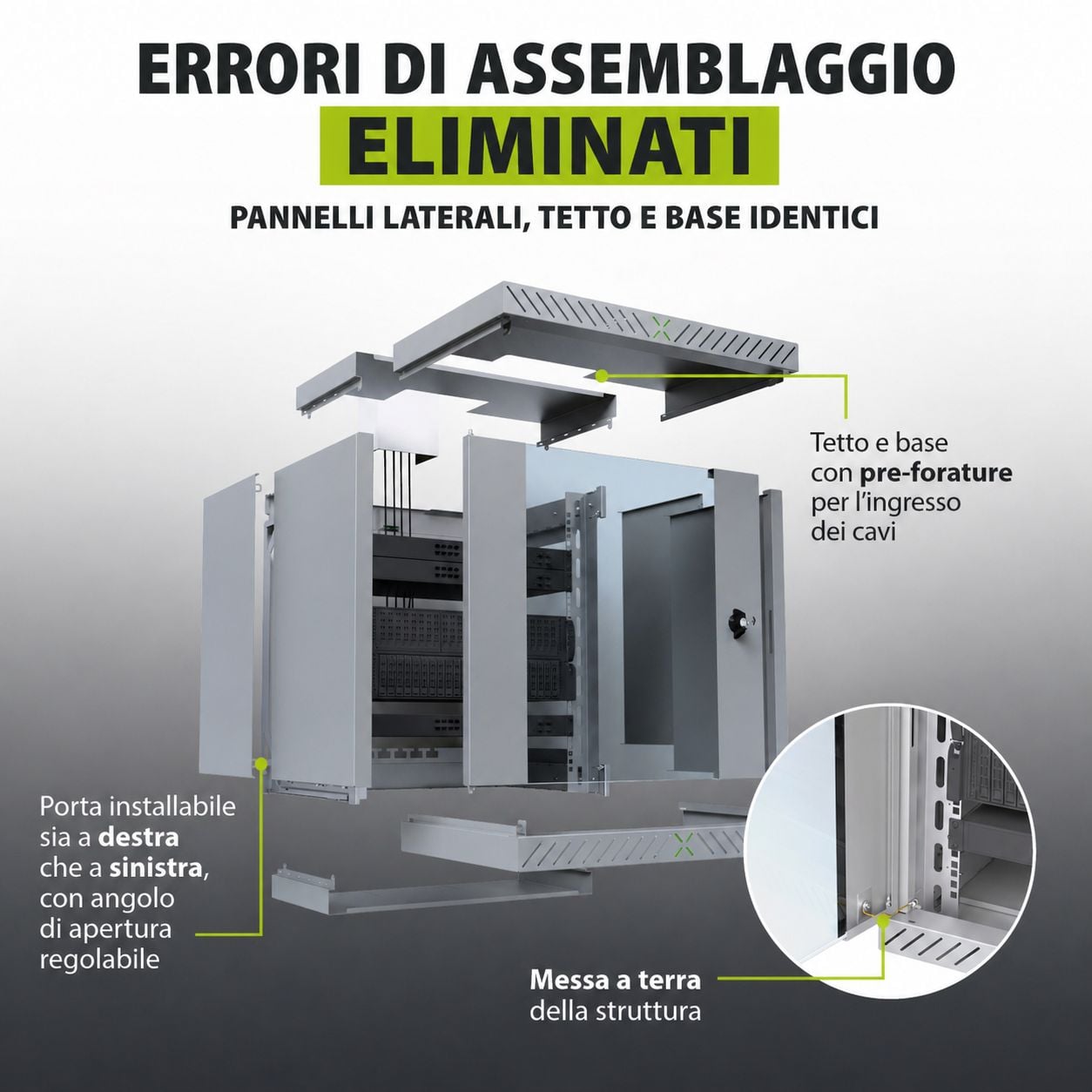

• Top and bottom with pre-drilled holes for cable entry (190 x 90 mm)

• Open rear frame with additional positions for cable management

• Top and bottom prepared for housing a single fan

• Internal parts of the cabinet fully grounded, M5 grounding bolt on the base frame

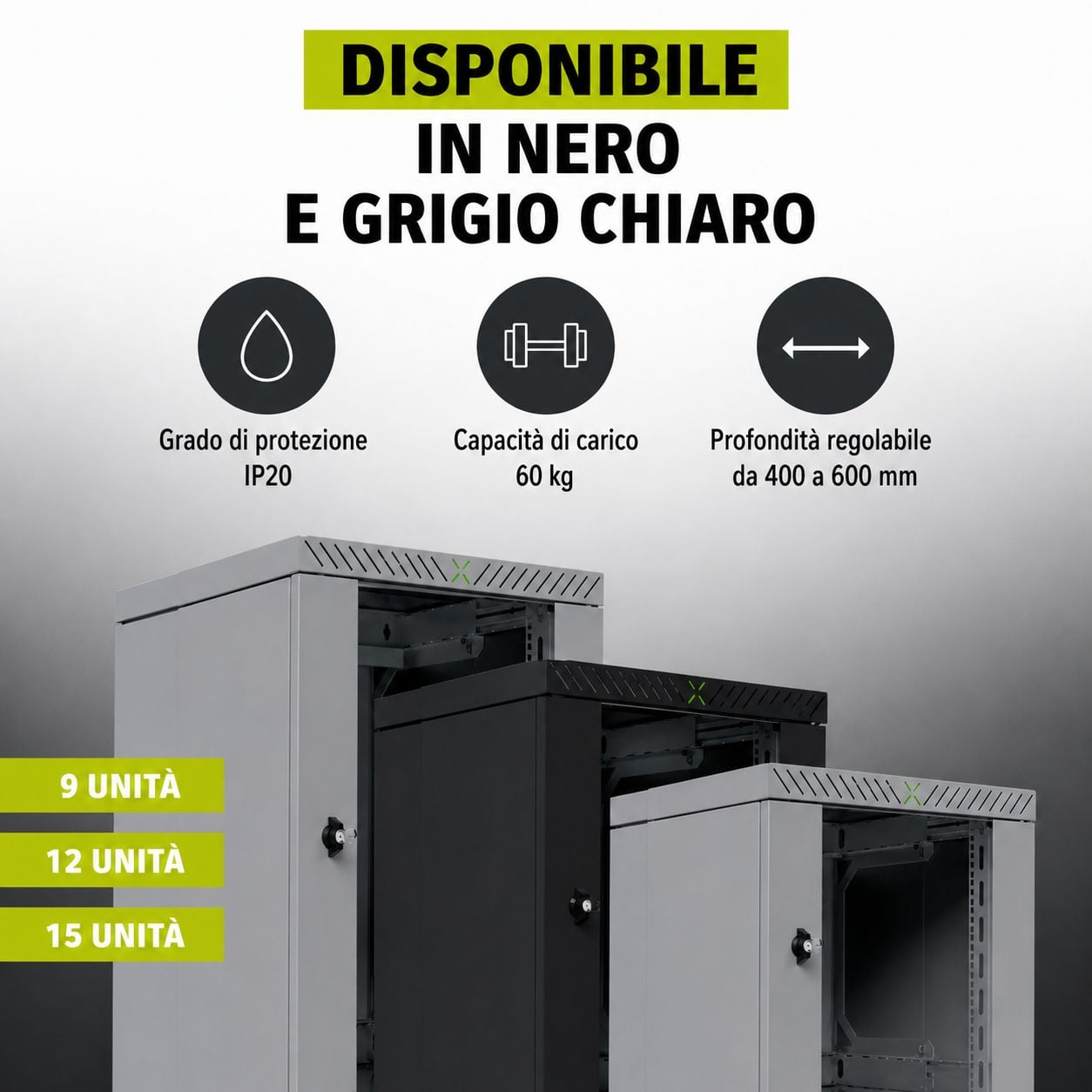

• Maximum load: 60 kg (statically evenly distributed)

• Protection degree: IP20

• Material: steel

• Coating: powder coated

• Color: RAL9005 (black)


Dimensions

•

• Width: 600 mm

• Height: 500 mm

• Depth: 400 - 600 mm


Package contents

•

• Rear frame

• External parts

• Front door

• 2 keys

• 1 grounding cable
