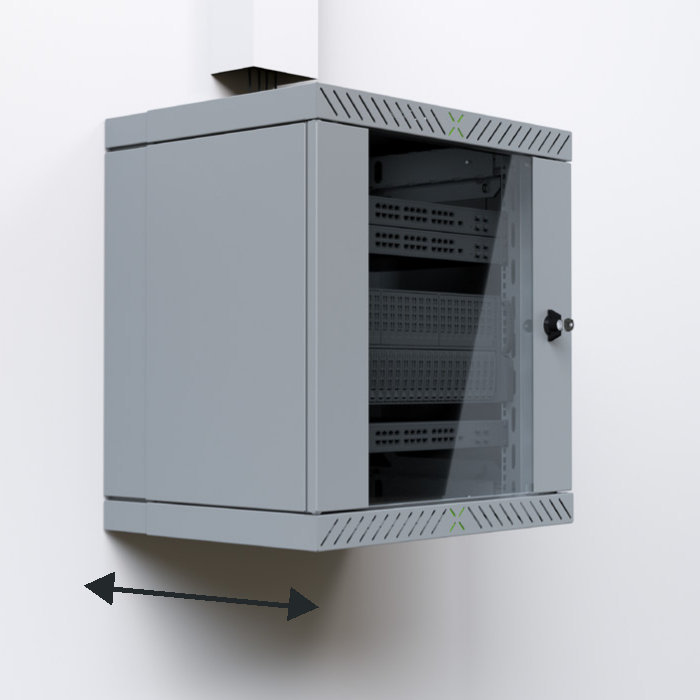

Rack cabinet 19" Wall-Mount 15U Unassembled Depth 400-600 mm Gray - X-RACK I-CASE EWX-2015G

•

• Wall-mount cabinet, to be assembled, 15 units with adjustable depth at 400/450/500/550/600 mm

• Certified safety glass door of 4 mm, easily removable and reversible, opening of 120°, snap lock

• Open rear frame with additional positions for cable management; blind side panels removable only after opening the front door

• Front mounting rails adjustable in depth by 50 mm; installation depth min. - max.: 310 - 510 mm

• Dimensions: 600 x 766 x 400-600 (WxHxD); color: RAL 7035 (gray)


•

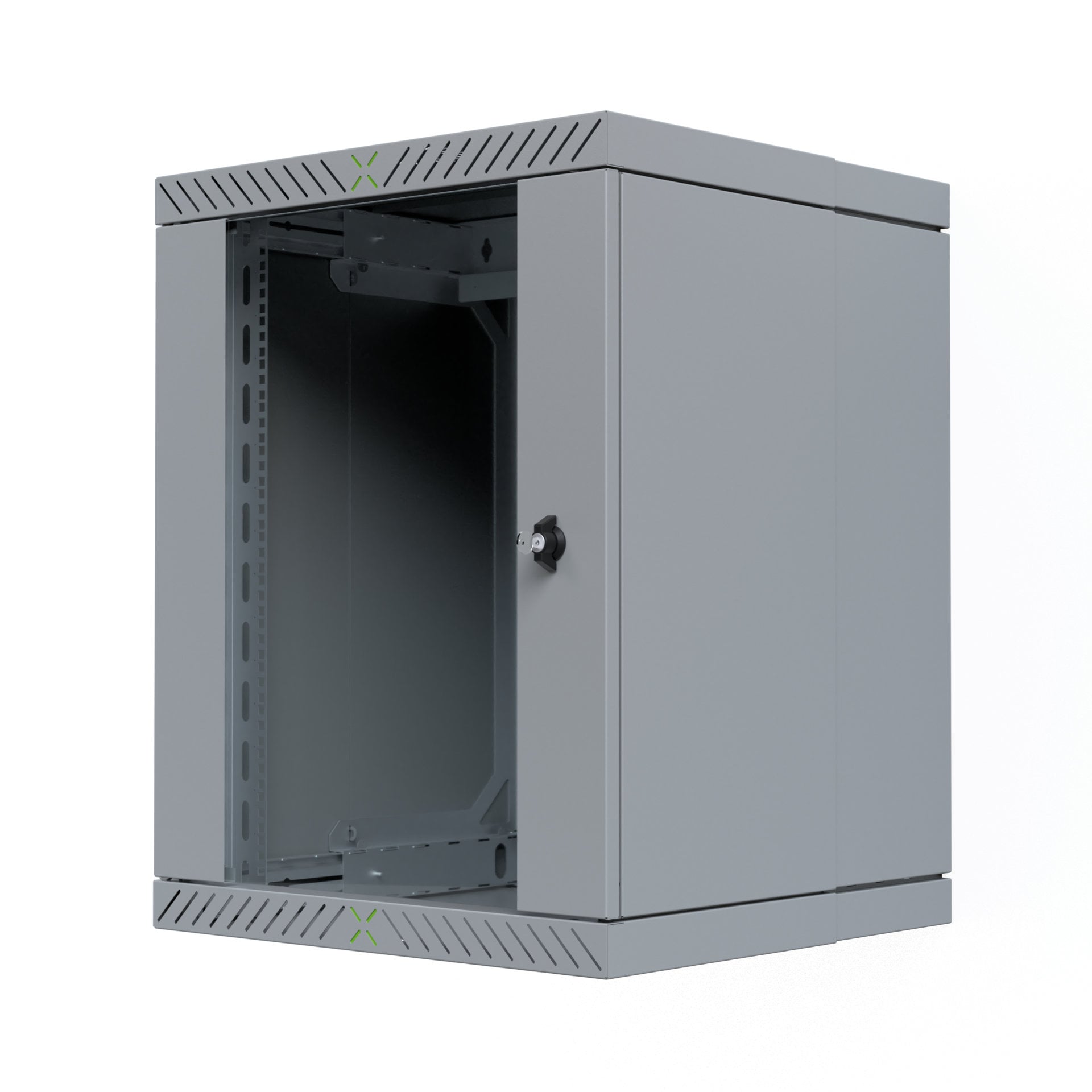

• Wall-mount cabinet 15U gray RAL7035 with glass door 400-600 mm

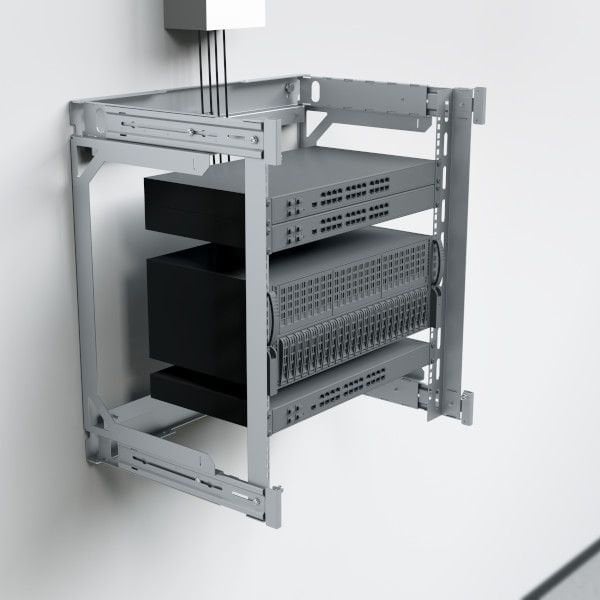

• Offers 360-degree access to components during installation

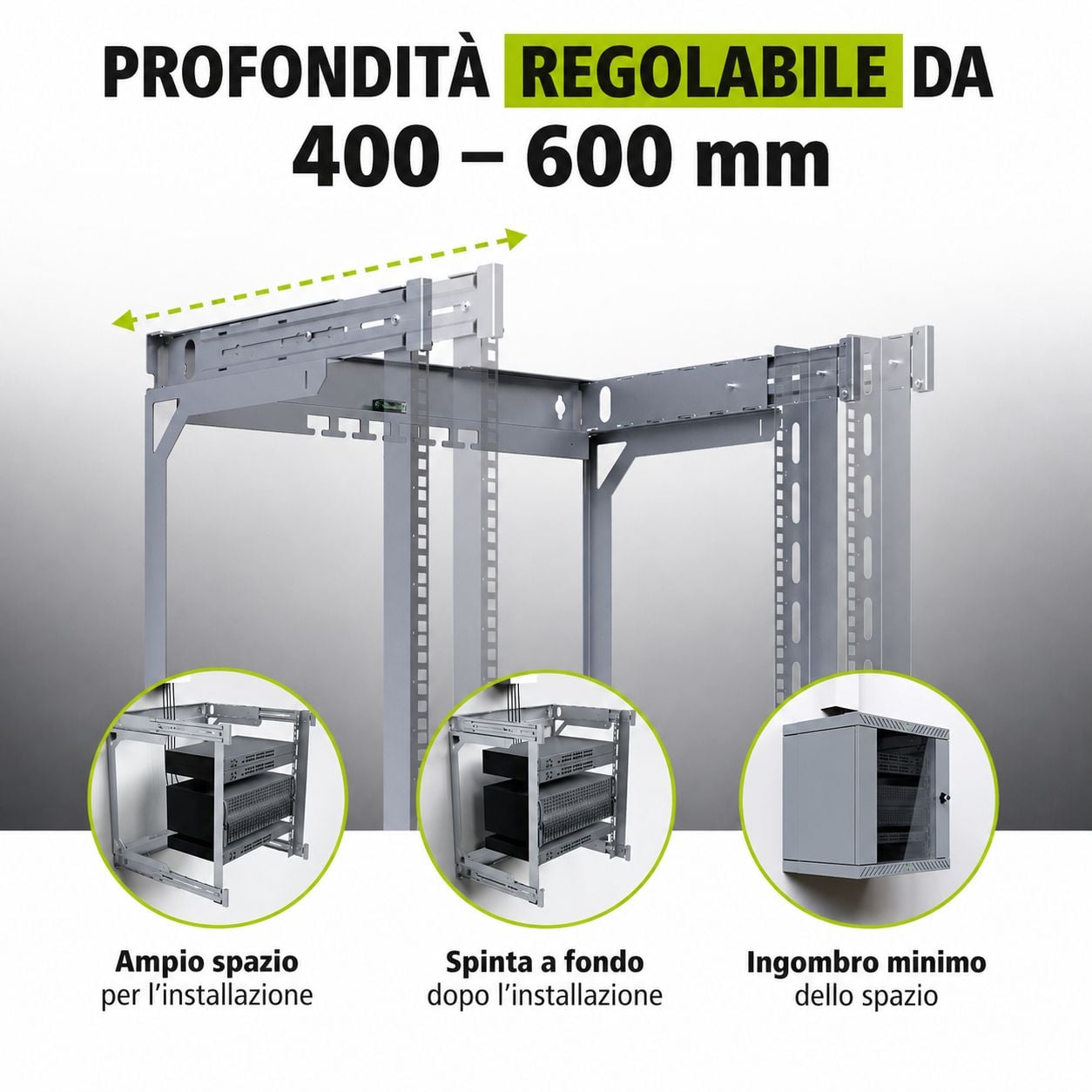

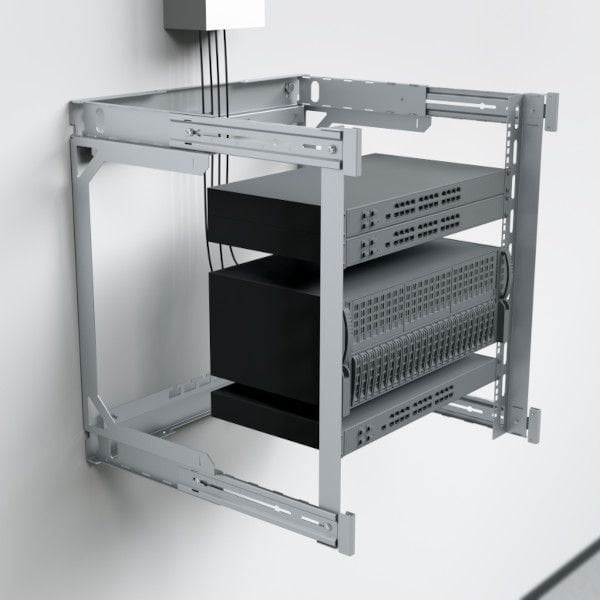

• It is possible to slide the depth of the rear frame to achieve maximum freedom of movement and optimal access to components from every side

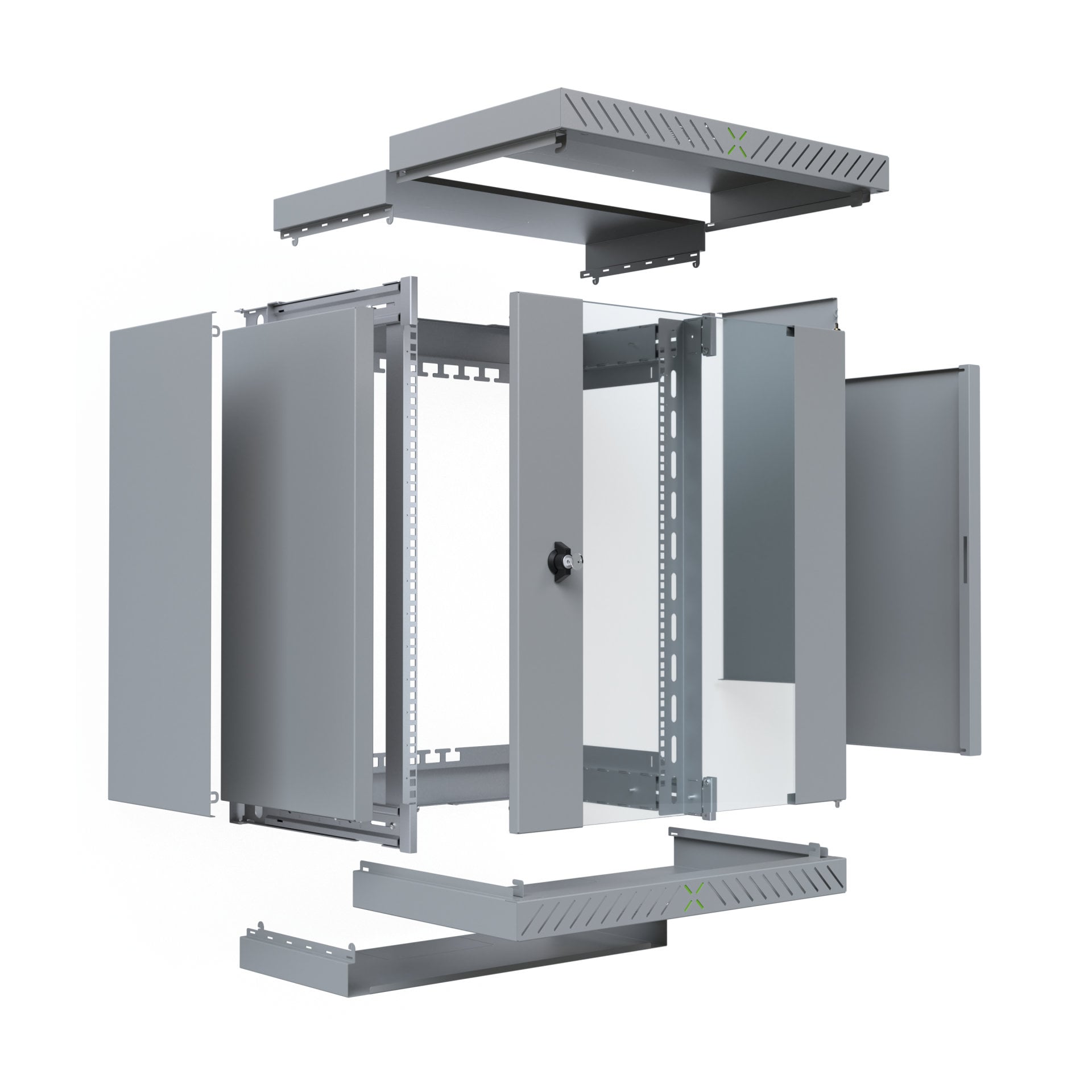

• The cabinet can be effortlessly assembled by one person

• Steel sheet housing with swivel frame, self-ventilating, not pre-assembled

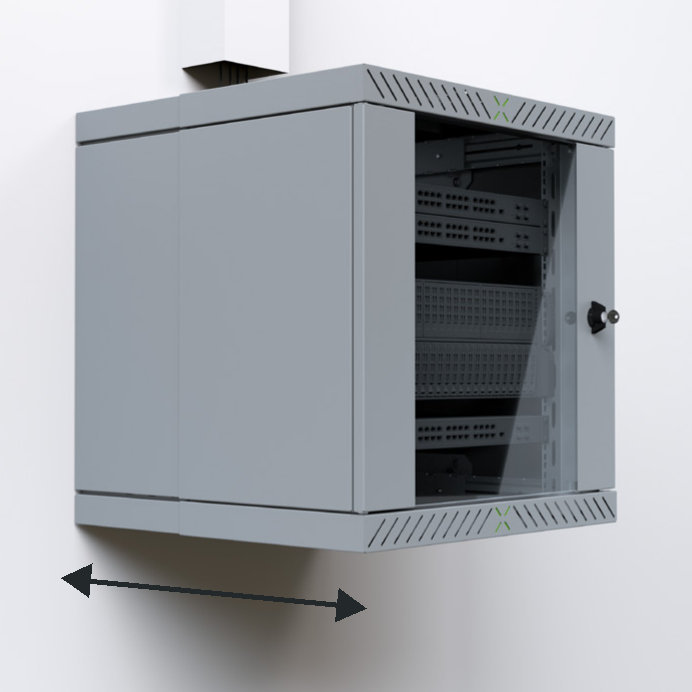

• Adjustable enclosure depth with adjustable depth at 400/450/500/550/600 mm; min. - max. installation depth: 310 - 510 mm

• Fixed side panels, removable only after opening the front door

• 2 front mounting rails 19" depth adjustable by 50 mm

• Front door with certified safety glass window (4 mm) and snap closure

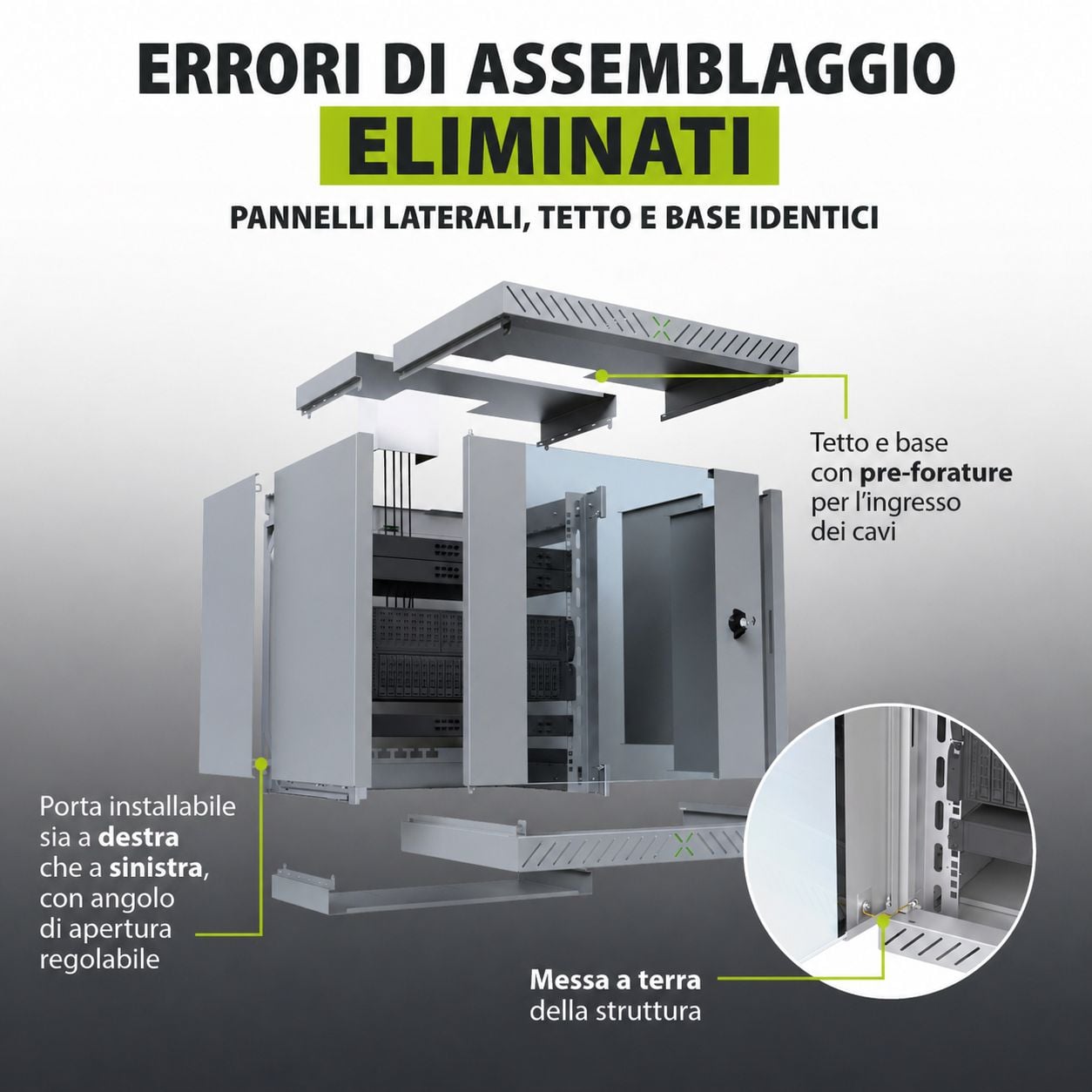

• Reversible front door hinge

• Interchangeable door stop thanks to sturdy metal spring hinges

• Adjustable door angle thanks to adjustable hinges

• Door opening angle 120°

• Top and bottom with pre-drilled holes for cable entry (190 x 90 mm)

• Open rear frame with additional positions for cable management

• Top and bottom prepared for housing a single fan

• Internal parts of the cabinet fully grounded, M5 grounding bolt on the base frame

• carico massimo: 60 kg (statically uniformly distributed)

• Protection rating: IP20

• Material: steel

• Coating: powder coated

• Color: RAL7035 (gray)


Dimensions

•

• Width: 600 mm

• Height: 766 mm

• Depth: 400 - 600 mm


Package contents

•

• Rear frame

• External parts

• Front door

• 2 keys

• 1 grounding cable
