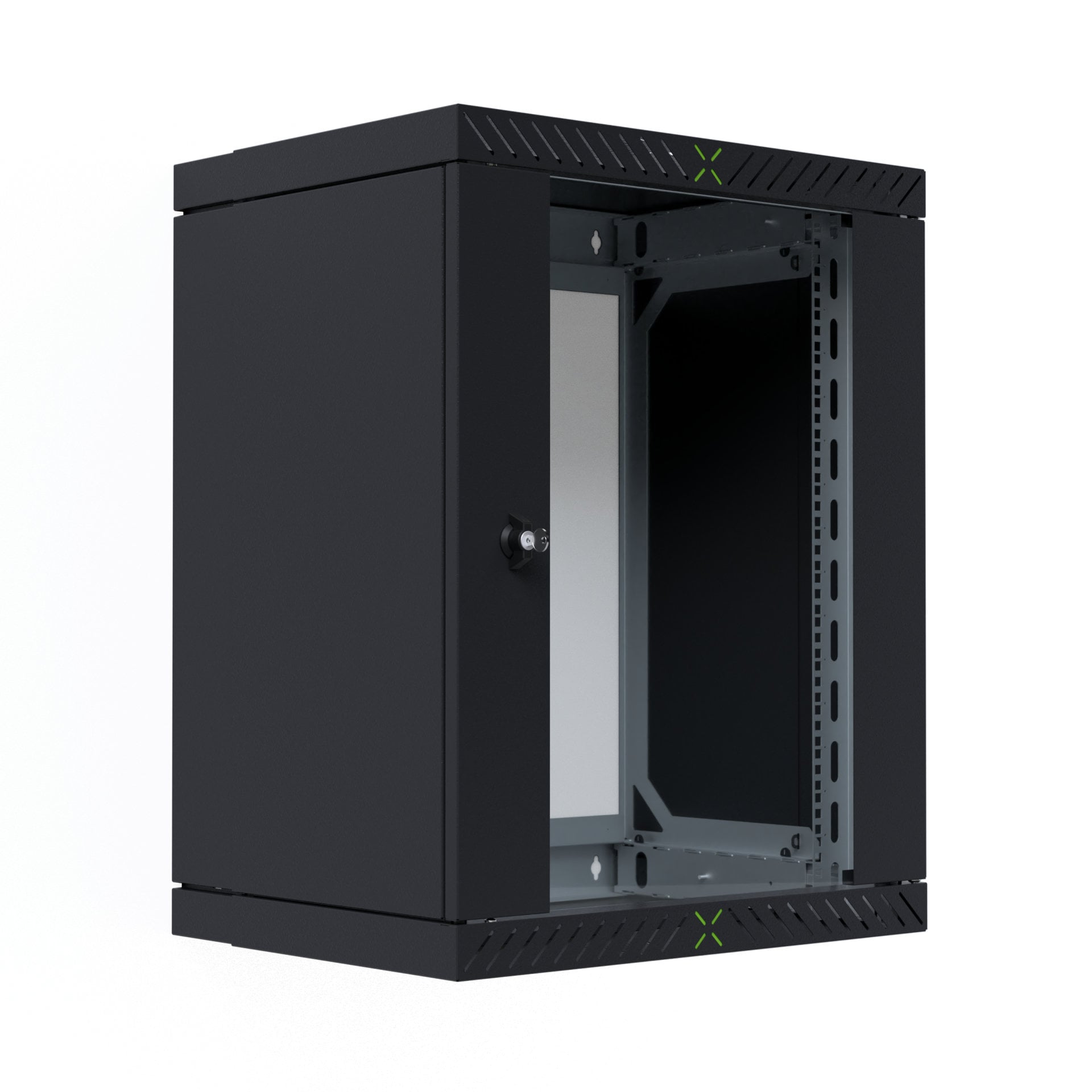

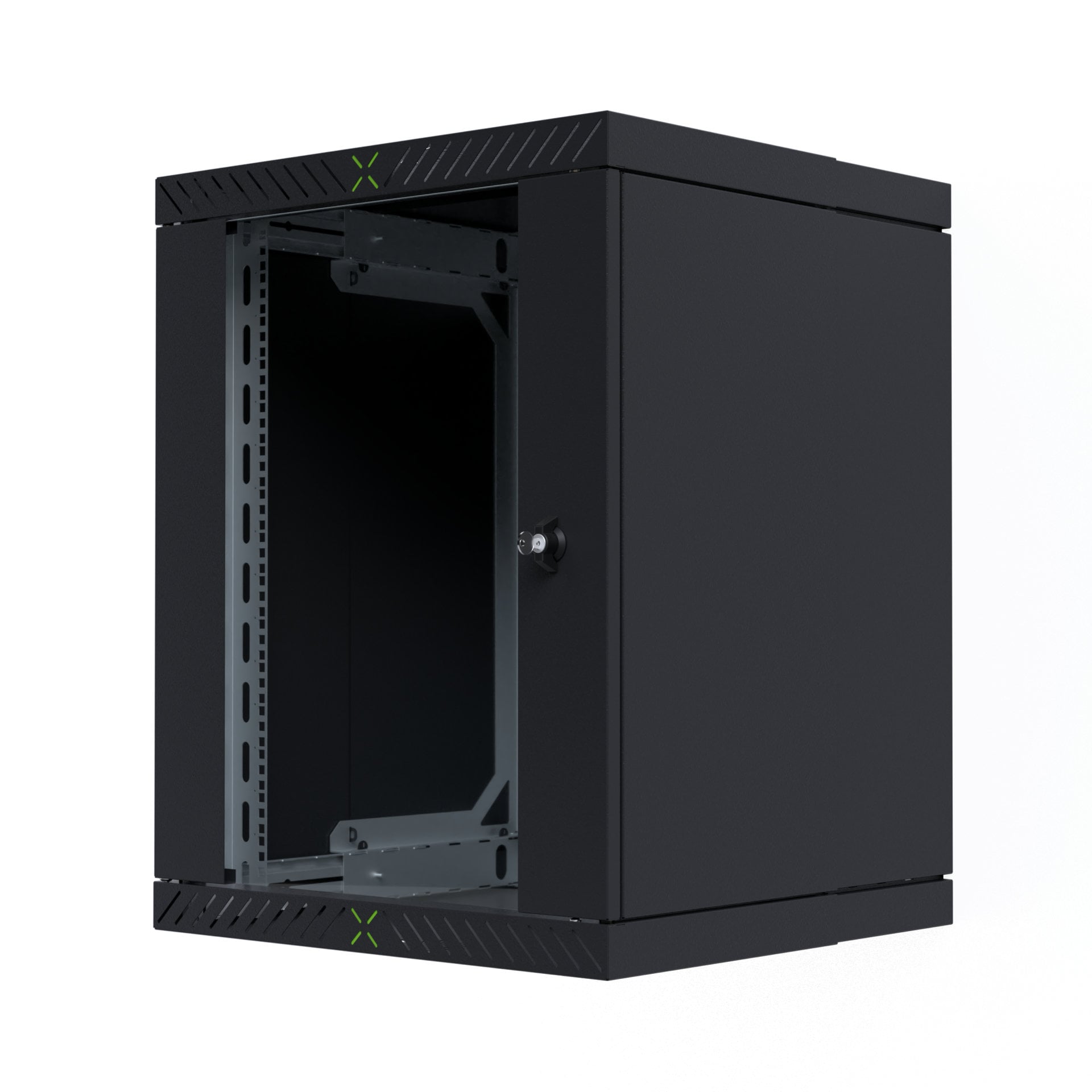

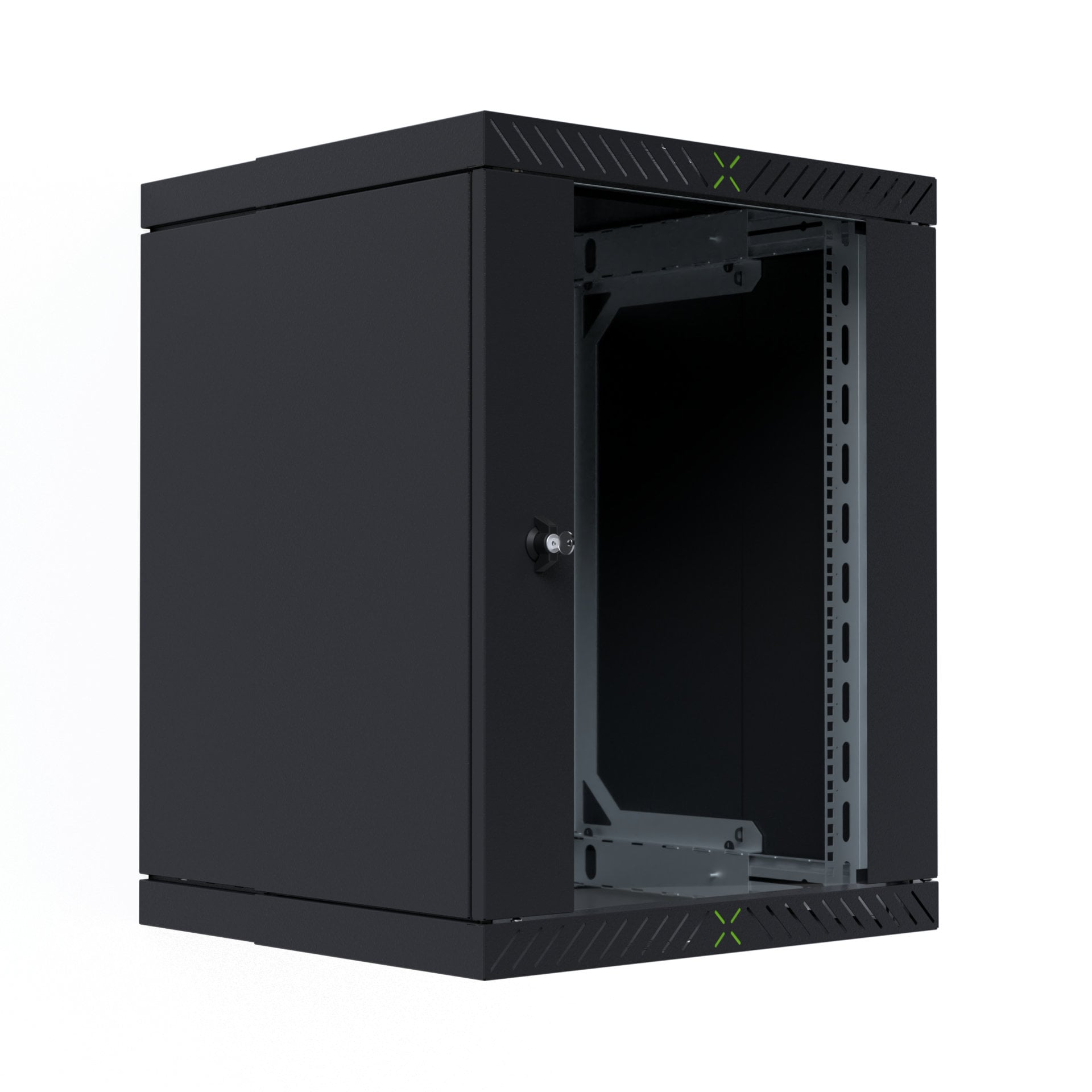

Rack cabinet 19" Wall-Mount 15U Unassembled Depth 400-600 mm Black - X-RACK I-CASE EWX-2015BK

•

• Wall-mount cabinet, to be assembled, 15 units with adjustable depth at 400/450/500/550/600 mm

• Certified safety glass door of 4 mm, easily removable and reversible, opening of 120°, snap lock

• Open rear frame with additional positions for cable management; blind side panels removable only after opening the front door

• Front mounting rails adjustable in depth by 50 mm; installation depth min. - max.: 310 - 510 mm

• Dimensions: 600 x 766 x 400-600 (WxHxD); color: RAL 9005 (black)


• Wall-mount cabinet 15U gray RAL9005 with glass door 400-600 mm

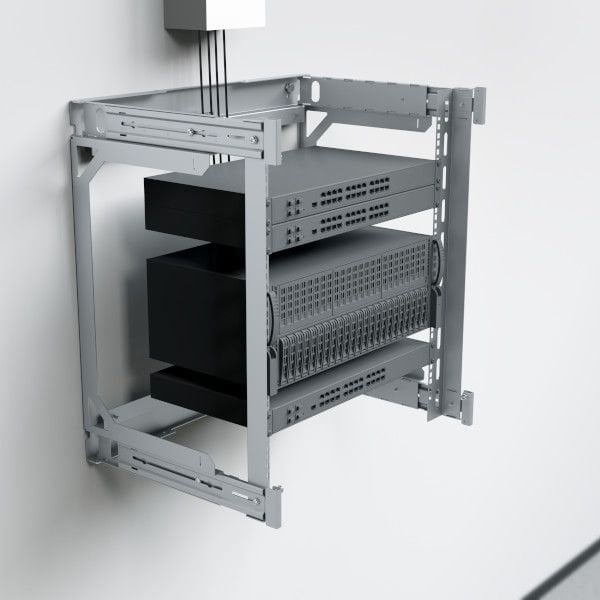

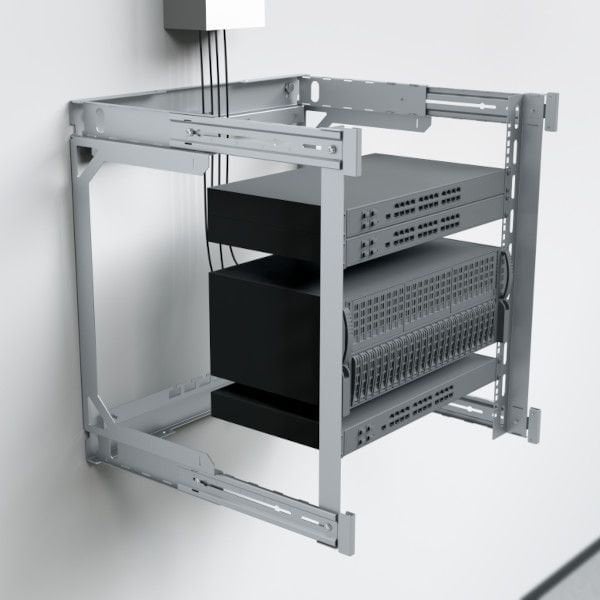

• Provides 360 degree access to components during installation

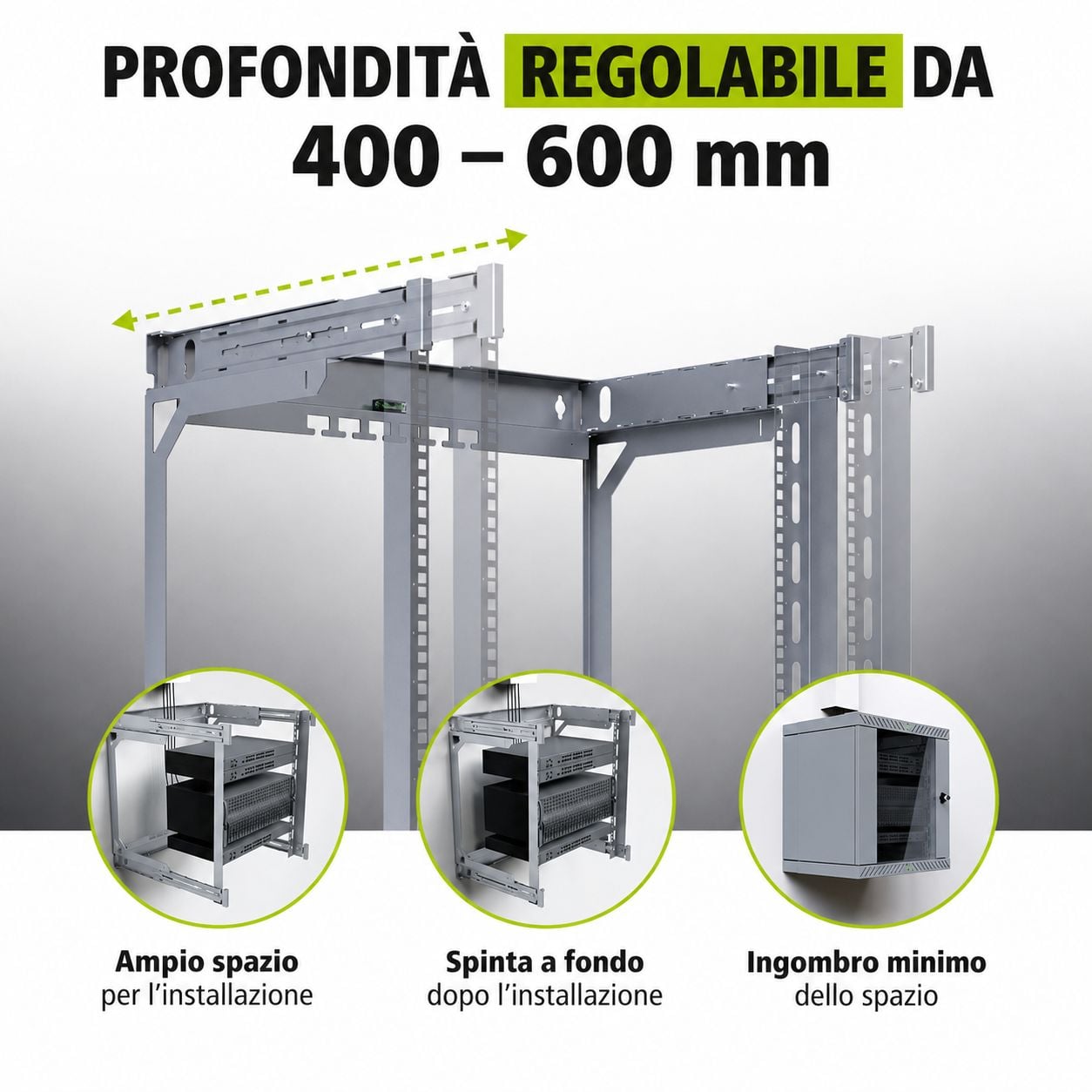

• It is possible to slide the depth of the rear frame to achieve maximum freedom of movement and optimal access to components from every side
• The cabinet can be assembled effortlessly by one person

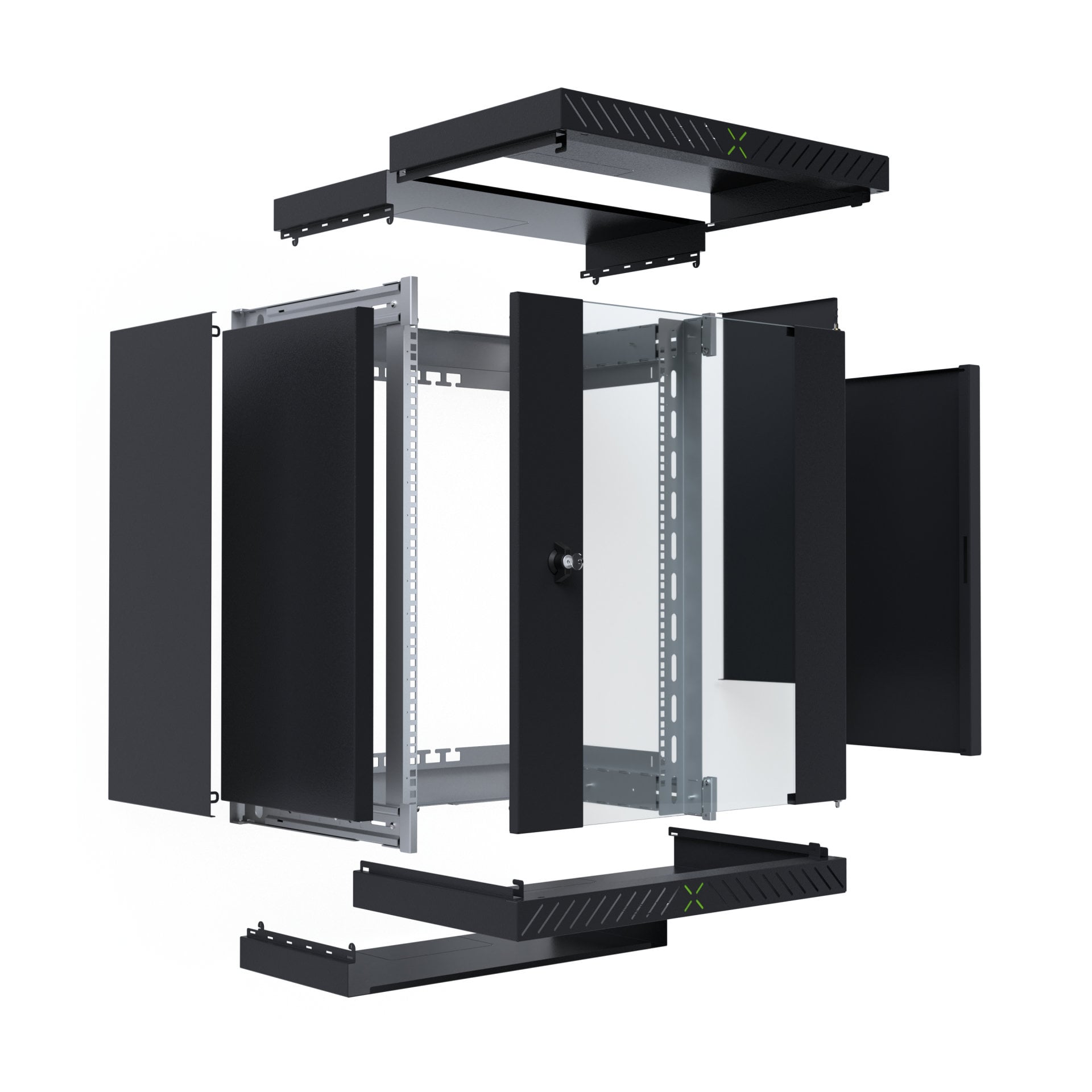

• Steel sheet housing with swivel frame, self-ventilated, not pre-assembled
• Adjustable housing depth with depth adjustable to 400/450/500/550/600 mm; installation depth min. - max.: 310 - 510 mm
• Fixed side panels, removable only after opening the front door
• 2 front mounting rails 19 adjustable in depth by 50 mm
• Front door with certified safety glass window (4 mm) and snap closure
• Reversible entry door hinge
• Interchangeable door stop thanks to sturdy metal spring hinges
• Adjustable door angle thanks to adjustable hinges
• Door opening angle 120°

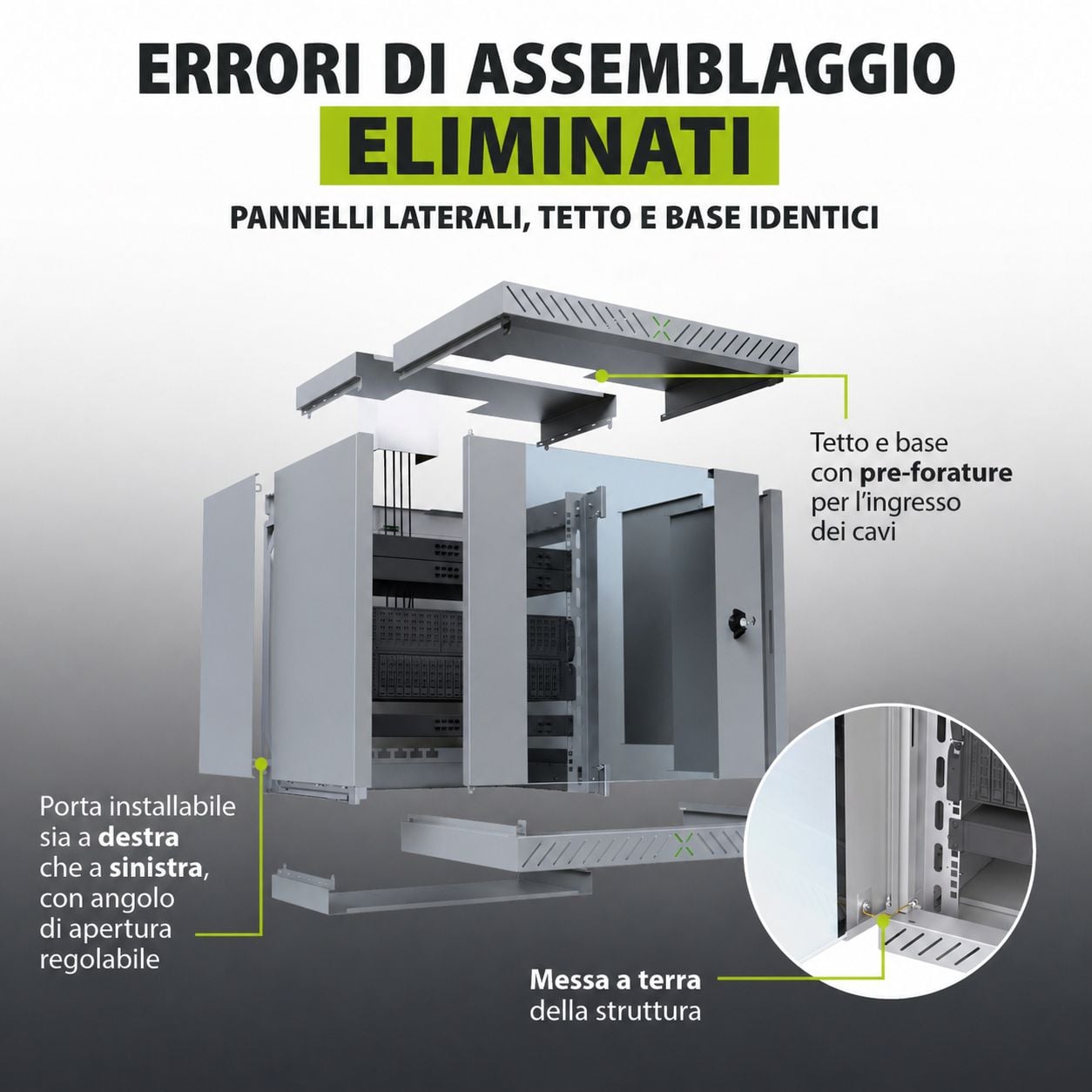

• Top and bottom with pre-drilled holes for cable entry (190 x 90 mm)
• Open rear frame with additional positions for cable management
• Top and bottom prepared for housing a single fan
• Internal parts of the cabinet fully grounded, grounding bolt M5 on the base frame

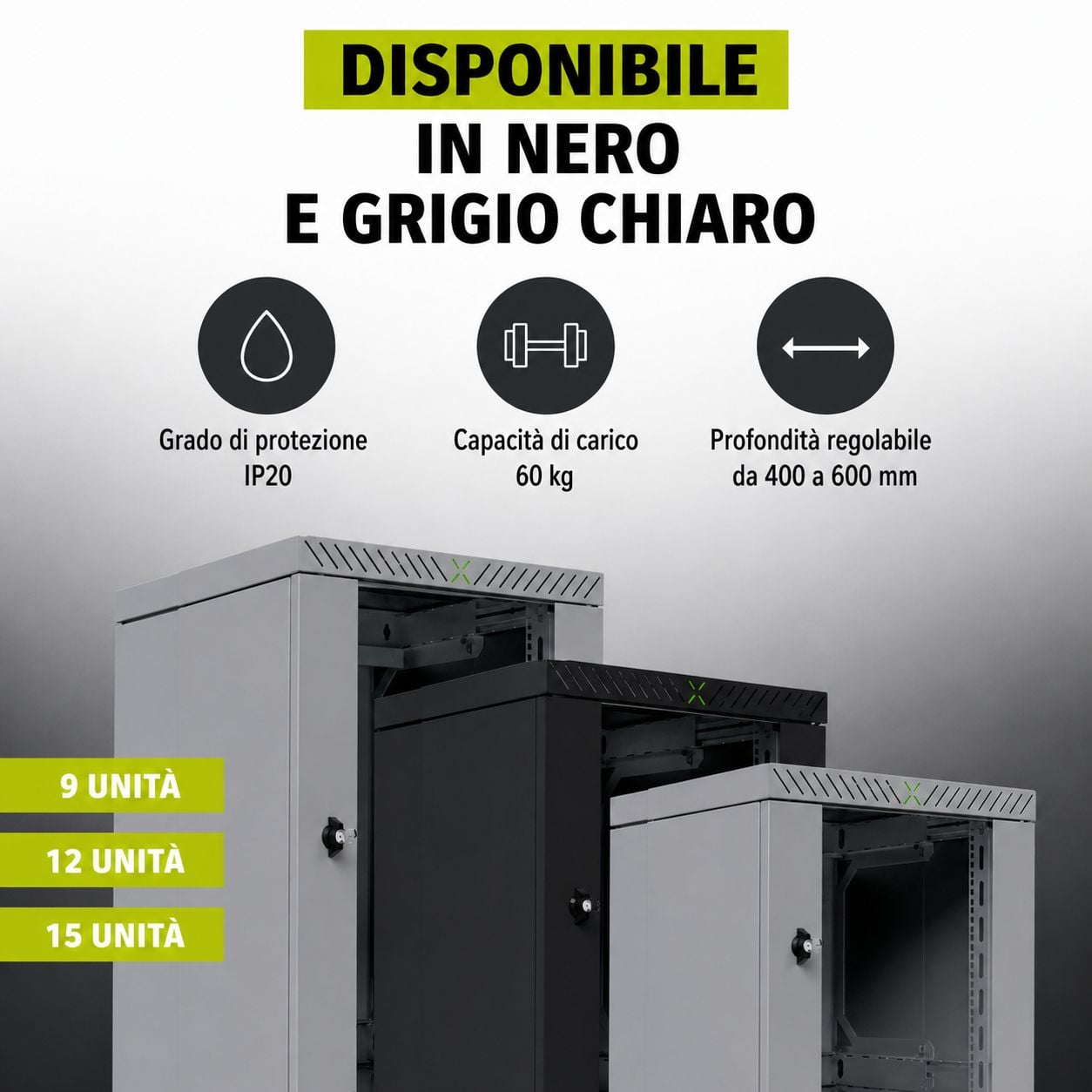

• carico massimo: 60 kg (statically uniformly distributed)
• Protection rating: IP20
• Material: steel
• Coating: powder coated
• Color: RAL9005 (black)

Dimensions

• Width: 600 mm
• Height: 766 mm
• Depth: 400 - 600 mm

Package contents

• Rear frame
• External parts
• Front door
• 2 keys
• 1 grounding cable
