- Housing with IP-30 protection rating
- 10/100 auto-sensing ports — automatically identify the optimal network speed
- Supports any combination of network devices from 10 Mbps or 100 Mbps
- All RJ45 ports support Auto MDI-X and NWay auto-negotiation
- Store-and-Forward switching architecture
- Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
- Supports 2048 MAC addresses
- LEDs for status, connection/activity, power fault indication
- DIN rail or wall mount

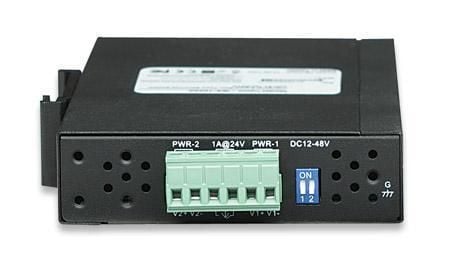

- The terminal block provides dual power input with reverse polarity protection
Standard- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control, for full duplex mode)
General information- 10Base-T Cat3, 4, 5 UTP/STP RJ45
- 100Base-TX Cat5 UTP/STP RJ45
- Packet filter/forwarding rate:
- 148,800 pps (100 Mbps)
- 14,880 pps (10 Mbps)
- MAC address: 2048 ports
- Switch Architecture: store and forward
- Certifications: FCC Class A, EN55022 Class A
LED- Green - On
- Green - Link/Activity
- Yellow - Power fault indication
- Yellow - Duplex/Collision
Power - Input voltage: 24 V DC (12-48V DC on pin 6 of the terminal block), dual input
- Reverse polarity protection: present
- Power consumption: 4.0 Watts (typical)
Physical information- IP30 housing
- Dimensions: 26 (W) x 144.3 (H) x 95 (D) mm
- Weight: 390 g
- Operating temperature: -40 – 70°C
- Operating humidity: 5 – 95% RH, non-condensing
- Storage temperature: -40 – 85°C
Approvals - FCC Class A
- EN55022 Class A
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- EN60950
- Shock: IEC 60068-2-27
- Free fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
Package contents- Industrial Fast Ethernet Switch
- Quick installation guide
