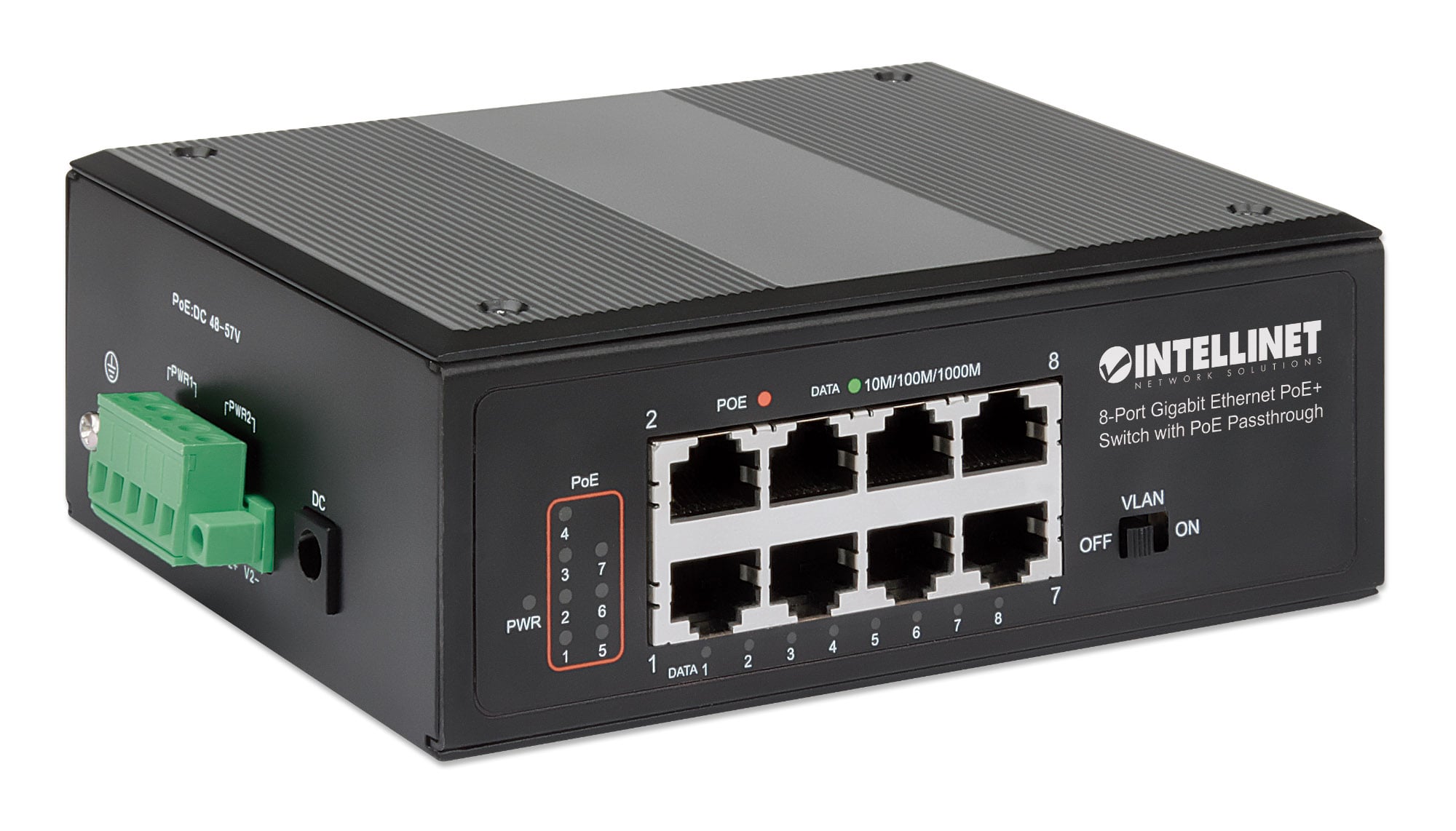

Gigabit Ethernet Switch 8 PoE+ Ports with PoE Pass-Through - Intellinet I-SWHUB 7GPU1PD

• Supports up to 95 W of input power from a PoE injector or switch


• Provides power and data to up to seven PoE network devices


• Doubles the connection distance between the PoE source and the device from 100 m to 200 m


• Powered via PoE, DC power supply or industrial power supply (not included)


• PoE power budget up to 120 watt (depending on the power supply used)


• Allows reducing installation costs by transmitting data and power over existing network cables


• Compatible with IEEE 802.3at/af RJ45 PoE/PoE+ on output ports


• Output power up to 30 watts per port


• Grounding point to protect equipment from external electrical surges


• Two redundant DC inputs (48 - 57 V) with I/O terminals


• Port with overcurrent protection up to 6kV


• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, IP cameras)


• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection


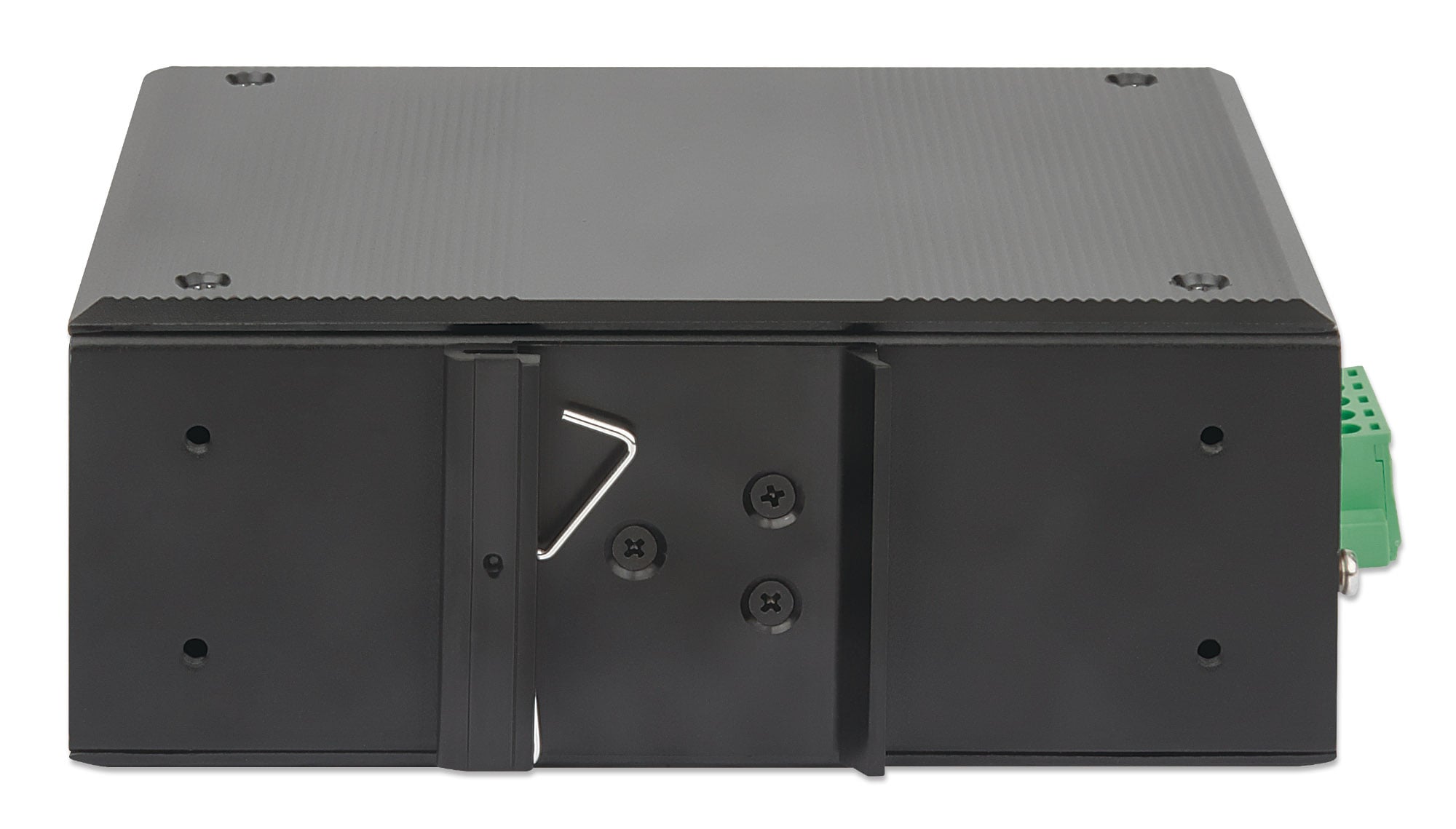

• Optional DIN rail mounting


• Rated for shock (IEC 60068-2-27), drop (IEC 60068-2-32), and vibration (IEC 60068-2-6)


• Wide operating temperature: from - 20 to 75°C


• Switch to activate VLAN


• Automatic detection of optimal port speed 10/100/1000 Mbps


• 16 Gbps switch fabric


• Energy-saving technology allows unused ports to be disabled and adjusts power levels according to cable length


• All RJ45 ports support Auto-MDIX (auto uplink)


• Supports 4k MAC addresses with Auto-Learning and Auto-Aging


• Supports jumbo frames up to 9.2 kBytes


• Store and forward switching architecture


• Supports IEEE 802.3x for flow control on full duplex and backpressure on half duplex


• LEDs for power, link/activity, and PoE


• Fanless design ideal for silent operation


• Fully NDAA compliant



Standards

• IEEE 802.3 (10Base-T Ethernet)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3ab (Gigabit Ethernet over Twisted Pair)


• IEEE 802.3af (Power over Ethernet 802.3at Type 1)


• IEEE 802.3at (Power over Ethernet 802.3at Type 2)


• IEEE 802.3az (Energy Efficient Ethernet [EEE])


• IEEE 802.3x (flow control for full-duplex mode)



General information

• Supports:



- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

• Packet filter / forwarding rate:



- 1,488,000 pps (1,000 Mbps)

- 148,800 pps (100 Mbps)

- 14,880 pps (10 Mbps)

• MAC address: 4.000 entries


• Backplane speed: 16 Gbps


• Switch architecture: store and forward


• MTBF: >50,000 hours


• Certifications: FCC Class A, CE, RoHS



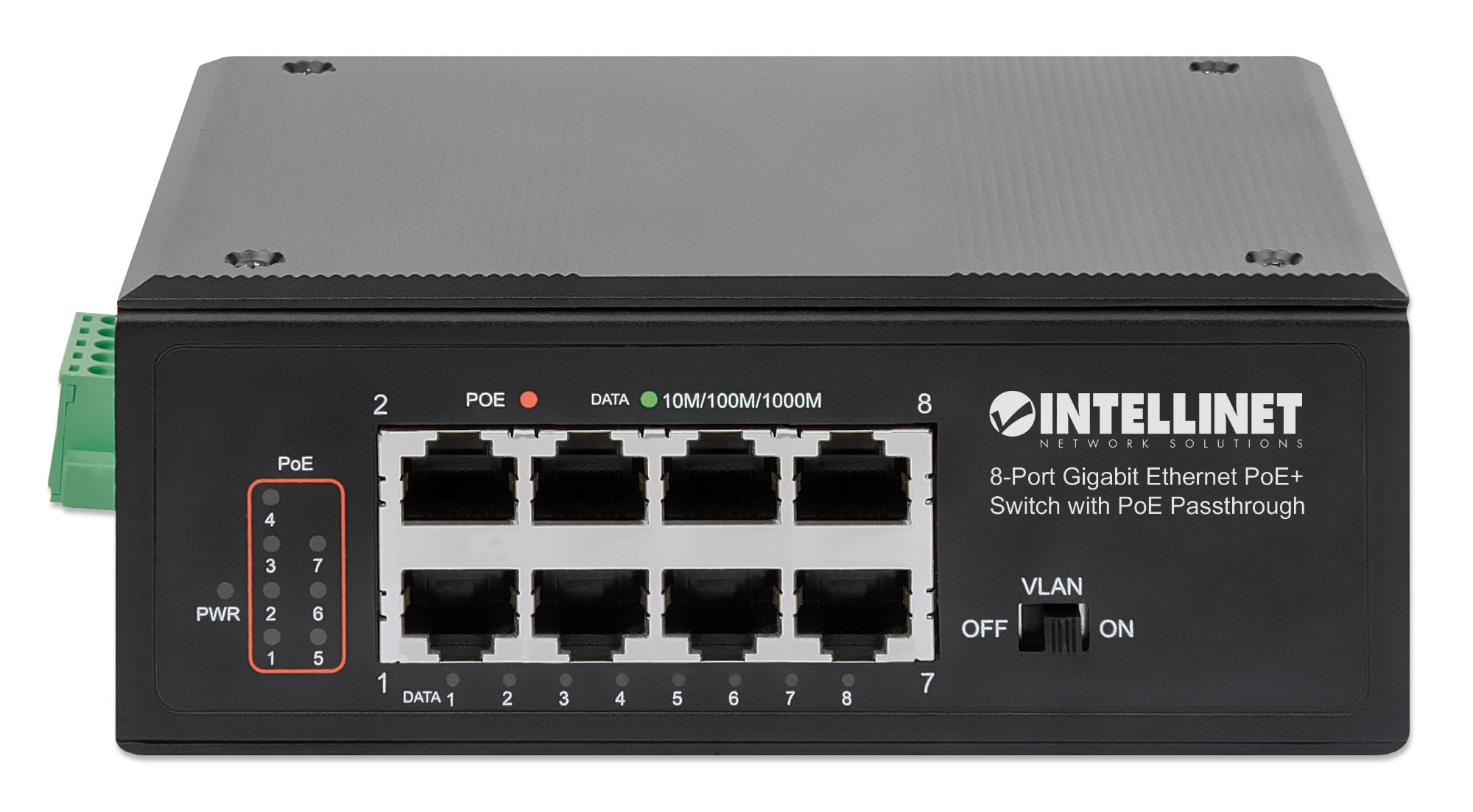

LED

• PoE


• Power


• Activity/Connection



PoE pinout

• Standard IEEE 802.3af/at mode A



- Pin 1: DC (+)

- Pin 2: DC (+)

- Pin 3: DC (-)

- Pin 6: DC (-)



Power

• Via PD port (port 8)



- Input: compatible with Ultra PoE or IEEE802.3af/at

- PoE Budget: 95 watts (maximum)

• Via DC power adapter



- Input: 55 V DC/up to 2,3 A

- DC plug tip: OD/ID 5,5 x 2,1 mm, length 9,5 mm, inner conductor (+), outer conductor (-)

- PoE budget: 120 watts (maximum)

• Via industrial DC power supply



- Input: 48 – 57 V, up to 2,3 A

- PoE budget: 120 watts (maximum)

• Power consumption



- Maximum. 125,0 W (with external power supply)

- PoE power supply varies depending on the input



Physical information

• Metal housing

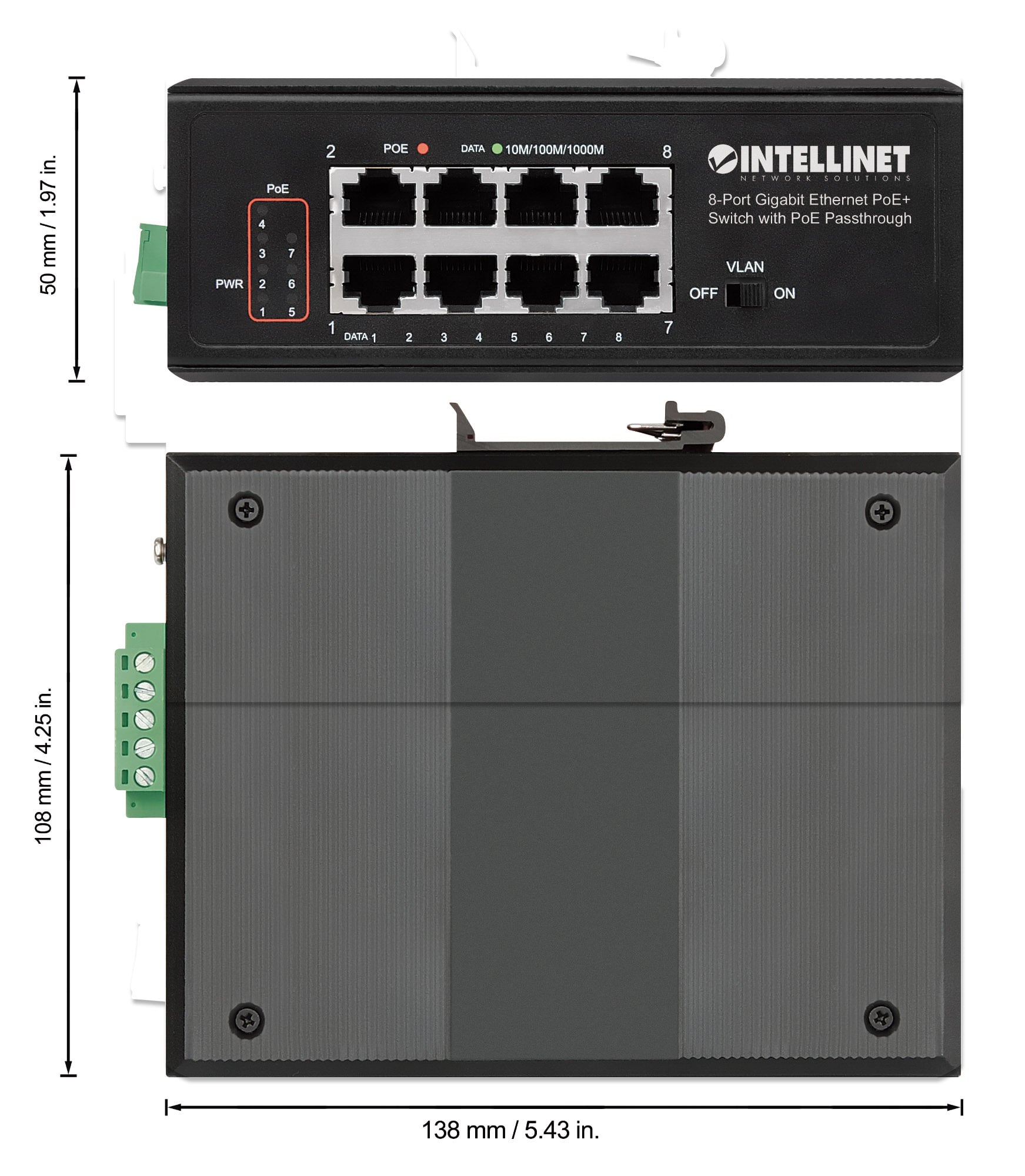

• Dimensions: 138 x 108 x 50 mm


• Weight: 673 g


• Operating temperature: from -20 to 75°C


• Storage temperature: from -40 to 75°C


• Operating humidity: 10 – 90% non-condensing


• Storage humidity: 5 - 90% non-condensing



Package contents

• Gigabit Ethernet switch 8 PoE+ ports with PoE Passthrought


• DIN rail mounting brackets


• Instructions



WARNING: this product does not include the power supply.
