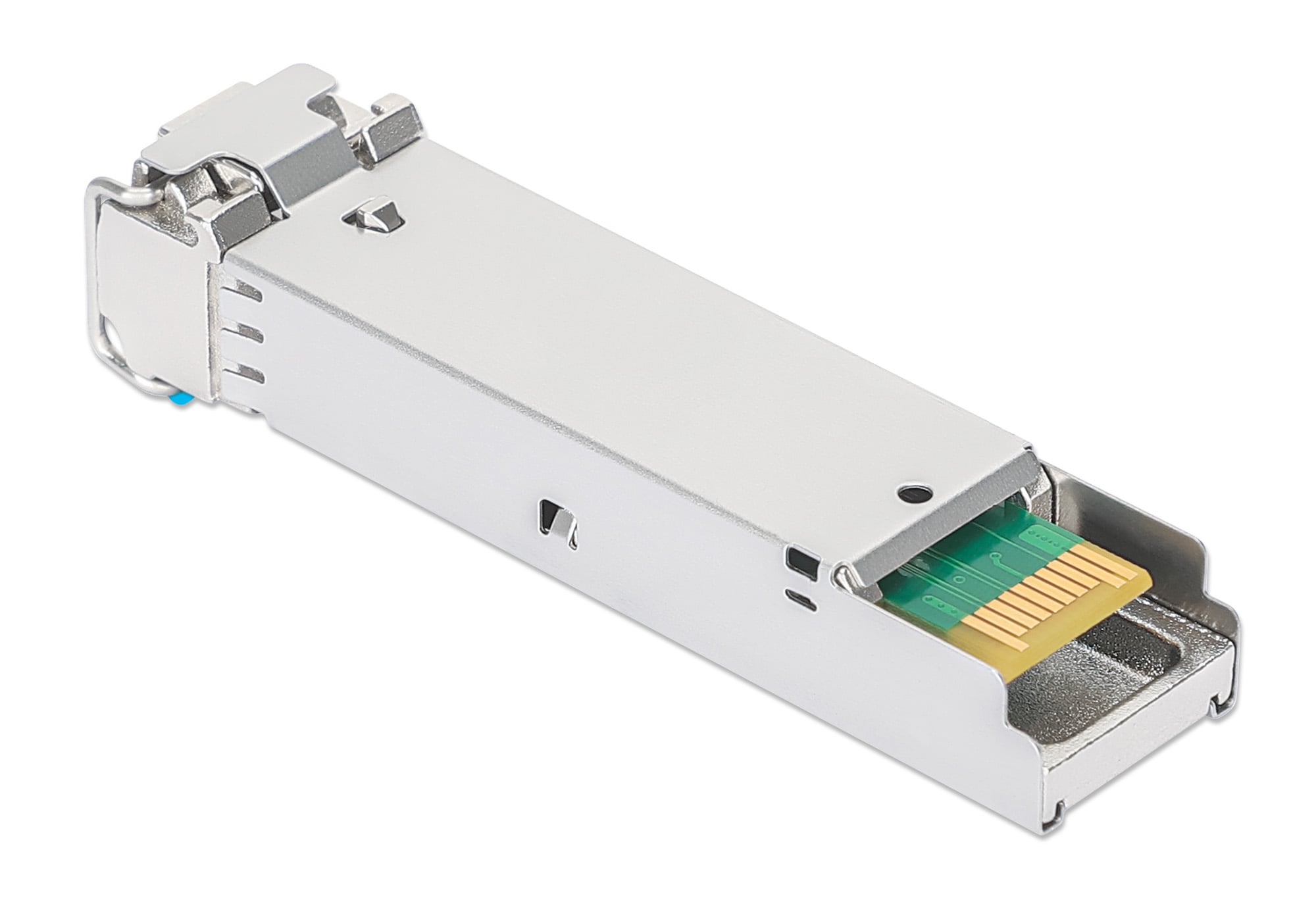

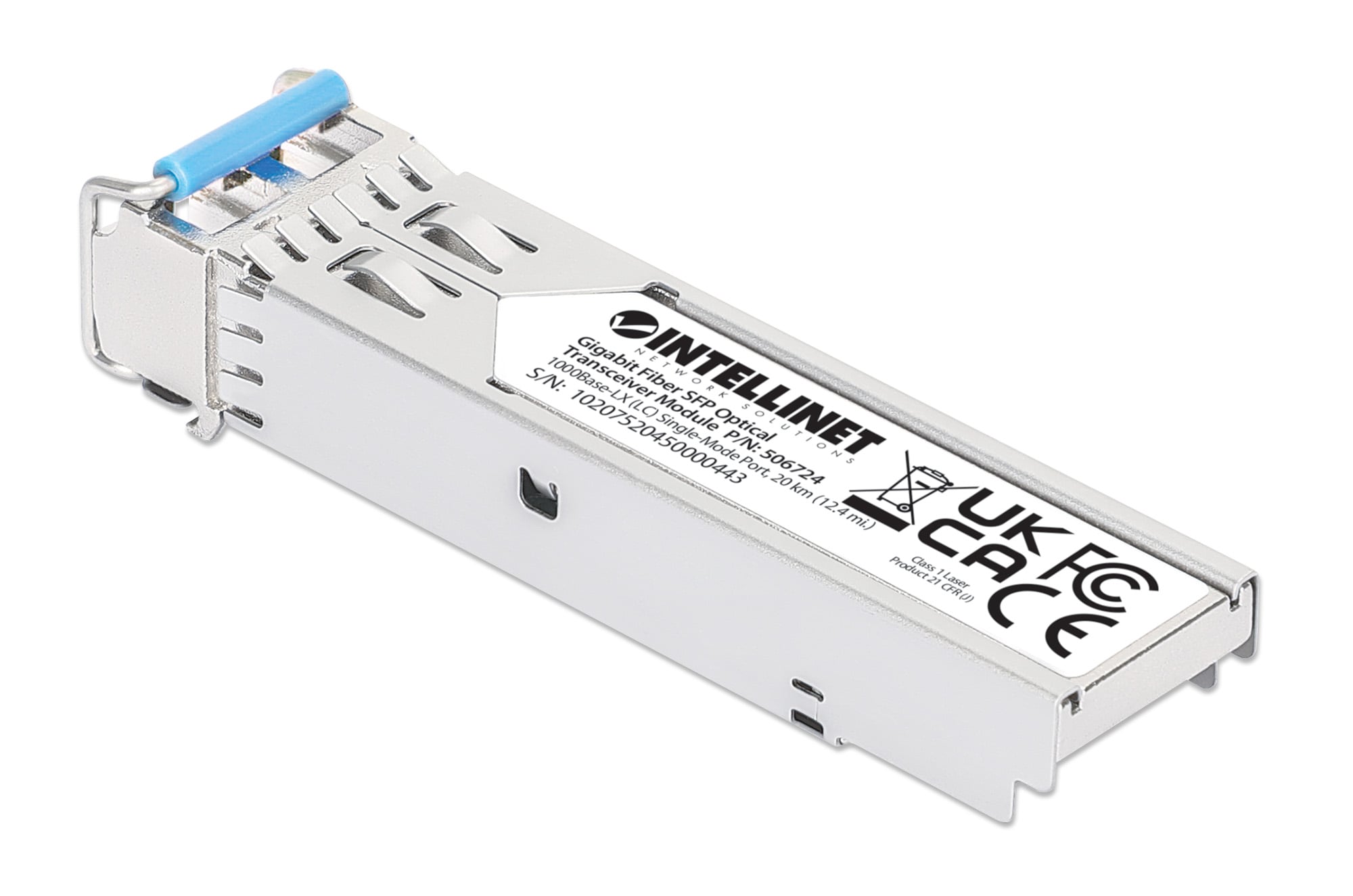

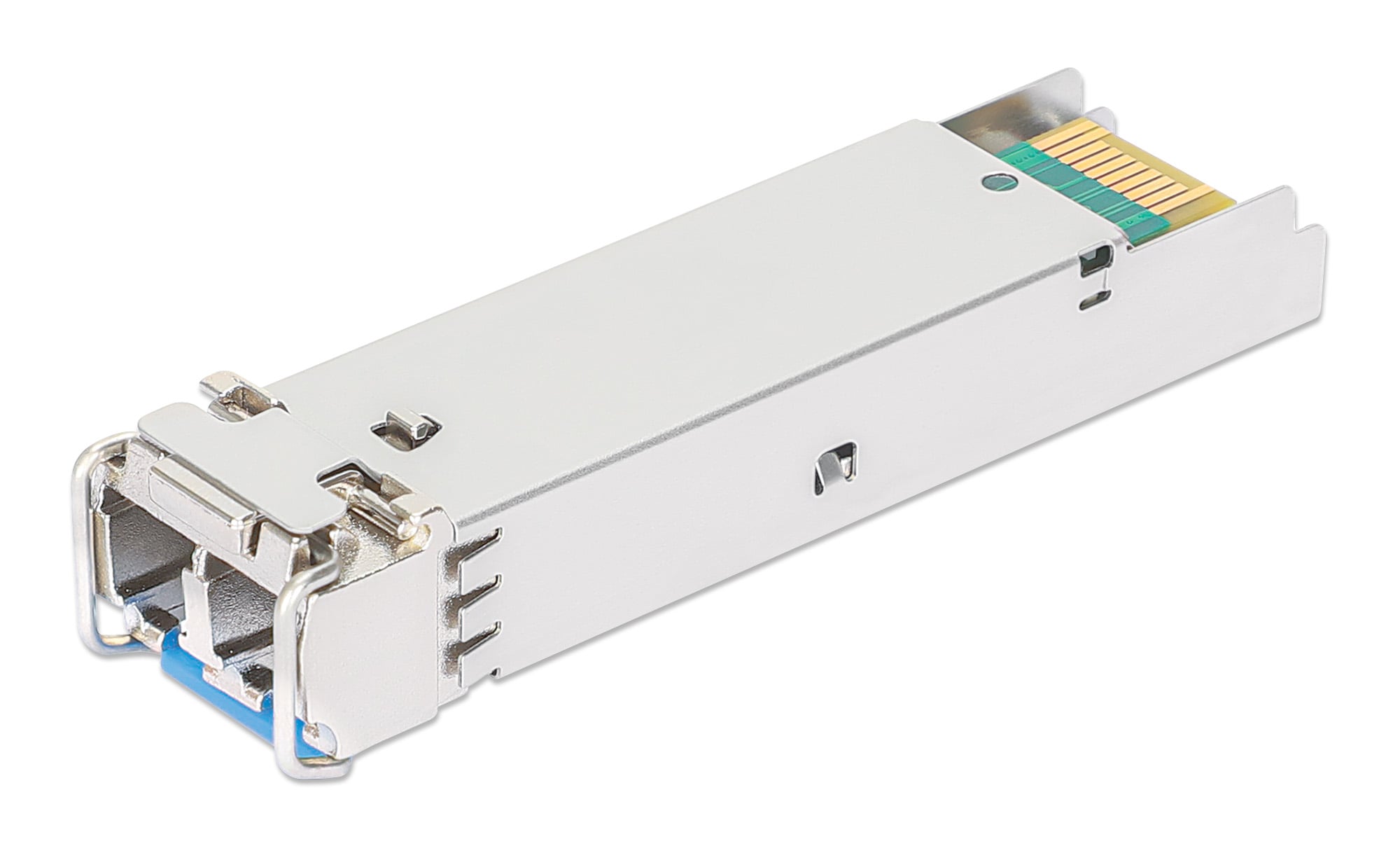

Mini-GBIC Gigabit Ethernet SFP Transceiver 1000Base-LX 20km - Intellinet I-TX-MGBIC013

€18.68
Tax included €15.30 excl. VAT

SFP 1000 Mbps Transceiver with LC duplex port 1000Base-LX, distance up to 20 km (cable 9/125 µm). Wavelength 1310 nm, hot-plugging, compatible with Cisco GLC-LH-SM.

36 items
  • Shipping €12.81 in Italy (islands €13.42) · delivery in 24/48 working hours after handover to the courier
  • Secure payments
    • Transfer
  • Returns within 14 days of delivery
  • Electronic invoice and prices also VAT excluded for companies and VAT holders
  • Phone support: 3206284308


Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Data transfer rate: 1000 Mbps

  • One 1000Base-LX single-mode LC duplex fiber port

  • Supported distance: up to 20 km (with cable 9/125 µm)

  • Wavelength: 1310nm

  • Standard SFP form factor

  • Compliant with SFP Transceiver MSA specifications

  • Compatible with Cisco GLC-LH-SM

  • Supports hot-plugging



Standard

  • IEEE 802.3z (Gigabit Fiber Optic)



General information

  • Support: 1000Base-LX single-mode 9/125 µm

  • Connector: LC duplex fiber, 1000-Base-LX

  • Distance: 20 km

  • Wavelength: 1310 nm

  • Fiber power budget


- Maximum transmission power: -3 dB

- Minimum transmission power: -8 dB

- Sensitivity: -24 dB

- Power budget: 8 dB

  • Design: SFP (small form factor pluggable), 1.25 Gbps



Certifications

  • FCC Class A

  • CE

  • RoHS

  • IEC-60825



Power

  • Required power: 3.3 V

  • Power consumption: 1.0 Watt (maximum)



Physical data

  • Dimensions: 55 (L) x 13 (W) x 12 (H) mm

  • Weight: 15 g

  • Operating temperature: 0 – 70°C

  • Operating humidity: 10 – 85% RH, non-condensing

  • Storage temperature: -40 – 85°C



Package contents

  • Gigabit Ethernet SFP Mini-GBIC Transceiver

  • Brand
  • Reference
    I-TX-MGBIC013
  • In stock
    36 Items
  • EAN13
    0766623506724
