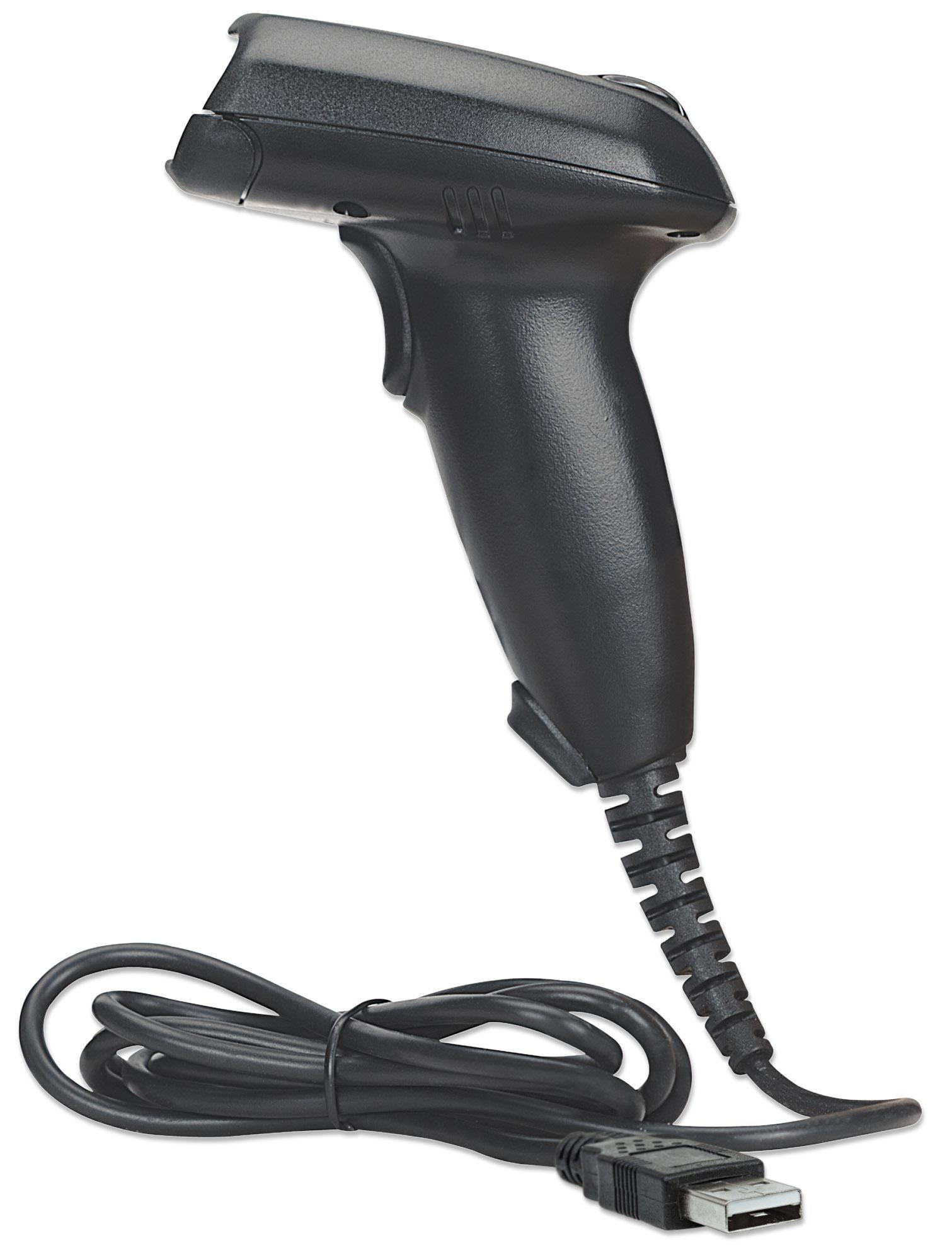

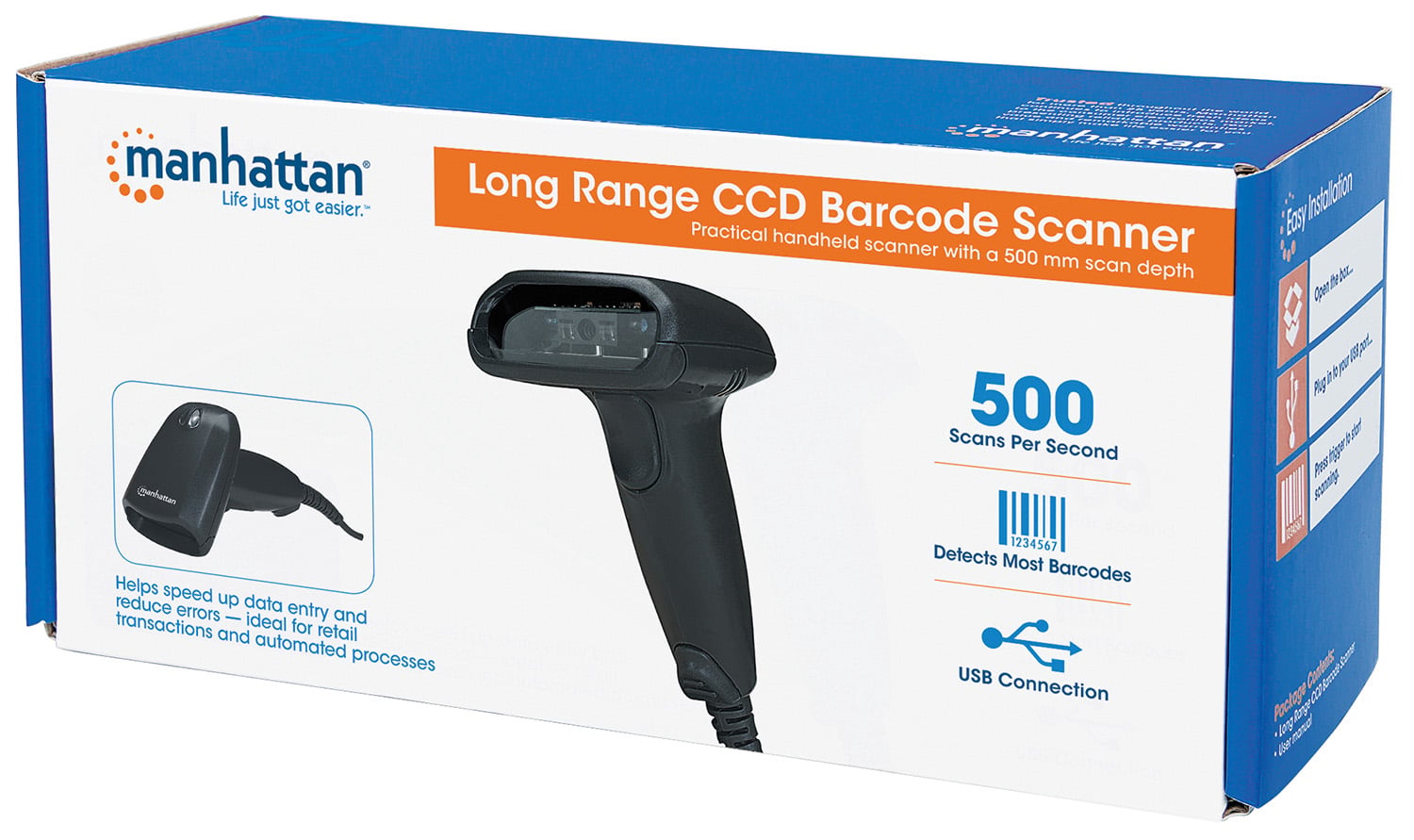

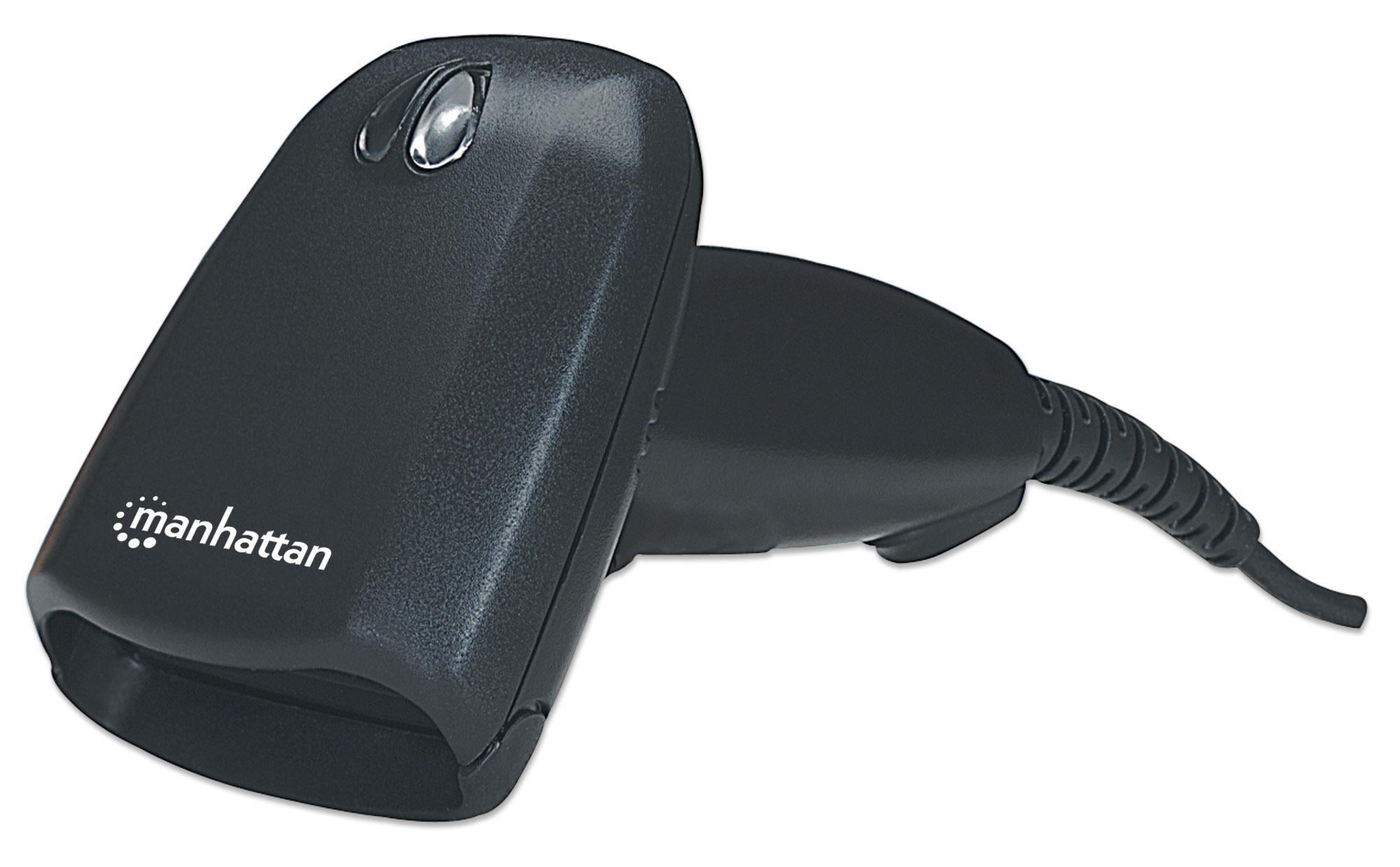

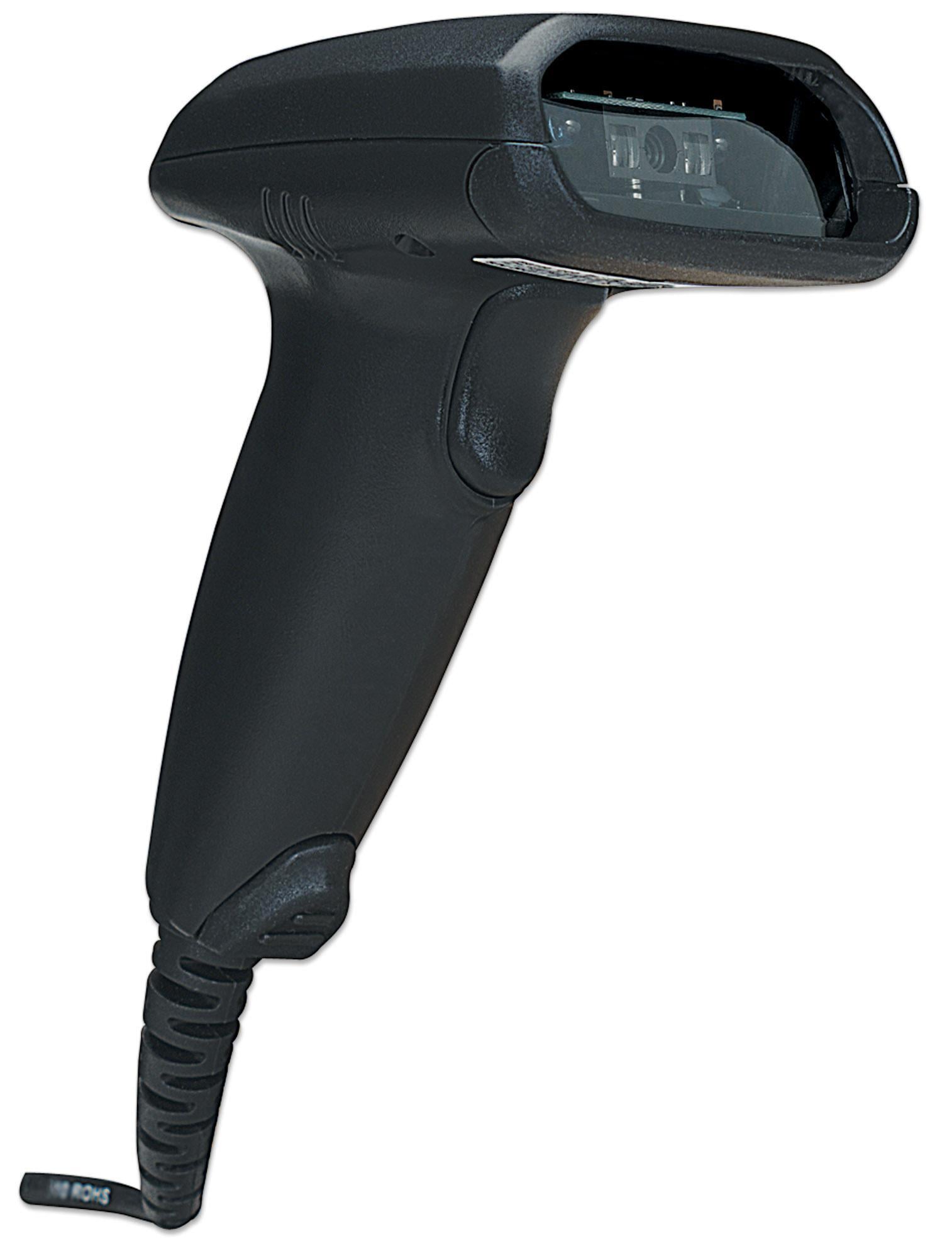

USB Long Radius CCD Bar Code reader - Manhattan IDATA CCD-SRU

€64.03
Tax included €52.50 excl. VAT

Long-range CCD player with USB interface, scanning speed up to 500 scan/s and distance up to 50 cm. It recognizes UPC, EAN and GS 1 DataBar symbols.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Helps in data input, reduces error incidence and improves efficiency - ideal for retail sale and automatic processes

  • Keyboard Wedge Decoder displays data as if entered directly from the keyboard

  • The wide scan field provides fast and accurate reading up to 500 scans per second from a distance up to 50 cm

  • It recognizes the most popular symbols including UPC, EAN and GS 1 DataBar

  • The permutable interface integrates with most PCs

  • Easy to install and use, does not require special software or training

  • Ideal for the lottery of receipts



General information

  • Supports character editing and ISP function

  • Light source: red LED

  • Depthà field: 100 mm

  • Viewing angle: 35 °

  • Range scanner: 50 cm @ 20 mil/ 0.5 mm, PCS 90 %

  • Resolution: 0.1 mm (4 mil) @ PCS 0.9

  • Reading confirmation: beep and LED

  • Ambient lighting: 10,000 lux maximum

  • Velocità scanning: 500 scans / second

  • Interface: USB

  • Switch: trigger



Supported Codes:

  • UPC/EAN/JAN & Addon 2 / 5 , Code 39 , Code 39 Full ASCII , Code 11 , Matrix 25 , Code 128 , Code 93 , Interleave 25 , Industrial 25 , Codabar/MW 7 , MSI/PLESSEY, China Postage , Code 26 , LCD 25 , Telepen , GS 1 DataBar (RSS code)



Physical characteristics:

  • Dimensions: 14 x 7 x 9 cm

  • Weight: 115 g

  • Cable length: 1.5 m

  • Operating temperature: 0 – 50°C

  • Storage temperature: - 20 - 70 °C

  • Humidità relative: 20 ± 95 % (without condensation)

  • Housing: ABS and rubber



Electrical information:

  • Voltage: DC + 5 V ± 5 %

  • Power consumption: 150 mA



Standards and certifications:

  • FCC

  • CE

  • USB



Package size:

  • Long Range CCD bar code reader

  • User manual

  • Brand
  • Reference
    IDATA CCD-SRU
  • In stock
    29 Items
  • EAN13
    0766623177672
