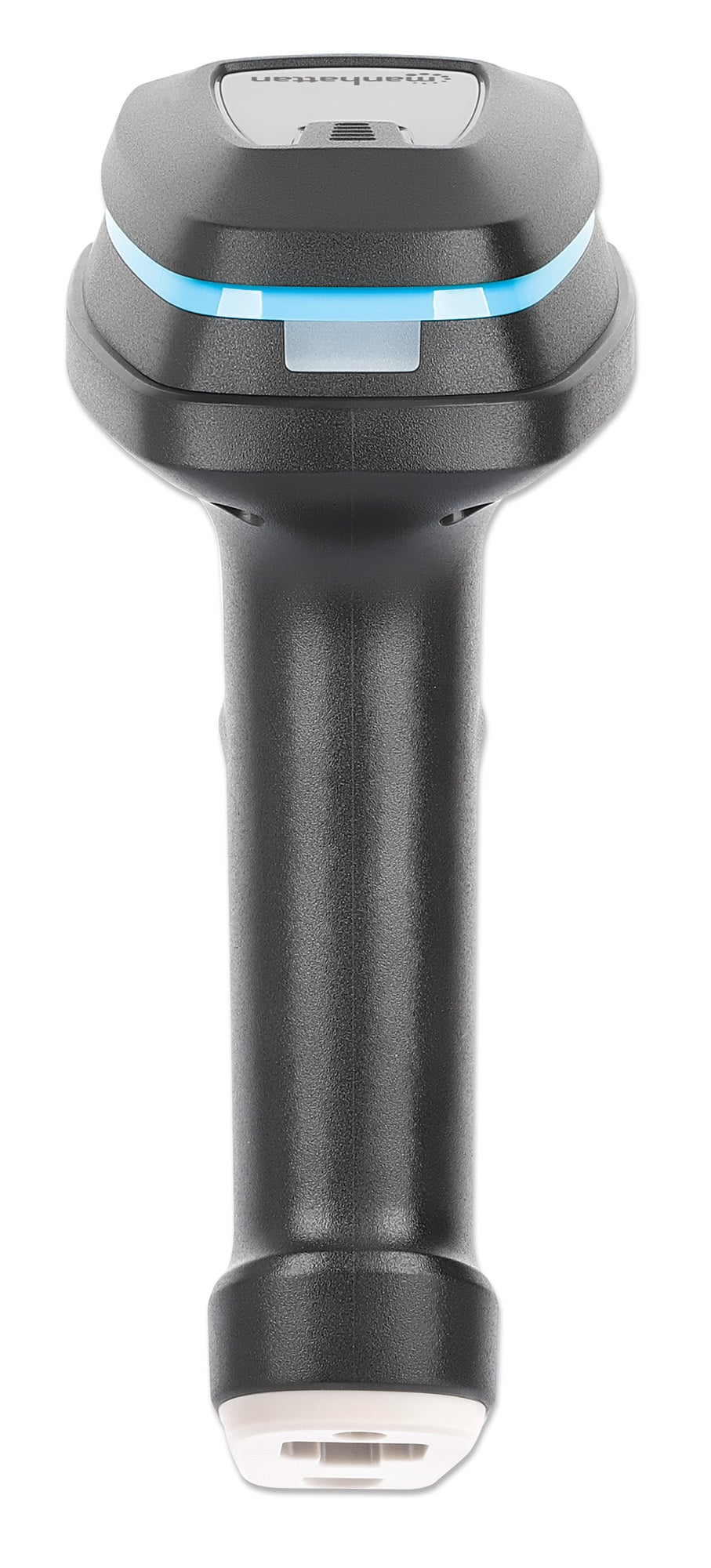

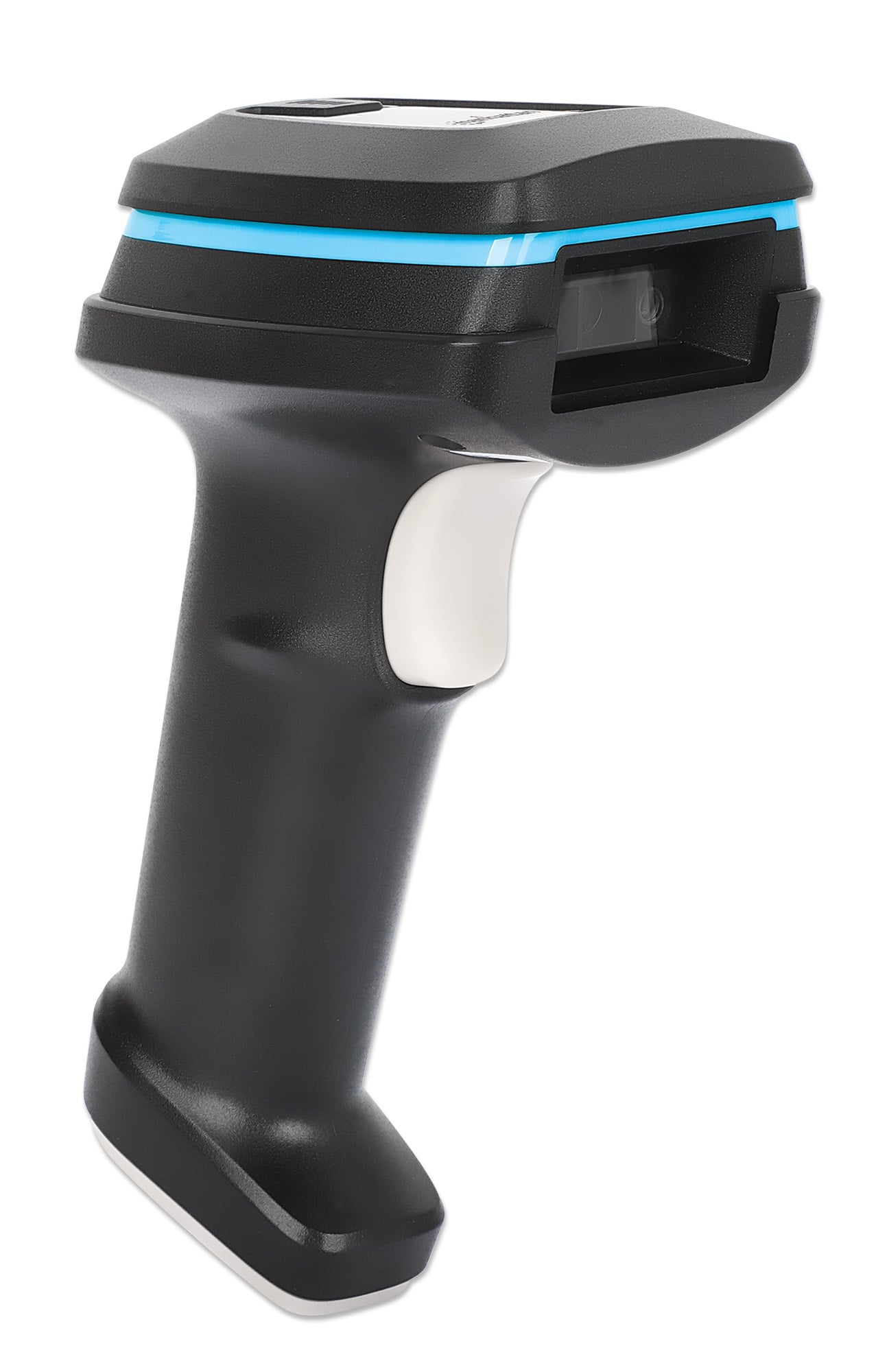

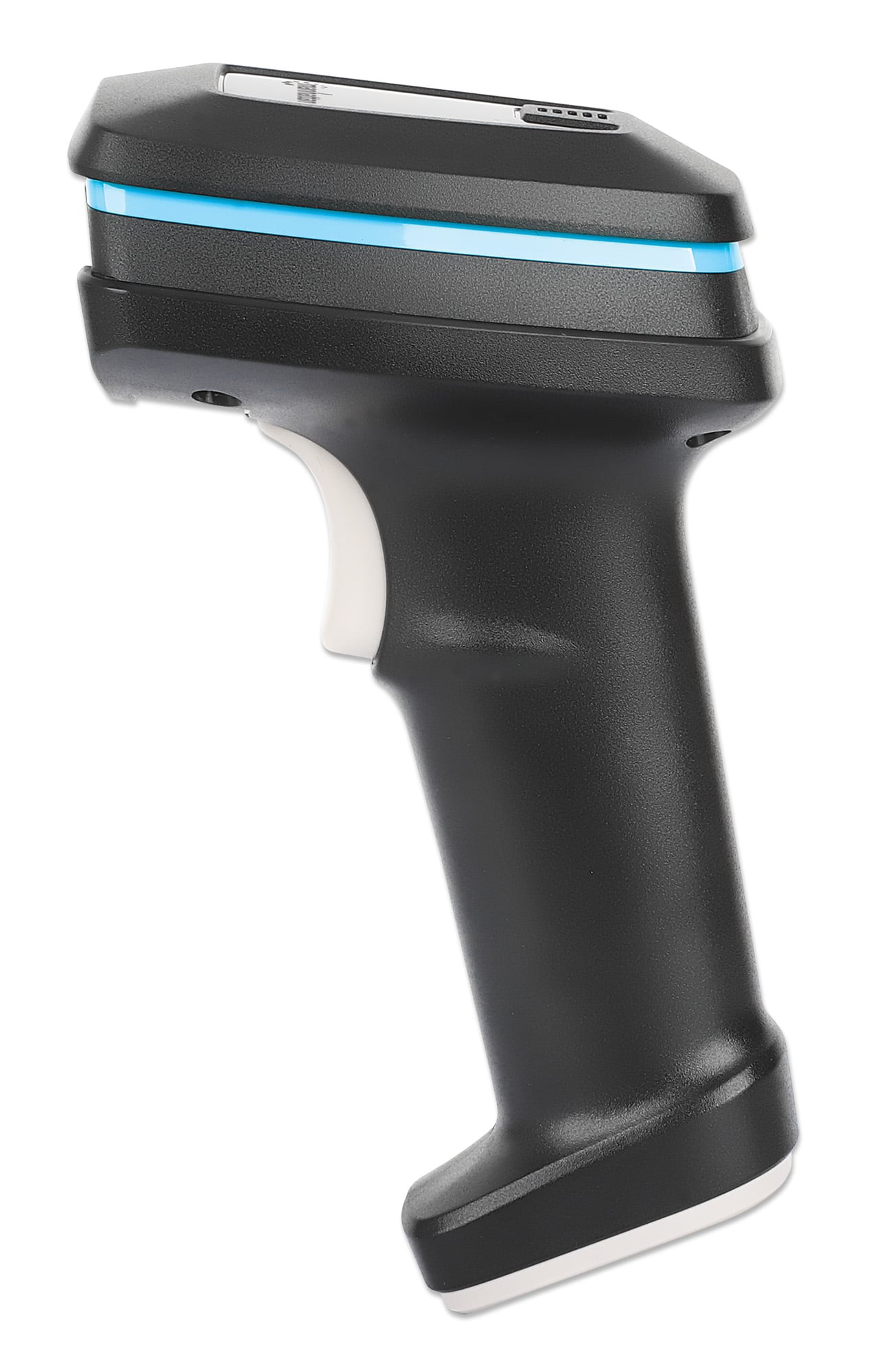

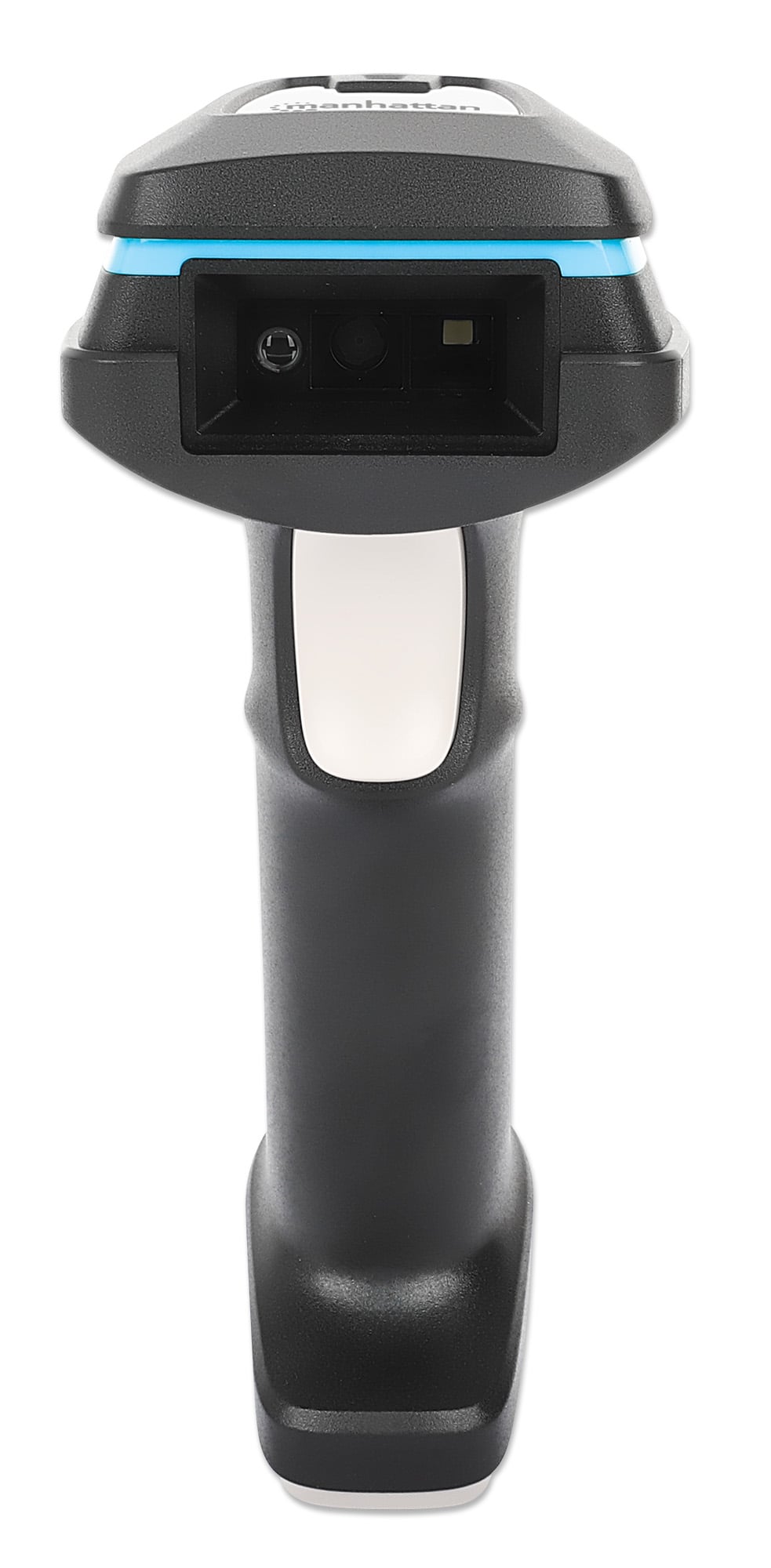

Long Radius 2 D LED Bar Code Reader - Manhattan IDATA CCD- 2 D-WR

€74.77
Tax included €61.30 excl. VAT

2 D Manhattan barcode reader with scanning depth up to 450 mm and IP protection degree 52. It detects 1 D and 2 D symbols, USB-A cable from 1,8 m, plug-and-play.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • It helps to speed up data input, reduce errors and improve efficiency: ideal for retail transactions and automated processes

  • Wide scan field that provides fast and accurate readings with a depth à scanning range up to 450 mm

  • It detects many popular 1 D and 2 D symbols including UPC, EAN, QR Code, Data Matrix, PDF 417 and many more

  • Case with IP protection 52 for protection against dust and water in difficult environments

  • ESD protection up to 16 kV (air) and 8 kV (contact)

  • Maximum environmental light tolerance of 100.000 lux for reliable readings even in direct sunlight conditions

  • Keyboard wedge decoder that allows you to view the captured data as if they had been entered directly from the keyboard

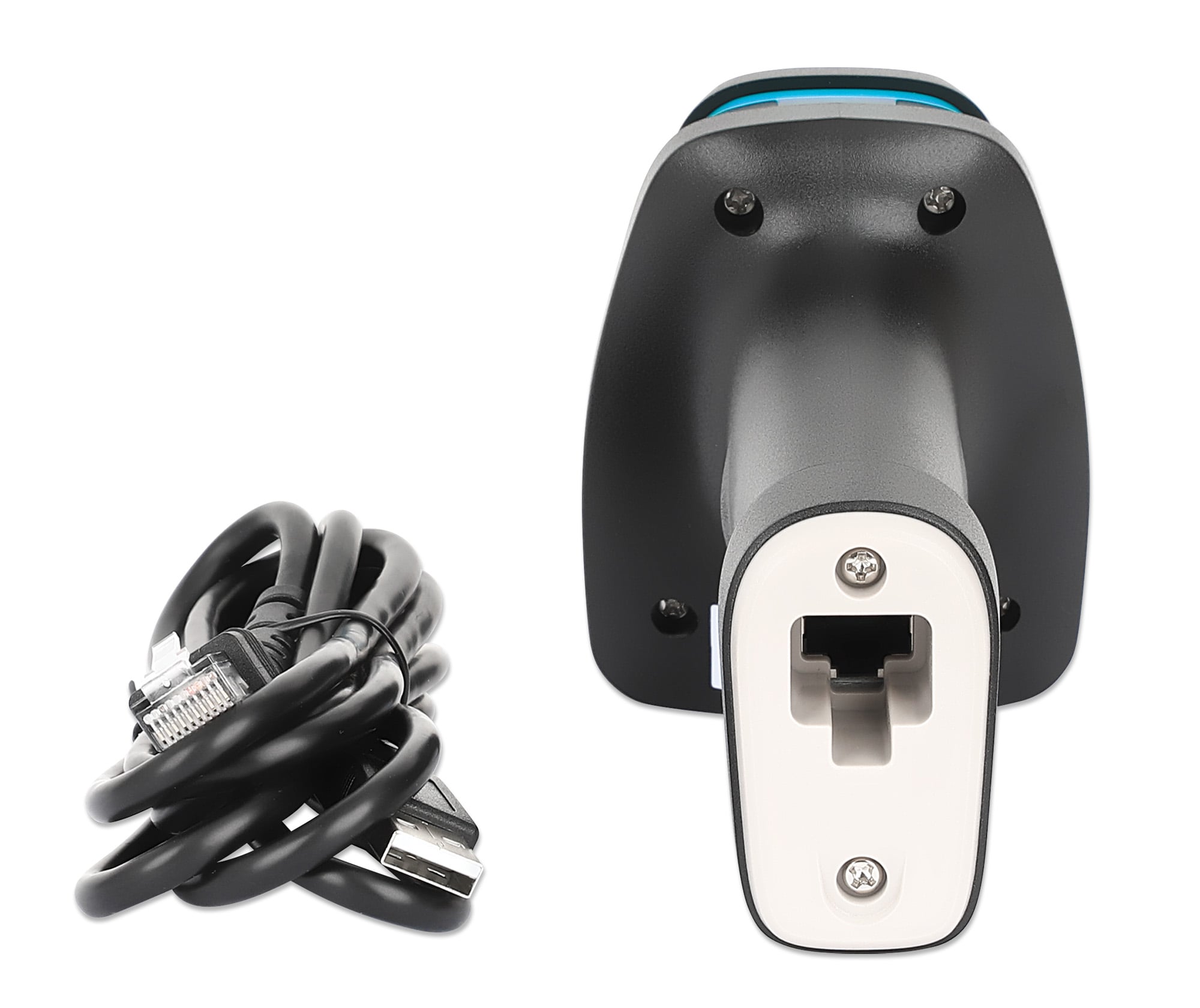

  • Detachable cable from 1,8 m with USB-A socket for reliable performance and without need to replace batteries

  • Easy plug-and-play installation; no drivers or other required software

  • Compatible with Windows®, macOS®, Chrome OS™ and Linux®



Standards and certifications

  • CE

  • RoHS

  • REACH

  • UKCA

  • FCC



General information

  • Supports barcode 1 D and 2 D

  • Scanning light: LED

  • Scan interval (deepestà): 450 mm

  • Velocità scanning: 60 scans per second

  • Resolution


- 1 D: 3 mil/ 0,076 mm

- 2 D: 7 mil/ 0,18 mm

  • Sensor size: 1280 (O) x 800 (V) pixel

  • Field of view (FoV): Horizontal - 45 °, vertical - 36 °

  • Print contrast ratio (PCR): 20 %

  • Reading confirmation: beep and LED

  • Environmental light: 100.000 lux max. (sunlight)

  • Fall resistance: 1,2 m on a concrete surface

  • MTBF (average time between faults): 50,000 hours

  • Interface: USB-A

  • Switch: trigger



Supported Codes

  • Symbols 1 D: UPC-A, UPC-E, EAN- 8 /JAN- 8 , EAN- 13 /JAN- 13 , ISSN, UCC/EAN- 128 , Code 39 , Code 39 Full ASCII , Code 128 , Interleaved 25 , Industrial 25 , Matrix 25 , Codabar/NW 7 , Code 93 , Code 11 , China Post, MSI, Telepen, GS 1 Databar Omni-directional, GS 1 Databar Limited, GS 1 Databar Extended

  • Symbols 2 D: Aztec, Data Matrix, MaxiCode, QR Code, PDF 417, Micro PDF 417, HANXIN, MicroQR Code, Dotcode, Grid Matrix



Physical information

  • Dimensions (L x P x A): 172 x 67 x 87 mm

  • Cable length: 1,8 m

  • Net weight: 220 g

  • Gross weight: 320 g

  • Housing: ABS, degree of protection IP 52



Environmental features

  • Operating temperature: from 0 to 30 °C

  • Storage temperature: - 20 to 70 °C

  • Humidità (without condensation): 20 - 95 % RH



Electrical information

  • Voltage: 5,0 V CC

  • Current withdrawal:


- < 130 mA (stand-by)

- < 280 mA (funzionamento)



Package contents

  • Long-range 2 D LED barcode reader

  • Instructions manual

  • Brand
  • Reference
    IDATA CCD-2D-WR
  • In stock
    28 Items
  • EAN13
    0766623154116
