- It helps to speed up data input, reduce errors and improve efficiency: ideal for retail transactions and automated processes
- Wide scan field that provides fast and accurate readings with a depth à scanning range up to 320 mm
- It detects many popular 1 D and 2 D symbols including UPC, EAN, QR Code, Data Matrix, PDF 417 and many more
- Maximum environmental light tolerance of 100.000 lux for reliable readings even in direct sunlight conditions
- Keyboard wedge decoder that allows you to view the captured data as if they had been entered directly from the keyboard

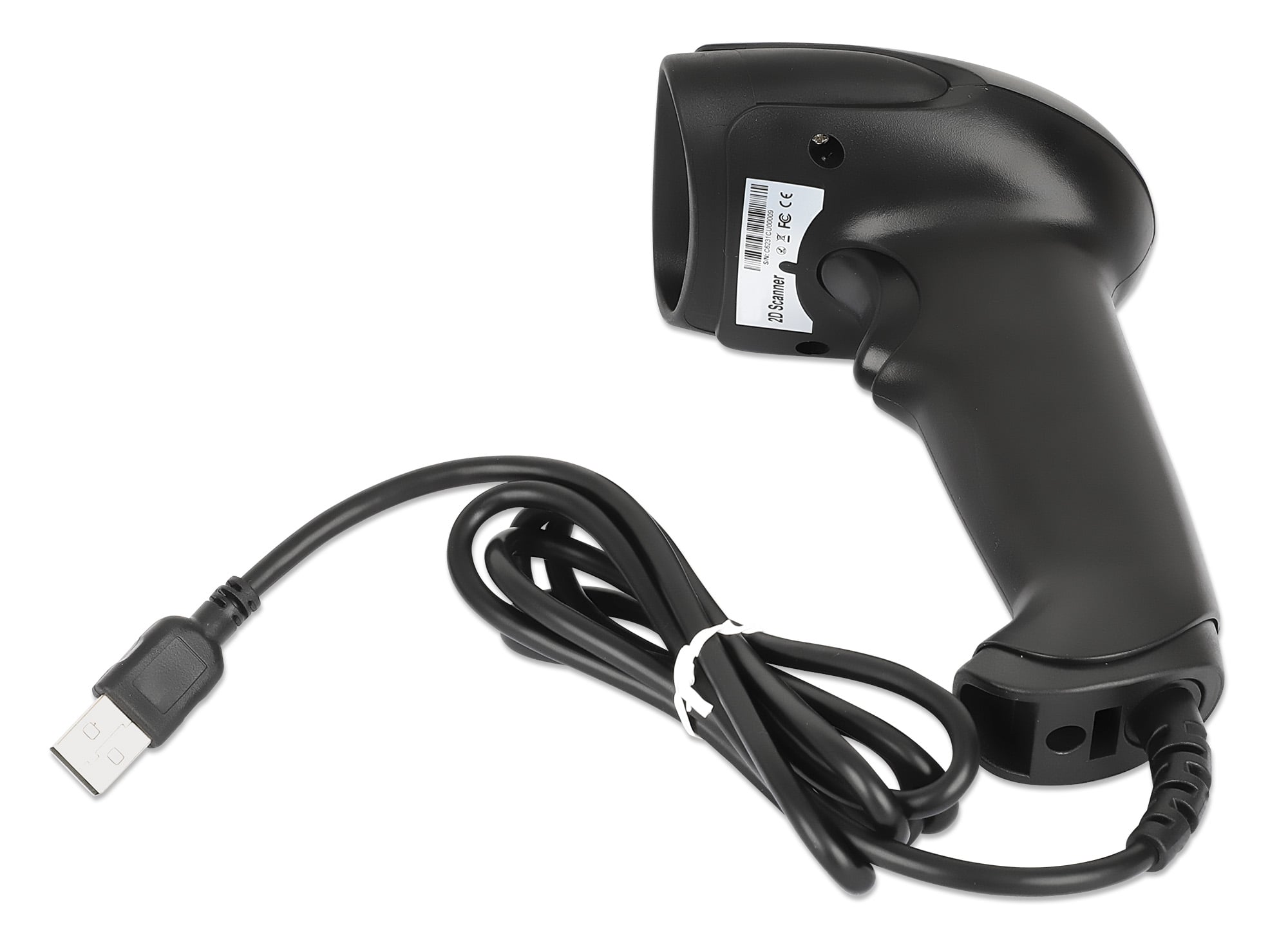

- Integrated cable from 1,4 m with USB-A socket for reliable performance and without need to replace batteries
- Easy plug-and-play installation; no drivers or other required software
- Compatible with Windows®, MacOS®, Chrome OS™ and Linux®
Standards and certificationsGeneral information- Supports barcode 1 D and 2 D
- Scanning light: LED
- Scan interval (deepestà): 320 mm
- Velocità scanning: 100 scans per second
- Resolution
- 1 D: 4 mil/ 0,1 mm
- 2 D: 6,67 mil/ 0,17 mm
- Sensor size: 640 (H) x 480 (V) pixel
- Field of view (FoV): Horizontal - 36 °, vertical - 28 °
- Print contrast ratio (PCR): 25 %
- Tolerance to movement: 25 cm (9,8 inch) per second
- Reading confirmation: beep and LED
- Environmental light: 100.000 lux max. (sunlight)
- Fall resistance: 1,2 m on a concrete surface
- MTBF (average time between faults): 50,000 hours
- Interface: USB-A
- Switch: trigger
Supported Codes- Symbols 1 D: UPC-A, UPC-E, EAN- 8 /JAN- 8 , EAN- 13 /JAN- 13 , ISSN, Code 39 , Code 39 Full ASCII , Code 128 , Interleaded 25 , Industrial 25 ,
Matrix 25 , Codabar/NW 7 , Code 93 , Code 11 , MSI, GS 1 DataBar- 14 /Limited/Expanded
- Symbols 2 D: QR Code, MicroQR Code, PDF 417, Micro PDF 417, Data Matrix, Aztec
Physical information- Dimensions (L x P x A): 150 x 70 x 95 mm
- Cable length: 1.4 m
- Net weight: 110 g
- Gross weight: 260 g
- Housing: ABS
Environmental features- Operating temperature: from 0 to 30 °C
- Storage temperature: - 20 to 60 °C
- Humidità (without condensation): 5 - 95 % RH
Electrical information- Voltage: 5,0 V CC
- Current withdrawal:
- 57 mA (stand by)
- < 130 mA (funzionamento)

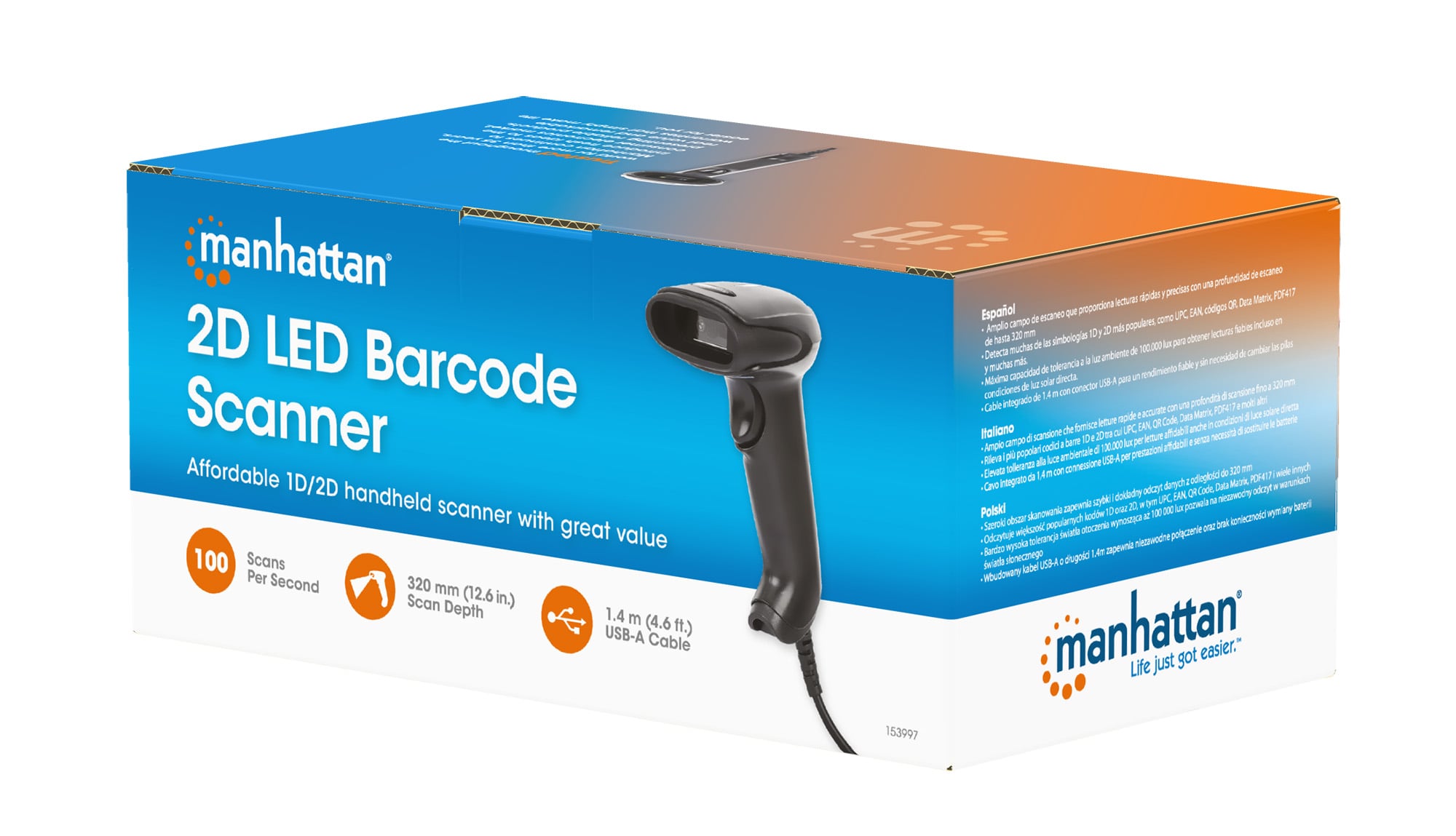

Package contents- 2 D LED barcode reader
- Instructions manual
