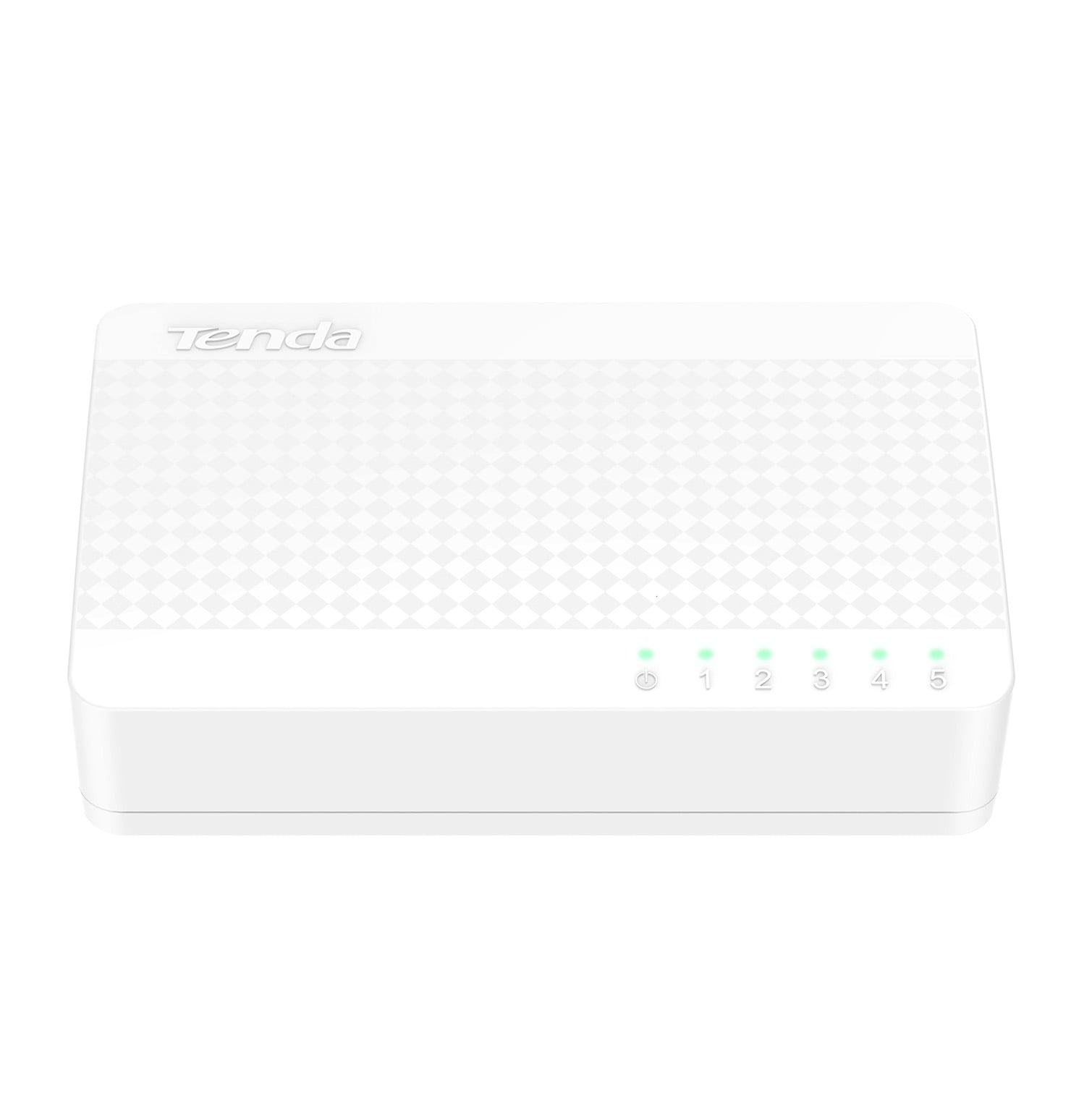

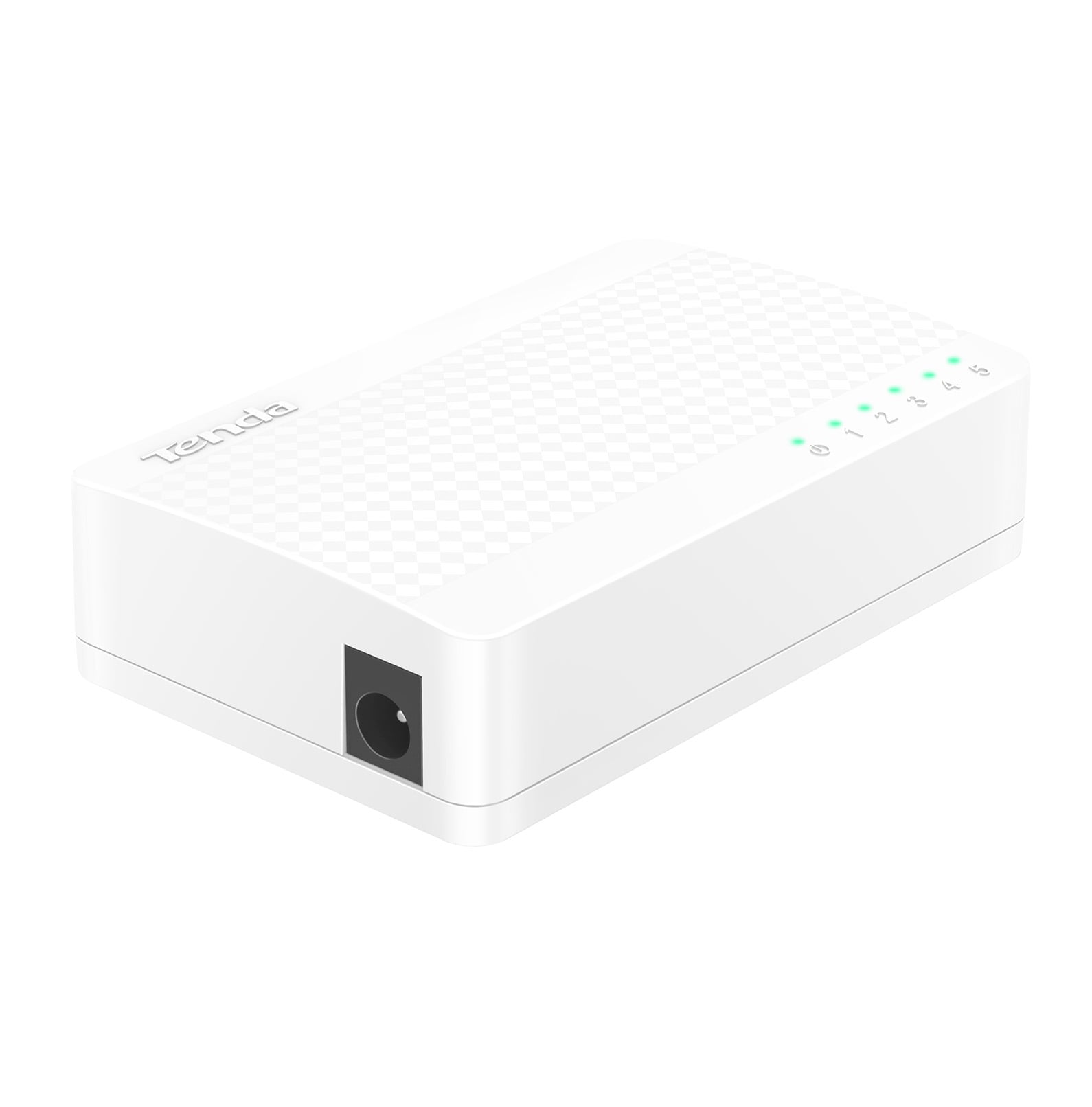

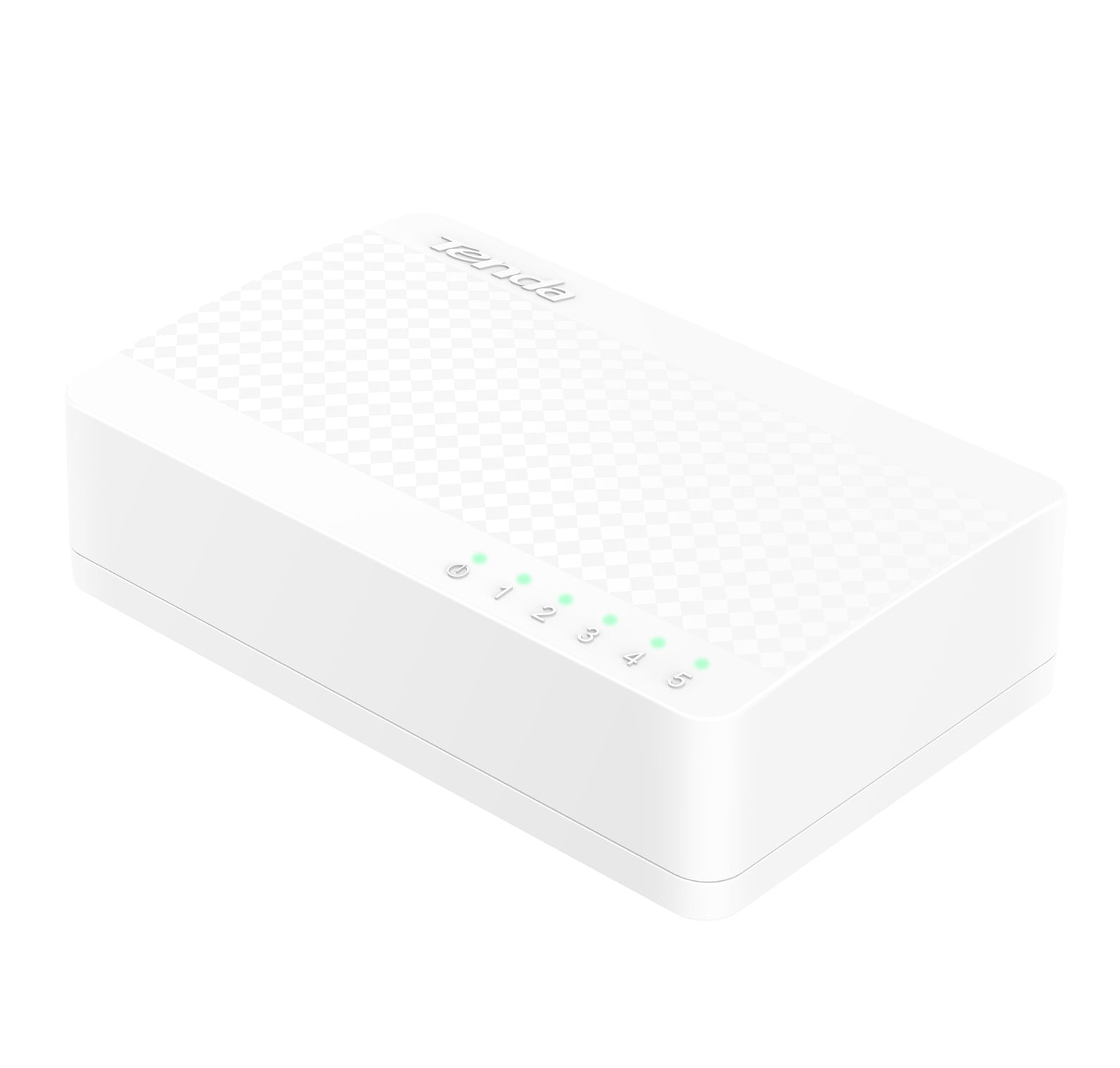

Compact Desktop Ethernet Switch 5 Ports 10/100 Mbps White, S105 - Tenda I-SWHUB S105

I-SWHUB S105 is a 5-port 10/100 desktop switch that allows easy expansion of your network by connecting printers, scanners, storage, and backup devices to any network to transfer files, share storage, or create a multiplayer gaming environment. Just connect Ethernet network cables, a power cable, and it's ready, without any configuration. It is very silent and thus helps maintain a quiet office environment. The LEDs make it easy to monitor connection, speed, and activity. Furthermore, this compact switch features a robust plastic casing that fits perfectly with any style of decor.



Features

• 5 Autosensing ports 10/100Mbps with auto MDI/MDI-X crossover detection


• Full duplex bandwidth up to 200Mbps on each port


• Compact size, fits in any environment


• Address Learning and Aging, and Data Flow Control, for better data transmission


• Plug and Play: no configuration required


• Fast forwarding capability: the switch adopts store-and-forward switching mode and auto-learns/-updates MAC addresses to increase data transmission and switching capacity


• Auto MDI/MDI-X Detection: each switch port can automatically calculate whether the connection needs a straight-through or crossover cable and makes the right choice, eliminating the need for special crossover cables


• High speed and network reliability: full duplex and half duplex flow control



Technical specifications

• Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x


• 5 ports 10/100M auto-negotiation RJ45 (Auto MDI/MDIX)


• Transmission 10Base-T: Cat. 3 UTP or better; 100Base-TX: Cat.5 UTP


• Access Control


• CDMA / CD


• Forwarding rate: 10Mbps: 14880pps; 100Mbps: 148800pps


• Switching capacity: 1.0Gbps


• MAC address table 2K


• LED 5 * 10/100 (LINK / ACT), 1 * Power



Environmental features

• Operating temperature: 0 ℃ ~ 40 ℃


• Storage temperature: -40 ℃ ~ 70 ℃


• Operating humidity: 10% ~ 90% RH non-condensing


• Storage humidity: 5% ~ 90% RH non-condensing



Dimensions

• Width: 82 mm


• Depth: 52 mm


• Height: 22,3 mm



Certifications

• CE


• FCC


• RoHS



Package contents

• Compact Switch I-SWHUB S105


• DC power supply 5V 0.6A


• Instruction manual
