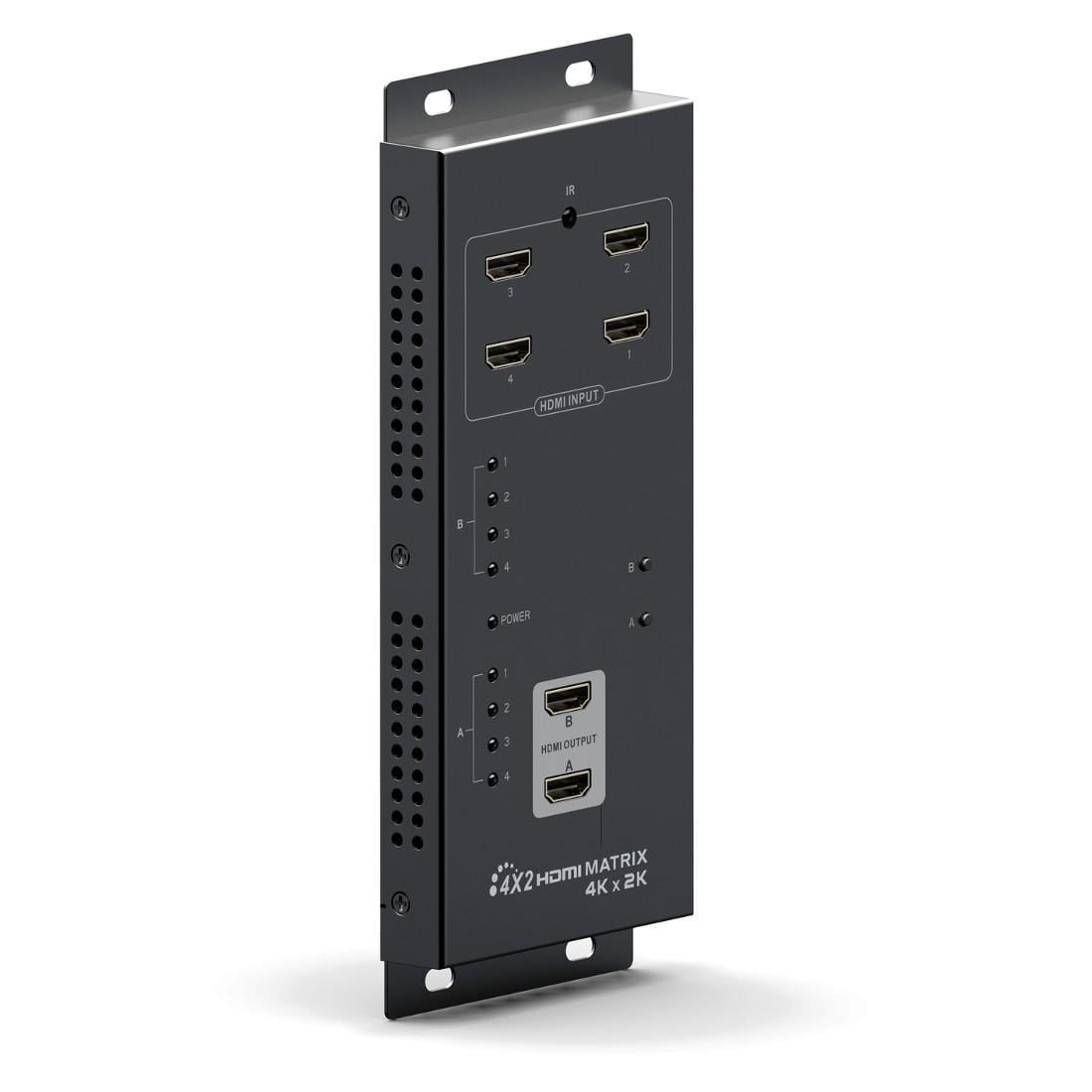

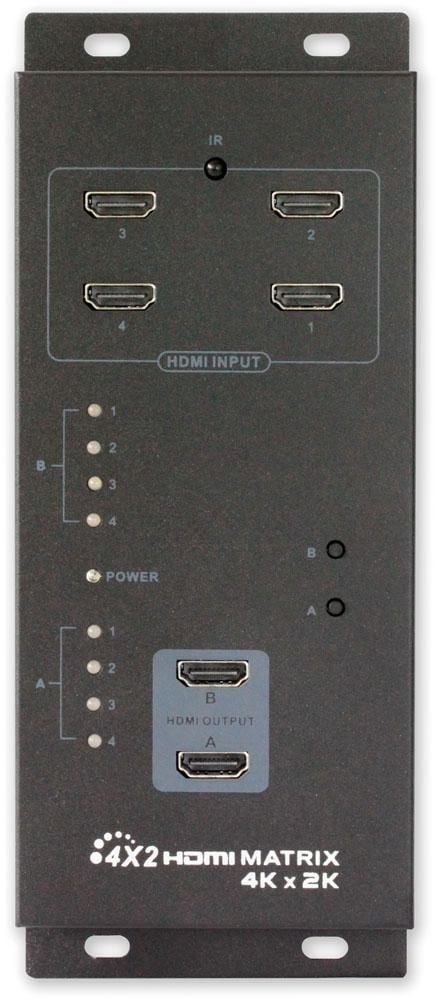

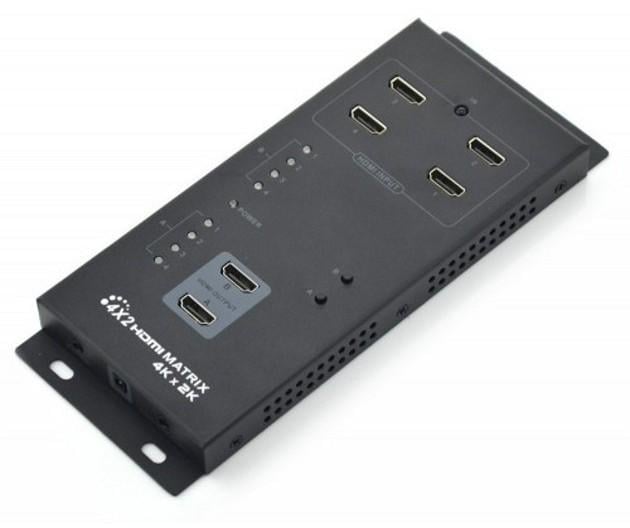

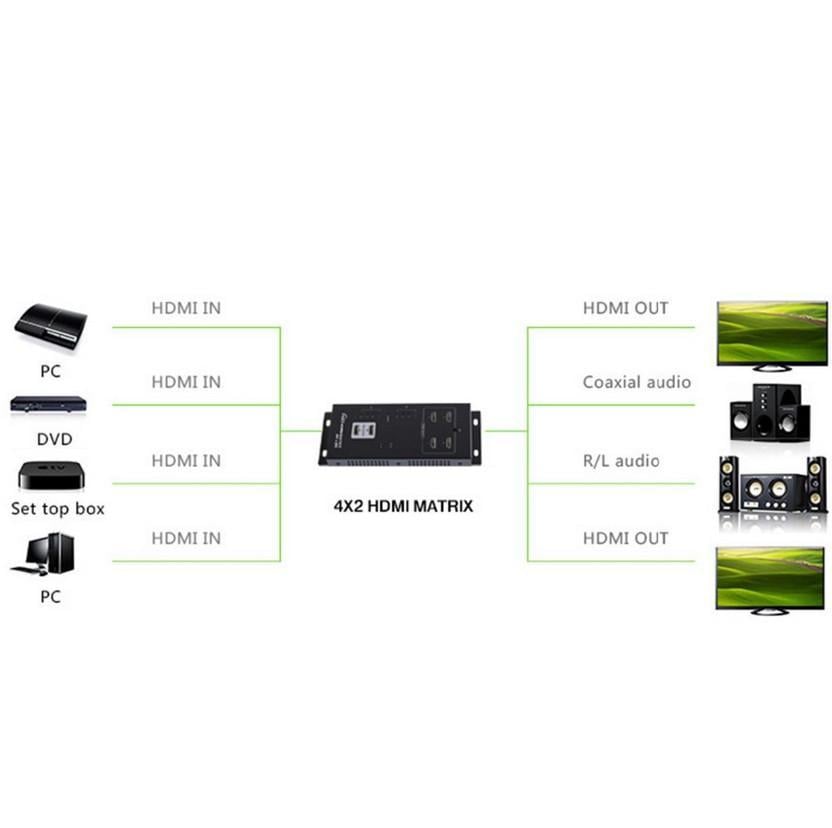

The HDMI-MX 42 4 input and 2 output matrix allows you to display any of the four sources on one of the two connected monitors or can ` work as a splitter to show the same source on 2 display simultaneously.
Analog R/L and digital SPDIF audio signals can be extracted from the HDMI signal. Supports 3 D and 4 kx 2 k.
Technical specifications- Input: 4 x HDMI
- Output: 2 x HDMI
- Deep color: 12 -bit Deep Full HD, Full 3 D and 4 k x 2 k video
- Audio: standard audio and DSD (Direct Stream Digital) audio and Audio HD (HBR)
- Easily switch between sources via remote control or buttons on the drives;
- Equipped with IR internal receiver to increase remote control signal
- HDMI 1.4 version
- Supported HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50@60Hz; 1080i@50@60Hz; 1080p@50@60Hz; 3D HDMI (720p@50@60Hz), 1080p@24Hz, 3840x2160p@24@25@30Hz
- HDCP compatible
- Amplified doors up to 15 m (with cable AWG 26 or AWG 24)
- 5 V/ 3 A power supply
- LED ignition: 1 yellow
- LED signal: 8 blue
- Frequency range: 25 MHz - 340 MHz
- Velocità maximum transmission: 3.4 G X 3 = 10.2 Gbps
- Operating temperature: 0 - 60 °C
- Aluminum housing
- Color: black
Dimensions- Width 86 mm
- Height 213 mm
- Depthà 19 mm
- Audio cable length: 1 m
- Extension length IR: 1 m

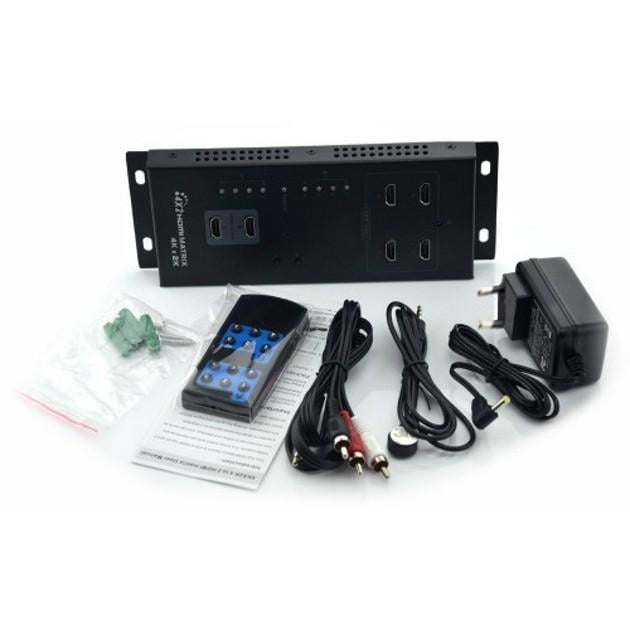

CertificationsPackage contents- HDMI-MX 42 IDATA Matrix
- Remote control (including battery)
- 5 V/ 3 A power supply
- R/L audio cable + SPDIF audio cable
- Mounting screws to the wall
- IR Receiver Extendor
- Instructions manual
