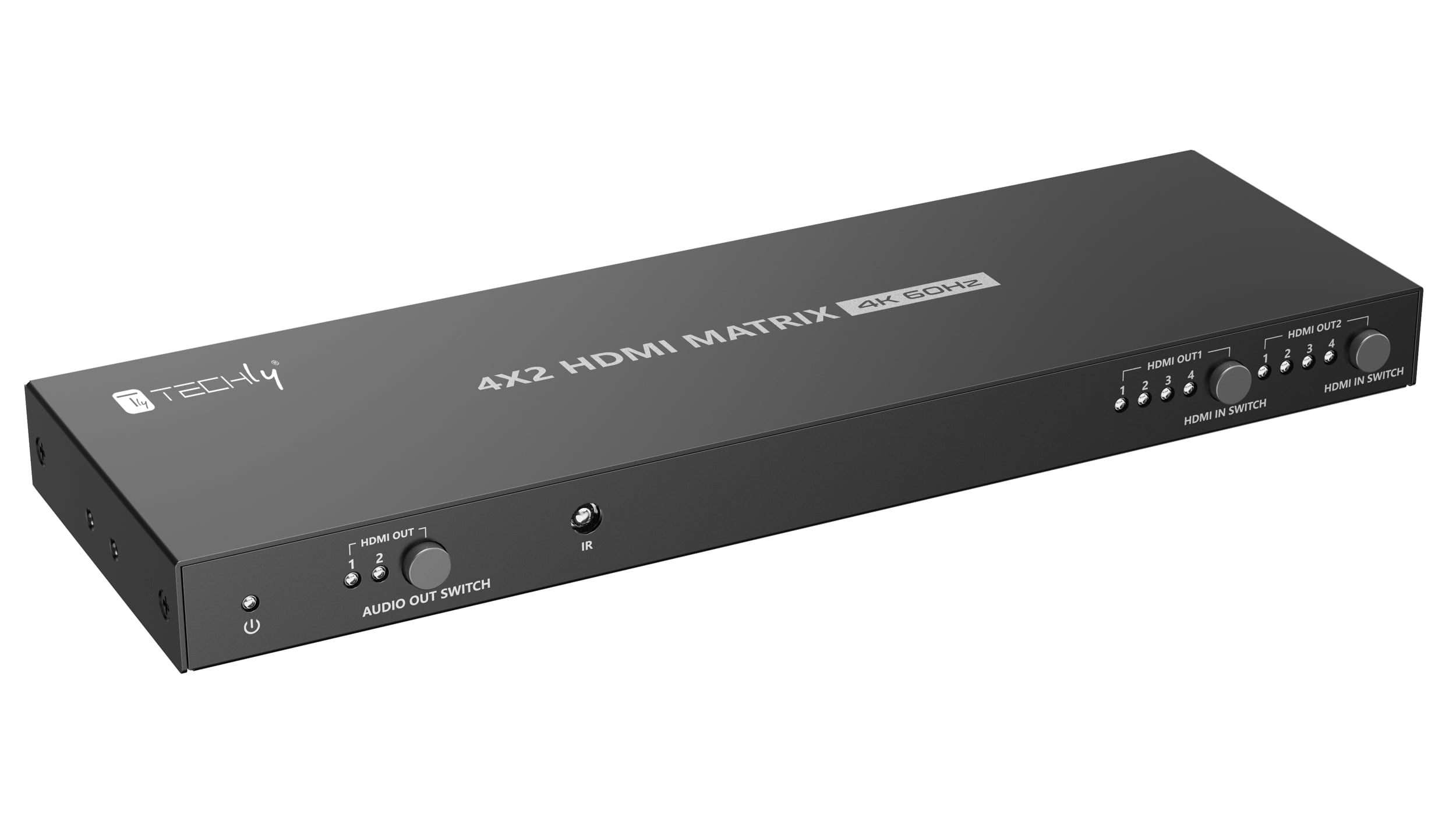

Switch Matrix HDMI 2.0 4 x 2 4 K@ 60 Hz - Techly IDATA HDMI-MX 422

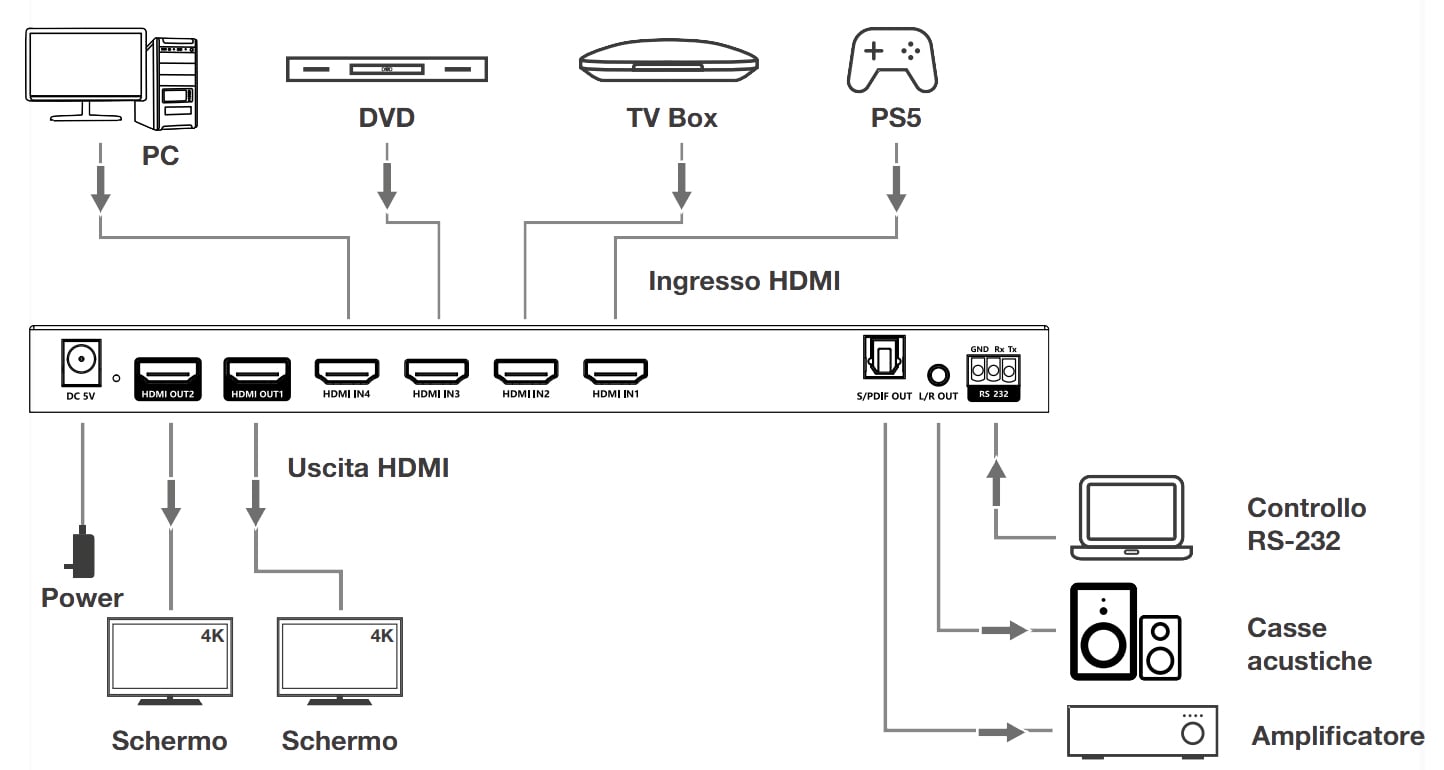

IDATA HDMI-MX 422 è a HDMI matrix switch with 4 inputs and 2 outputs, can ò switch 4 HDMI input signals on 2 HDMI display as neededà.

Supports HDR UHD resolution up to 4096 x 2160 @ 60 Hz and a variety of switching methods (IR remote control, buttons and RS 232) flexibly combines input and output devices.

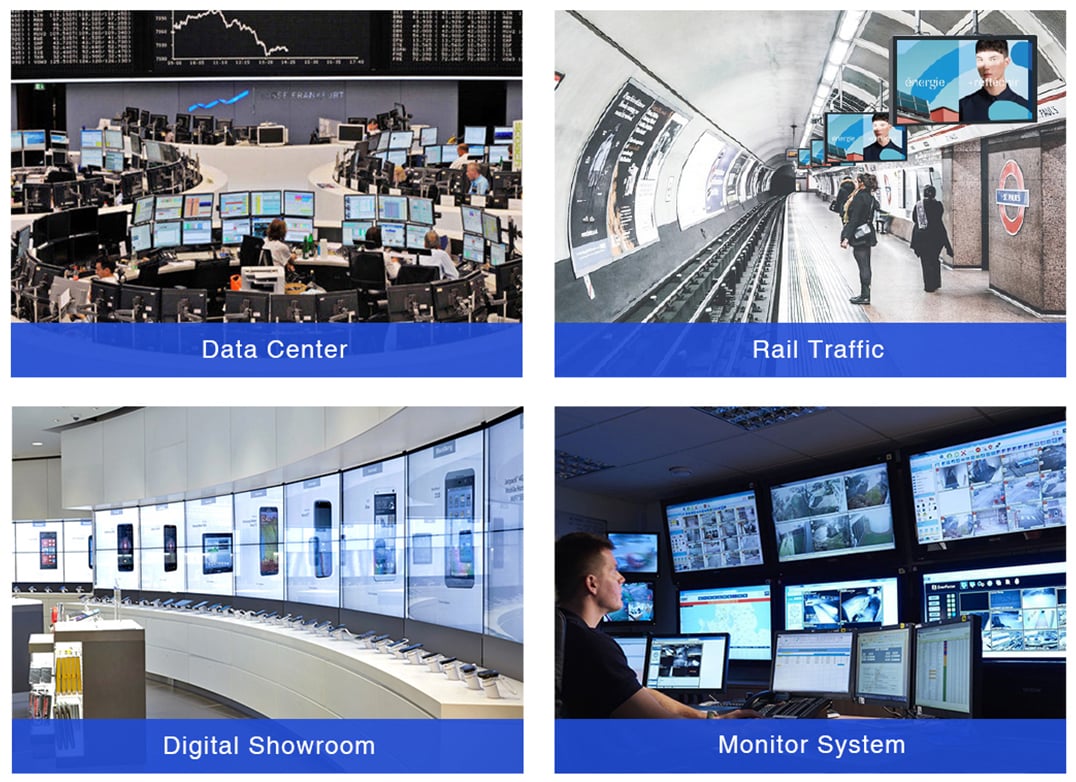

This matrix è is a reliable and highly defined video transmission solution, widely used in security monitoring, education and training, exhibitions and transmissions, command centres and many other scenarios.



Features

• Supports 4 HDMI inputs and 2 HDMI outputs


• Supports video resolution up to 4096 x 2160 @ 60 Hz


• Supports HDR 10 and HDCP 2.2


• Supports more ù switching methods: IR remote control, buttons and RS 232


• Supports additional audio output via stereo jack and S/PDIF port


• HDMI output supports down-scaling car


• Lightning protection, overvoltage protection, ESD protection



Technical specifications

• HDMI version: HDMI 2.0 (HDR, YUV 444)


• Compatible with HDCP 2.2 , HDCP 1.4

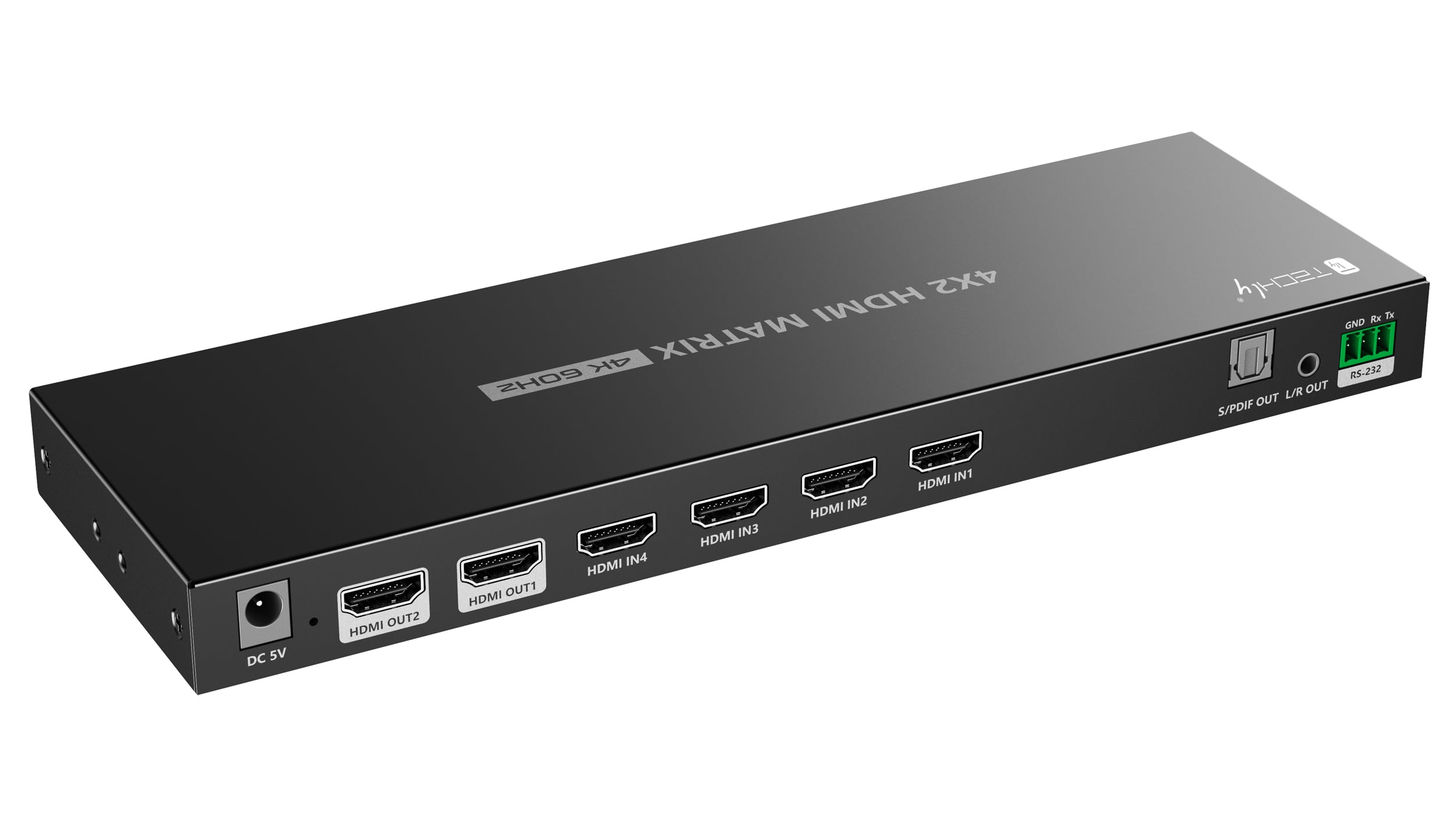

• HDMI interface: 4 HDMI inputs, 2 HDMI outputs


• Velocità transmission: 18 Gbps


• Supported HDMI resolutions:



480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50@60Hz, 1080i@50@60Hz, 1080P@50@60Hz, 3840x2160@24@25@30@50@60Hz; 4096x2160@24 @25 @30 @50 @60Hz

• Audio: LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital plus / Dolby TrueHD 7.1 / Dolby Digital 7.1 CH / DolbyAtmos


• RS- 232: 3 pin (GND/Rx/Tx), Baud rate 9600


• Signal LED indicator: DC 5 V/ 1 A


• Frequency range: < 4W



Environmental features

• Operating temperature from - 20 ° to 60 °C


• Storage temperature from - 30 ° to 70 °C


• Humidità 0 - 90 % RH (without condensation)



Protection

• ESD protection 1 a Contact disaster level 2 (+/- 4 KV) 1 b Air disaster level 3 (+/- 8 KV) Implementation of the standard: IEC 61000 - 4 - 2


• Protection against lightning


• Overvoltage protection



Dimensions

• Width: 250,0 mm


• Depthà: 80,0 mm


• Height: 21,0 mm



Package contents

• 1 x Matrix Switch 4 x 2 IDATA HDMI-MX 422


• 1 x Remote control


• 1 x Power supply 5 V 1 A


• 2 x Fixing brackets


• 6 x Fixing screws


• 2 x Ground screws


• 1 x Clamper


• 1x User manual
