Matrix Switch HDMI 2.0 4 x 2 18 Gbps 4 k@ 60 Hz with audio extractor - Techly IDATA HDMI-H 42 EA

The high-performance IDATA HDMI-H 42 EA matrix can be switched to any of the four HDMI sources on two HDMI displays.

Supports resolutions up to 4 K 2 K@ 60 Hz YCbCr 4 : 4 : 4 and HDCP 2.2 . You can ` extract the audio of the HDMI source device in output L/R optic and analog. It supports the downscale function 4 K→ 1080 P if the source è 4 K but the TV supports only up to 1080 P. It also supports the ARC and EDID (AUTO/COPY/STD) function. With its bandwidth width of 18 Gbps and additional functionality with the latest HDMI standards. Flexible control via the front panel buttons and IR remote control.



Features

• HDMI 2.0 , HDCP 2.2 / HDCP 1.4 and DVI 1.0


• Supports 4 HDMI inputs and 2 HDMI outputs


• Video resolution up to 4 K 2 K@ 60 Hz YCbCr 4 : 4 : 4


• Supports 18 Gbps uncompressed bandwidth on all HDMI


• Supports Dolby Vision, HDR 10 +, HLG

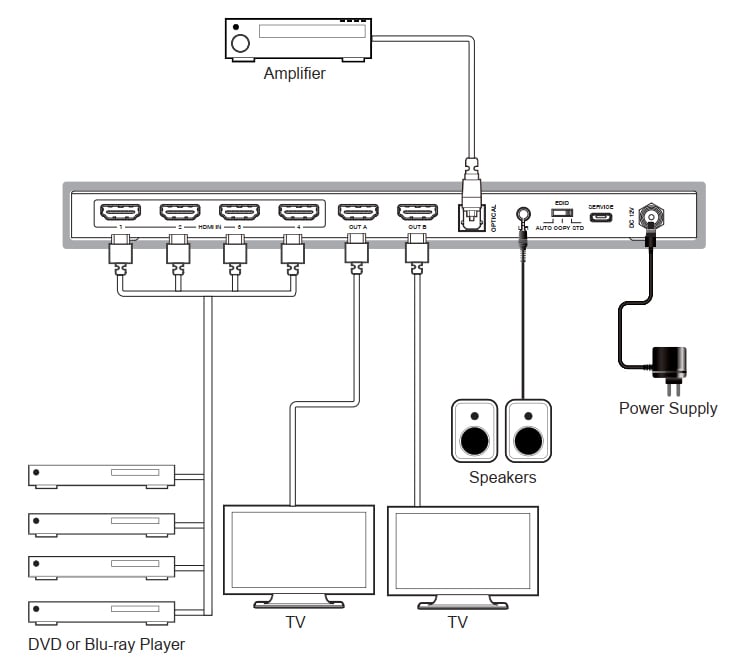

• Supports audio extraction of the HDMI input source device from OUT A or OUT B to optical and analog audio output


• OUT A and OUT B support downscale function from 4 K to 1080 P


• Supports ARC (Audio Return Channel) function


• Supports advanced EDID management including AUTO, COPY and STD

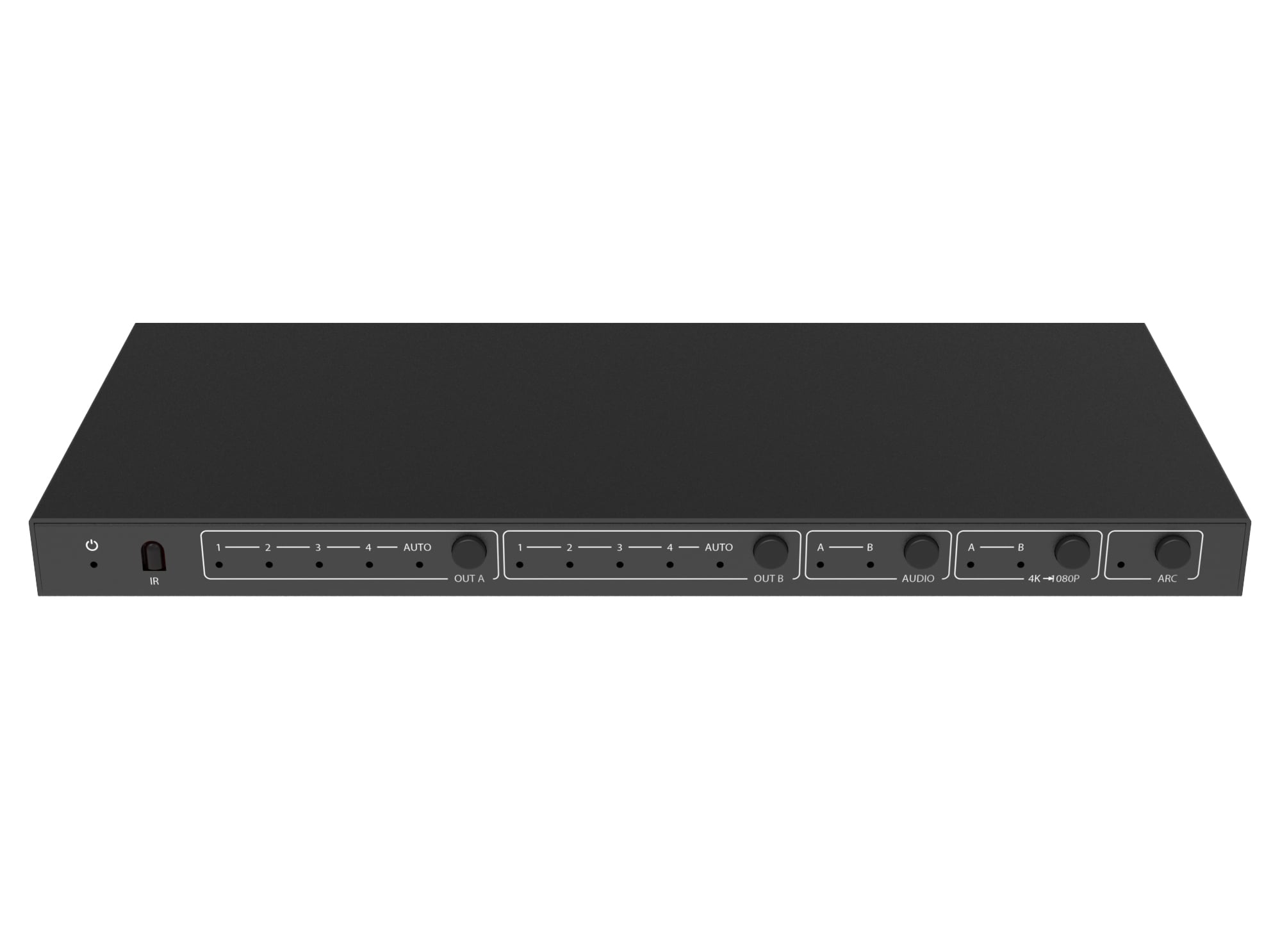

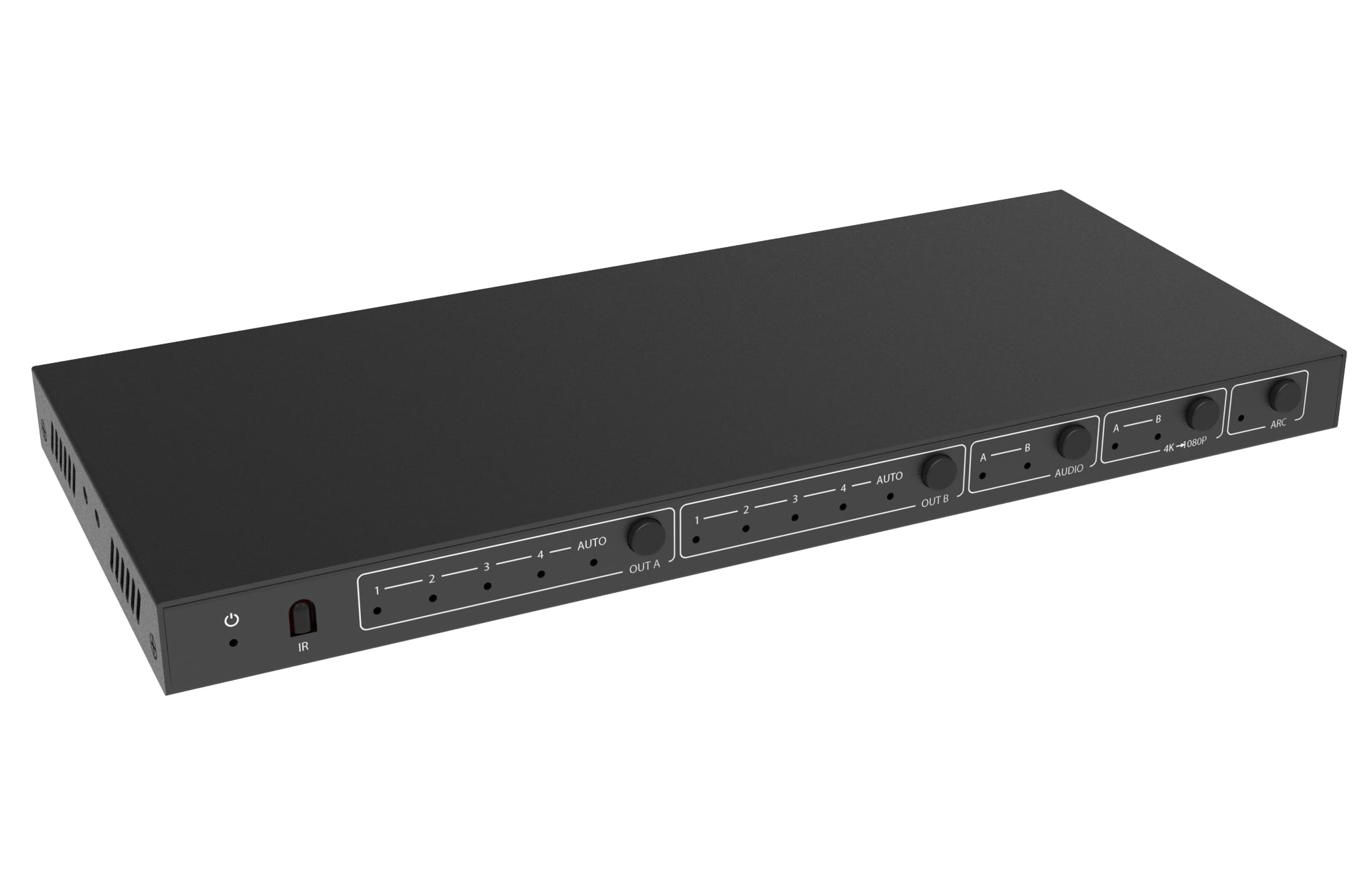

• The control is via front panel buttons and IR remote control



Technical specifications

• Conformità HDMI: HDMI 2.0


• Conformityà HDCP: HDCP 2.2 and HDCP 1.4


• Video bandwidth 18 Gbps


• Video resolution Up to 4 K 2 K@ 50 / 60 Hz (YCbCr 4 : 4 : 4 ), 4 K 2 K@ 30 Hz. All HDMI TV format 3 D, etc.


• RGB color space, YCbCr 4 : 4 : 4 ,YCbCr 4 : 2 : 2 , YCbCr 4 : 2 : 0


• Deep color 8 bit, 10 bit, 12 bit [ 1080 P, 4 K 30 Hz, 4 K 60 Hz (YCbCr 4 : 2 : 0 )] 8 bit [ 4 K 60 Hz (YCbCr 4 : 4 : 4 )]


• HDMI audio formats: PCM 2.0 / 5.1 / 7.1 CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96 / 24 , high resolution DTS, DTS-HD Master Audio, DSD


• Optical audio formats: PCM 2.0 , Dolby Digital / Plus, DTS


• L/R audio formats: PCM 2.0 CH


• ESD protection Human body model: ± 8 kV (wire discharge), ± 4 kV (contact discharge)


• Housing material: metal


• Color: black

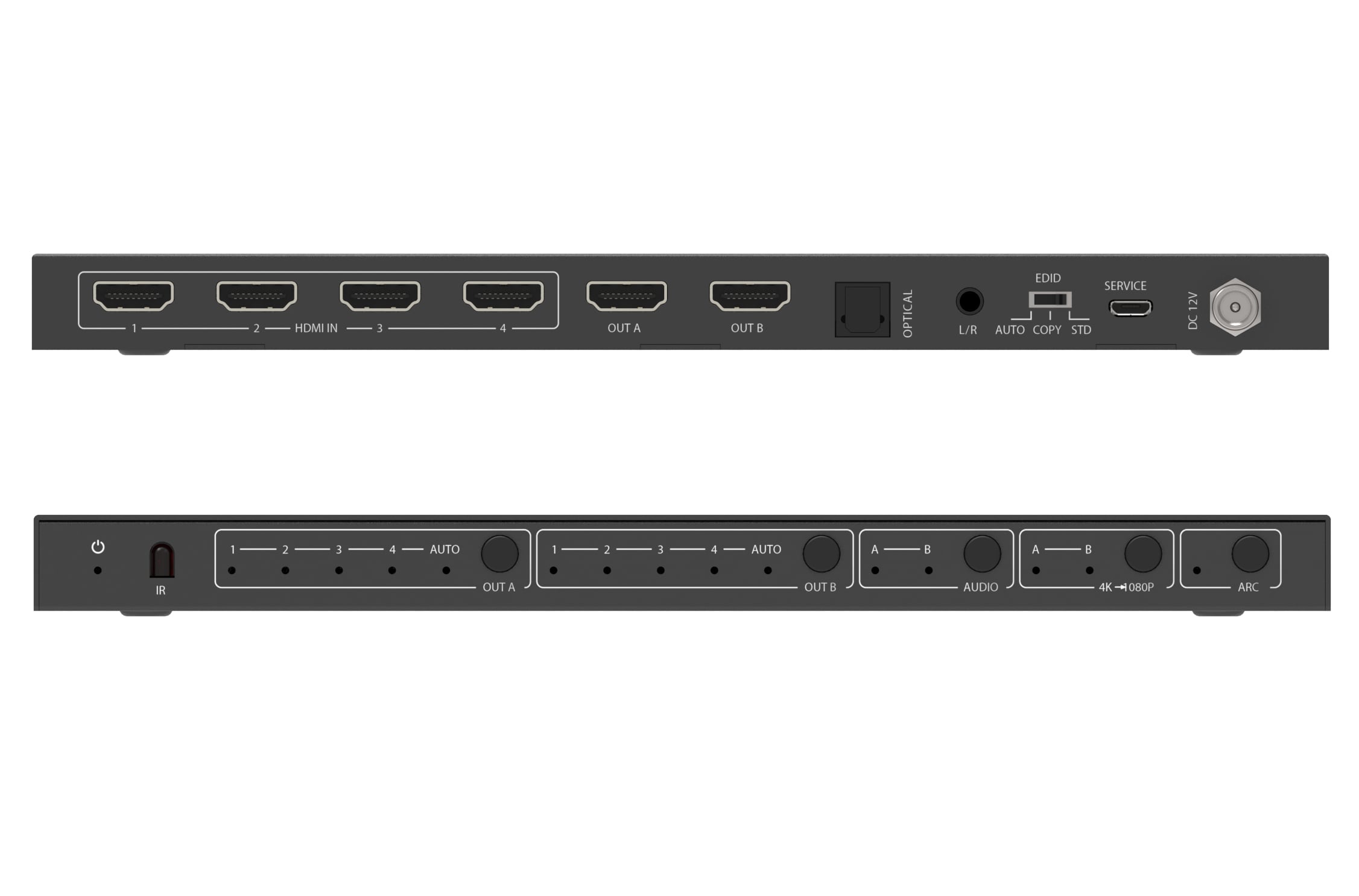

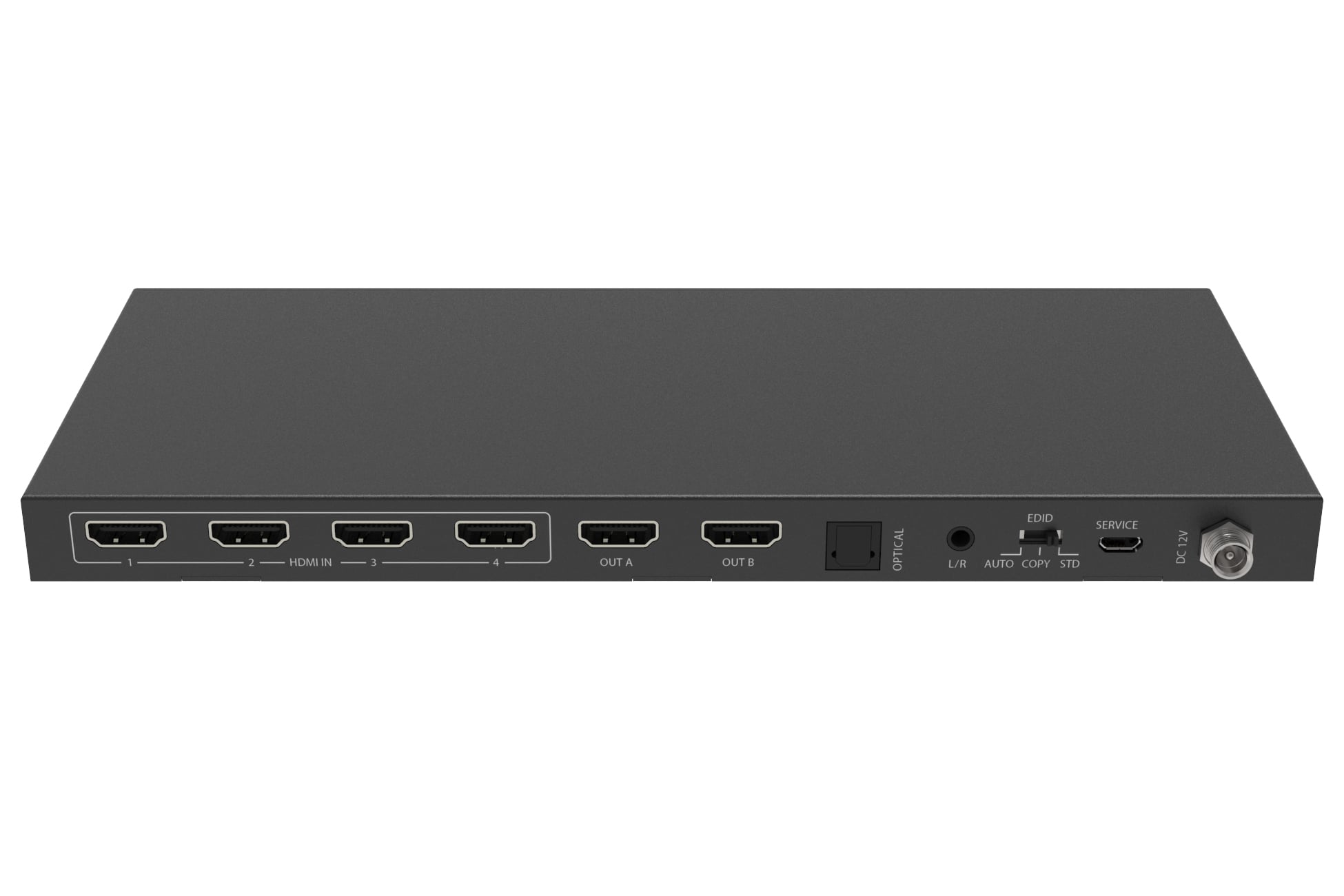

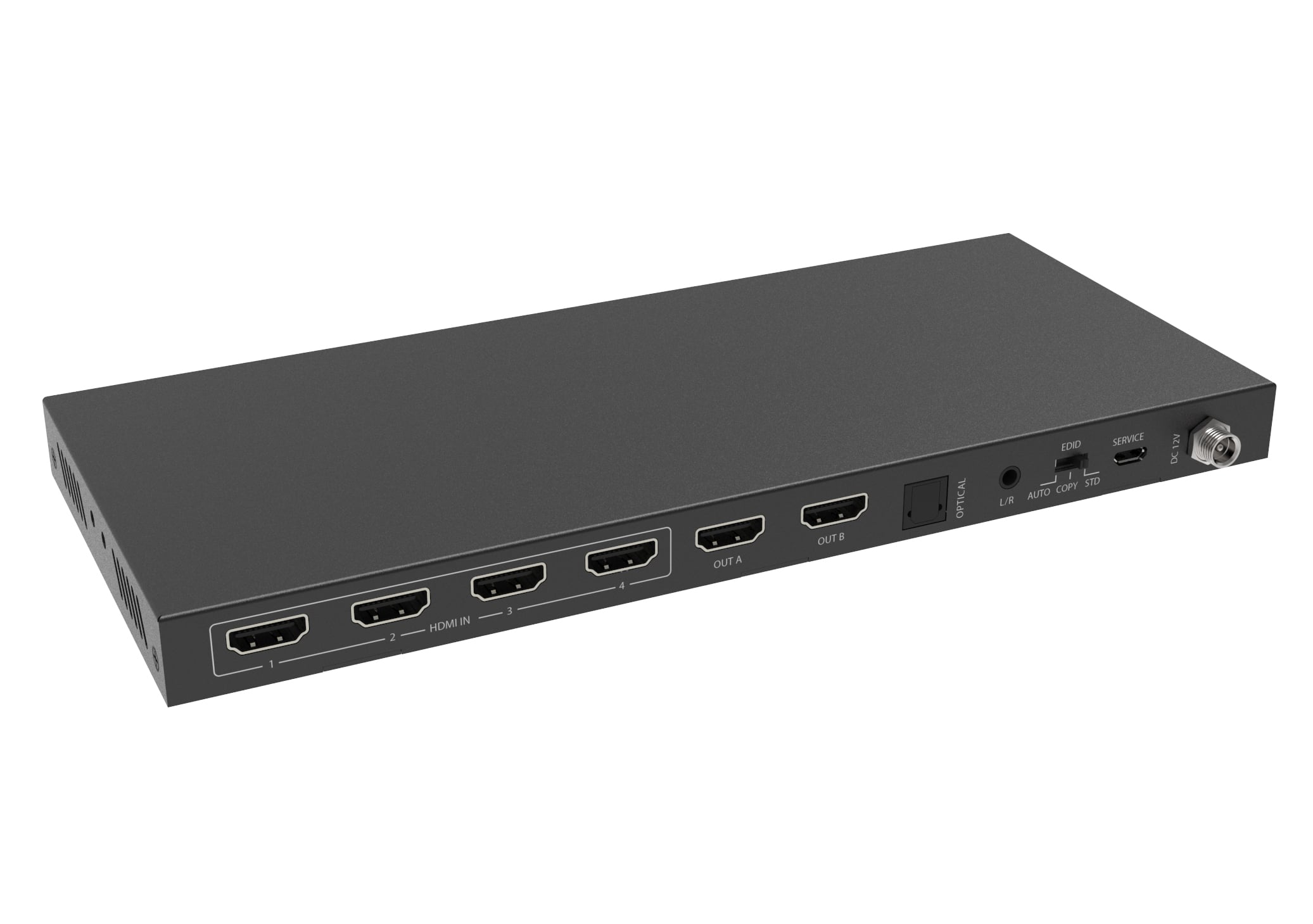

Connections

• Input ports: 4 ×HDMI type A


• Exit doors:



- 2 × HDMI type A

- 1 audio output L/R [mini-jack stereo from 3,5 mm]

- 1 OPTIC audio output [S/PDIF]



Feeding

• Input: AC 100 ~ 240 V 50 / 60 Hz


• Output: DC 12 V/ 1 A


• Maximum consumption: 3.8 W



Dimensions

• Width: 251 mm


• Depthà: 105 mm


• Height: 20 mm



Environmental features

• Operating temperature: 0 °C ~ 40 °C


• Storage temperature: - 20 °C ~ 60 °C


• relative (non-condensation): 20 ~ 90 % RH



Package contents

• 1 x Matrix HDMI 2.0 4 x 2


• 1 x Power supply 12 V/ 1 A


• 2 x Mounting brackets


• 1 x Remote control


• 1x User manual
