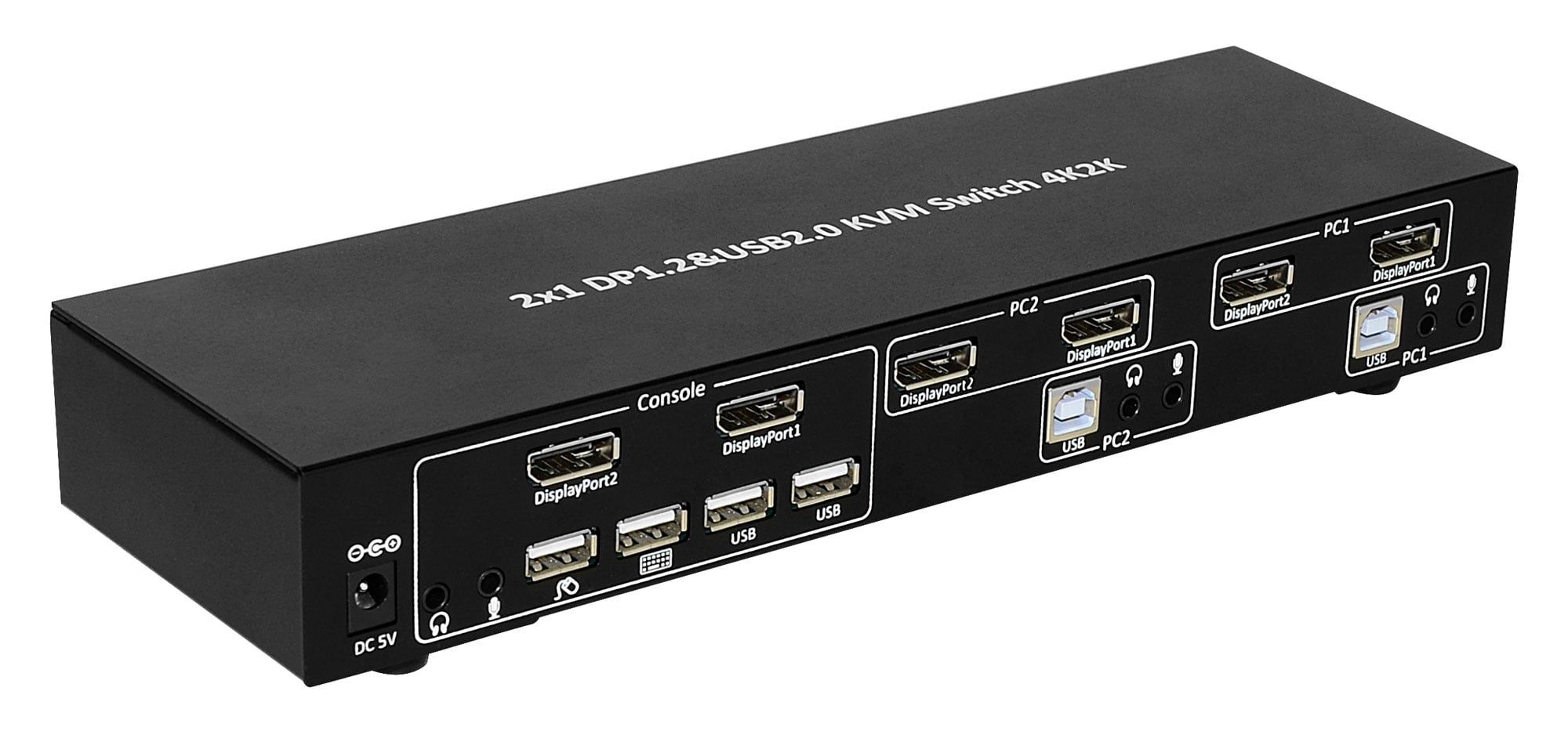

KVM 2 display port switch 1.2 for dual monitor - Techly IDATA DP-KVM 2

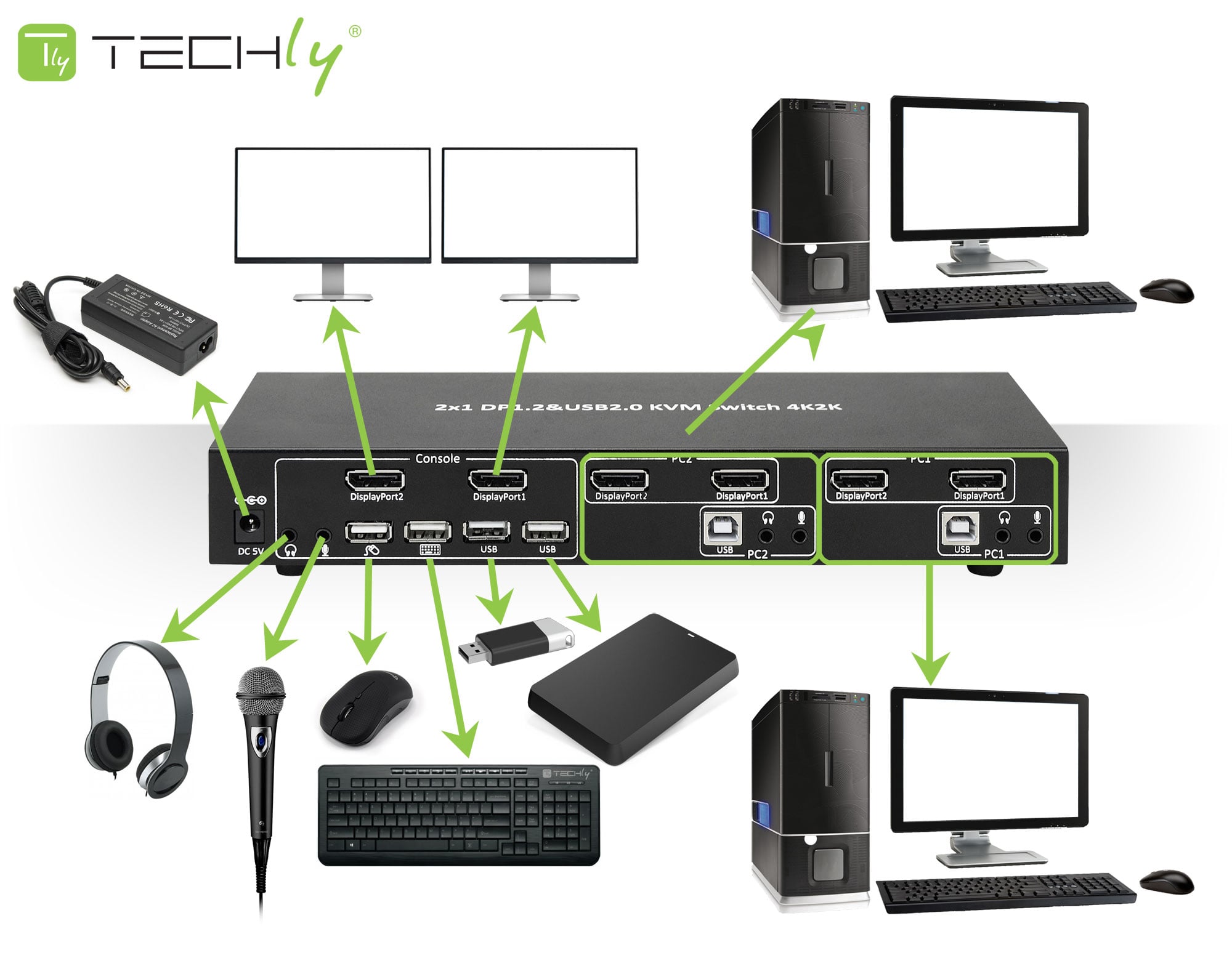

This 2 x 1 DP&USB KVM Switch allows you to share a screen, a keyboard and a USB mouse with audio and microphone between two USB computers and Dual Head DP. It is equipped with two extra USB ports 2.0 with detection and protection from power peaks to connect two additional peripherals. It supports video resolution up to 4096 * 2160 @ 60 Hz with video link rates up to 21.6 Gbps and audio formats Dolby True HD and DTS HD Master Audio. It is also characterized by a metal housing for better shielding against electromagnetic interference and allows the user to switch the device using the front button of selection or through hotkey. It is fully compatible with a wide range of Windows and Mac operating systems.



Features

• KVM 2 displayport switch 1.2 for dual monitor

• It allows you to access two dual-head DisplayPort computers from a workstation with two DisplayPort monitors, a USB keyboard and a USB mouse

• DisplayPort 1.2 Conform

• The built-in USB hub 2.0 offers the possibility to share two USB devices

• Supports video resolution up to 4096 * 2160 @ 60 Hz with video link rate up to 21.6 Gbps

• Supports Dolby True and DTS HD Master Audio audio formats

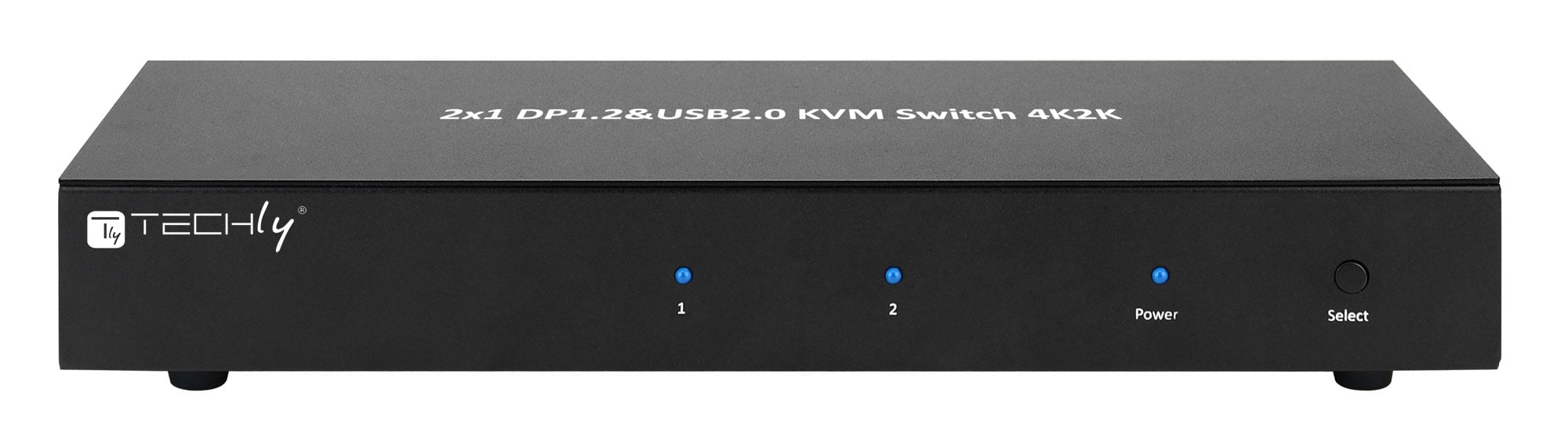

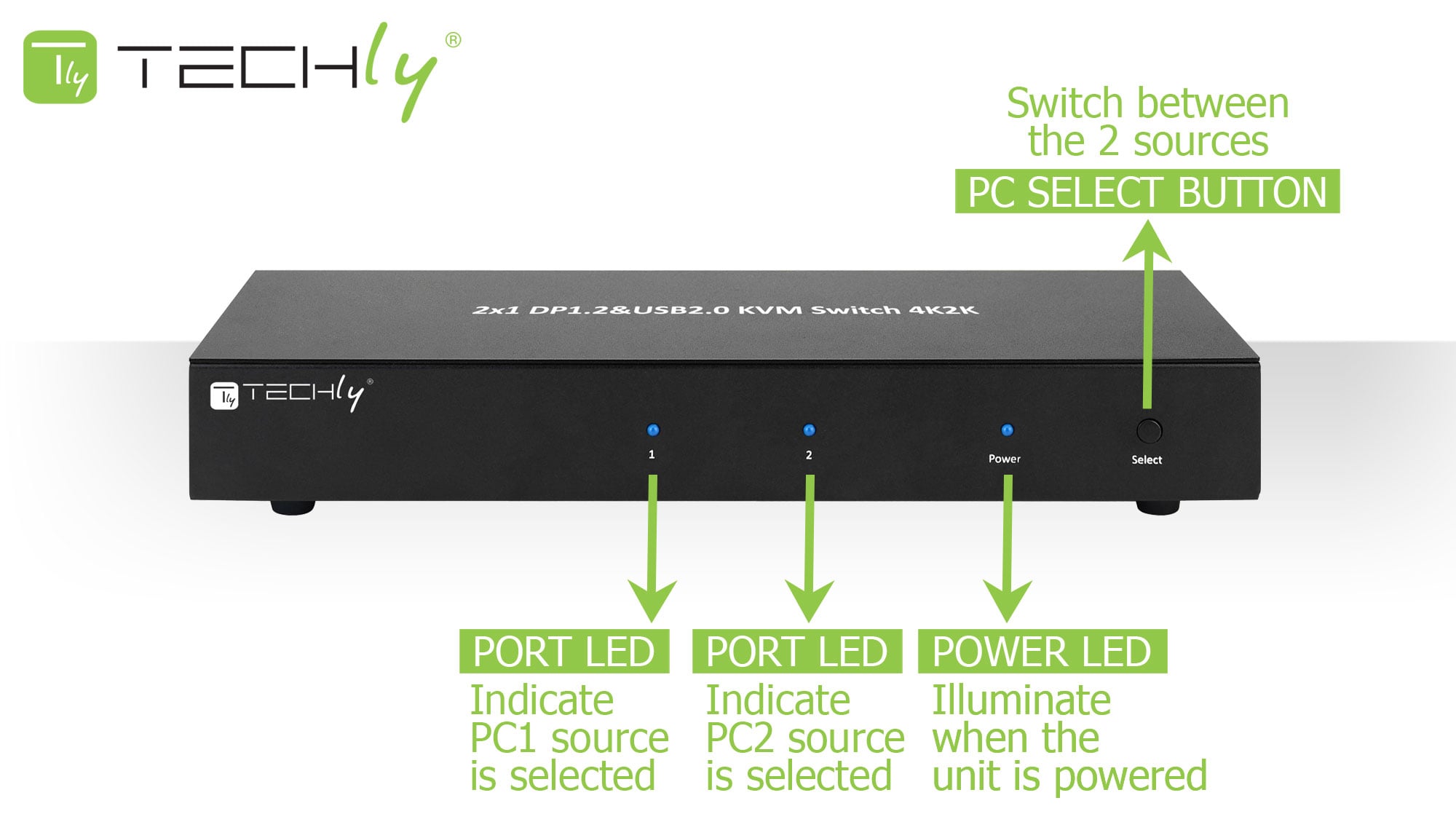

• Switch between the devices via button on the device or via hotkey

• Housing: metal

• Color: black


Technical specifications

• Switch KVM DP&USB 2 x 1 compliant DP v 1.2 , saves costs for additional equipment and reduces occupied spaces

• It allows you to control two computers, each with dual head video cards, from a single workstation

• Allows you to share between 2 USB / DP computers the same screens, keyboard and USB mouse with audio and microphone and USB devices*

• Integrate a USB hub to 2 USB ports 2.0 with overvoltage detection and protection

• Switch between the devices via button on the device or via hotkey

• Supports Dolby True and DTS HD Master Audio audio formats

• Metal housing for better shielding

• At least one connected device must be a PC with USB port otherwise the switching mechanism will not work


Requirements

• Computer with Windows, Mac, Linux

• Game consoles, Blu-Ray DVD players and other consumer electronics products

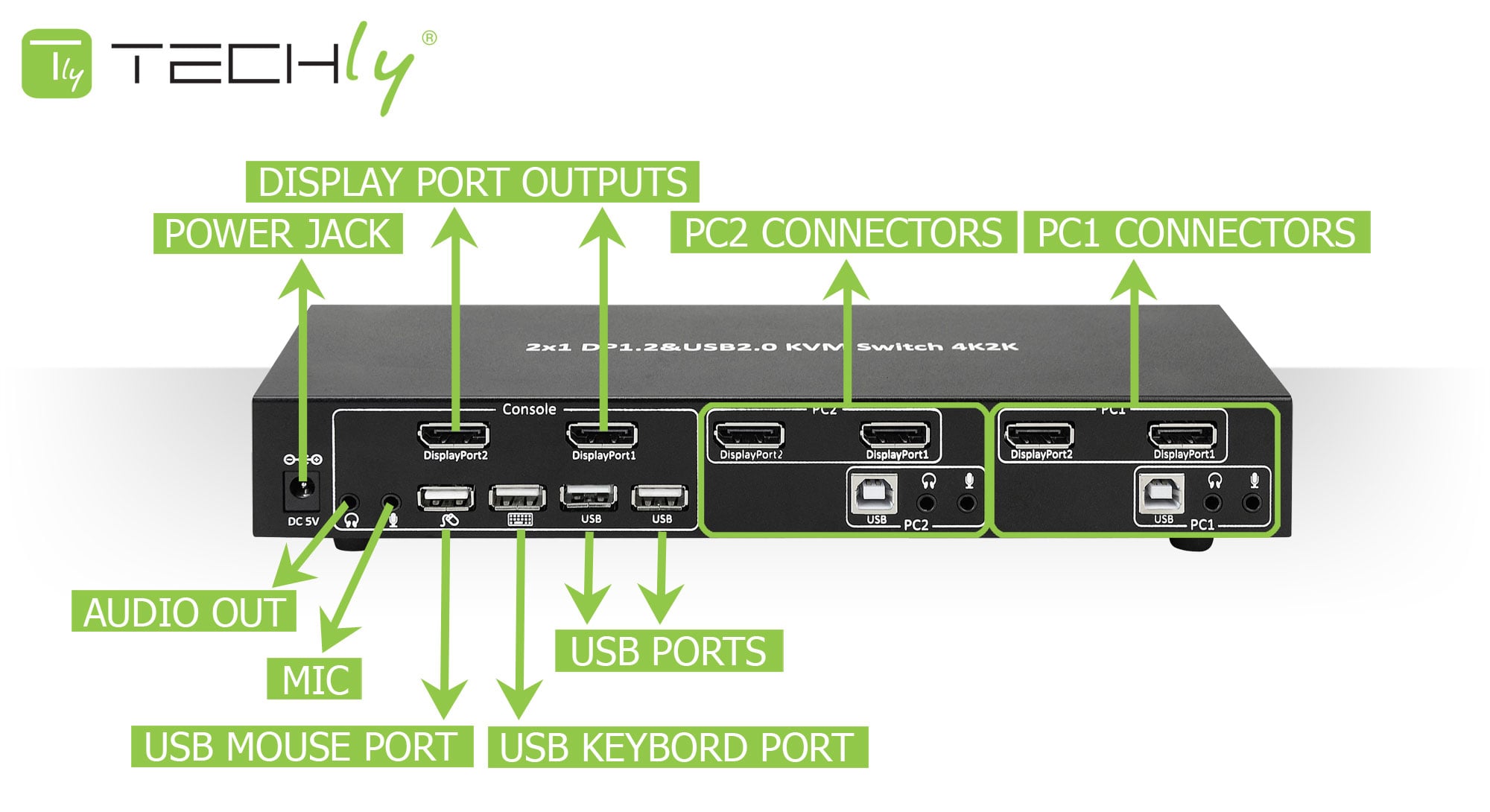

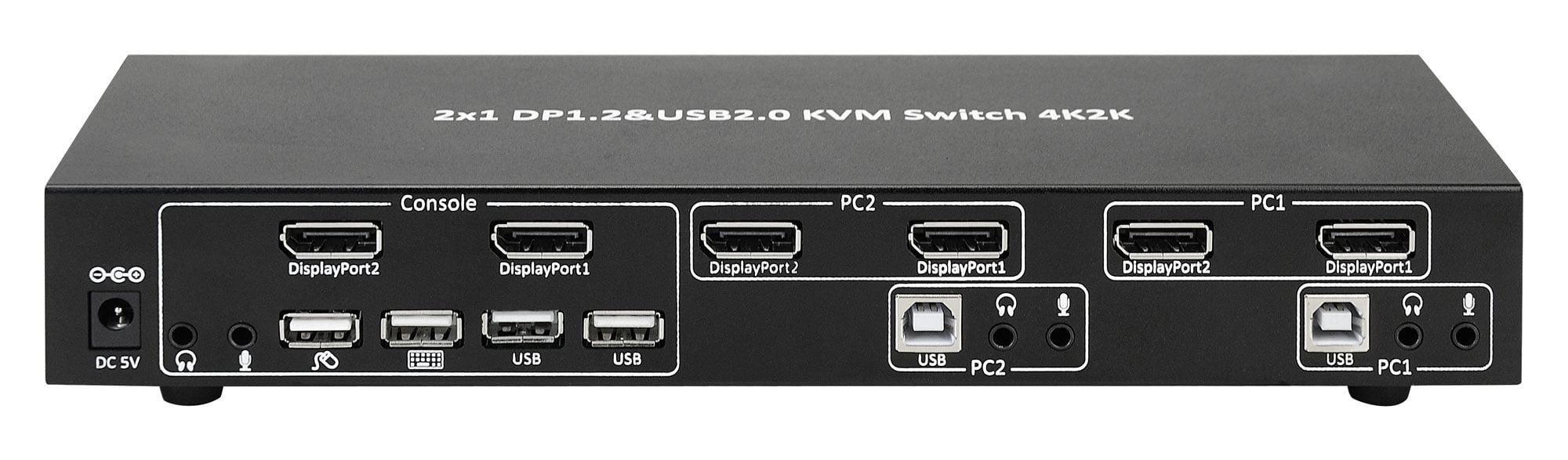

Connections

• Input: DisplayPort Female x 4

• Input: 4 -pin, type B, USB 2.0 Female x 2

• Output: DisplayPort Female (Dual Head) x 2

• Output: 4 -pin, USB 2.0 , type A Female (keyboard) x 1

• Output: 4 -pin, USB 2.0 , type A Female (mouse) x 1

• Output: 4 -pin, USB 2.0 type A Female x 2

• Output: microphone jack x 1

• Output: stereo audio jack (headphones) x 1


Feeding

• Input: 100 – 240 V, 50 - 60 Hz

• Output: 5 V DC, 2.0 A


Package contents

• KVM 2 displayport switch 1.2 for dual monitor

• Education manual

• 5 V / 2 A power supply
