Switch Sharing Peripherals USB 3.2 Gen 1 4 x 4 Ports - Aten IDATA US 434

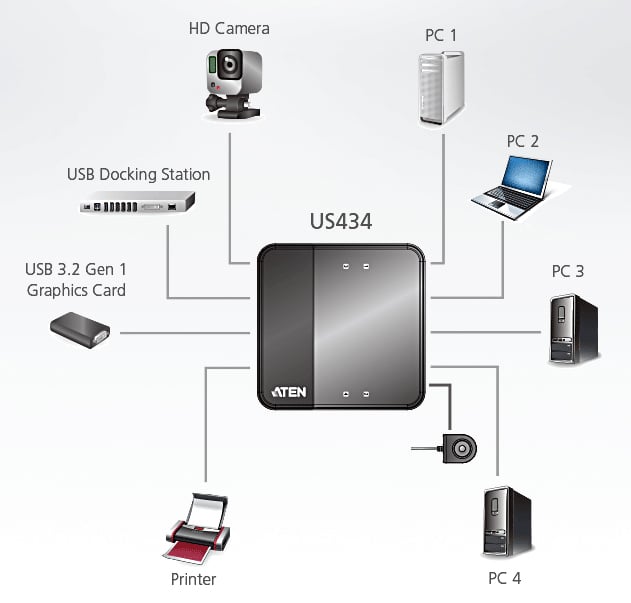

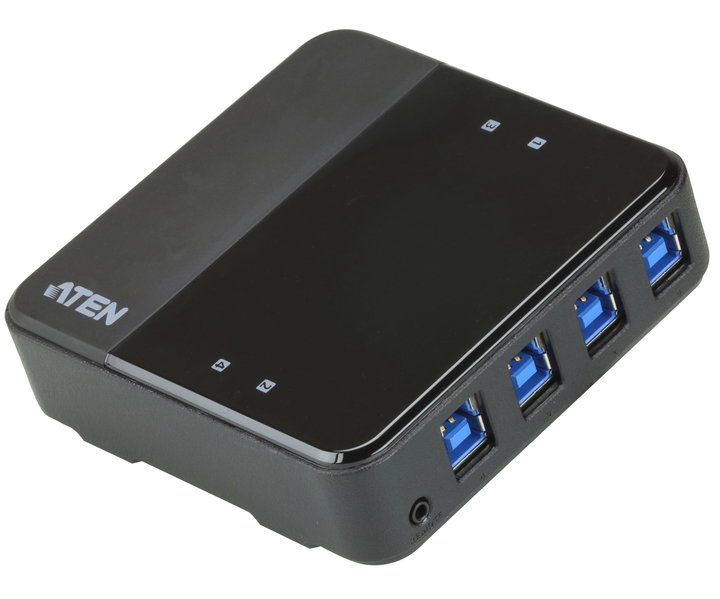

IDATA US 434 è a device for sharing devices with 4 USB ports 3.2 Gen 1 that allows users to share four USB devices between four different computers.

And USB 3.2 Gen 1 compliant, supports a data transfer speed à up to 5 Gbps and è backcompatible with USB 2.0 and USB 1.1. It is perfect for devices with high bandwidth, e.g. USB docking station or HD cameras.

In addition, US 434 has an external remote port selector that makes the desktop layout easier, and the selection of which computer to use USB devices. Thanks to its compact and complete design, è can create a space-saving, comfortable and productive working environment.



Features

• Allows 4 computer to share 4 USB devices 3.2 Gen 1

• Selecting the port via a remote port selector for a convenient switch position

• USB 3.2 Gen 1 , supports data transfer speeds à up to 5 Gbps

• LEDs indicate which computer è is active

• Overcurrent protection

• Powered by bus

• Micro USB power jack for additional power supply

• Hot pluggable, no drivers or software needed


Technical specifications

• Computer connections: 4

• Select Port: Remote Port Selector

• Connectors:

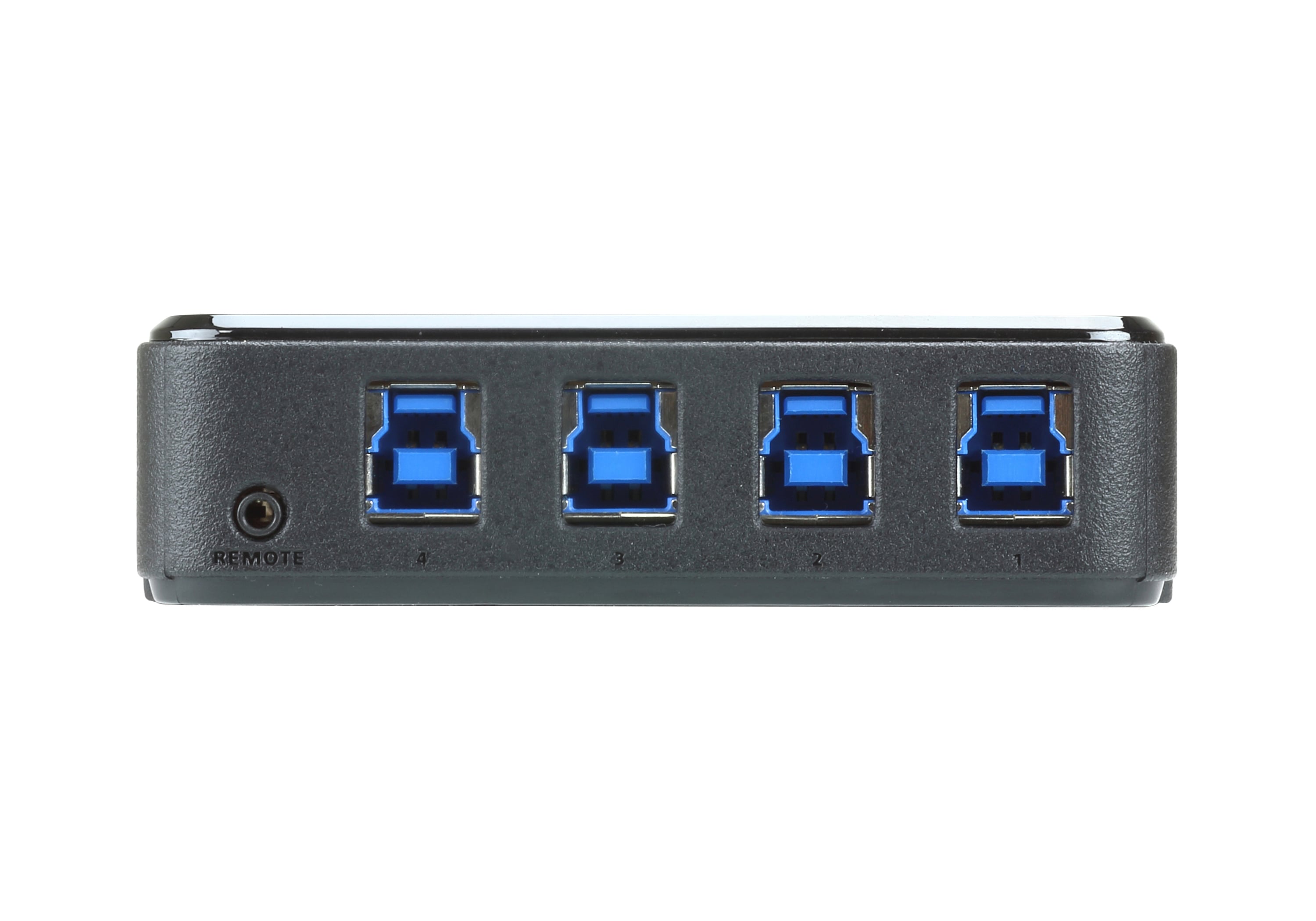

- Computer: 4 x USB type B, female (blue)

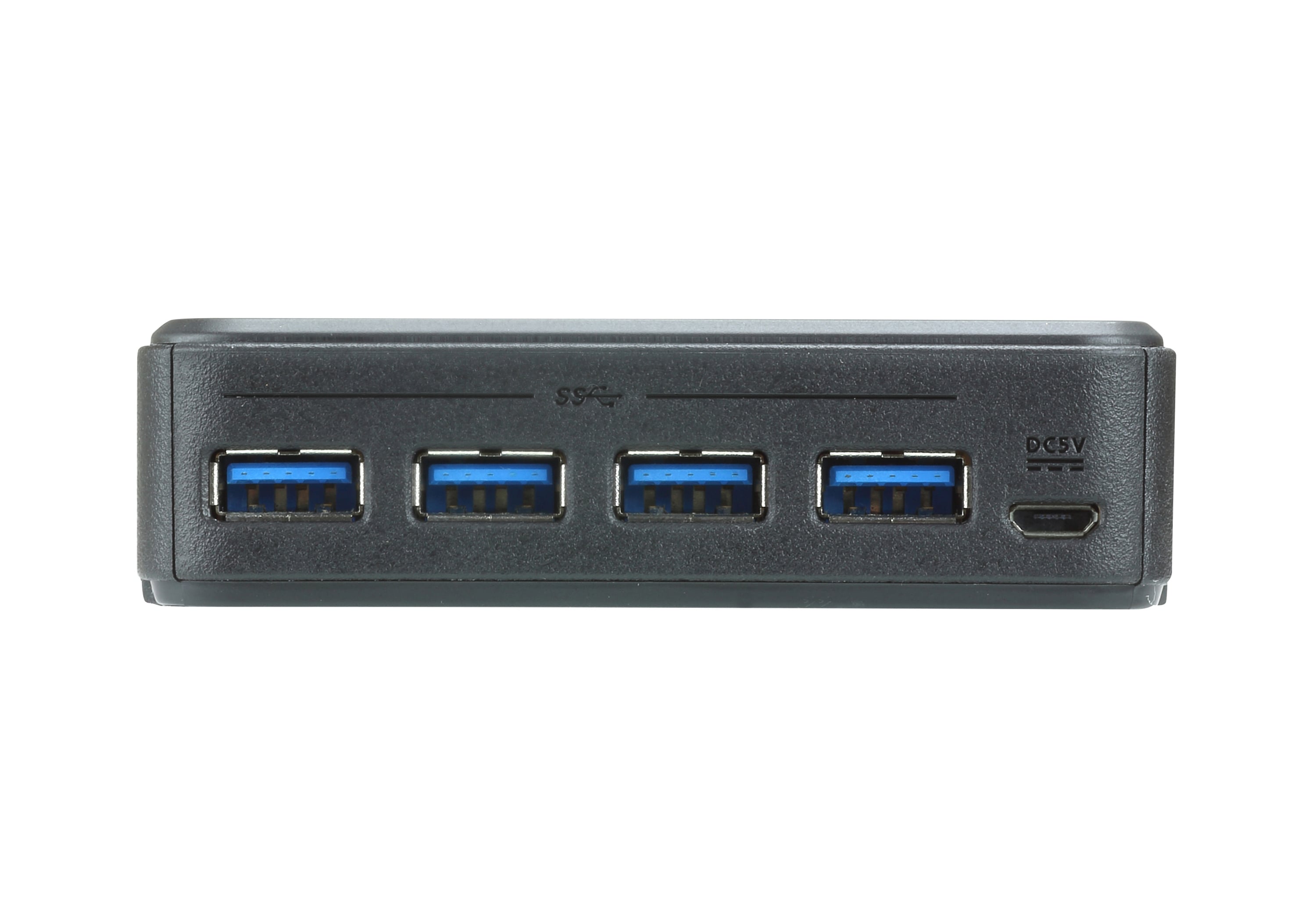

- Device:  4 x USB type A female (blue)

- Power supply (optional):  1 x micro USB type B female (black)

• USB cable length: 2 x 1,2 m/ 2 x 1,8 m

• Remote door selector: 1,8 m

• LED: selected 4 (white)


Compatibilityà

• Windows

• Mac

• Linux


Environmental features

• Operating temperature: 0 – 40 °C

• Storage temperature: - 20 – 60 °C

• Humidità: 0 – 80 % relative humidity without condensation


Dimensions

• Width: 9,37 cm

• Depthà: 9,30 cm

• Height: 2,68 cm


Certifications

• CE

• FCC

• RAEE


Package contents

• 1 x Super hub for sharing US 234 peripherals to 4 USB ports 3.2 Gen 1

• 2 x cables LIN 6 - 11 C 1 -E 11 G USB 3.2 Gen 1 B/A (1,2 m)

• 2 x cables LIN 6 - 11 C 1 -E 12 G USB 3.2 Gen 1 B/A (1,8 m)

• 1 x Remote door selector

• 1x User manual
