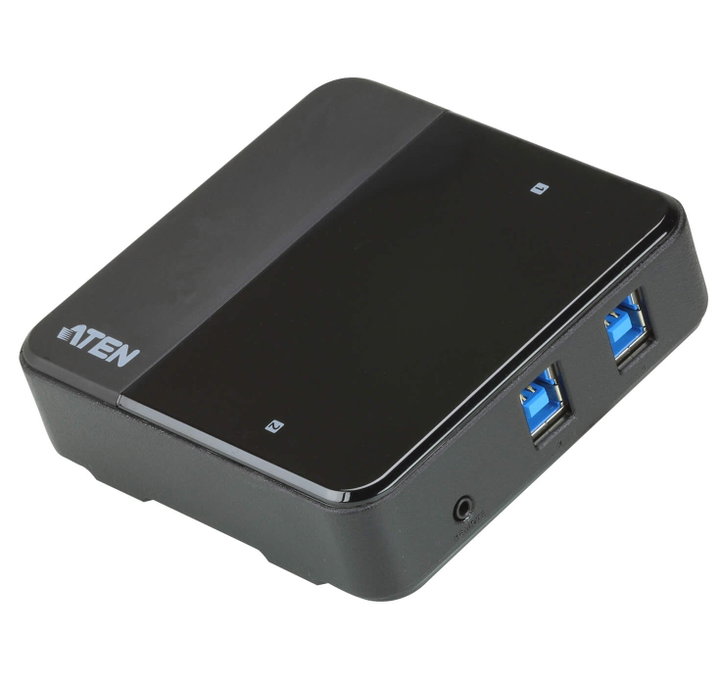

3.2 Gen 1 2 x 4 ports, US 3324 - Aten IDATA US- 3324

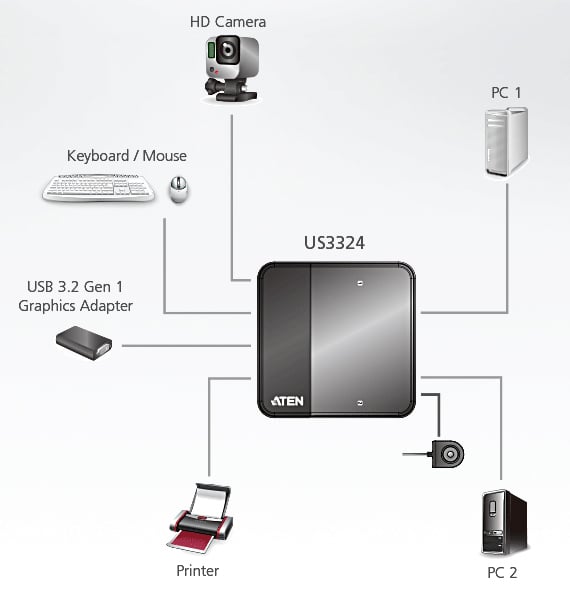

L IDATA US- 3324 è a USB 3.2 Gen 1 peripheral sharing device to 2 ports that allows users to share four USB devices between 2 different computers using USB 3.2 Gen 1 USB cables from type-B to type-A. The connected cables provided allow you to save on costs for the purchase of additional USB cables. The additional USB 3.2 Gen 1 cable from type-B to type-C included in the package, allows the connection to USB-C computers and flexible and hybrid use, representing the most economical solution for laptops and tablet computers equipped with USB-C

L IDATA US- 3324 è USB compliant 3.2 Gen 1 è supports a data transfer speed of up to 5 Gbps and è back-compatible with USB 2.0 and USB 1.1 . It is perfect for devices with high bandwidth, such as USB dock station or HD cameras.



Features

• Allows 2 computer to share 4 USB devices 3.2 Gen 1

• Selecting the port via remote selector for a convenient switch position

• USB 3.2 Gen 1 , supports data transfer speeds à up to 5 Gbps

• LEDs indicate which computer è is active

• Overcurrent protection

• Micro USB power jack for additional power supply

• Powered by bus – not è external power supply required

• Plug-and-play – no external driver or power supply needed

• Multiplatform – Windows, Linux and Mac support

• Compact and complete design, è can create a space-saving, comfortable and productive work environment


Specifications

• Computer connections: 2

• Port Selection: via remote port selector

• Connectors:

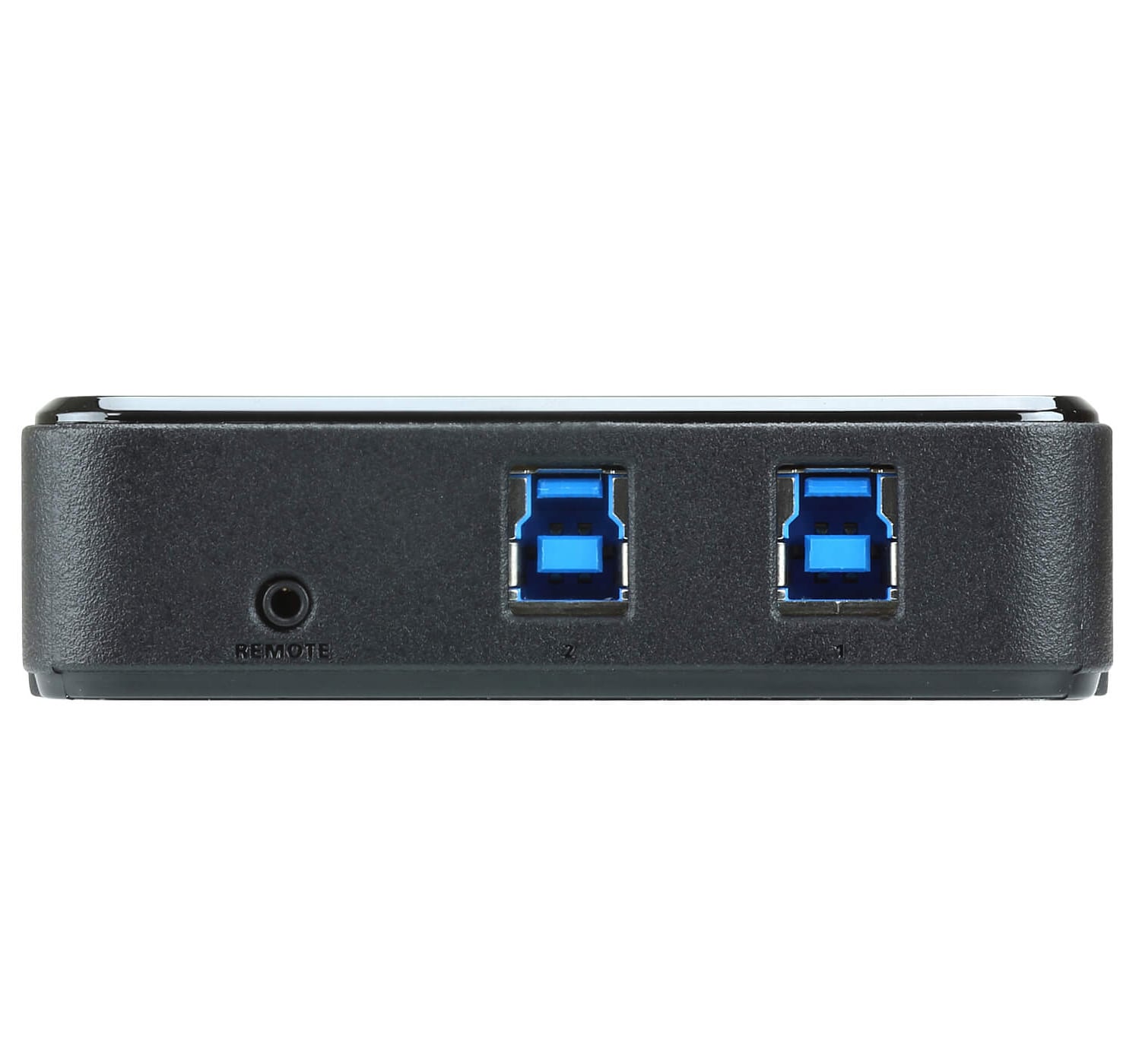

- Computer: 2 x USB type B female (blue)

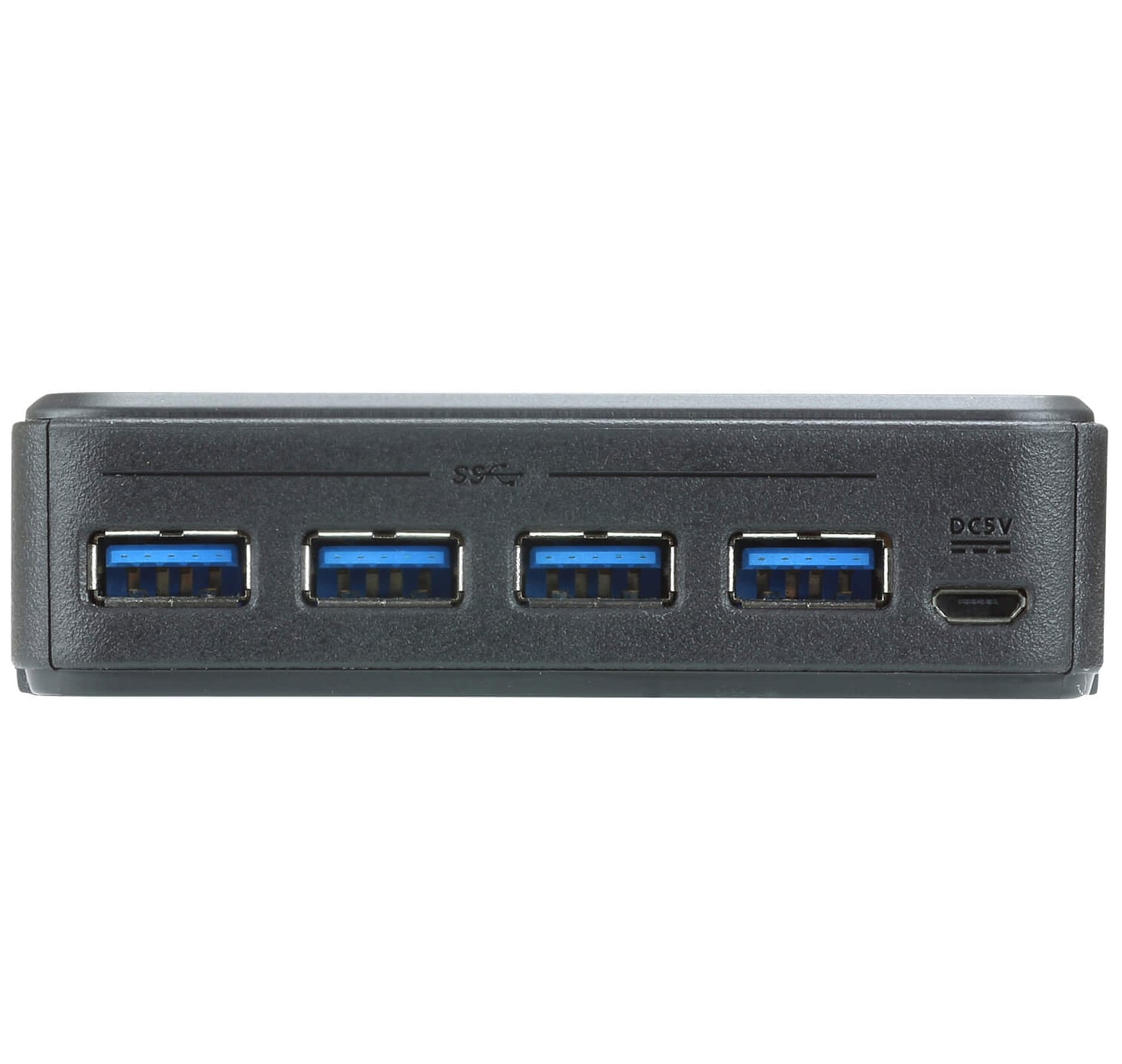

- Device: 4 x USB type A female (blue)

- Power supply (optional): 1 x micro USB type B female (black)

• Length of cable:


- USB cable 3.2 Gen 1 from B to A from 1,2 m x 2

- USB cable 3.2 Gen 1 from B to C from 1,8 m x 1

• Remote door selector: 1,8 m

• Structure: plastic

• Weight: 0,45 kg

• Dimensions (L x P x A): 9,37 x 9,30 x 2,68 cm


Environmental information

• Operating temperature: 0 – 40 °C

• Storage temperature: - 20 – 60 °C

• Humidità: 0 – 80 % relative humidity without condensation


Package contents

• 1 x USB 3.2 peripheral sharing switch Gen a 2 x 4 ports

• 2 x USB cables 3.2 Gen 1 from type-B to type-A from 1,2 M

• 1 x USB cable 3.2 Gen 1 from type-B to type-C from 1,8 M

• 1 x remote port selector

• 1 x user instructions
