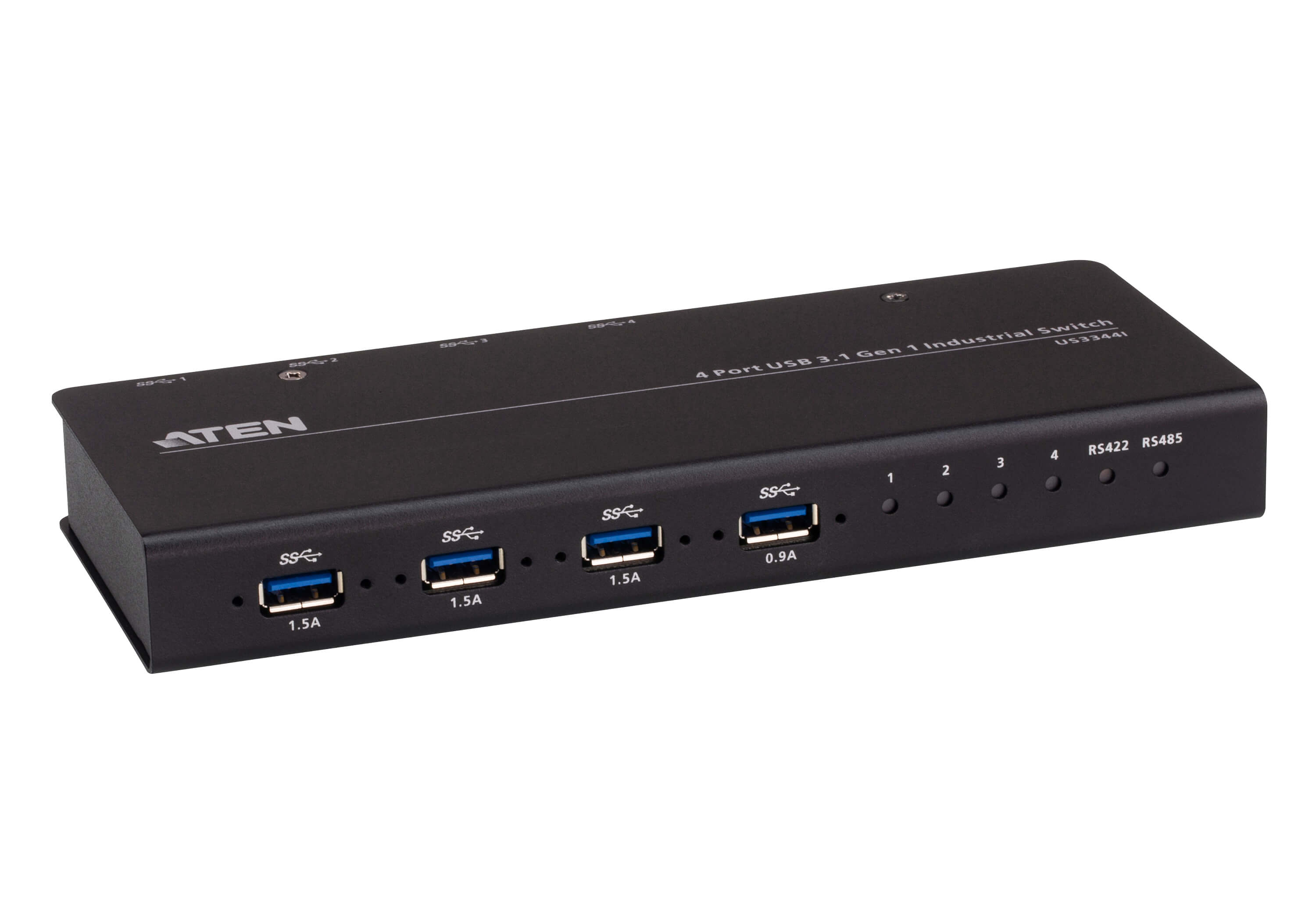

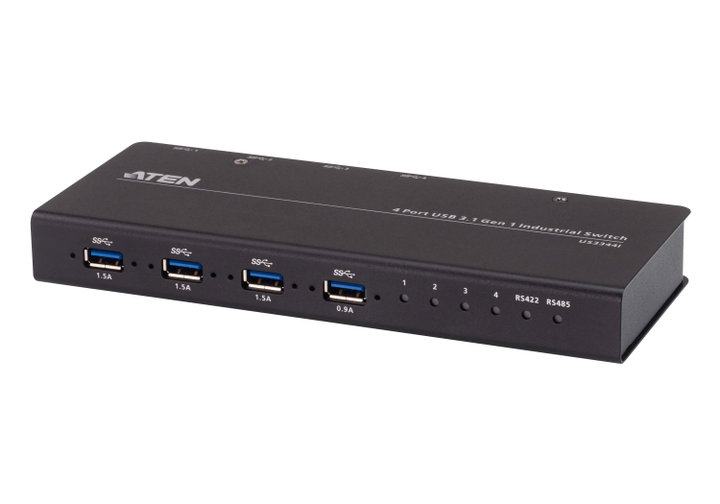

Switch Hub Industrial USB 3.2 Gen 1 4 Doors - Aten IDATA US- 334 I

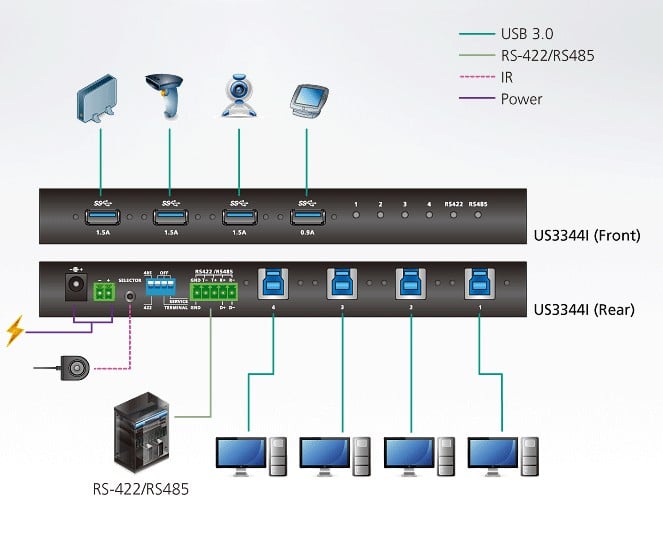

L US 3344 I è an industrial USB switch 3.2 Gen 1 to 4 ports that allows 4 computers to share the use of USB devices 3.2 Gen 1 , for example a keyboard, mouse and other peripheral devices. The peripheral management can ` be assigned manually to a computer by the push button on the switch.



Eliminates the costs of implementing complex redundant systems and equipment for each computer. The chassis and rack mountable design of the US 3344 I adapts to industrial environments. For further comfortà, it has a remote control port that makes wiring easier by means of traditional RS- 422 /RS- 485 signals.



The US 3344 I allows a clean and tidy installation. USB cables are provided to save on the purchase of additional USB cables.



Features

• Allows four computers to share a USB device with up to four devices

• Supports USB 3.2 Gen 1 , speed à maximum data transfer up to 5 Gbps

• Multiplatform support: Windows, Mac and Linux

• LED door indicators

• Metal mechanical chassis with wall mounting design

• Supports USB screw locking cable M 2 aftermarket

• Supports the choice of the port via remote controller or RS- 422 /RS- 485 connection via 5 pin terminal block

• Hot Connectable

• Supports a 9 - 24 V DC power supply via terminal block

• Supports battery charge V 1.2 and overcurrent protection

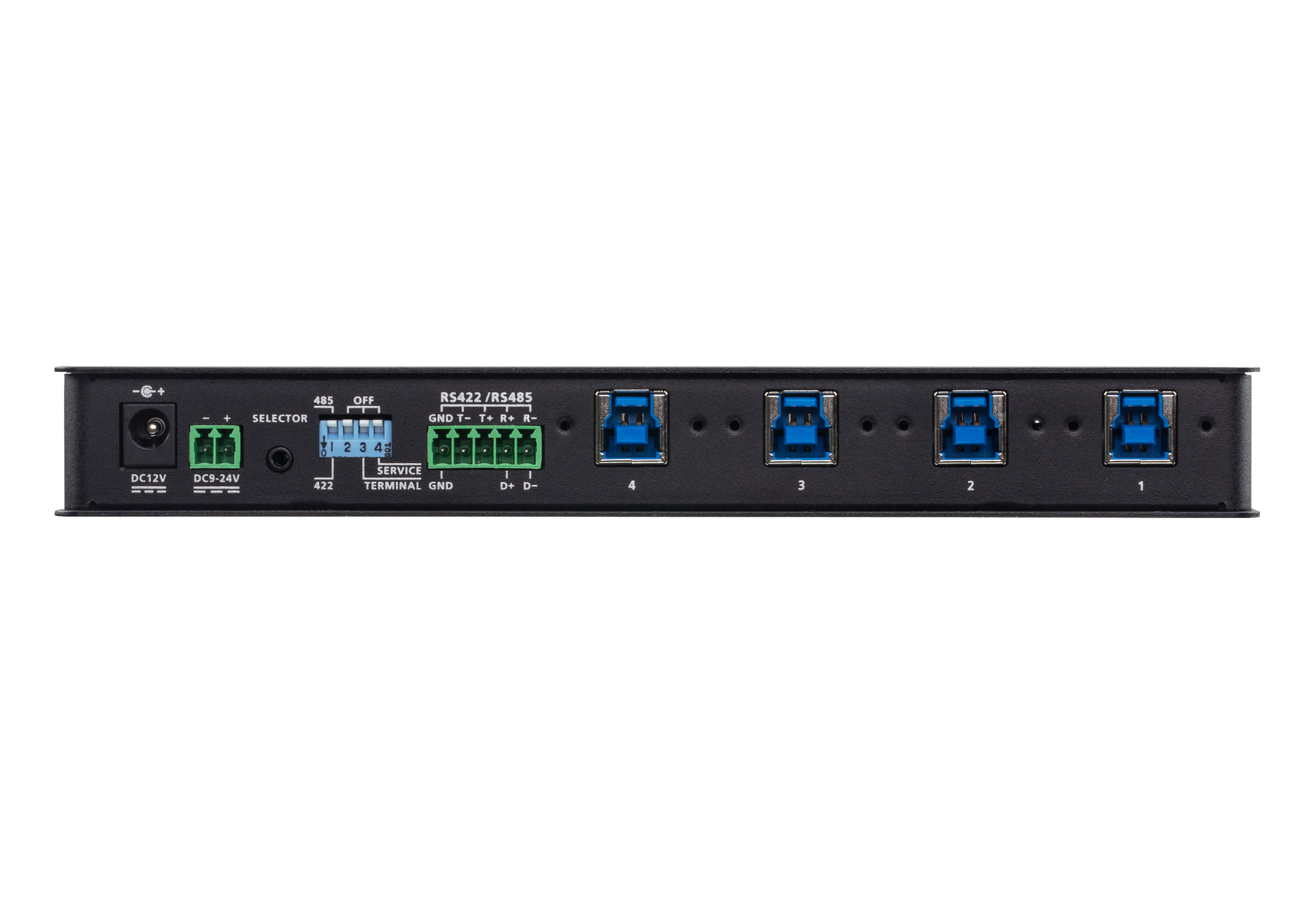

Connectors

• Computer: 4 x female type B USB (blue)

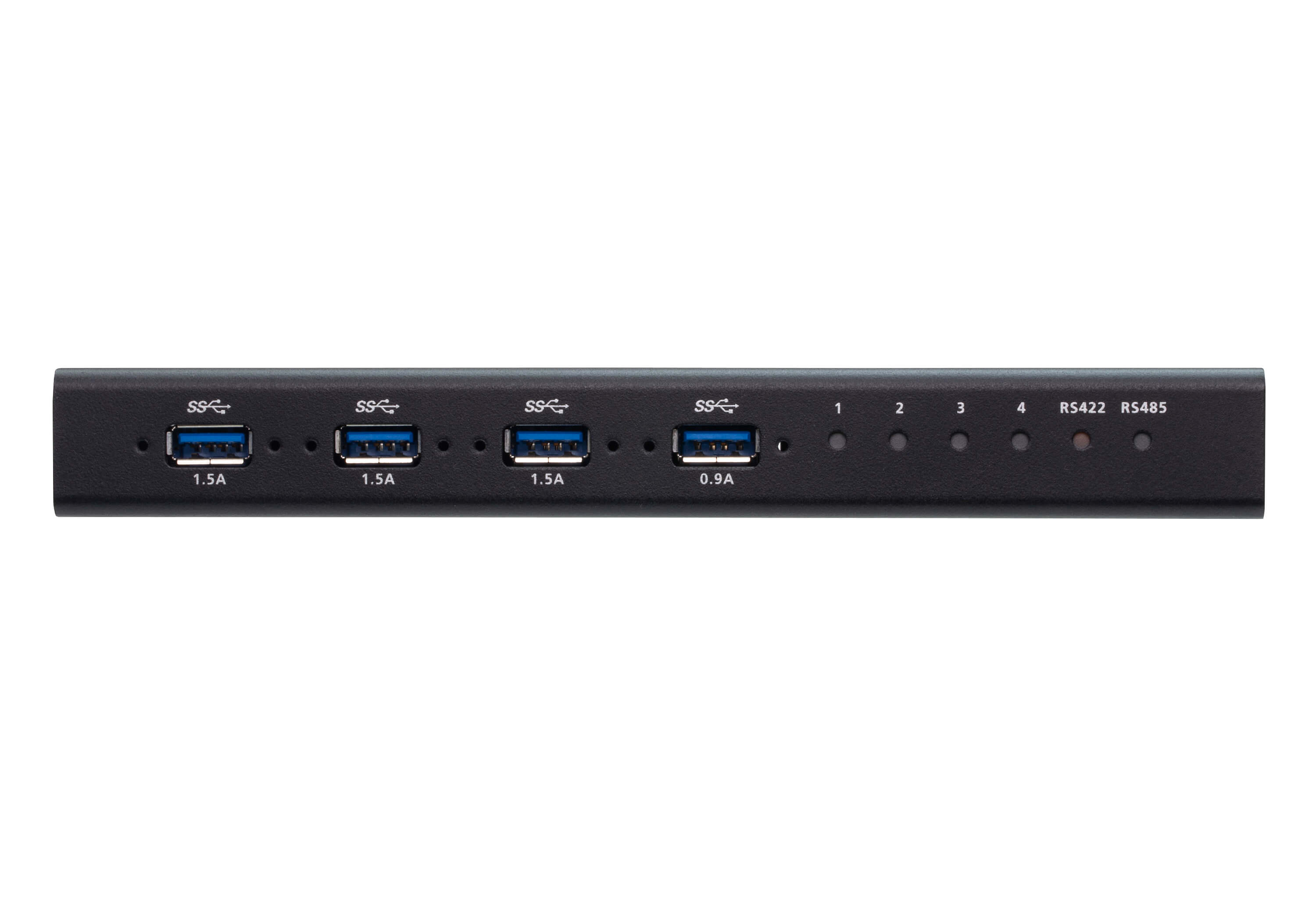

• Device: 4 x USB type A female (blue)

• Serial: 1 5 pin terminal plug (green)

• Power supply: 1 9 terminal plug - 24 V a 2 pin (green)

• Power supply (optional): 1 x female 12 V CC connector (black)


LED

• Selected: 4 (green)

• Serial:


RS 422 (orange)

RS 485 (green)



Environmental features

• Humidità: 0 - 80 % relative humidity without condensation

• Operating temperature: 0 - 50 °C

• Storage temperature: - 20 - 60 °C


Dimensions

• Width: 20,00 cm

• Depthà: 8,00 cm

• Height: 2,50 cm


Package contents

• 1 x industrial switch hub USB 3.2 Gen 1 4 x 4

• 2 x LIN 6 - 11 C 1 -E 11 G USB cables 3.2 Gen 1 from Type-B to Type-A from 1,2 M

• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.2 Gen 1 from Type-B to Type-A from 1,8 M

• 1 x remote port selector

• 1 x mounting kit

• 1 x terminal block adapter set (a RS- 422 /RS- 485 and a terminal block DC adapter)

• 1x User instructions
