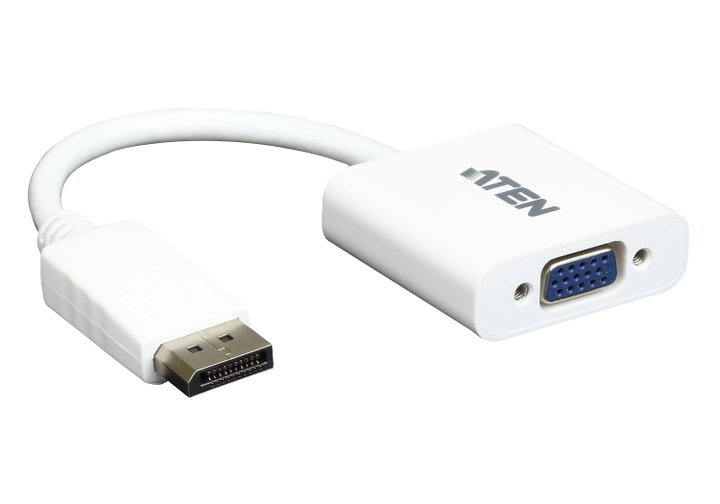

VGA DisplayPort Adapter - Aten IDATA VC- 925

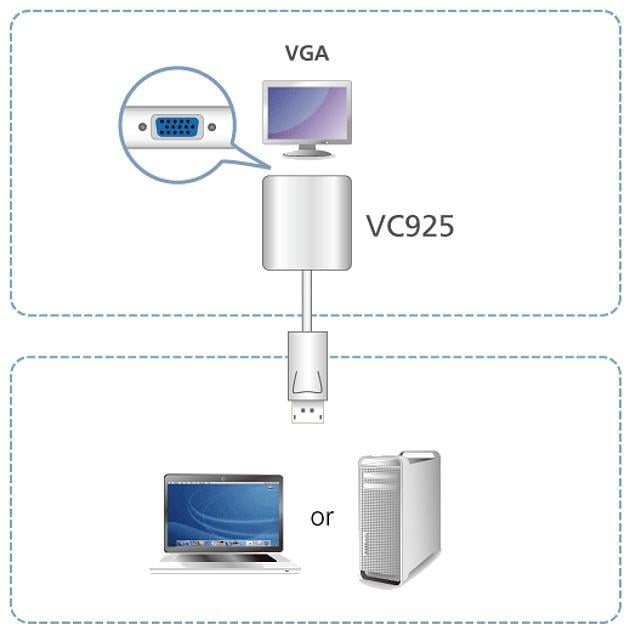

IDATA VC- 925 è an adapter from DisplayPort to VGA that allows you to connect the DisplayPort output of the device to the VGA input of a TV or other screen.

The VC 925 offers a cost-effective solution and high-performance signal conversion at the same time. Therefore, this è adapter is perfect for computers and notebooks that support display resolutions up to WUXGA (1920 x 1200 to 60 Hz).



Features

• Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920 x 1200 (PC) / 1080 p (HDTV)


• No software or driver installation required



Technical specifications

• Video input: 1 x DisplayPort male interface (white)


• Video output: interface 1 x HDB- 15 female (blue)


• Video



- Pixel clock max. 165 MHz

- Maximum resolution 1920 x 1200 at 60 Hz (PC)/ 1080 p (HDTV)

- Conformityà DP 1.1 a



Environmental features

• Operating temperature: 0 - 50 oC


• Storage temperature: - 20 - 60 oC


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 18,00 cm


• Depthà: 4,50 cm


• Height: 1,50 cm



Certifications

• CE


• RAEE



Package contents

• 1 x DisplayPort adapter to VGA VC 925
